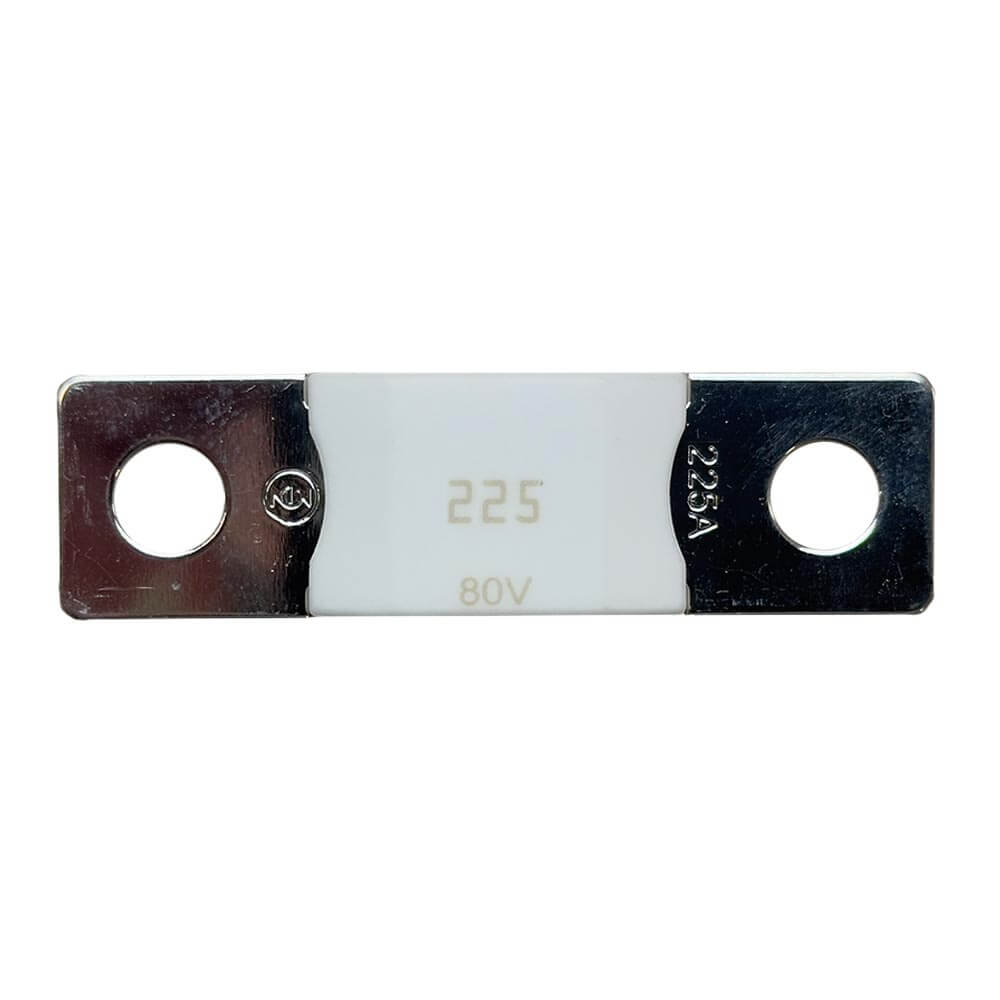

MEGA-fuse 225A/80V (Single pc)

MEGA-fuse 225A/80V (Single pc)

CIP138225020

Brand: Victron

225 Amp maximum current rating. 80 Volt DC maximum voltage rating. Essential protection for high-current DC systems. Standard MEGA/AMG bolt-down form factor. Dimensions: 9 x 19 x 67mm

28 in stock

£6.80 GBP
£6.80 GBP
Sale Sold out

Product Details

The Victron MEGA-fuse 225A/80V is a high-grade component engineered to deliver reliable, high-current circuit protection for your DC power system. Rated at a substantial 225 Amps and a maximum of 80 Volts DC, this MEGA/AMG fuse is perfectly suited for safeguarding the main battery cable runs and vital equipment like powerful inverters, large battery banks, or the Victron Lynx Distribution system in 48V nominal installations.

Its robust design and precision manufacturing ensure immediate interruption of power during damaging short circuits or severe overcurrent events, enhancing safety and extending the lifespan of your expensive electronics. With an exceptionally low cold resistance of and minimal approximate voltage drop of , this fuse maintains excellent system efficiency by reducing energy loss.

This essential piece of circuit protection is sold as a single unit for specific installations or quick replacements in marine, off-grid, or vehicle applications.

Product Specifications

Performance & Electrical Specifications

  • Current Rating: 225 A
  • Voltage Rating: 80 V
  • Approximate Voltage Drop: 110 mV
  • Cold Resistance: 0.235 mΩ
  • Fuse Type: MEGA fuse (standard)

Mechanical Specifications

  • Mounting Type: Bolt-on
  • Mounting Hole Diameter: 8.7 mm (Designed for M8 bolts)
  • Overall Length: 68.8 mm
  • Total Width: 19 mm
  • Center-to-Center Hole Distance: 50.8 mm
  • Internal Body Width: 29.2 mm
  • Connection Tab Width: 16.2 mm

System Integration & Safety

  • Installation: Must be used with a compatible MEGA fuse holder to ensure safety and proper electrical contact.
  • Application: Recommended for primary circuit protection in marine, automotive, and off-grid solar systems, particularly those utilizing 48V battery banks.
  • Construction: High-durability design engineered to withstand the vibration and thermal demands of professional power installations.

MEGA-fuse 225A/80V (Single pc) – Data Sheet
