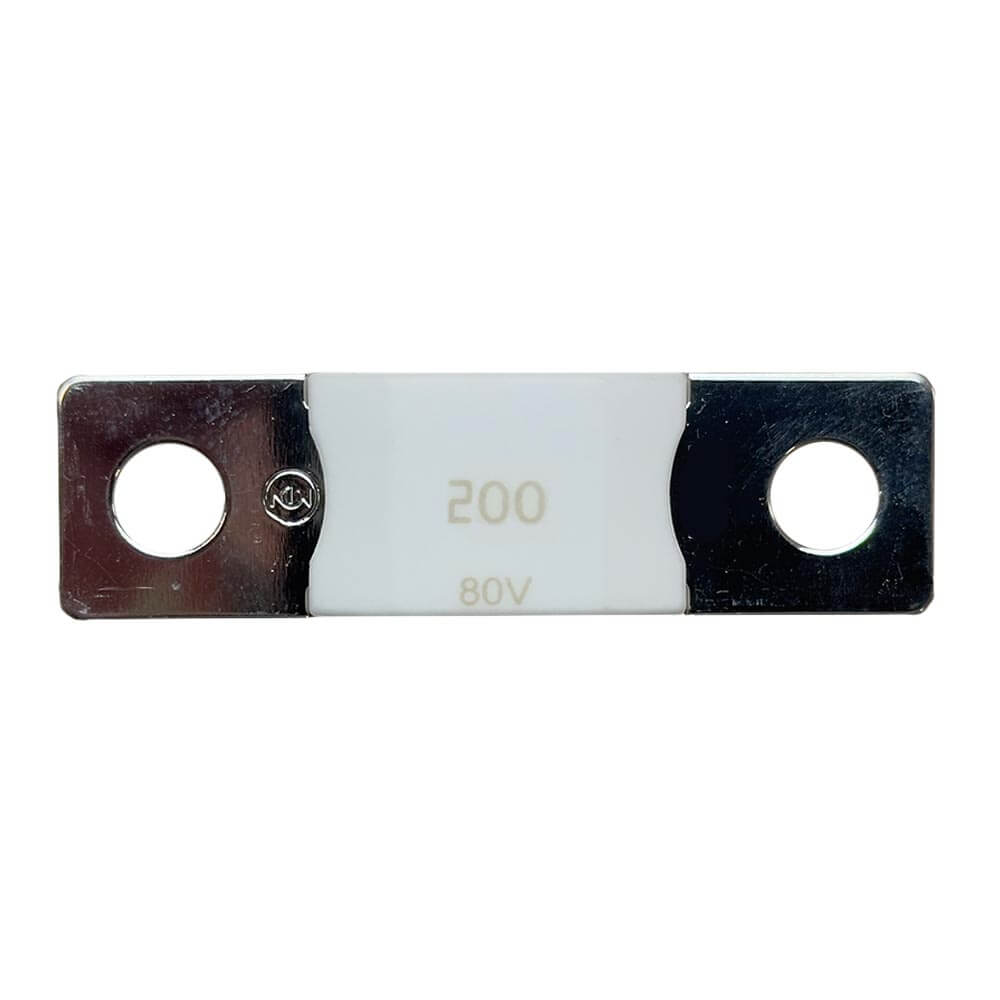

MEGA-fuse 200A/80V (Single pc)
MEGA-fuse 200A/80V (Single pc)
SKU:CIP138200020
Brand: Victron
High Current Capacity
High Voltage Compatibility
Durable Ceramic Construction
Compact and Easy to Install
Flexible Purchasing Options
Dimensions: 9 x 19 x 67mm
55 in stock
Regular price
£6.80 GBP
Regular price
Sale price
£6.80 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MEGA-fuse 200A/80V is a ceramic fuse engineered to provide reliable overcurrent protection in high-power DC circuits. With a current rating of 200A and a voltage rating of 80V, this fuse is suitable for various applications, including solar energy systems, battery banks, and other DC-powered equipment.
Key Features:
- High Current Rating: 200A capacity to handle substantial loads.
- High Voltage Rating: 80V rating ensures compatibility with high-voltage systems.
- Ceramic Construction: Provides durability and resistance to environmental factors.
- Compact Size: Dimensions of 9 x 19 x 67 mm for easy integration into systems.
- Package Contents: Sold individually, allowing for flexible purchasing.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Current Rating: 200 A
- Voltage Rating: 80 V
- Approximate Voltage Drop: 110 mV
- Cold Resistance: 0.253 mΩ
- Fuse Type: MEGA fuse (standard)
Mechanical Specifications
- Mounting Type: Bolt-on
- Mounting Hole Diameter: 8.7 mm (Designed for M8 bolts)
- Overall Length: 68.8 mm
- Total Width: 19 mm
- Center-to-Center Hole Distance: 50.8 mm
- Internal Body Width: 29.2 mm
- Connection Tab Width: 16.2 mm
System Integration & Safety
- Installation: Must be used with a compatible MEGA fuse holder to ensure safety and proper electrical contact.
- Application: Recommended for primary circuit protection in marine, automotive, and off-grid solar systems, particularly those utilizing 48V battery banks.
- Construction: High-durability design engineered to withstand the vibration and thermal demands of professional power installations.
