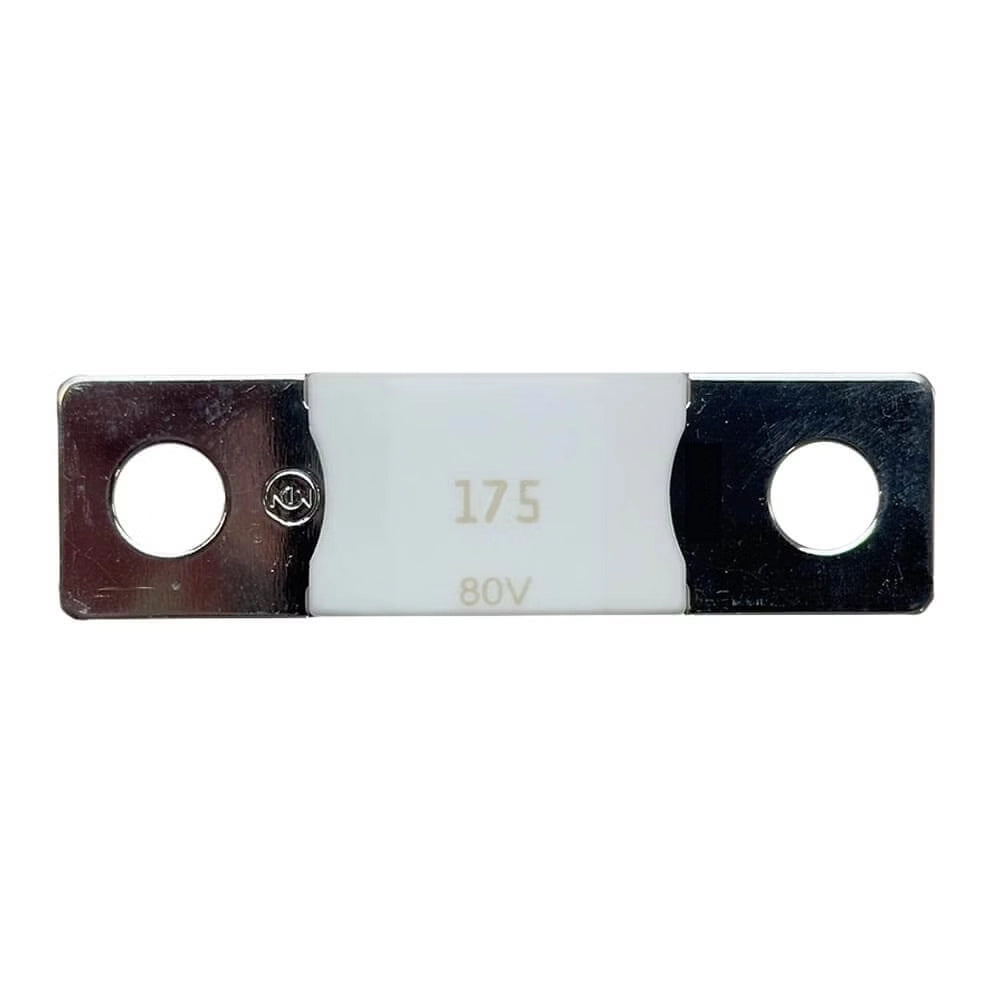

MEGA-fuse 175A/80V (Single pc)
MEGA-fuse 175A/80V (Single pc)
SKU:CIP138175020
Brand: Victron
35 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron MEGA-fuse 175A/80V offers robust, high-performance overcurrent protection for critical DC installations. Rated at 175 Amps and a maximum of 80 Volts DC, this premium ceramic fuse is an essential component for safeguarding high-power electronics, including large inverters, battery banks, and high-capacity charge controllers, against damaging short circuits and overloads.
Featuring the industry-standard MEGA/AMG bolt-down format, this fuse ensures a secure and vibration-resistant connection within compatible fuse holders, making it ideal for the challenging conditions of marine, off-grid solar, and automotive systems. The precision engineering results in a low cold resistance of only 0.282 mΩ, which minimises energy wastage and heat generation for improved system efficiency.
This product is supplied as a single unit, perfect for one-off replacements or specific project needs.
Product Specifications
Product Specifications
Electrical Specifications
- Current Rating: 175 A
- Voltage Rating: 80 V
- Approximate Voltage Drop: 110 mV
- Cold Resistance: 0.282 mΩ
Mechanical Specifications
- Fuse Type: MEGA
- Total Length: 68.8 mm
- Distance Between Hole Centers: 50.8 mm
- Mounting Hole Diameter: 8.7 mm
- Terminal Width: 19 mm
- Body Length: 29.2 mm
- Terminal Height: 16.2 mm
Compatibility & Installation
- Required Accessories: Designed for use with a dedicated Victron MEGA fuse holder.
- Application: Optimized for high-voltage DC protection in Victron Energy systems, particularly those utilizing 48V battery configurations.
