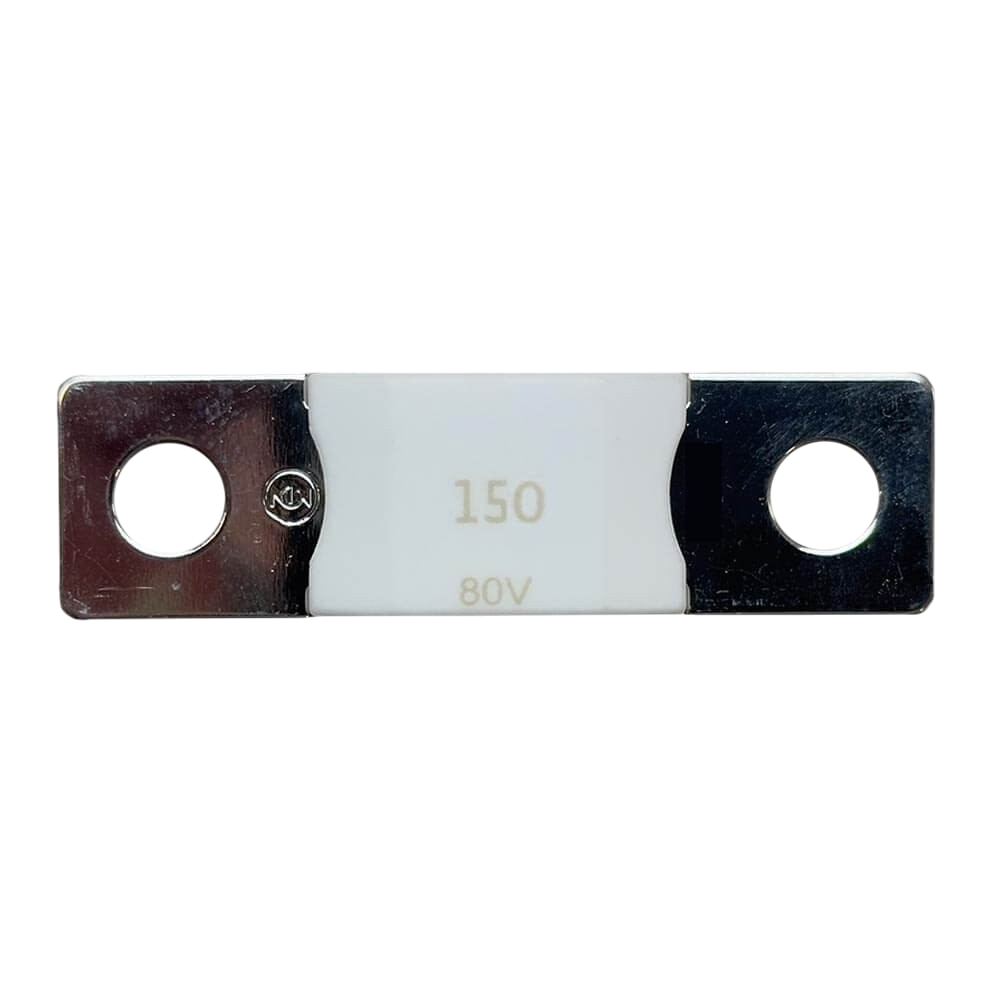

MEGA-fuse 150A/80V (Single pc)
MEGA-fuse 150A/80V (Single pc)
SKU:CIP138150020
Brand: Victron
29 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron MEGA-fuse 150A/80V is a high-quality, reliable circuit protection solution for high-current DC systems. Rated for a maximum of 150 Amps and a maximum voltage of 80 Volts DC, this ceramic fuse is essential for safeguarding your most valuable components, such as inverters, battery banks, and charge controllers, against dangerous short circuits and overcurrents.
As a standard MEGA/AMG type fuse, it features a bolt-down design for a secure and vibration-resistant installation within a compatible fuse holder, making it perfect for demanding environments in off-grid solar, marine, automotive, and industrial applications. The use of a low cold resistance value of 0.332 mΩ ensures minimal power loss and efficient operation.
This product is supplied as a single unit.
Product Specifications
Product Specifications
Electrical Specifications
- Current Rating: 150 A
- Voltage Rating: 80 V
- Approximate Voltage Drop: 110 mV
- Cold Resistance: 0.332 mΩ
Mechanical Specifications
- Fuse Type: MEGA
- Total Length: 68.8 mm
- Distance Between Hole Centers: 50.8 mm
- Mounting Hole Diameter: 8.7 mm
- Terminal Width: 19 mm
- Body Length: 29.2 mm
- Terminal Height: 16.2 mm
Compatibility & Installation
- Required Accessories: Designed for use with a dedicated Victron MEGA fuse holder.
- Application: Optimized for high-current protection in Victron Energy systems, particularly those utilizing 48V battery configurations.
