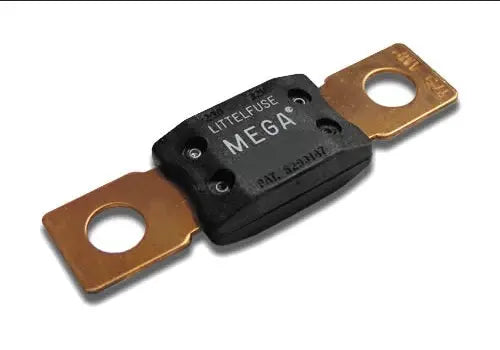

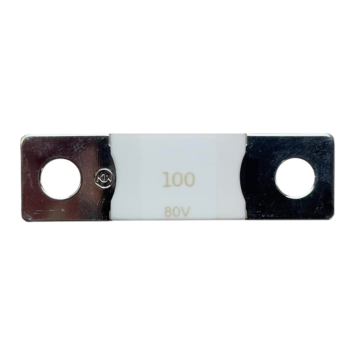

MEGA-fuse 100A/80V (Single pc)
MEGA-fuse 100A/80V (Single pc)
SKU:CIP138100020
Brand: Victron
Rated current: 100 A
Maximum voltage: 80 V DC
Voltage drop ≈ 110 mV at rated current
Cold resistance ≈ 0.868 mΩ
Suitable for 12V, 24V, 48V and higher DC systems
Dimensions: 9 x 19 x 67mm
56 in stock
Regular price
£6.80 GBP
Regular price
Sale price
£6.80 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MEGA-fuse 100A / 80V offers dependable overcurrent protection for DC systems, with a rating of 100 A and support for voltages up to 80 V.
With a voltage drop of approximately 110 mV at full load and a cold resistance around 0.868 mΩ, this fuse combines performance and efficiency in demanding environments.
Compact and robust, it is ideal for integration into fuse holders, busbars, or DC distribution assemblies, particularly in systems based on 12V, 24V, 48V or higher voltages.
Victron supports this fuse line under its standard warranty terms.
Product Specifications
Product Specifications
Electrical Specifications
- Current Rating: 100 A
- Voltage Rating: 80 V
- Approximate Voltage Drop: 110 mV
- Cold Resistance: 0.868 mΩ
Mechanical Specifications
- Fuse Type: MEGA
- Total Length: 68.8 mm
- Distance Between Hole Centers: 50.8 mm
- Mounting Hole Diameter: 8.7 mm
- Terminal Width: 19 mm
- Body Length: 29.2 mm
- Terminal Height: 16.2 mm
Compatibility & Installation
- Required Accessories: Designed for use with a dedicated Victron MEGA fuse holder.
- Application: Optimized for high-current protection in Victron Energy systems, particularly those utilizing 48V battery configurations.
