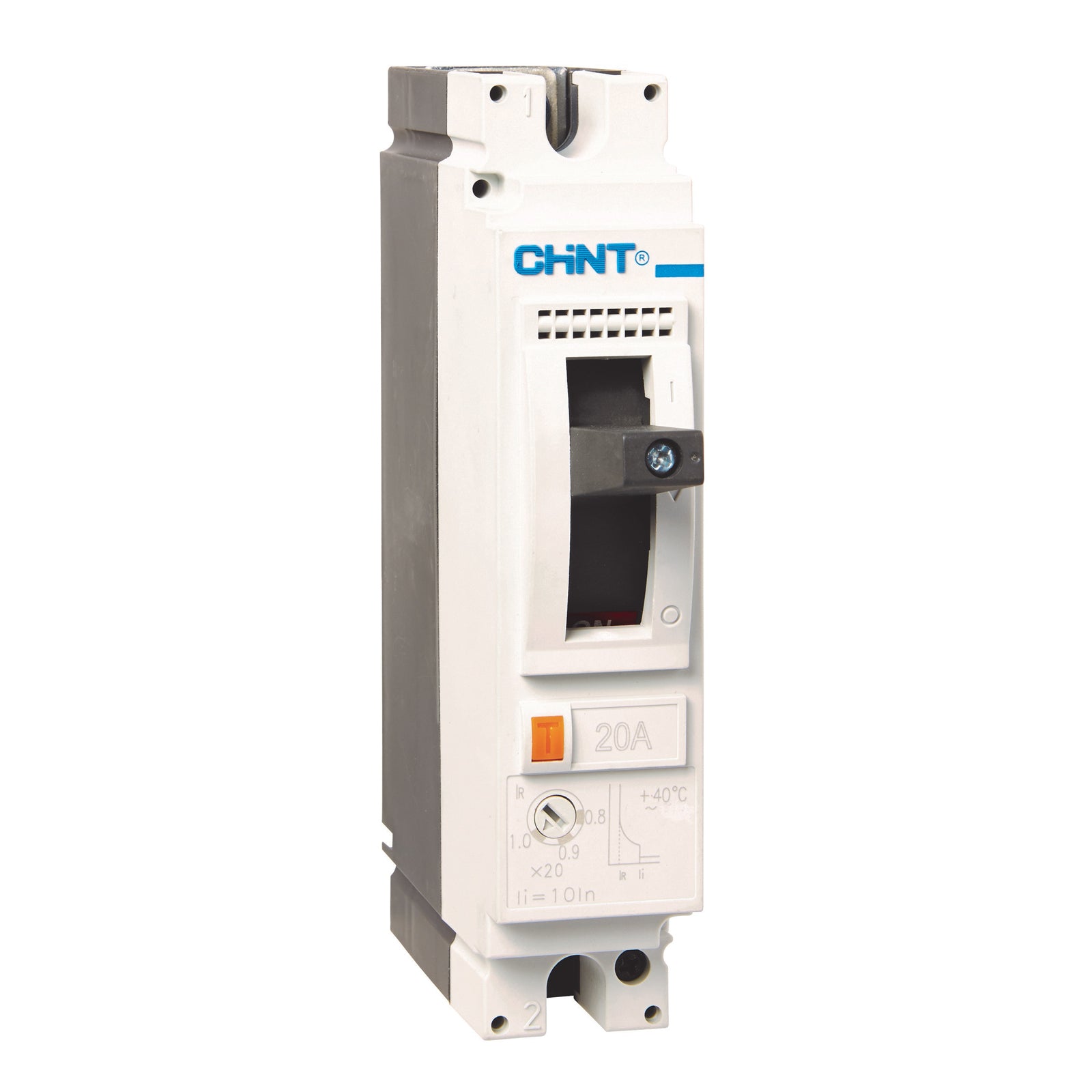

MCCB 1P Thermal Magnetic 80A, 30KA 4125V (NM8-250S-1P-80A-KIT)
MCCB 1P Thermal Magnetic 80A, 30KA 4125V (NM8-250S-1P-80A-KIT)
SKU:NM8-250S-1P-80A-KIT
Brand: CHINT
11 in stock
Couldn't load pickup availability
Product Details
Product Details
The MCCB 1P Thermal Magnetic 80A, 30KA 4125V (SKU: NM8-250S-1P-80A-KIT) is a robust single-pole moulded case circuit breaker designed to provide dependable overload and short-circuit protection in low-voltage electrical systems. It is suitable for use in commercial, industrial, and larger residential power distribution environments where safety and reliability are essential.
Manufactured to CHINT’s recognised quality standards, this thermal-magnetic circuit breaker offers a strong breaking capacity of 30kA at 415V, ensuring effective protection against high fault currents. Its compact form makes it ideal for installation in distribution boards, control panels, and electrical enclosures where space may be limited, without compromising on performance.
The thermal-magnetic protection mechanism allows the breaker to respond gradually to overload conditions and instantly to short circuits. This helps prevent unnecessary tripping while still protecting connected equipment from electrical damage. With a rated current of 80 amps, it is well suited to medium-load applications such as motors, compressors, lighting circuits, and general power distribution.
The single-pole configuration makes this MCCB a practical choice for specific circuit protection requirements, especially in installations where individual line control is needed. Its durable construction supports long-term use in demanding environments, giving installers confidence in both performance and safety.
Whether you are upgrading an existing electrical panel or specifying protection for a new installation, the NM8-250S-1P-80A-KIT provides a reliable and cost-effective solution for managing electrical faults and maintaining safe power distribution.
Product Specifications
Product Specifications
Electrical Specifications
- Rated Current (In): 80A
- Number of Poles: 1P
- Breaking Capacity Code: S (Standard)
- Ultimate Short-Circuit Breaking Capacity (Icu): 50kA (at 220/230/240V AC)
- Rated Operational Voltage (Ue): 690V AC / 250V DC
- Rated Insulation Voltage (Ui): 800V
- Rated Impulse Withstand Voltage (Uimp): 8kV
- Rated Frequency: 50/60Hz
- Release Type: Thermal-Magnetic (Adjustable)
- Utilization Category: A
Protection Settings
- Thermal Protection (Overload): Adjustable from 0.7 to 1.0 x In (56A to 80A)
- Magnetic Protection (Short-Circuit): Adjustable from 5 to 10 x In (400A to 800A)
Mechanical & Installation Data
- Frame Size: 250 Frame
- Mechanical Life: 20,000 operations
- Electrical Life: 10,000 operations
- Mounting Type: Fixed (Backplate or DIN rail with adapter)
- Connection Type: Front connection
- Terminal Size: Suitable for copper cable or busbar connection
- Protection Degree: IP20
Environmental Specifications
- Ambient Temperature: -5°C to +40°C (Daily average ≤ +35°C)
- Storage Temperature: -25°C to +70°C
- Altitude: No derating required for installations up to 2,000m
- Pollution Degree: Grade 3
Dimensions
- Width: 35mm
- Height: 157mm
- Depth: 82mm
Standards & Compliance
- Standard: IEC/EN 60947-2
- Certifications: CE Approved, TÜV Rheinland Certified, Intertek Verified
- Directives: Compliant with Low Voltage Directive 2006/95/EC
