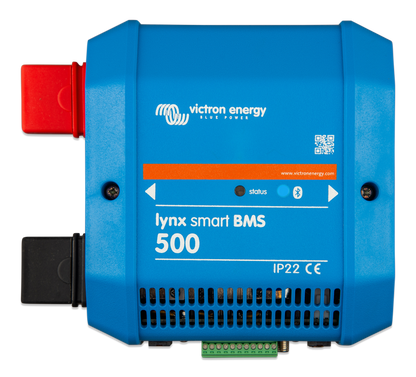

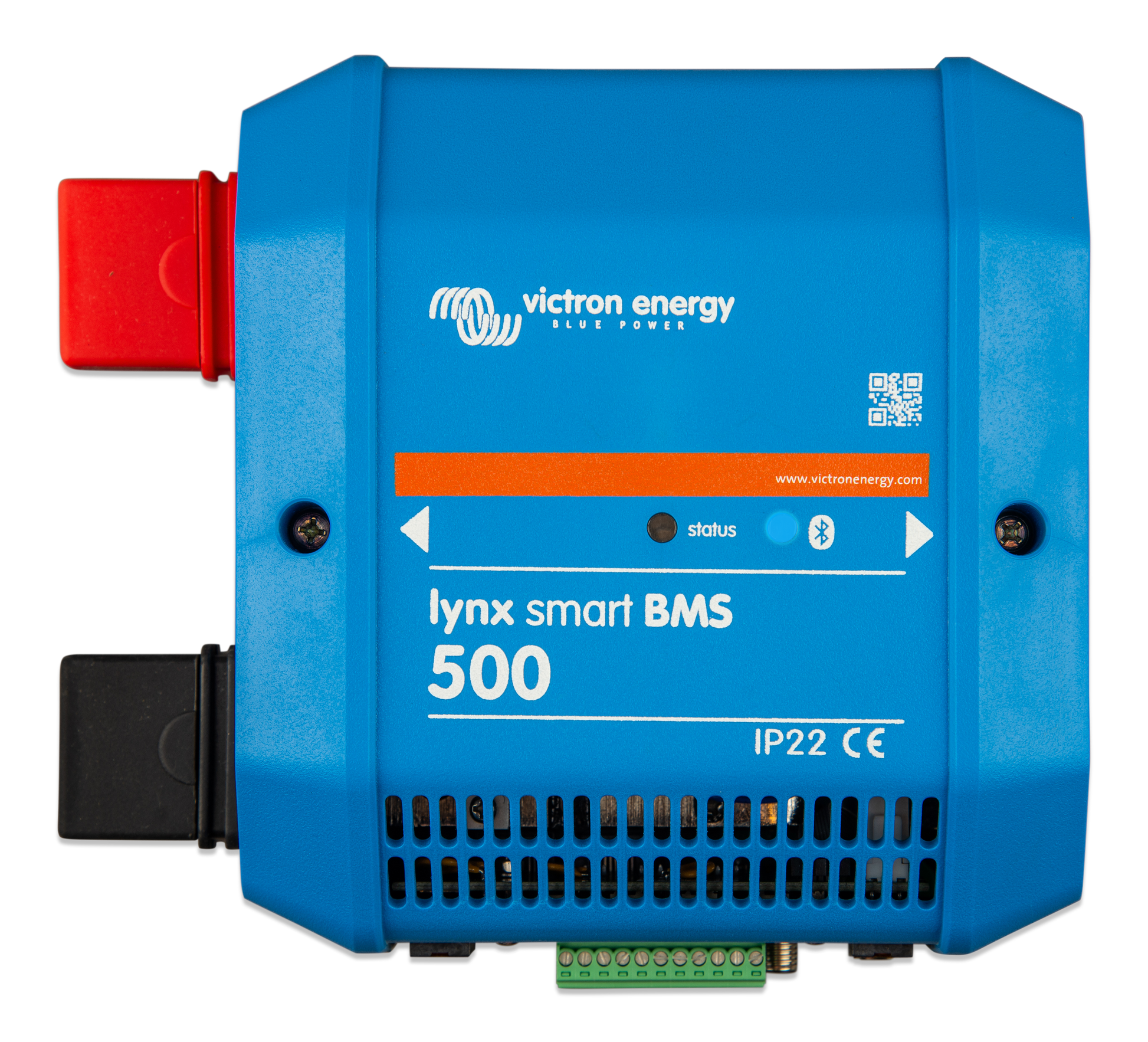

Lynx Smart BMS500 (M8)
Lynx Smart BMS500 (M8)
SKU:LYN034160200
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Lynx Smart BMS500 is a dedicated Battery Management System tailored for Victron Lithium Smart Batteries. With a built-in 500A contactor, it provides both a fallback safety mechanism and a remote-controllable main system switch. The BMS500 offers comprehensive battery monitoring, displaying the state of charge and other vital data. A pre-alarm signal alerts users before the system shuts down due to low cell voltage, ensuring proactive management. Bluetooth connectivity allows seamless integration with the VictronConnect app, enabling setup, monitoring, and diagnostics.
Designed as part of the modular Lynx Distribution System, the BMS500 facilitates scalable and efficient energy storage solutions.
Product Specifications
Product Specifications
Power & Performance
- Main Safety Contactor Continuous Current: 500 A
- Main Safety Contactor Peak Current: 600 A (for 5 minutes)
- Supported System Voltages: 12, 24, or 48 V
- Battery Voltage Range: 9 – 60 VDC
- Maximum Input Voltage: 75 VDC
- Reverse Polarity Protection: No
- Pre-charge Circuit: Integrated circuit prevents high inrush currents when connecting capacitive loads (e.g., inverters).
- Minimum Load Resistance (Pre-charging): 10 Ω for 12 V systems; 20 Ω for 24 V and 48 V systems.
Power Consumption
- OFF Mode: 0.3 mA for all system voltages.
- Standby Mode: Approximately 0.6 W (50 mA at 12 V).
- ON Mode: Approximately 2.6 W (217 mA at 12 V), depending on the state of the relays.
Integrated Features & Monitoring
- Battery Monitor: Provides real-time data including state of charge, voltage, current, and historical data.
- Bluetooth Smart: Built-in for monitoring and setup via the VictronConnect App, featuring Instant Readout for quick diagnostics.
- DVCC Closed Loop Control: Automatically controls compatible Victron inverter/chargers and solar chargers via a connected GX device.
- Lynx Distributor Monitoring: Monitors fuse status for up to 4 connected Lynx Distributor modules.
- Parallel Redundancy: Supports paralleling up to 5 BMS units, each with its own battery bank, to form a single redundant system.

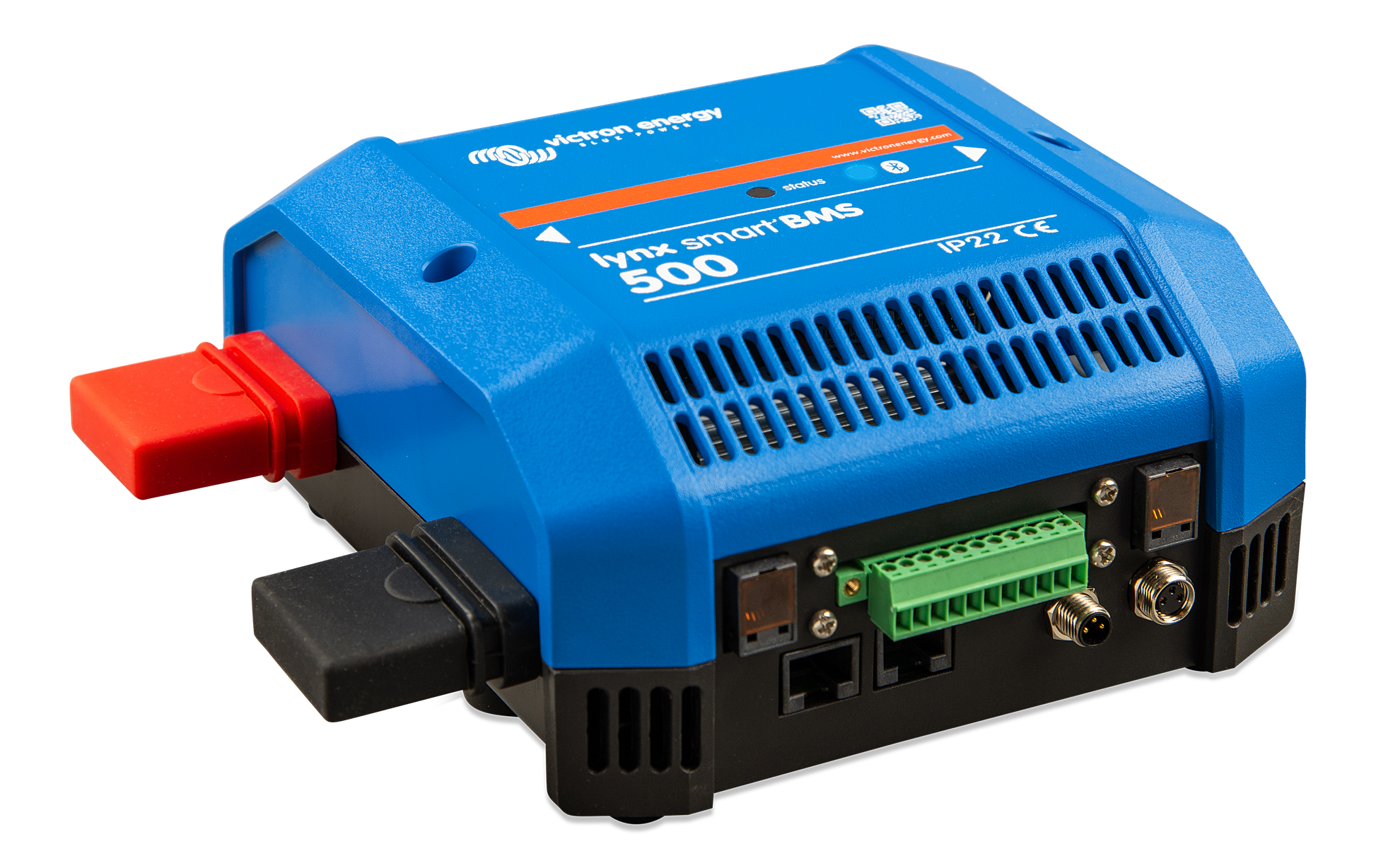

Inputs, Outputs & Connectivity
- AUX Terminal: Provides an onboard auxiliary power supply (1.1 A continuous) to power critical devices like a GX device even after a low-voltage shutdown.
- Allow-to-Charge Port: 0.5 A at 60 VDC (protected by resettable fuse).
- Allow-to-Discharge Port: 0.5 A at 60 VDC (protected by resettable fuse).
- Programmable Relay (SPDT): 2 A at 60 VDC; can be used for alarms or as an Alternator ATC contact.
- VE.Can & NMEA 2000: Integrated communication via standard RJ45 cable for GX devices and marine MFD integration.
- Battery BTV Cables: Male and female circular 3-pole connector with M8 screw ring (supports up to 20 batteries).
Physical Specifications
- Busbar Connection: M8 (Previous version specification)
- Busbar Material: Tinned copper (8 x 30 mm)
- Enclosure Material: ABS
- Dimensions (h x w x d): 190 x 180 x 80 mm
- Unit Weight: 1.9 kg
- Protection Category: IP22
Environmental Data
- Operating Temperature Range: -40 °C to +60 °C
- Storage Temperature Range: -40 °C to +60 °C
- Humidity: Max. 95 % (non-condensing)
Standards & Compliance
- Safety: EN-IEC 63000:2018
- EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012
- Quality Management: NEN-EN-ISO 9001:2015
