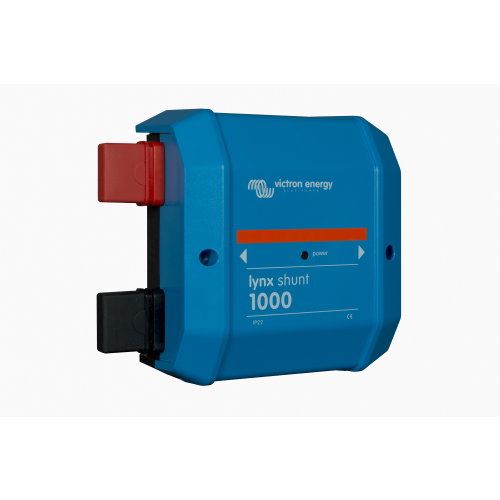

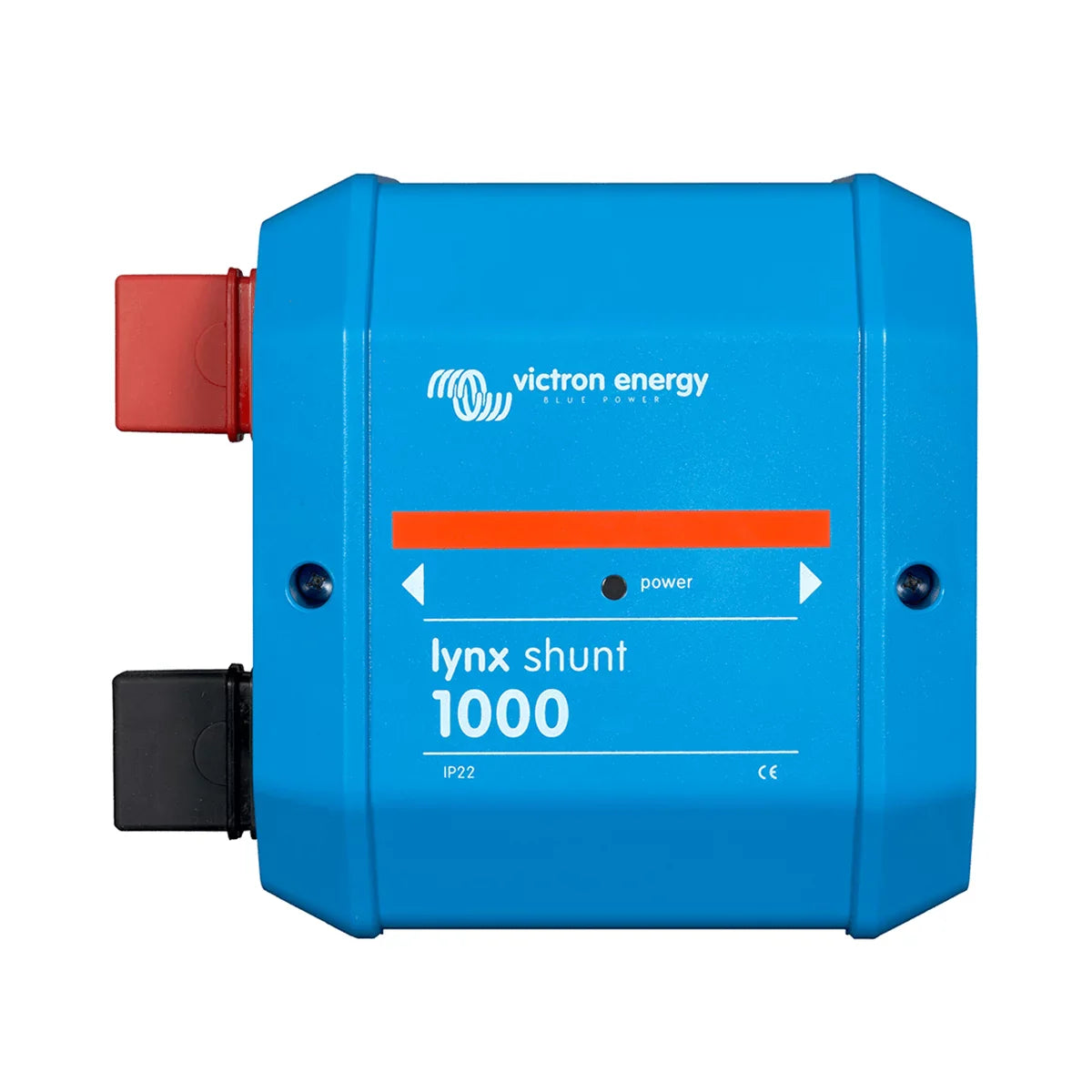

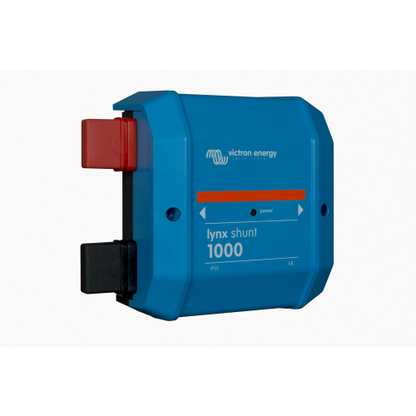

Victron Energy Lynx Shunt VE.Can – LYN040102100
The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built in battery monitor accurately monitors the state of charge of your battery. You can then use the Color Control GX or Cerbo GX for reading out the information.
This is part of the modular Lynx distribution system

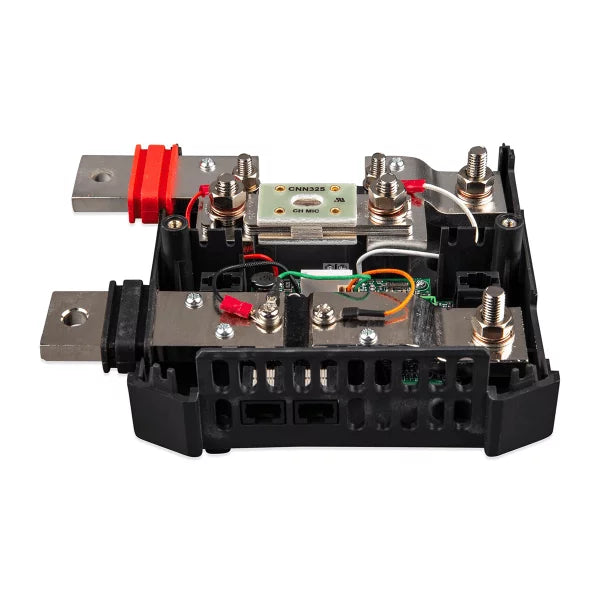

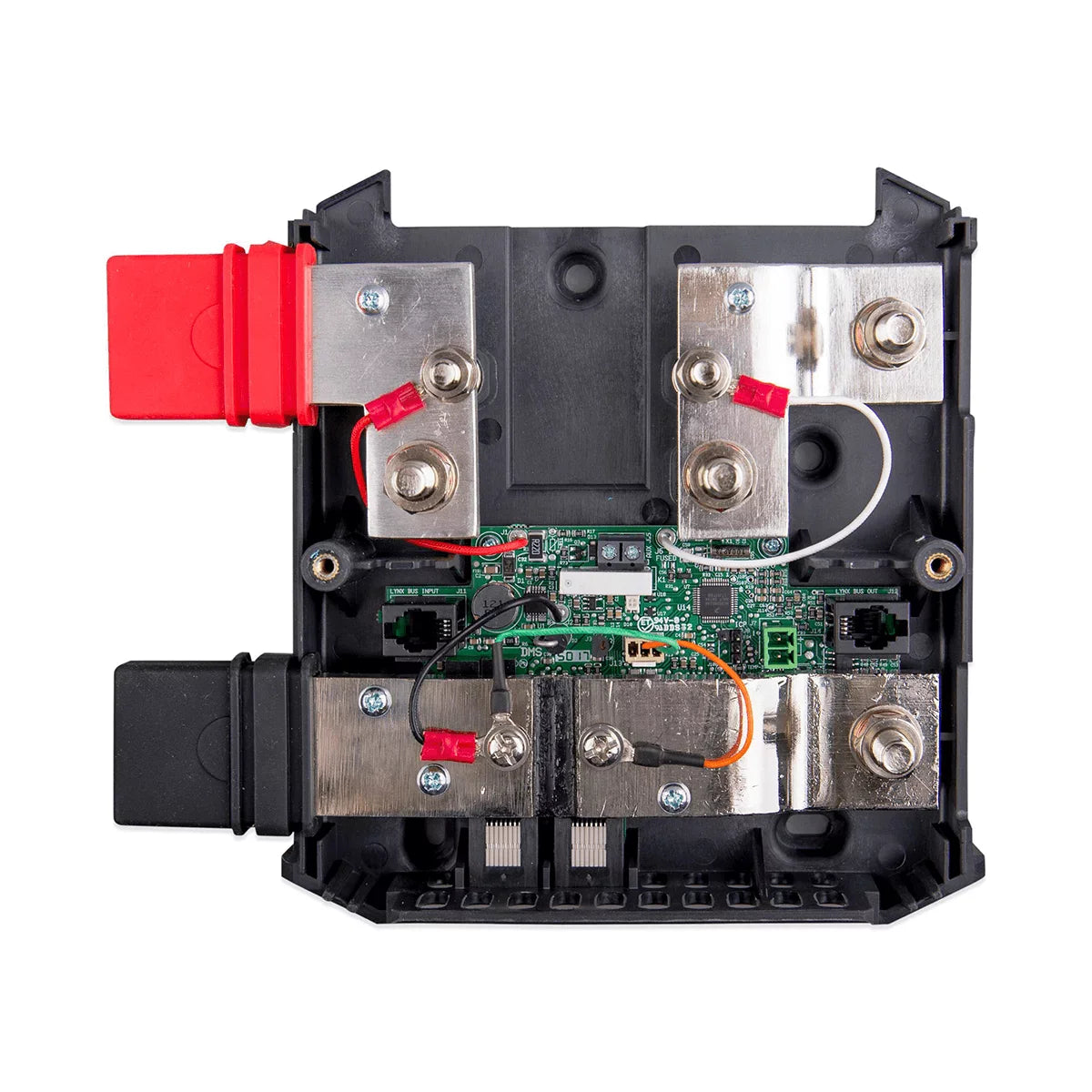

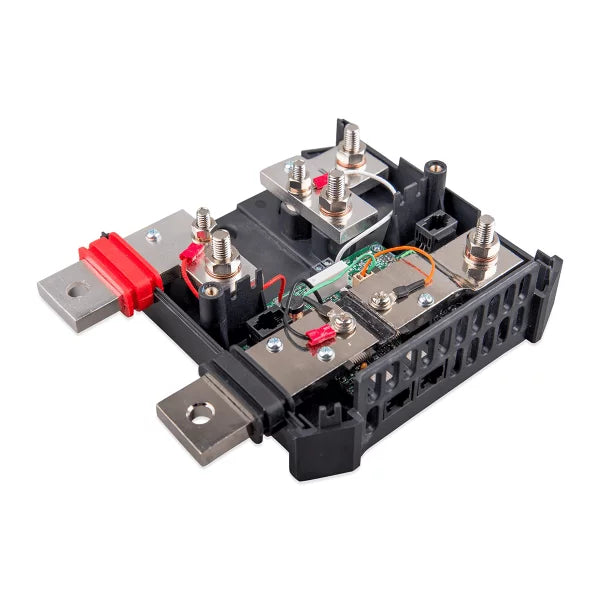

Please Note The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately. A 325A/80V fuse is normally stocked CIP140325000, CNN 325A/80V
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: LYN040102100
Busbar Connections: M8
Busbar Dimensions: 8mm x 30mm
Busbar Material: Tinned copper
Colour: Blue (RAL 5012)
Current Rating: 1,000 A
Depth: 80 mm
Fuse Connections: M8
Fuse Dummy: Not included
Height: 190 mm
Material: ABS
Max Humidity: 95 %
Power Connection Distributor: RJ10 (RJ10 cables ship with each Lynx Distributor)
Power Consumption: 60mA (12V) / 33mA (24V) / 20mA (48V)
Programmable Relay: Potential free alarm contact: 3A at 30VDC or 250VAC
Protection Category: IP22
Relay Connection: Screw terminals
Reverse Polarity Protection: No
System Voltages: 12V or 24V or 48V
Temperature Sensor Connection: Screw terminals
Ve Can: RJ45 (Two RJ45 terminators included)
Voltage Range: [9, 70] V
Weight: 1.4 kg
Width: 180 mm
Source: Victron
