Victron Lynx Power In 1000A Busbar (M8)
Victron Lynx Power In 1000A Busbar (M8)
SKU:LYN020102000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

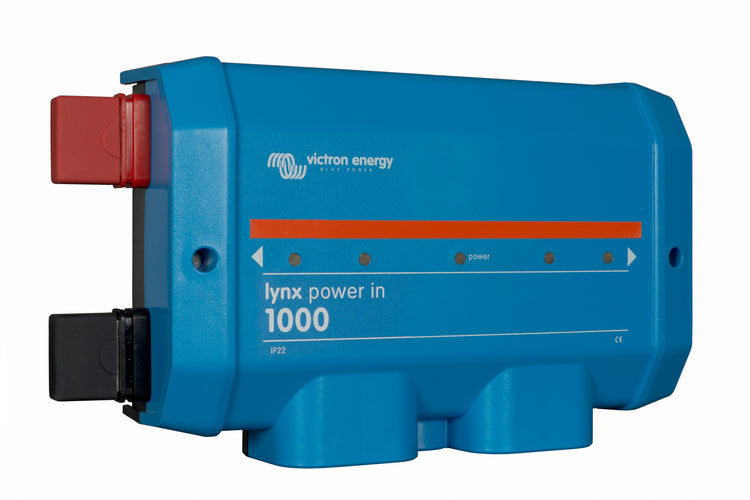

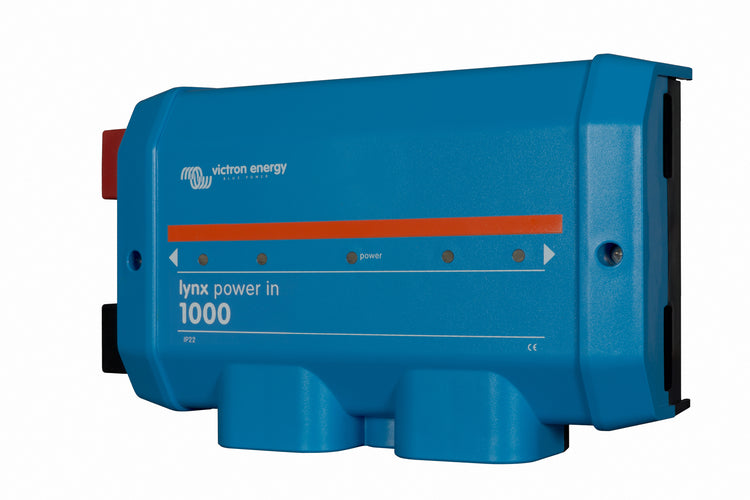

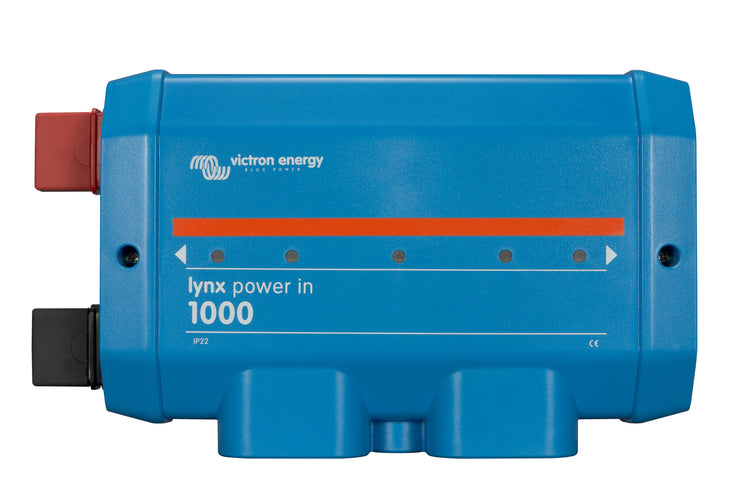

Victron Energy Lynx Power In – LYN020102000
A modular DC bus bar, used to connect batteries to the Lynx DC distribution system.

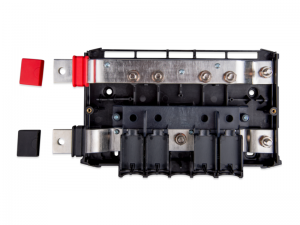

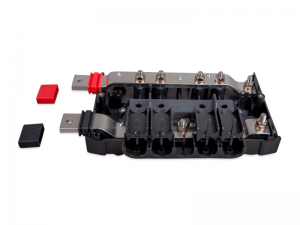

The Lynx Power In module is a modular DC busbar that helps connects batteries to the Lynx DC distribution system through an external fuse. It has a negative and positive DC bar with M8 bolts for connecting battery cables. You can put cables up to 22 mm thick through the bottom guides, and there's no limit for the two side connections.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: LYN020102000
Busbar Connections: M8
Busbar Dimensions: 8mm x 30mm
Busbar Material: Tinned copper
Colour: Blue (RAL 5012)
Current Rating: 1,000 A
Depth: 80 mm
Height: 170 mm
Material: ABS
Max Humidity: 95 %
Protection Category: IP22
Voltage Range: [9, 60] V
Weight: 2.1 kg
Width: 290 mm
Source: Victron
