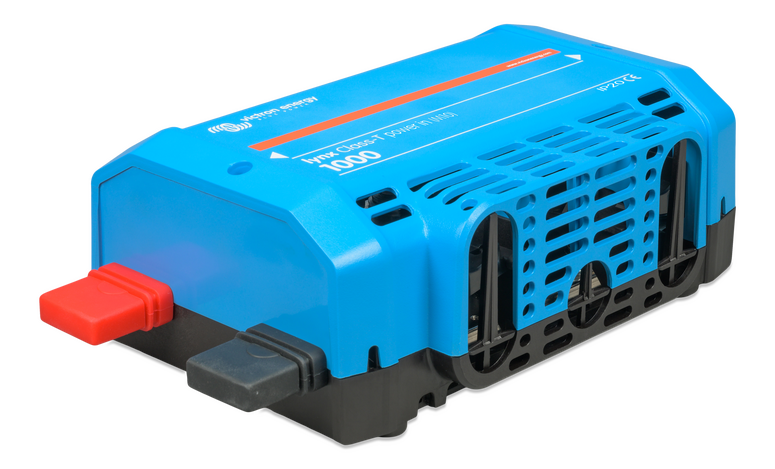

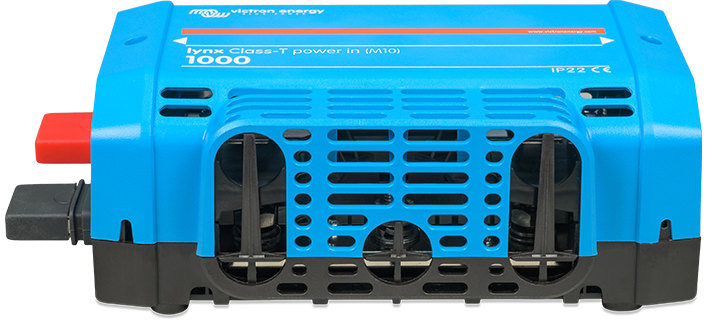

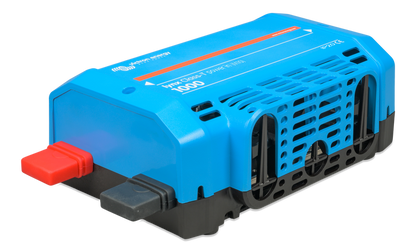

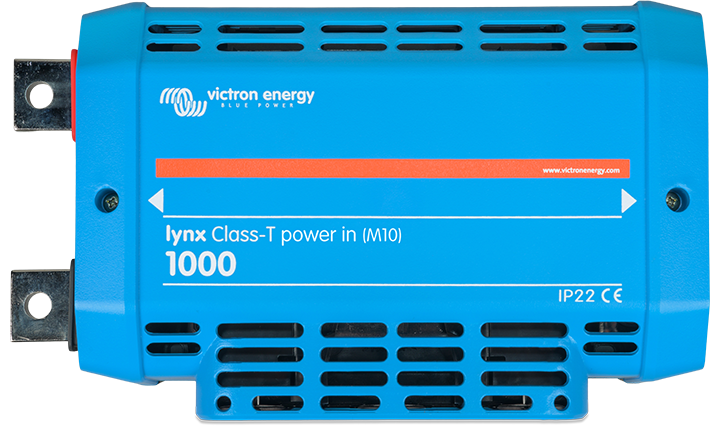

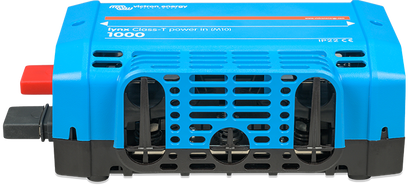

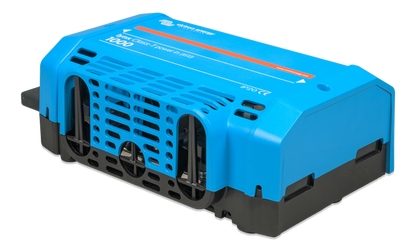

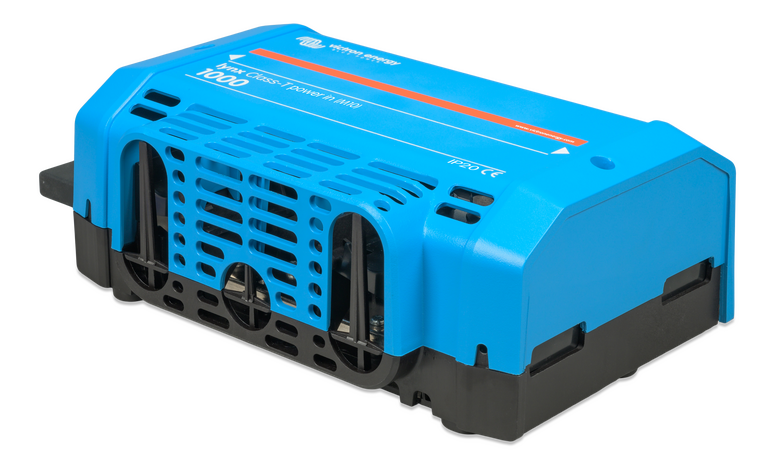

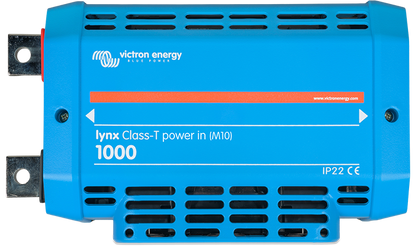

Victron Lynx Class-T Power In (M10) - LYN060404010
Victron Lynx Class-T Power In (M10) - LYN060404010
SKU:LYN060404010
Brand: Victron
Low stock: 5 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Lynx Class-T Power In (M10) is a robust DC busbar module engineered for high-current battery installations. With an M10 busbar connection, it offers up to 1000 A continuous current and supports system voltages from 9 V to 60 V DC. Crafted with an ABS enclosure and tinned-copper busbars, it provides durable grounding and reliable performance in commercial battery setups.
Designed to integrate seamlessly into the Lynx distribution system, this unit accepts two Class-T fuses (sold separately) and allows connection of two battery or DC equipment strings via positive and negative busbars. It is ideal for installations such as lithium-battery banks in marine, off-grid, or industrial environments where safety and modular design matter.
By centralising fuse-protection and bus-distribution into a single module, the Lynx Class-T Power In speeds up installation, simplifies wiring and reduces space requirements. The M10 busbar format ensures compatibility with the rest of the Lynx system, making it an excellent choice for integrators, panel-builders and system installers serving trade customers.
Whether you’re building an inverter bank, energy storage system or complex DC distribution layout, this module offers a dependable backbone to your DC infrastructure.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Voltage Range: 9 – 60 VDC
- Current Rating: 1000 ADC continuous
- Nominal Power Support: 12 kW (12V) / 24 kW (24V) / 48 kW (48V)

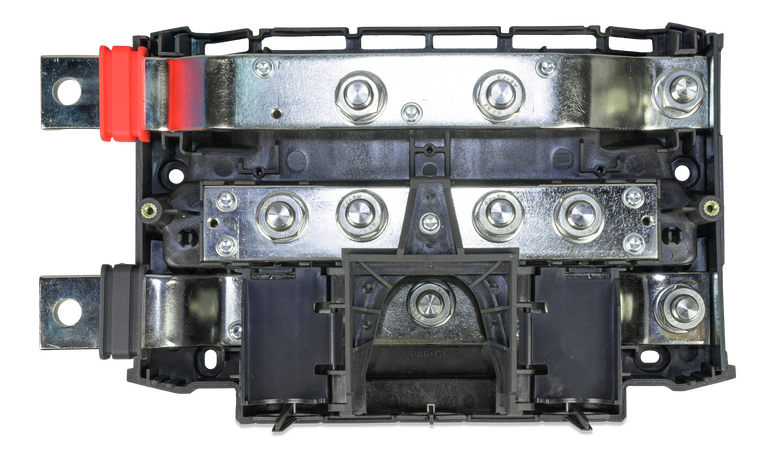

- Fuse Compatibility: Designed for two Class-T fuses (purchased separately).
- Supported Fuse Ratings: 225A, 250A, 300A, 350A, and 400A.
- Maximum Module Current: 800A (utilizing two 400A fuses).
Mechanical Specifications

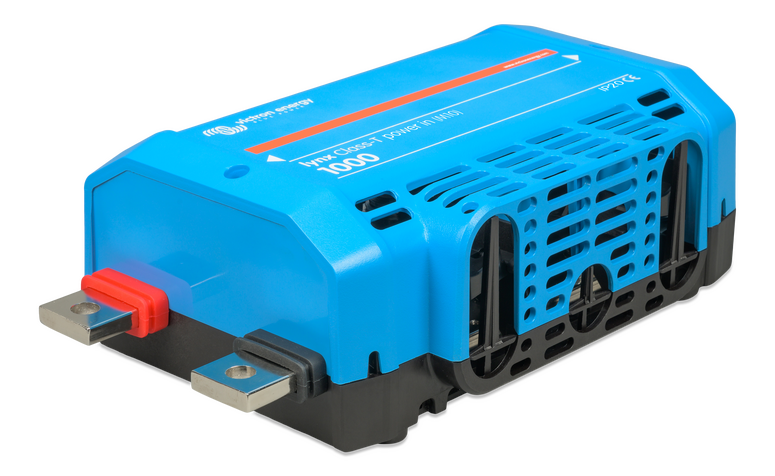

- Busbar Material: Tinned copper
- Busbar Dimensions (h x w): 8 x 30 mm
- Main Busbar Connections: M10
- Fuse Connections: 3/8" (Note: Units with serial numbers starting with HQXXXX utilize M10 screws and nuts).
- Maximum Cable Cross-Section: 120 mm² (3/8"-4/0 AWG)
- Enclosure Material: ABS
- Dimensions (h x w x d): 279 x 169 x 97 mm
- Unit Weight: 2.1 kg

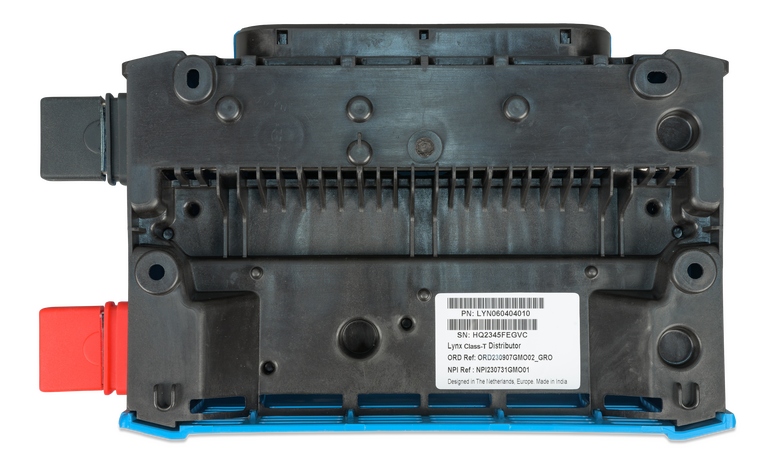

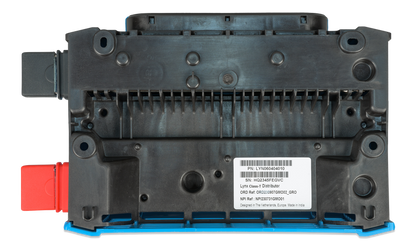

Installation & Integration

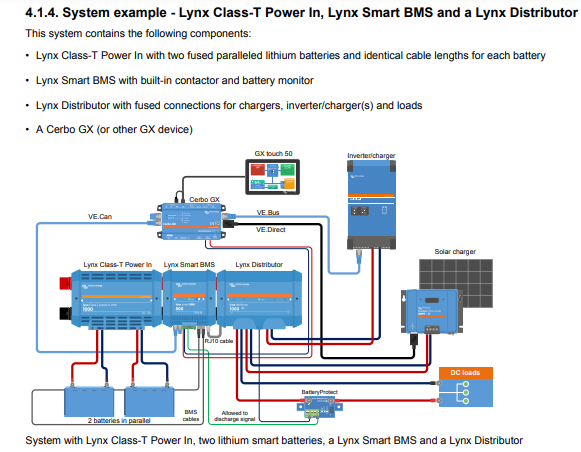

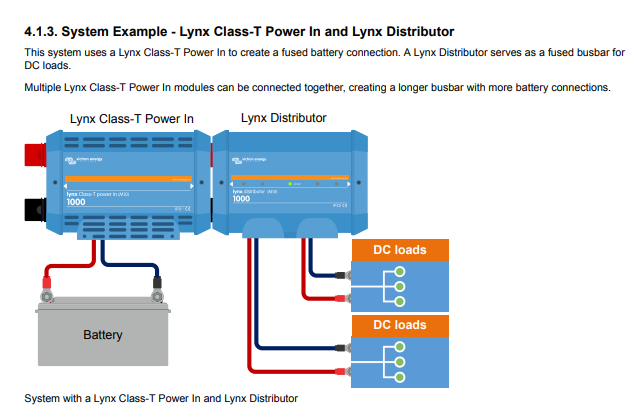

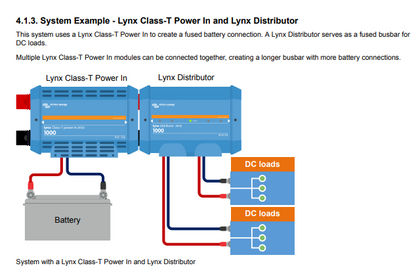

- System Design: Batteries must be connected to the left side of the Lynx system if it includes a Lynx Smart BMS or Lynx Shunt VE.Can to ensure accurate state-of-charge calculation.
- Modular Connectivity: Seamlessly interconnects with other M10 Lynx modules (Power In, Distributor, Shunt, or Smart BMS). Note: M10 modules cannot connect directly to M8 versions.
- Mounting Torque (Interconnection & DC Terminals): 33 Nm
- Mounting Torque (Fuse Connections): 33 Nm
- Orientation: Can be mounted in any orientation; includes reversible labels for upside-down installations.
Environmental Specifications
- Operating Temperature Range: -40 °C to +60 °C
- Storage Temperature Range: -40 °C to +65 °C
- Humidity: Maximum 95% (non-condensing)
- Protection Category: IP20
Safety Features
- Insulation: Features removable red and black rubber sleeves for busbar protection.
- Cable Management: Includes internal cable separator posts to secure wiring (removable for wires exceeding 10mm diameter).
- DC Grounding: Dedicated terminal for connecting the system to ground.
