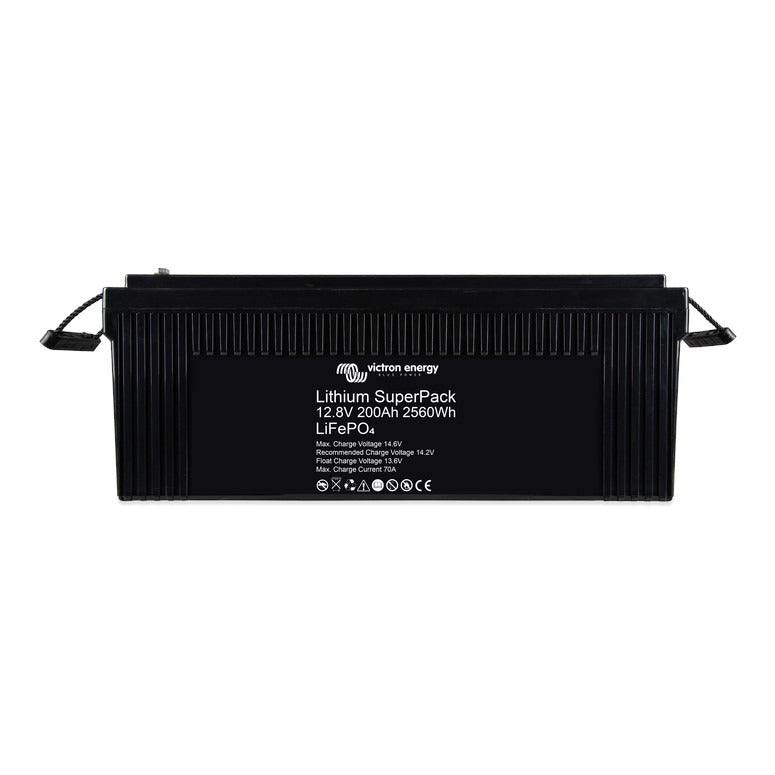

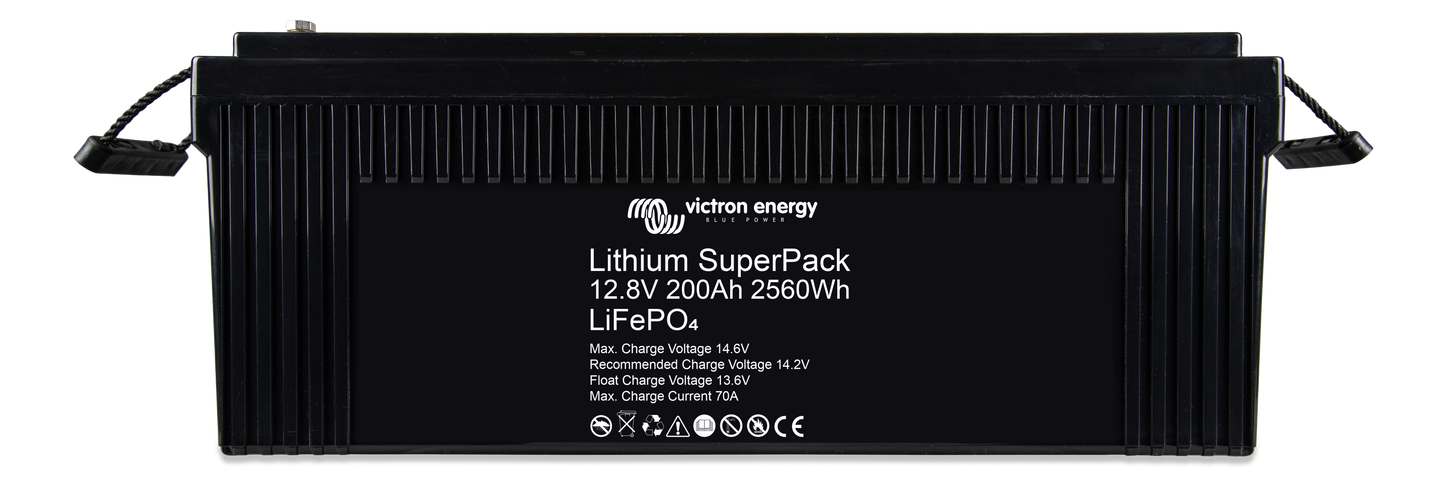

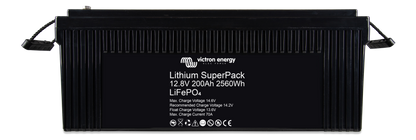

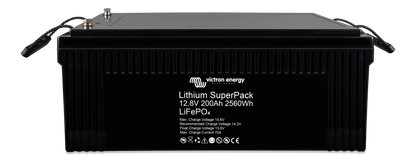

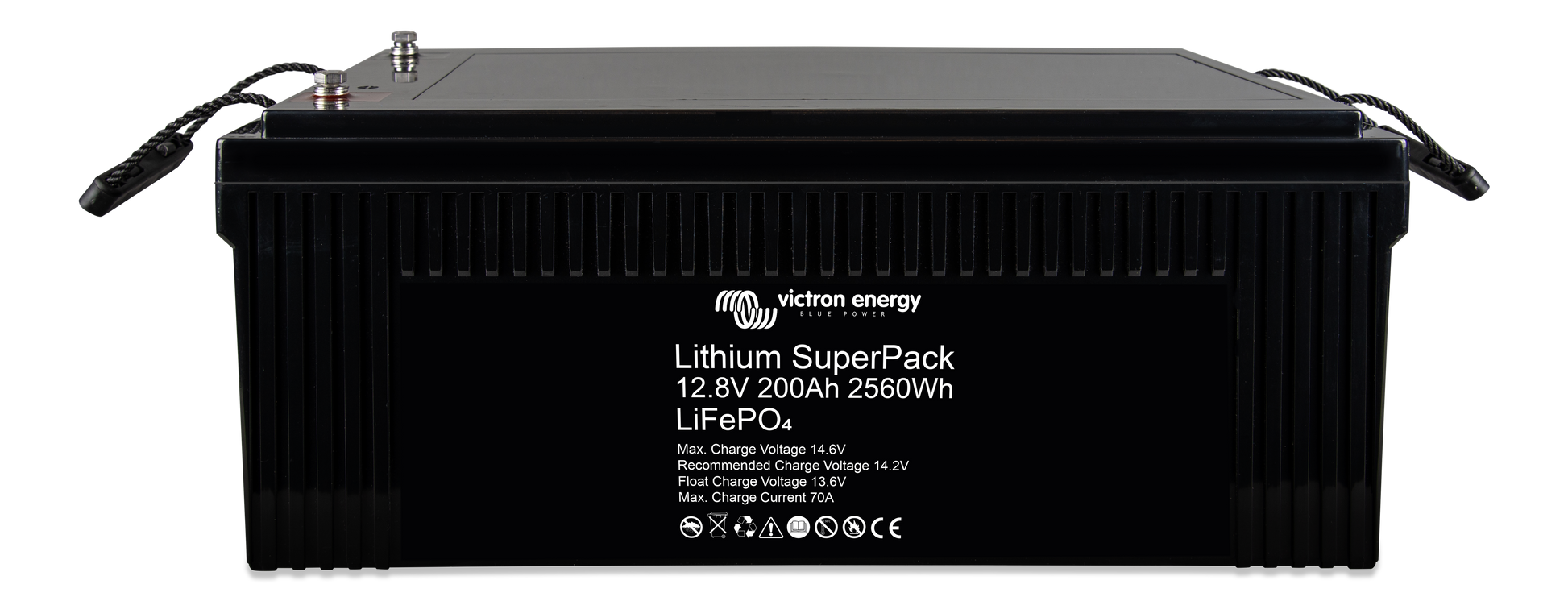

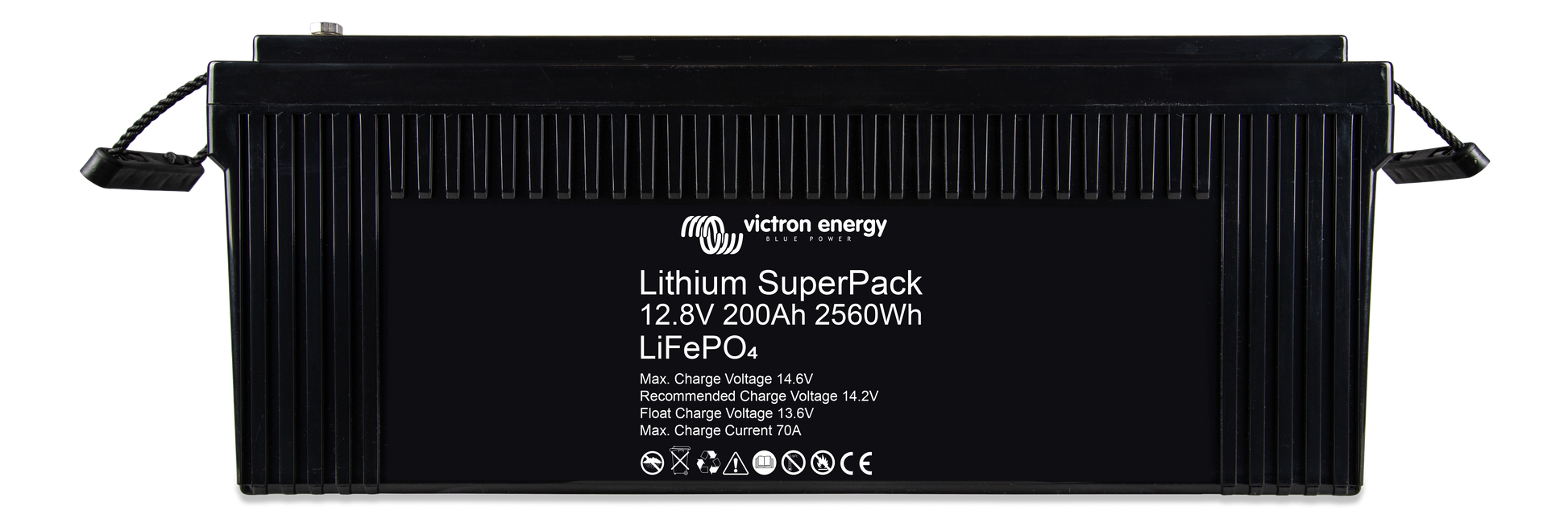

Lithium SuperPack 12.8V 200Ah Battery (M8)
Lithium SuperPack 12.8V 200Ah Battery (M8)
SKU:BAT512120705
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Lithium SuperPack 12.8V 200Ah Battery (M8) is a high performance energy storage solution designed for demanding off grid, marine, commercial vehicle, and backup power applications. Built around advanced lithium iron phosphate chemistry, it provides consistent power delivery, long cycle life, and reliable performance with minimal maintenance. Its integrated Battery Management System actively protects against overcharge, over discharge, and excessive temperature, helping to maintain safety while extending overall lifespan.
Thanks to its compact dimensions of 208 x 520 x 269 mm and M8 bolt terminals, installation is straightforward in standard battery compartments. There is no need for external protection equipment because the safety electronics are already built in. The secure terminal design ensures stable connections, and the battery can be connected in parallel when extra capacity is required. This plug and play approach reduces installation time and simplifies wiring for professional installers and trade customers.
With a nominal voltage of 12.8V and 200Ah capacity, this battery is well suited to powering inverters, lighting circuits, pumps, refrigeration units, communication equipment, and other onboard electrical systems. Its high energy density provides more usable capacity compared to traditional lead acid batteries, while maintaining a lighter footprint. This makes it attractive for boats, motorhomes, mobile workshops, and off grid cabins, where space and weight management are important.
Compatibility with Victron inverters, chargers, and solar controllers offers additional flexibility for system design. The battery is highly efficient when paired with solar charging equipment, allowing users to store surplus energy for use at night or during high demand periods. The dependable performance and long cycle life make it suitable for both occasional leisure use and continuous daily cycling.
Trade installers will appreciate the reduced installation complexity and the reassurance that the internal management system protects both the battery and connected equipment. End users benefit from stable voltage output, reduced maintenance, and efficient recharge performance. Whether used as the main power bank or as part of a backup power system, the Lithium SuperPack 12.8V 200Ah offers confidence and convenience.
Choose the Victron Lithium SuperPack to upgrade from lead acid technology and enjoy a dependable and modern energy storage solution that is built for long term reliability.
The batteries can be connected in parallel. Series connection is not allowed.
Product Specifications
Product Specifications
Performance & Electrical
- Chemistry: LiFePO4
- Nominal Voltage: 12.8 V
- Nominal Capacity at 25°C: 200 Ah
- Nominal Capacity at 0°C: 160 Ah
- Nominal Energy at 25°C: 2560 Wh
- Cycle Life (80% DoD and 25°C): 2500 cycles
- Capacity Loss: <1% per 100 cycles (at 25°C, 100% DoD)
- Round Trip Efficiency: 92%
Charge & Discharge
- Maximum Continuous Discharge Current: 70 A
- Peak Discharge Current (10 seconds): 100 A
- End of Discharge Voltage: 10 V
- Charge Voltage (Absorption): 14.2 V – 14.4 V
- Charge Voltage (Float): 13.5 V
- Maximum Continuous Charge Current: 70 A
- Charge/Discharge Protection: Automatic cut-off if maximum ratings are exceeded.
Configuration & Mounting
- Parallel Configuration: Yes, unlimited units can be connected in parallel.
- Series Configuration: No (Series connection is not allowed).
- Mounting Position: Can be mounted upright or on its longest side.
Operating Conditions
- Operating Temperature (Discharge): -20°C to +50°C
- Operating Temperature (Charge): +0°C to +45°C
- Storage Temperature: -40°C to +65°C
- Maximum Storage Time (Fully Charged): 1 year if ≤ 25°C | 3 months if ≤ 40°C
- Humidity (Non-condensing): Max. 95%
- Protection Class: IP43
Mechanical Specifications
- Power Connection: M8 threaded inserts
- Dimensions (h x w x d): 208 x 520 x 269 mm
- Weight: 21 kg
Safety Features
- Automatic Protection: Includes internal safety features to block charging if cell temperatures drop below 0°C and block discharge if temperatures drop below -20°C (applicable to newer serial numbers).
- Inverter Compatibility: The battery may briefly disconnect when a load with high input capacitance (like an inverter) is connected, but it will automatically retry and reconnect after approximately 10 seconds.
Product Downloads
Product Downloads
Technical Specifications
Technical Specifications
| Battery Capacity | 200A |
|---|---|
| Voltage | 12.8V |
| Battery Type | Lithium |
| Depth of Discharge | 80% |
| Cycle Life | 2500 |
| Weight KG | 22.2 |
| Warranty Years | 3 |
