Victron 100Ah LiFePO4 Lithium Smart Battery – 12.8V
Victron 100Ah LiFePO4 Lithium Smart Battery – 12.8V
SKU:BAT512110610
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron 100Ah LiFePO4 Lithium Smart Battery 12.8V is an advanced energy storage solution engineered for users who demand reliable, long-term performance. Built around lithium iron phosphate technology, it delivers exceptional cycle life and sustained power output, making it a popular choice for campervans, boats and off-grid systems. Compared with traditional lead acid batteries, this model is significantly lighter and more compact, helping to free up valuable installation space.
With a depth of discharge rating that supports thousands of cycles, this battery is designed to keep working day after day. At 80 percent depth of discharge it can achieve around 2500 cycles, increasing to 3000 cycles at 70 percent and up to 5000 cycles at 50 percent. When used daily, owners can expect a lifespan of roughly 15 to 20 years, which offers a strong return on investment compared to AGM alternatives that degrade more quickly.
Weighing only 14 kg, the battery is over 50 percent lighter than many similar lead acid units. For mobile applications this reduced weight is a major advantage, improving fuel efficiency and reducing strain on installations. It is well suited to setups where power demand is high, or where deep discharge is common throughout the day. Off-grid cabins, live-aboard boats and full-time campervan conversions often benefit from its resilience and long-term consistency.

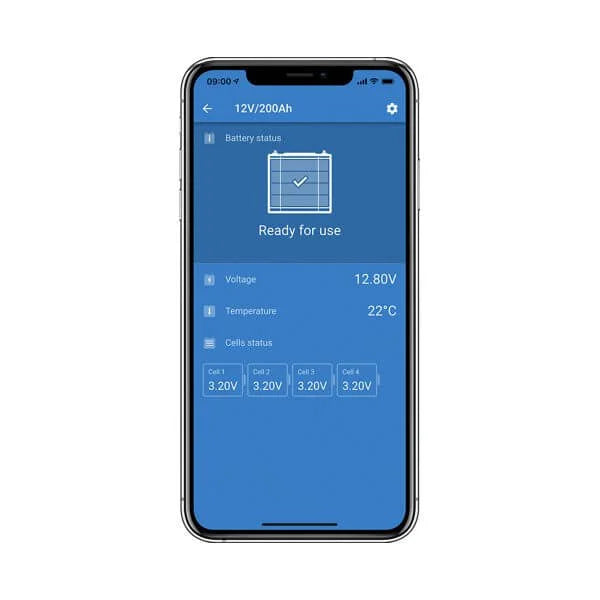

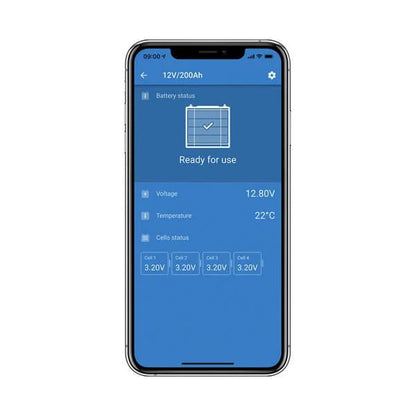

Smart technology is built in, with Bluetooth connectivity allowing users to pair the battery with the VictronConnect app. This makes it easy to check individual cell voltages, monitor temperature and view alarm warnings.
For system integration, an external Battery Management System is required. Users connecting through VE.Bus, such as those running MultiPlus equipment, should use the VE.Bus BMS and the correct RJ45 cables. In systems without VE.Bus, a smallBMS is recommended.
The battery is suitable for a broad range of climates, with discharge rated from minus 20 degrees Celsius up to 50 degrees, and charging permitted from 5 degrees up to 50 degrees. Whether powering daily appliances, supporting inverter loads or maintaining sensitive electronics, this battery provides dependable energy delivery with minimal maintenance.
For installers and system designers seeking a robust, modern power storage option with a lengthy service life and smart monitoring, this LiFePO4 battery offers a dependable upgrade over older technologies.
Product Specifications
Product Specifications
Electrical Specifications
- Nominal Voltage: 12.8 V
- Nominal Capacity @ 25 °C: 100 Ah
- Nominal Capacity @ 0 °C: 80 Ah
- Nominal Capacity @ -20 °C: 50 Ah
- Nominal Energy @ 25 °C: 1280 Wh
- Internal Resistance: 0.8 mΩ
- Round Trip Efficiency: 92%
Performance & Cycle Life
- Capacity Loss: <1% per 100 cycles (@ 25 °C, 100% DoD)
- Energy Loss: <1% per 100 cycles (@ 25 °C, 100% DoD)
- Cycle Life (80% DoD): 2500 cycles
- Cycle Life (70% DoD): 3000 cycles
- Cycle Life (50% DoD): 5000 cycles
Discharge Specifications
- Maximum Continuous Discharge Current: 200 A
- Recommended Continuous Discharge Current: ≤ 100 A
- End of Discharge Voltage: 11.2 V
Charge Specifications
- Charge Voltage: Between 14.0 V and 14.4 V (14.2 V recommended)
- Float Voltage: 13.5 V
- Maximum Charge Current: 200 A
- Recommended Charge Current: ≤ 50 A
Integrated Bluetooth & Monitoring
- VictronConnect App Support: Allows for real-time monitoring of cell voltages, temperature, and alarm status.
- Instant Readout: Key data is displayed on the device list page without requiring a direct connection to the product.
- Diagnostics: Helps to localize potential issues such as cell imbalance.
System Integration & Protection
- BMS Requirement: Must be connected to a dedicated Victron Battery Management System (BMS).
- BMS Connection: Male + female cable with M8 circular connector, 50 cm length.
- Scalability: Supports series, parallel, and series/parallel configurations for system voltages of 12 V, 24 V, or 48 V.
- Max Batteries per System: 20 units (totaling up to 84 kWh in a 12V system).
Operating & Environmental Conditions
- Operating Temperature (Discharge): -20 °C to +50 °C
- Operating Temperature (Charge): +5 °C to +50 °C
- Storage Temperature: -45 °C to +70 °C
- Humidity: Max. 95% (non-condensing)
- Protection Class: IP 22
Mechanical Specifications
- Power Connection: M8 threaded inserts
- Dimensions (h x w x d): 197 x 321 x 152 mm
- Weight: 14 kg
- Mounting: Can be placed upright or on its side (terminals must not face downwards).
Standards & Compliance
- Safety (Cells): IEC62133:2012
- Safety (Battery): EN 60335-1:2012/AC:2014, EN-IEC 62368-1: 2020, IEC 61427-1:2013
- EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012, EN 55014-1:2017/A11:2020
- Automotive: ECE R10-6
Technical Specifications
Technical Specifications
| Battery Capacity | 100A |
|---|---|
| Battery Type | Lithium |
| Depth of Discharge | 50% |
| Cycle Life | 5000 |
| Weight KG | 14 |
| Warranty Years | 2 |
