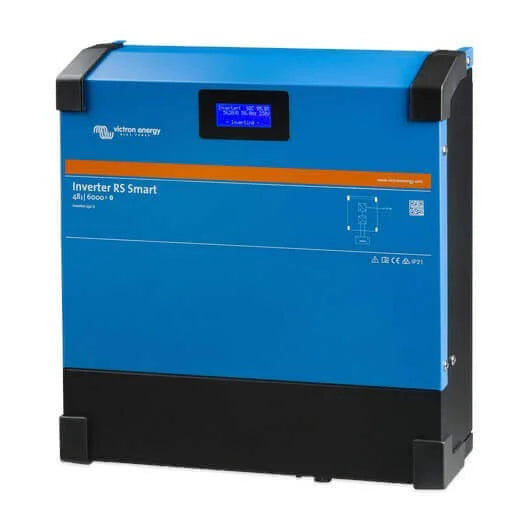

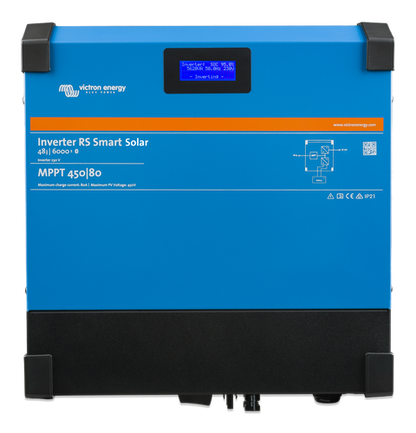

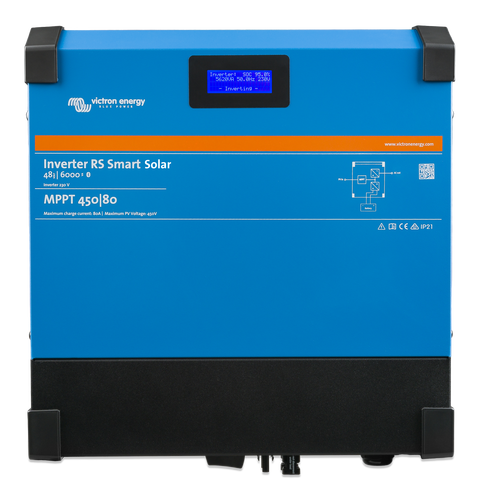

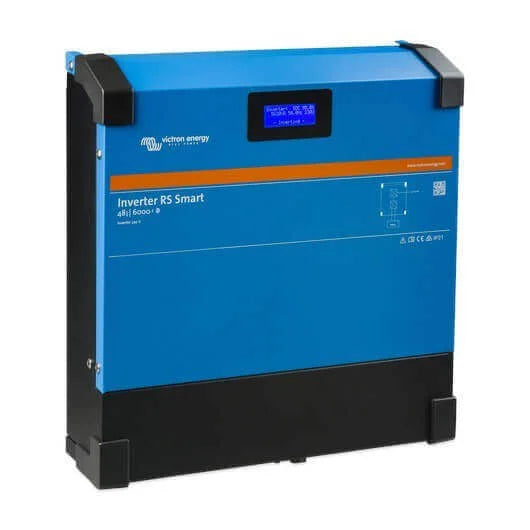

Victron Inverter RS 48/6000 + Smart Solar – 48V 6000VA + 450/80 MPPT
Victron Inverter RS 48/6000 + Smart Solar – 48V 6000VA + 450/80 MPPT
SKU:PIN482601000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Inverter RS 48/6000 + Smart Solar is a reliable all-in-one power solution designed for off-grid and mobile energy systems. Combining a pure sine wave inverter with a 450/80 MPPT solar charge controller, it efficiently converts 48V DC battery power into 230V AC, allowing you to operate domestic appliances up to 6000VA with confidence. This makes it well suited for use in campervans, marine installations, remote cabins, workshops, and commercial mobile applications where consistent power delivery is essential.
Engineered with high frequency technology, the unit achieves impressive efficiency while keeping standby consumption low. This contributes to improved performance, reduced power waste, and quieter operation during daily use. Despite its capability, the inverter weighs just 11kg, offering a compact footprint that simplifies installation in tight spaces or where mounting weight matters.
Built-in monitoring features allow you to keep track of system performance with ease. The integrated display provides real-time information on battery status, inverter output, and solar charging activity. For additional visibility and control, the inverter supports Bluetooth connectivity through the VictronConnect app, giving you quick access to key metrics from your smartphone or tablet.
Connectivity options extend further with a VE.Can port, enabling integration with GX devices for advanced system monitoring. A VE.Direct port is also available for connection to compatible accessories such as the GlobalLink 520, giving installers flexibility when designing a complete power management setup.
The integrated 450/80 MPPT charge controller maximises energy yield from solar panels, improving overall system output even in changing light conditions. This reduces dependence on traditional power generation sources and supports more sustainable off-grid living. With its compact design, low noise profile, and proven reliability, the Victron Inverter RS 48/6000 + Smart Solar offers a practical and efficient solution for trade professionals and installers looking to build dependable energy systems for their customers.
Whether you need to power multiple appliances, run tools, or support daily electrical demands away from the grid, this inverter and charger combination delivers consistent performance along with smart monitoring and control options. It is a trusted choice for those seeking quality, efficiency, and long-term durability in demanding environments.
Product Specifications
Product Specifications
Inverter Specifications
- DC Input Voltage Range: 38 – 62 V
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Continuous Output Power at 25°C: 6000 VA / 5300 W
- Continuous Output Power at 40°C: 4500 W
- Continuous Output Power at 65°C: 3000 W
- Peak Power: 9000 W (for 3 seconds)
- Maximum Efficiency: 96.5% (at 1 kW load) / 94% (at 5 kW load)
- Zero Load Power: 20 W
- Short Circuit Output Current: 45 A
Solar Charger (MPPT) Specifications
- Maximum DC PV Voltage: 450 V
- PV Start-up Voltage: 120 V
- PV Operating Voltage Range: 80 – 450 V
- Number of MPPT Trackers: 2
- Max. PV Input Current: 18 A per tracker
- Max. PV Short Circuit Current: 20 A per tracker
- Max. DC Output Charge Power: 4000 W (Total combined)
- Max. Charge Current: 100 A
- Charge Voltage 'Absorption': 57.6 V (Adjustable)
- Charge Voltage 'Float': 55.2 V (Adjustable)
Features & Connectivity
- Integrated Display: 32-character backlit LCD for real-time monitoring and setup.
- Bluetooth Smart Built-in: Allows for wireless monitoring and configuration via the VictronConnect app.
- VE.Can Port: For parallel synchronization with other RS units (up to 12 units) and connection to GX devices.
- VE.Direct Port: For connection to a GX device, GlobalLink 520, or computer.
- Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
- Temperature Sensor: Included for temperature-compensated charging.
- Parallel Operation: Supported (up to 12 units) via VE.Can.
- Three-Phase Operation: Supported (up to 12 units total, 4 per phase).
Mechanical Specifications
- Dimensions (h x w x d): 425 x 440 x 125 mm
- Weight: 11 kg
- Protection Category: IP21
- Battery Connection: M8 bolts
- PV Connection: Screw terminals (up to 16 mm²)
- AC Connection: Screw terminals (up to 16 mm²)
- Enclosure Material & Colour: Steel, blue RAL 5012
Environmental & Standards
- Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
- Maximum Altitude: 2000 m
- Safety Standards: EN-IEC 62109-1, EN-IEC 62109-2
- EMC Standards: EN 61000-6-3, EN 61000-6-2, EN 61000-6-1
- Electronic Protection: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 6000VA |
|---|
