Horizontal Cable Seal
DS-H6-BLK

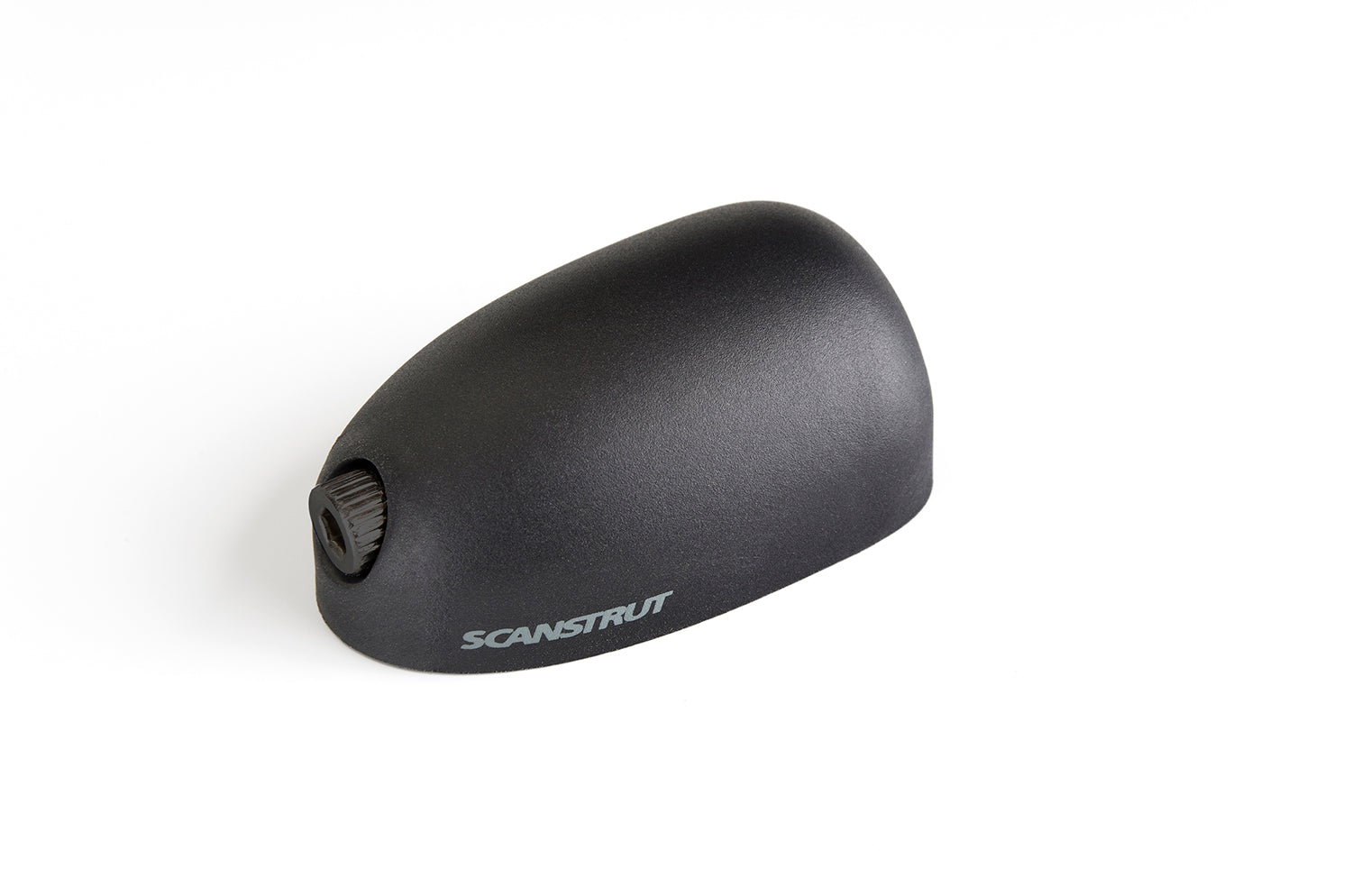

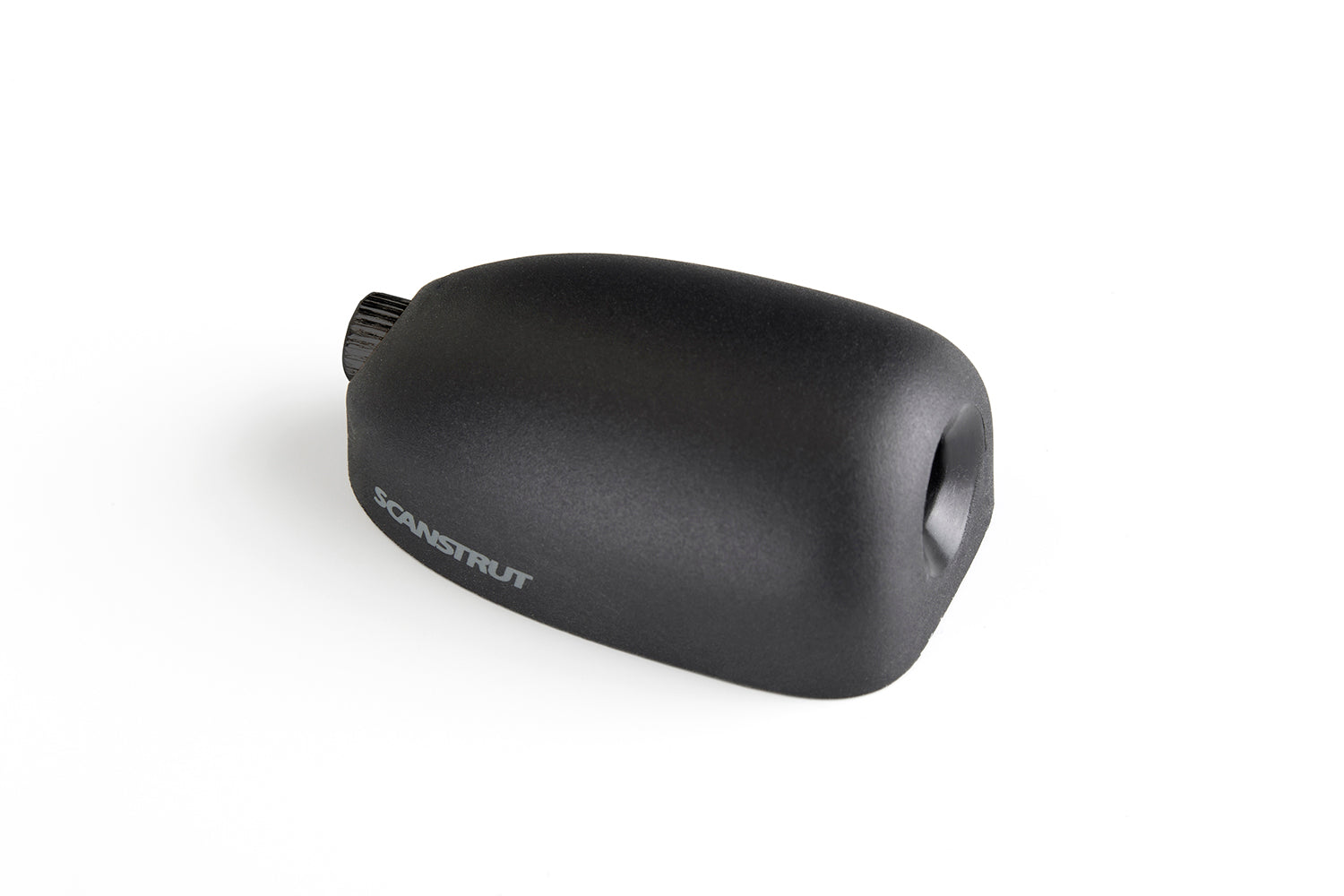

A compact horizontal entry cable seal, designed for cables from 2-6mm (0.08"-0.24"). Perfect for installing on solar panels, light bars, lights and other rooftop electronics.
Design
Featuring an aesthetic dome-shaped profile to provide a stronger, impact-resistant design and captive nuts in the base for easy assembly.
Marine Grade Plastics
Made from marine-grade plastic, selected for its UV-stable and hard-wearing properties. Giving that peace of mind for long-lasting performance.
Easy Installation
To speed up installation time, the cable seals are made with captive nuts, making the installation as simple and fast as possible.
Product Specifications
Product Specifications
Material & Build
- Material: High Impact Plastic
- Colour: Black
Physical Dimensions
- Height: 20mm (0.79”)
- Length: 46mm (1.81”)
Cable Compatibility
- Cable Diameter Range: 2mm to 6mm (0.08" to 0.24")

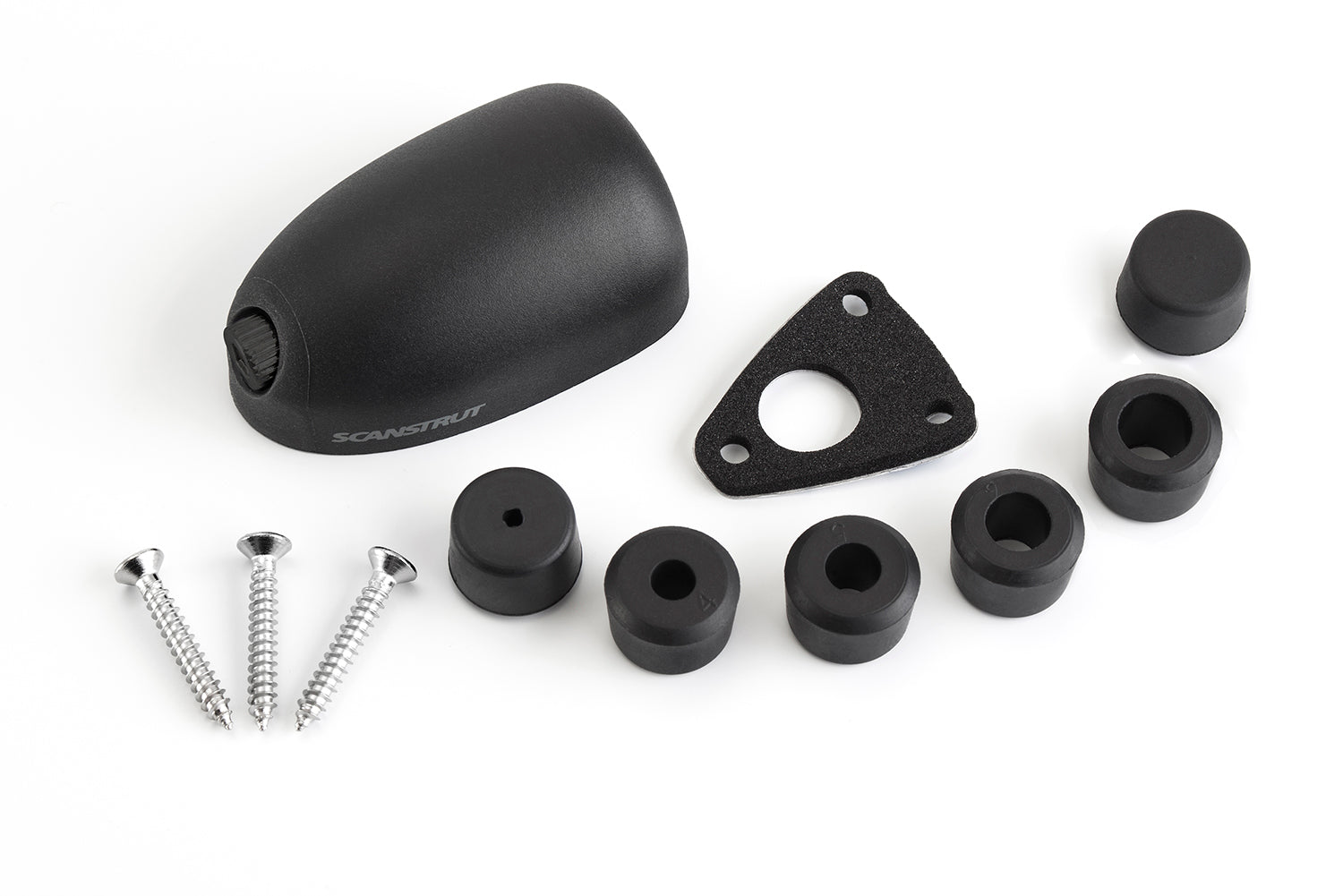

- Included Bungs:
- 1 x 2mm (0.08")
- 1 x 3mm (0.12")
- 1 x 4mm (0.16")
- 1 x 5mm (0.20")
- 1 x 6mm (0.24")
Key Features
- Low Profile Design: Standing at only 20mm high, this seal offers a streamlined, unobtrusive solution for cable routing.
- Customizable Fit: The inclusion of five different bung sizes allows for a precise, weatherproof seal across a variety of cable diameters.
- Durable Construction: Manufactured from high-impact plastic to ensure long-term performance in demanding environments.
