Victron Energy Fuse holder for MIDI-fuse
Victron Energy Fuse holder for MIDI-fuse
SKU:CIP000050001
Brand: Victron
30 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy fuse holder for MIDI-fuse provides a reliable and professional way to install DC circuit protection in a wide range of electrical systems. Designed to house a single MIDI fuse securely, this compact mounting block offers a stable, low-resistance connection point that helps support the safe operation of critical components. Its robust construction makes it suitable for demanding environments where vibration, heat and continuous load are common.
With compact dimensions of 51.36mm x 29.36mm x 27.31mm, this holder fits neatly into tight installation spaces, making it ideal for equipment bays, power distribution panels and custom energy builds. It provides a fixed, tidy position for the fuse, reducing the risk of loose connections or accidental contact. When paired with Victron MIDI fuses rated up to 32V, it is well suited for both 12V and 24V system configurations found in automotive, off-grid and marine applications.
Trade customers value dependable protection when integrating batteries, charge controllers, inverters, or auxiliary circuits. This fuse holder supports those requirements, offering consistent mounting and long-term mechanical security. It assists in preventing circuit overloads and the damage that can follow, particularly in higher current applications where MIDI link fuses are commonly used. It also helps maintain a clean and organised wiring layout, which is essential for diagnostics and service work.
The practical nature of this design makes it a strong choice for solar installations, battery banks, power distribution systems, off-grid energy setups and professional electrical builds. Whether you are managing customer installations or building bespoke power solutions, the Victron Energy fuse holder for MIDI-fuse provides a straightforward and reliable method to incorporate DC protection into your system. It is suited to trade environments where durability, ease of installation and long-term reliability are required.
Product Specifications
Product Specifications

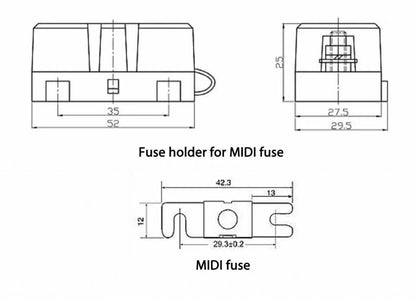

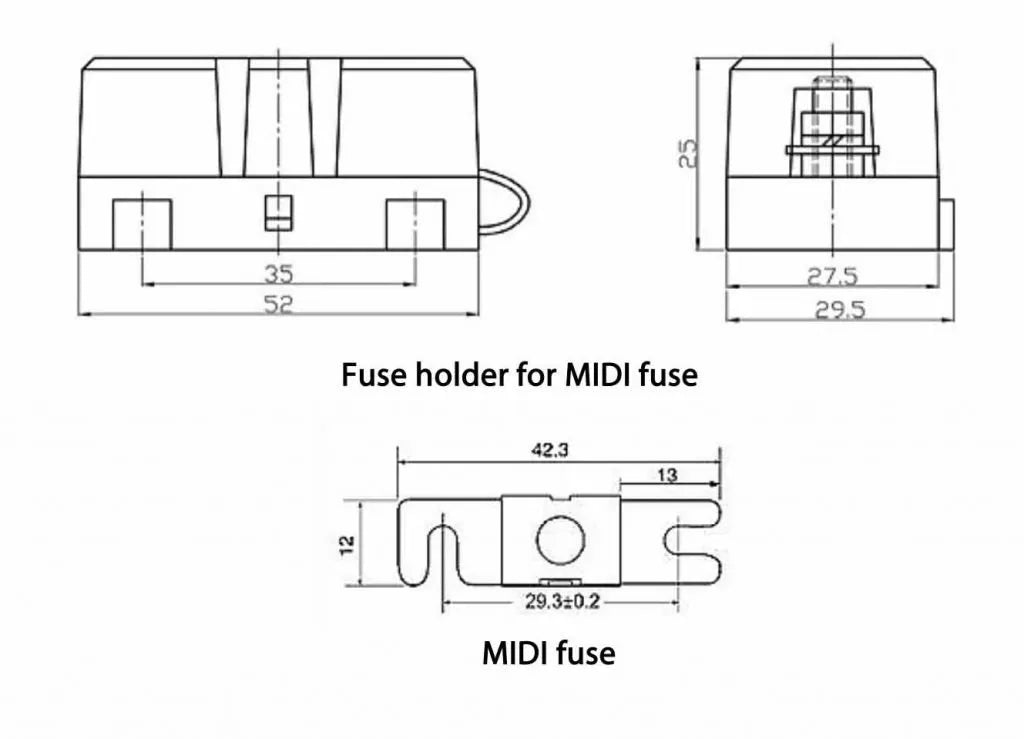

Mechanical Specifications
- Total Length: 52 mm
- Total Width: 29.5 mm
- Total Height (with cover): 25 mm
- Mounting Hole Spacing (Center to Center): 35 mm
- Internal Base Width: 27.5 mm
- Fuse Type Compatibility: Standard MIDI-fuses (Bolt-down)
Electrical Compatibility
- Voltage Range: Suitable for use with MIDI-fuses rated for 32V or 58V DC systems.
- Application: Ideal for primary circuit protection for chargers, inverters, and battery banks where a compact, high-current fuse is required.

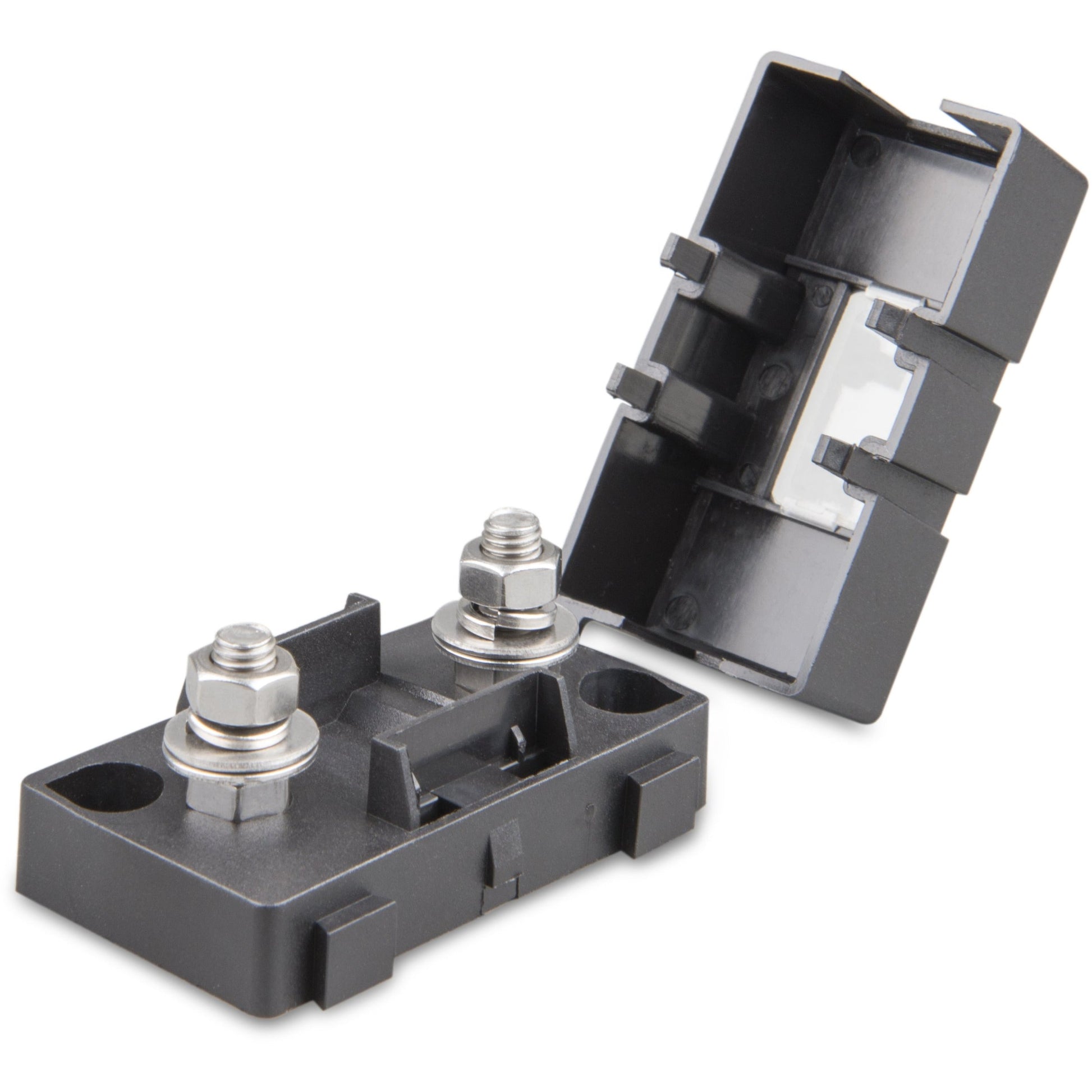

Installation Note: This holder is designed to be surface-mounted and features a tethered cover to ensure it remains with the unit during maintenance. Fuses are secured via threaded studs for a high-pressure, low-resistance connection.
