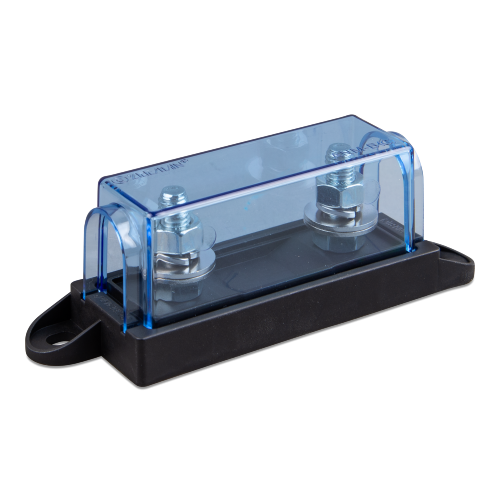

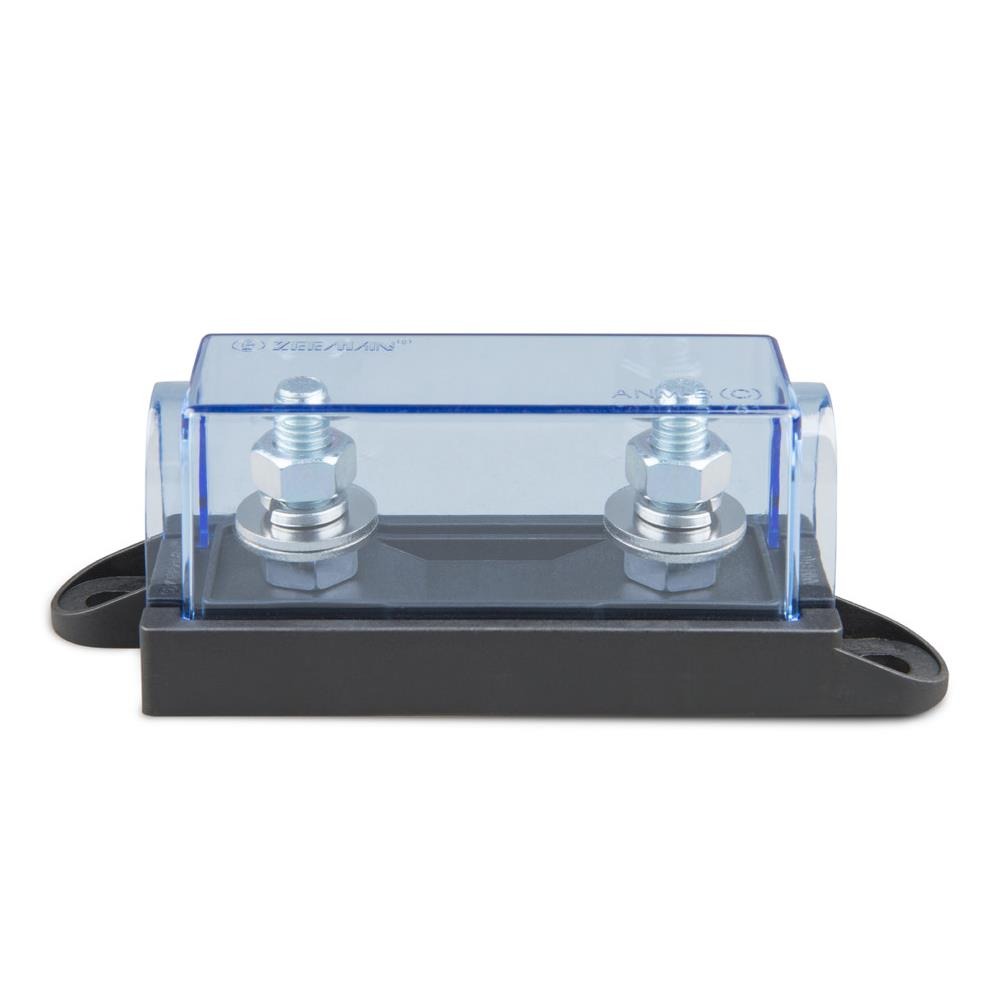

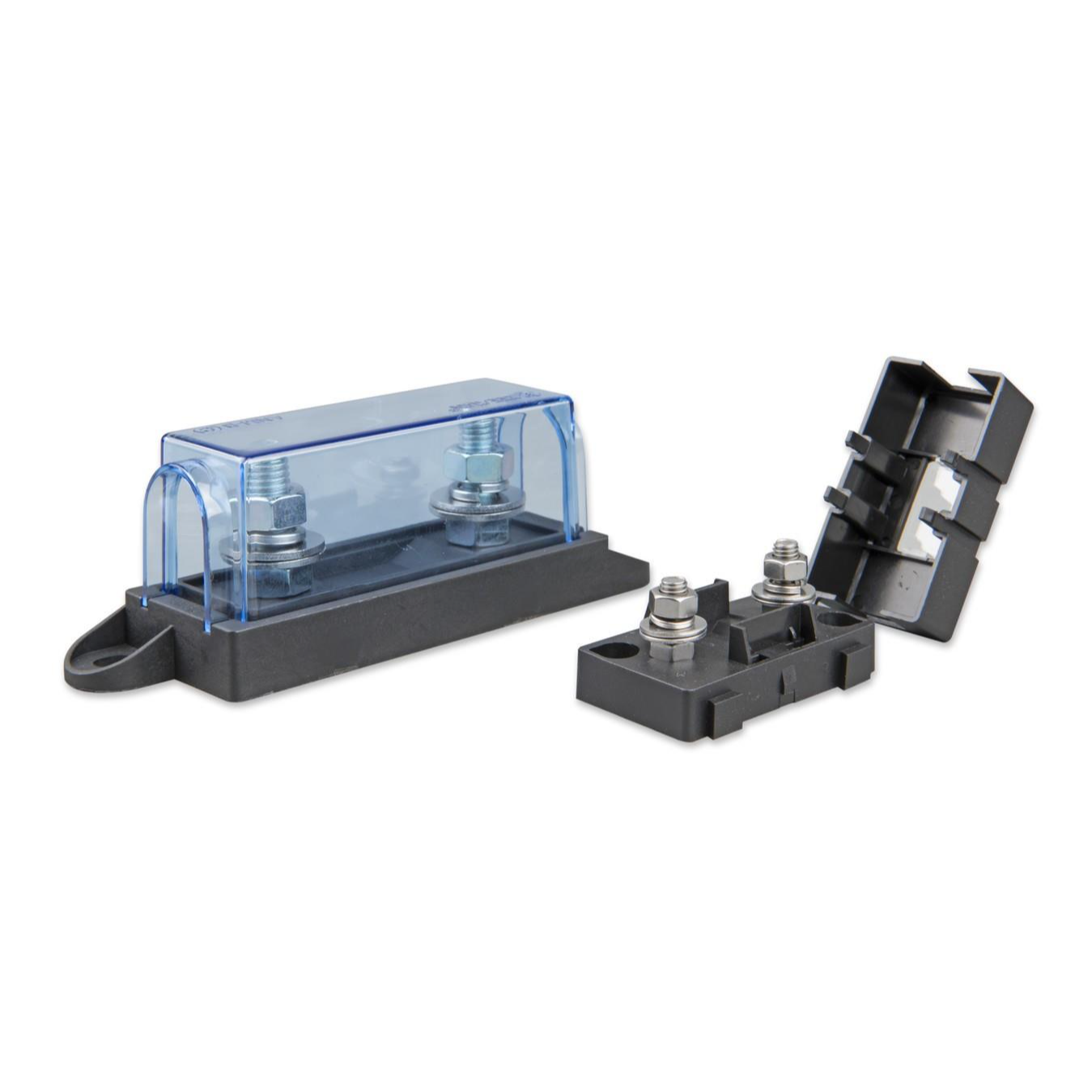

Victron Energy Fuse holder for MEGA-fuse
Victron Energy Fuse holder for MEGA-fuse
SKU:CIP000100001
Brand: Victron
59 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Fuse Holder for MEGA-fuse provides professional-grade circuit protection for high-current DC electrical systems. Designed specifically for MEGA-type fuses rated up to 250 amps, this single fuse holder delivers the robust construction and reliable performance demanded by marine, automotive, and renewable energy installations.
Built from high-quality materials rather than cheap flimsy plastic, this fuse holder stands up to the harsh environments encountered in marine applications, motorhomes, and off-grid power systems. The durable construction ensures long-term reliability whilst maintaining proper electrical contact under high-current conditions.
The holder features M8 terminal connections that accommodate a wide range of cable sizes, making it suitable for various installation requirements. The compact dimensions of 126mm length, 94mm width, and 50.8mm height allow for flexible mounting options in tight spaces, whilst the transparent cover provides instant visual confirmation of fuse status without requiring removal.
Compatible with the complete range of Victron MEGA fuses from 60A to 500A (though rated for continuous use up to 250A), this fuse holder offers flexibility for different system requirements. Whether you're protecting an inverter circuit, battery bank connection, or high-power appliance, this holder accommodates the appropriate fuse rating for your application.
The secure cover design protects the fuse from environmental contamination whilst allowing easy access for inspection and replacement. The two-point mounting configuration with 108mm fixing centres ensures stable installation on bulkheads, panels, or distribution boards. Note that if you're using 4/0 AWG cable, you'll need to verify fitment as larger cable lugs may affect cover closure.
Installation is straightforward thanks to the logical terminal layout and clear markings. The holder accepts MEGA fuses with their standard bolt-down terminals, creating a gas-tight connection that maintains low resistance even under sustained high-current loads. This design prevents the voltage drop and heat build-up that can occur with inferior connections.
As part of the comprehensive Victron Energy DC distribution range, this fuse holder integrates with Victron's modular system approach. Multiple holders can be combined using the optional busbar accessories to create custom distribution solutions tailored to specific installation requirements.
Backed by Victron's industry-leading 5-year warranty and global support network, this fuse holder represents a professional choice for protecting valuable electrical equipment. The holder meets the exacting standards expected from Victron Energy products, ensuring reliable operation in critical power protection applications.
Product Specifications
Product Specifications
Mechanical Specifications
- Total Length (including mounting tabs): 108 mm
- Main Body Length: 94 mm
- Total Width: 37 mm
- Mounting Hole Diameter: 8 mm
- Fuse Type Compatibility: Standard MEGA-fuses (Bolt-down)
Electrical Compatibility
- Supported Current Range: Designed for use with MEGA-fuses from 40A up to 500A.
- Voltage Range: Compatible with DC systems rated for 32V, 58V, and 80V.
- Application: Ideal for primary DC protection in marine, automotive, and off-grid solar systems, particularly for large battery banks and high-wattage inverters.
Installation & Design
- Secure Connection: Uses a bolt-down design to provide a high-pressure, low-resistance electrical connection suitable for heavy-duty cables.
- Mounting: Features two external mounting tabs for secure attachment to a flat surface.
- Protective Housing: Includes a robust cover to protect the fuse and internal connections from environmental factors and accidental short circuits.
