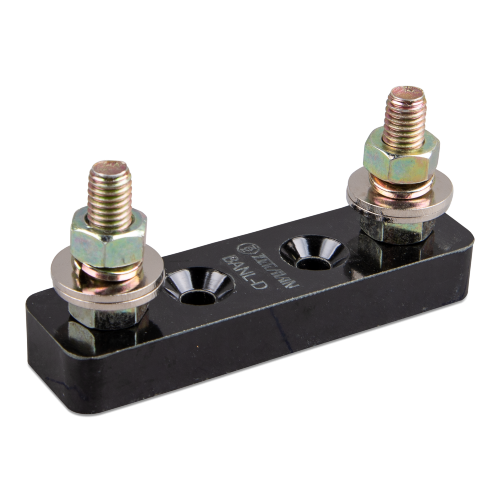

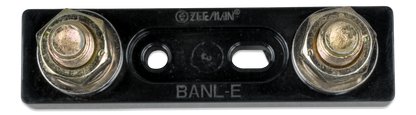

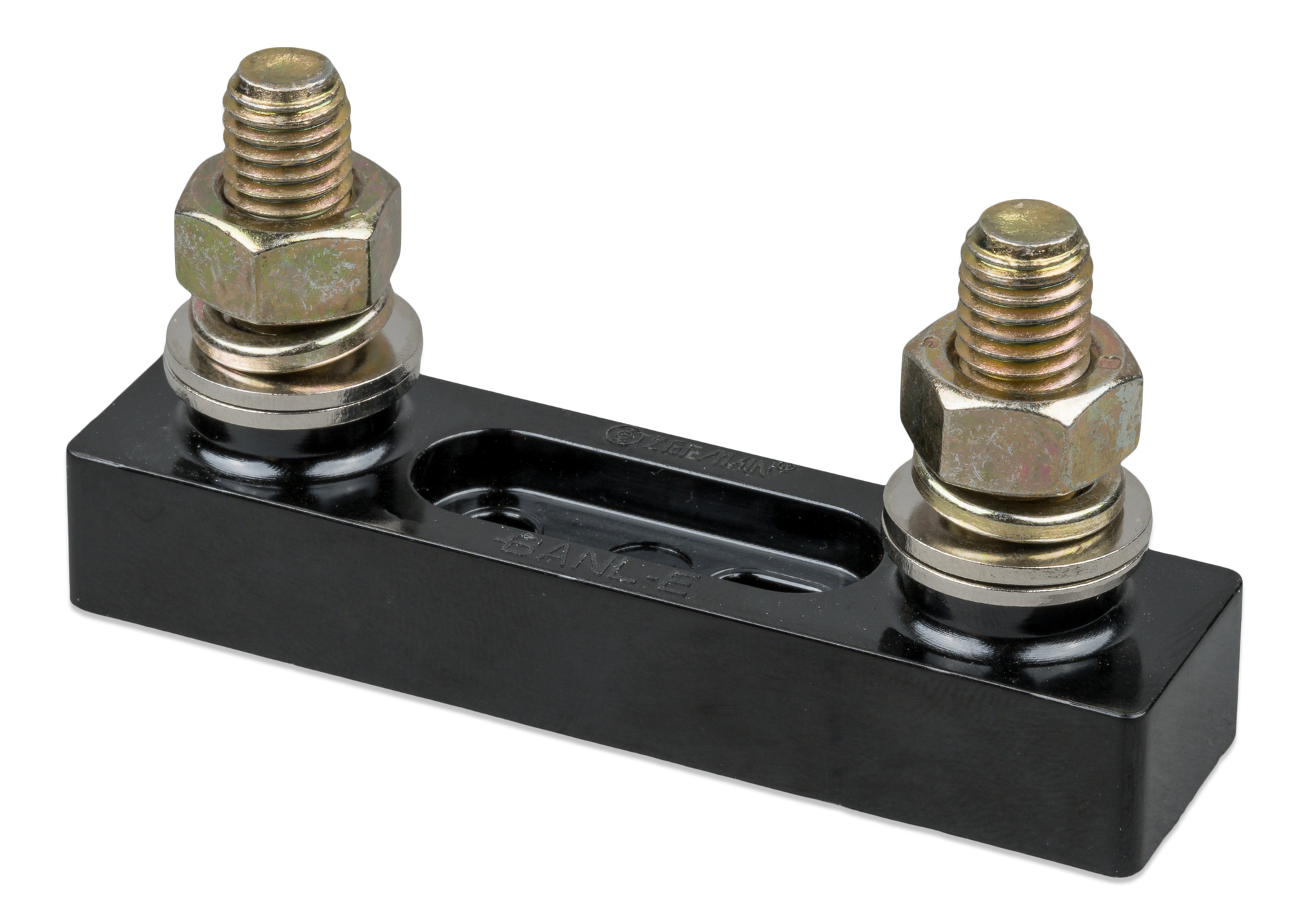

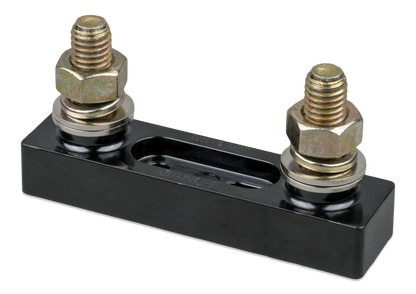

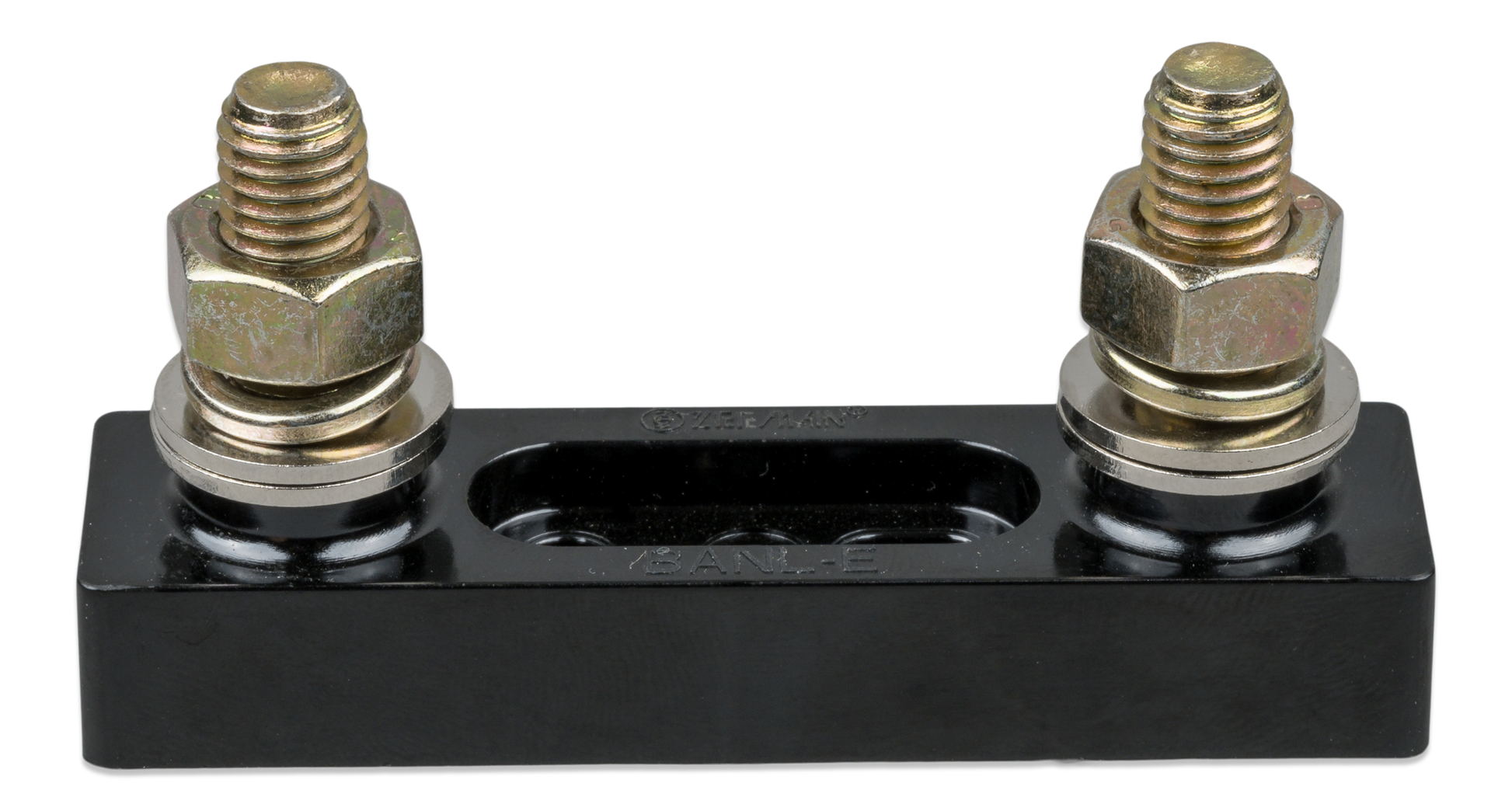

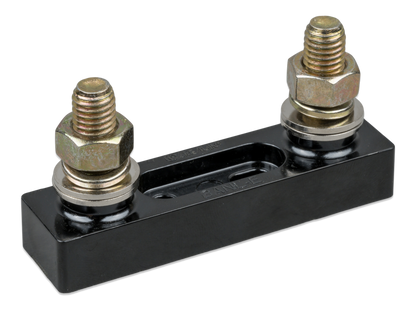

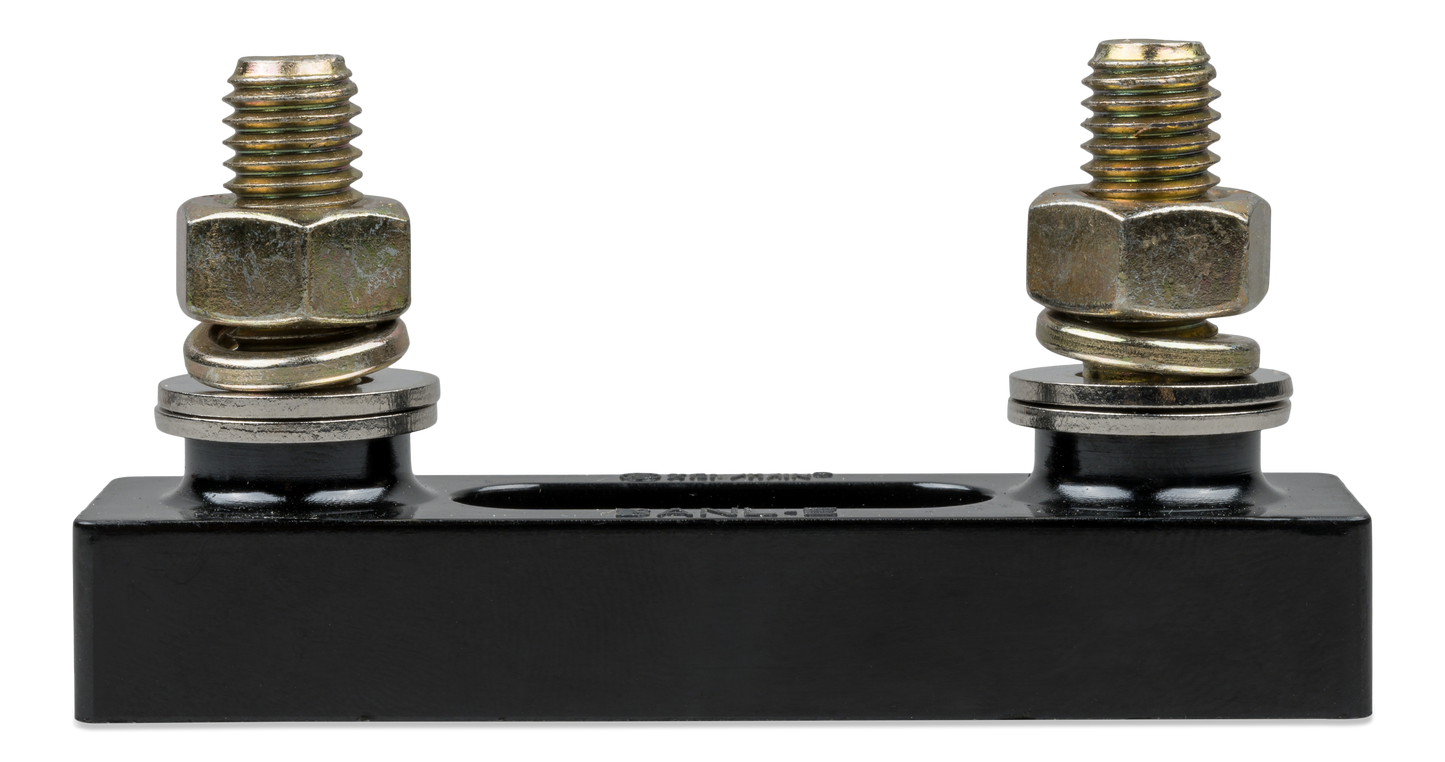

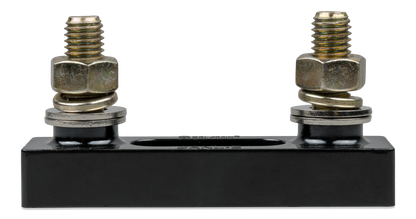

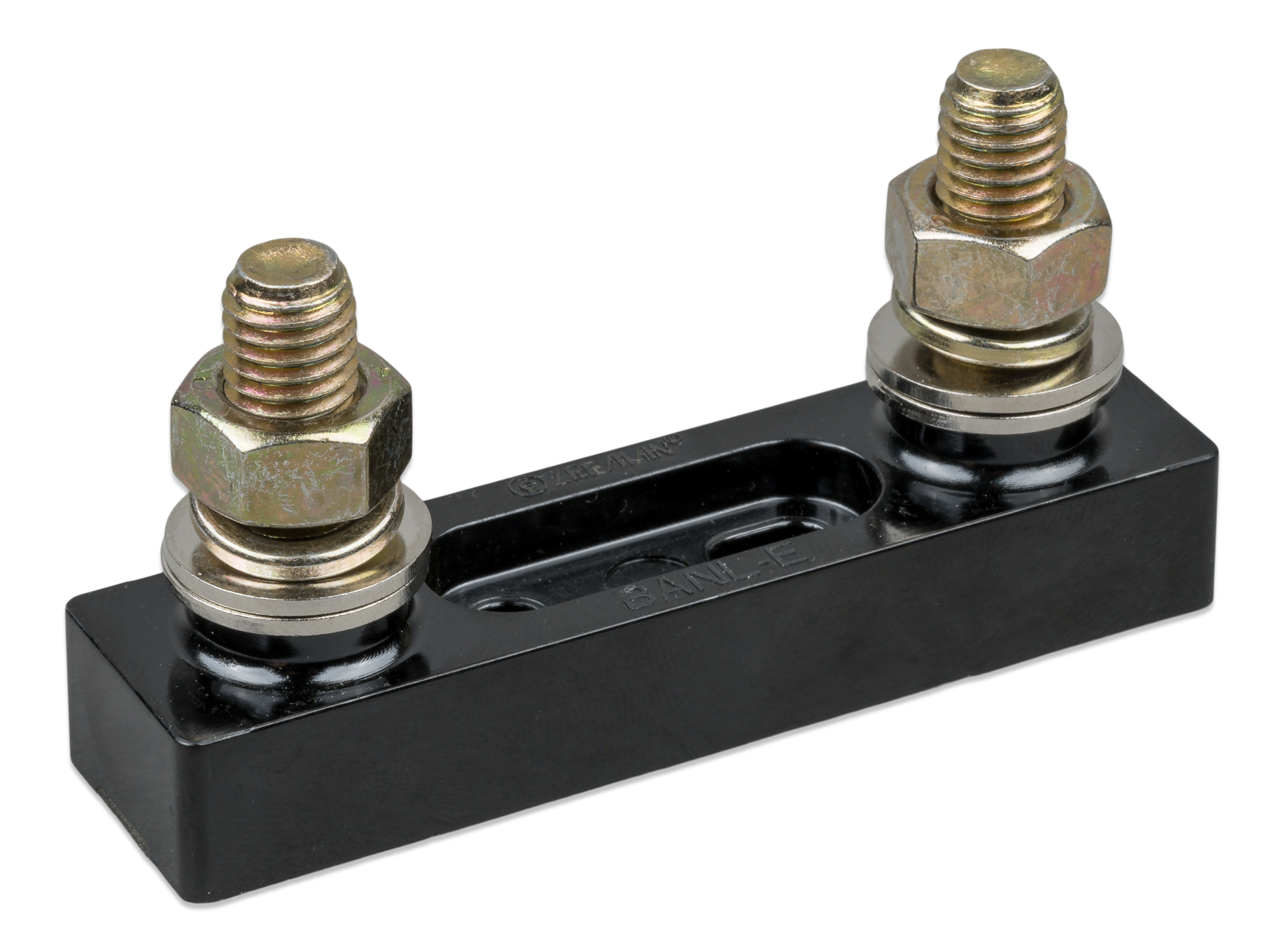

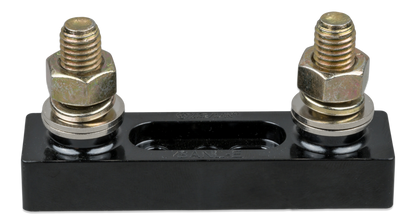

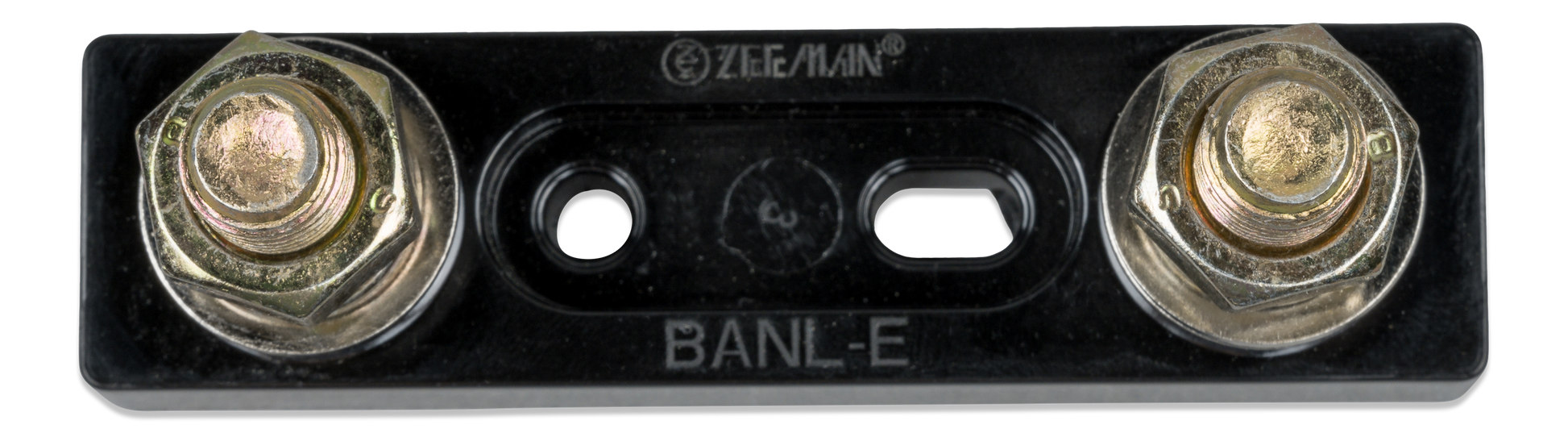

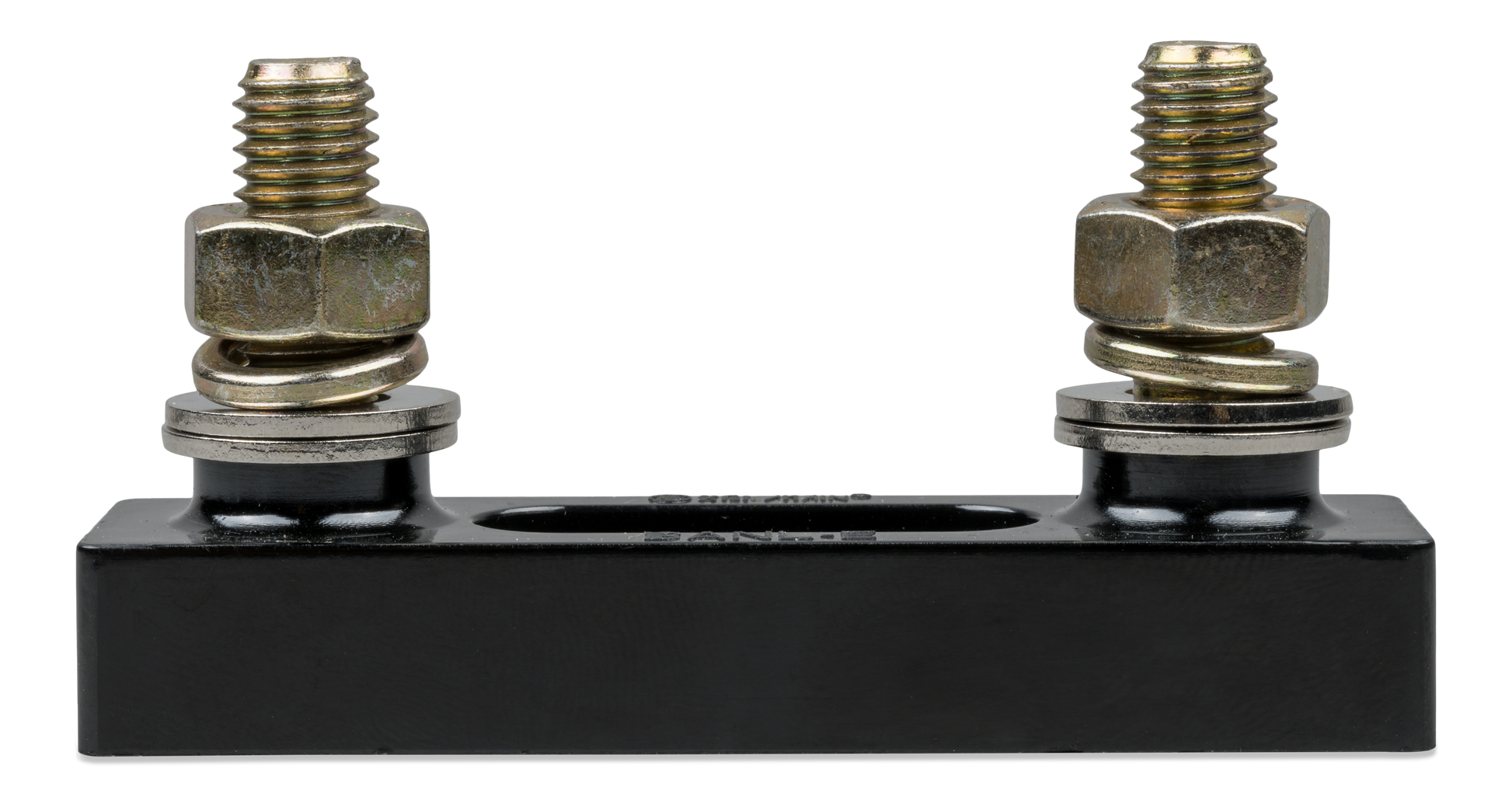

Fuse holder for ANL-fuse

Fuse holder for ANL-fuse

CIP106100000

Brand: Victron

Professional fit-out compatible: Built to suit ANL fuses in demanding high-current DC installations, making it ideal for trade use. High-quality terminal design: Two stud-connections provide strong, secure contact points reducing resistance and supporting reliable performance. Brand confidence: From Victron Energy, a recognised manufacturer in solar, marine, and off-grid products, ensuring quality and compatibility. Installer-ready solution: Supplied without a cover for one-piece installations or replacements, keeping the product cost-efficient while maintaining trade-grade durability Dimensions: 44 x 25 x 87mm Weight: 0.1kg

Low stock: 1 left

£9.00 GBP
£9.00 GBP
Sale Sold out

Product Details

The Fuse holder for ANL-fuse (SKU: CIP106100000) by Victron Energy is designed specifically for high-current power systems and trade installations where robustness and reliability matter. This holder is tailored to accept ANL-type fuses, offering a secure and professional mounting solution for 48 V and other high-current DC setups.

Manufactured from durable materials and featuring two stud-type terminals, the holder provides a solid interface between your fuse and the busbar or distribution panel. The two studs ensure a stable, low-resistance connection suitable for trade systems where performance is non-negotiable.

Ideal for marine, mobile, off-grid or industrial DC systems, this fuse holder fits seamlessly into a professional installer’s toolkit. Combine it with ANL-fuses from Victron for an optimised protection arrangement in battery banks, inverter input lines or DC distribution systems. It supports reliable cable termination and makes maintenance and future system upgrades easier. Whether you’re setting up a 48 V battery system, a hybrid solar inverter rig or a boat power install, this fuse holder delivers the quality expected in trade-grade applications.

Product Specifications

Mechanical Specifications

  • Total Length: 90 mm
  • Total Width: 23.5 mm
  • Total Height: 46 mm (± 2 mm)
  • Base Height: 14 mm
  • Mounting Hole Spacing (Center to Center): 60 mm (± 0.3 mm)
  • Mounting Hole Diameter: 5.2 mm
  • Fuse Type Compatibility: Standard ANL fuses (Bolt-down)

Electrical Compatibility

  • Voltage Range: Compatible with ANL fuses rated up to 80V DC.
  • Application: Ideal for primary circuit protection for high-power devices such as large MultiPlus or Quattro inverter-chargers.
  • Supported Current: Designed to accommodate high-capacity ANL fuses, including 300A, 400A, and 500A ratings.

Installation & Design

  • Secure Connection: Utilizes a dual-stud design to ensure a high-pressure electrical connection, minimizing voltage drop and heat generation.
  • Mounting: Features two integrated mounting holes in the base for secure surface attachment.
  • Durable Construction: Built with an open-base design for easy cable management and fuse inspection.

Fuse holder for ANL-fuse – Data Sheet
