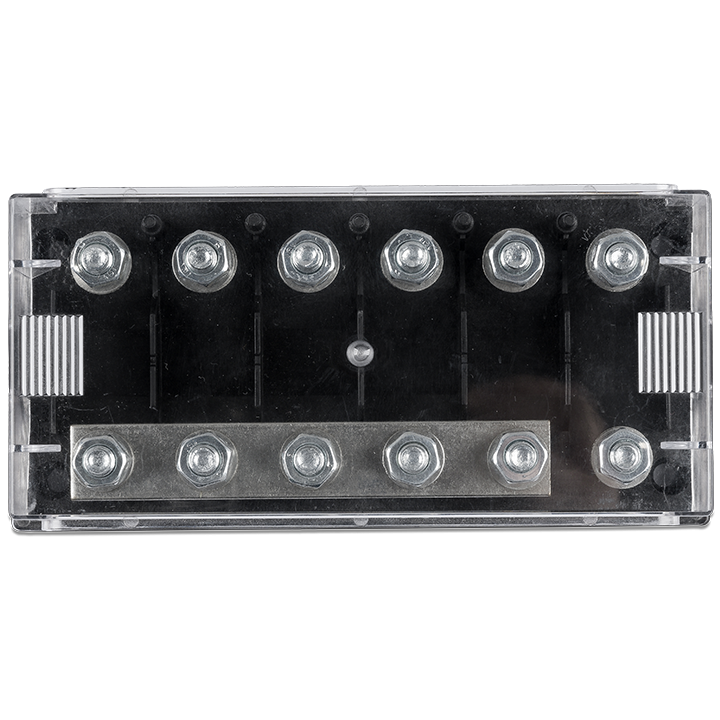

Victron Energy 6-Way Fuse Holder With Busbar for MEGA fuse

The Victron Energy 6-Way Fuse Holder With Busbar (SKU CIP050060000) delivers a dedicated, high-quality solution for managing multiple MEGA-fuse circuits in demanding DC systems. Engineered for up to 250 A current and 70 V DC voltage, it offers robust performance for installers and trade customers working on off-grid solar arrays, mobile power systems, marine or commercial applications.

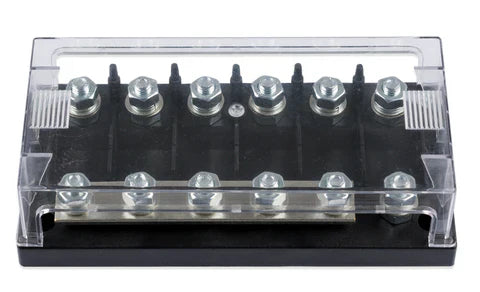

With six fuse positions and an internal tin-plated copper busbar (3 × 18 mm), this holder simplifies distribution by allowing one common feed to split into multiple protected circuits. The base is moulded from black ABS plastic (UL 94 V-0 rated) with a transparent polycarbonate cover (UL 94 HB rated) for clear visibility of fuse status without removing the lid.

Terminations are via 5/16 inch (8 mm) studs with galvanised steel hardware, set at a recommended torque of 7 N·m (60 lbf·inch) to ensure safe, low-resistance connections. The compact footprint (50.9 × 181.5 × 88 mm) enables flexible installation in panels or enclosures where space is at a premium.

For trade professionals specifying DC fuse protection, this fuse holder provides a modular, reliable and service-friendly platform. Its transparent cover facilitates quick diagnostics, the high current rating supports substantial loads, and the busbar configuration streamlines wiring effort. Whether used in solar battery systems, vehicle conversions or marine power distribution, it offers consistent performance and peace of mind.

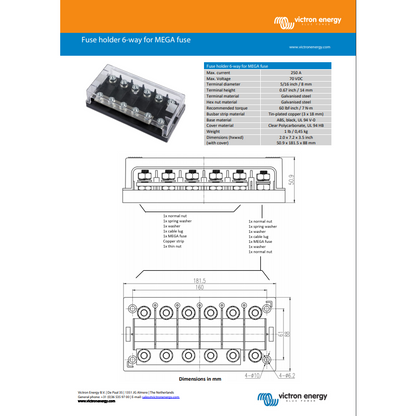

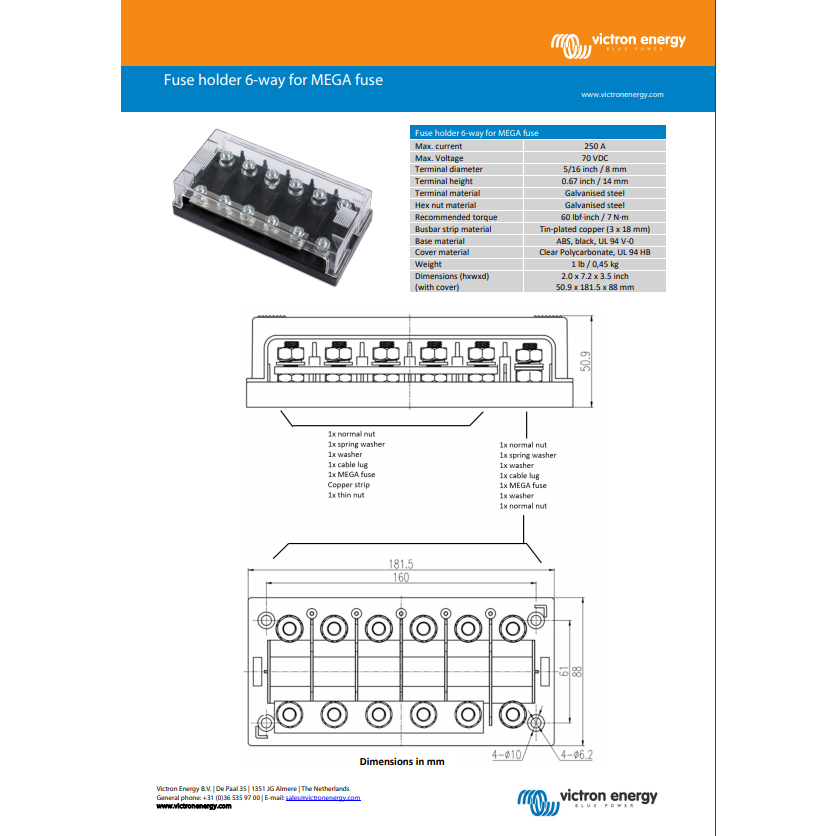

Victron Energy 6-Way Fuse Holder With Busbar for MEGA fuse – Data Sheet
