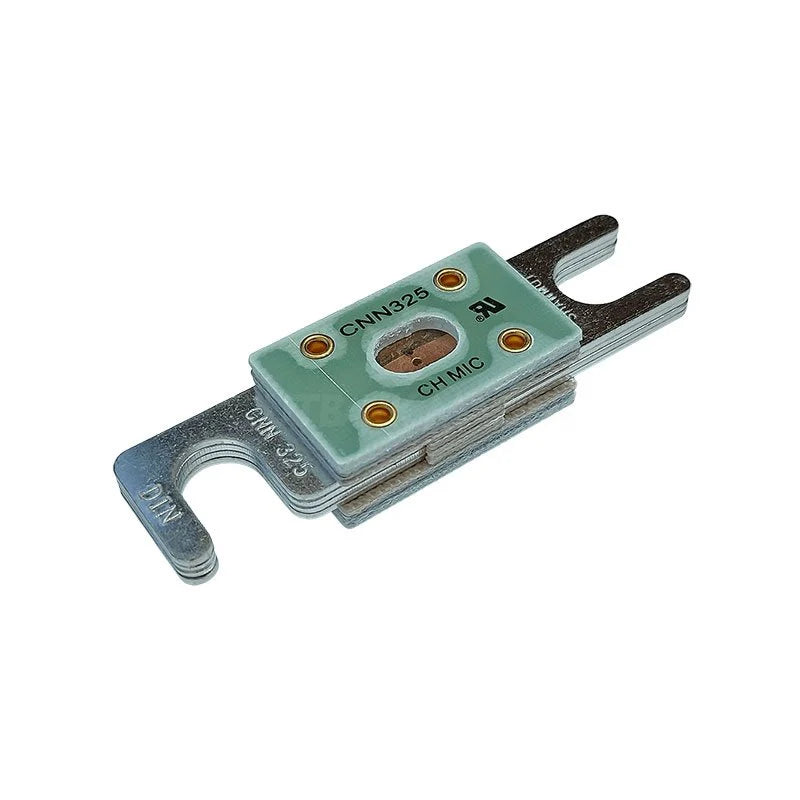

Fuse CNN 325A/80V for Lynx shunt (1 pc) - CIP140325000
Fuse CNN 325A/80V for Lynx shunt (1 pc) - CIP140325000
SKU:CIP140325000
Brand: Victron
Rated for 325A, suitable for high-power DC circuits
Operates effectively in 48V DC systems
Sold individually
Ceramic body with metal end caps
Sold individually
Dimensions: 15 x 82 x 20 mm
Low stock: 5 left
Regular price
£48.00 GBP
Regular price
Sale price
£48.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Fuse CNN 325A/80V for Lynx Shunt is a high-performance fuse designed to provide reliable overcurrent protection for DC circuits in Victron Energy's Lynx distribution systems. This fuse is specifically tailored for use with the Lynx Shunt, ensuring optimal performance and safety in your energy system.
Key Features:
- High Current Capacity: Rated for 325A, suitable for high-power DC circuits.
- Wide Voltage Compatibility: Operates effectively in 48V DC systems.
- Compact Design: Dimensions of 15 x 82 x 20 mm for easy integration into various systems.
- Durable Construction: Built to withstand demanding environments, ensuring long-term reliability.
- Easy Integration: Specifically designed for use with Victron Energy's Lynx Shunt, ensuring optimal compatibility and performance.
Technical Specifications:
- Current Rating: 325A
- Voltage Rating: 80V DC
- Dimensions (HxWxD): 15 x 82 x 20 mm
- Material: Ceramic body with metal end caps
- Quantity: Sold individually
Typical Uses:
- Campervans and motorhomes
- Marine electrical systems
- Off-grid solar or wind power setups
- Battery energy storage systems
Choose the Victron Fuse CNN 325A/80V for dependable, long-lasting protection that keeps your Victron-powered system running safely and efficiently.
Product Specifications
Product Specifications
Technical Specifications
- Fuse Format / Type: CNN (Note: This is a dedicated CNN fuse and is not compatible with MEGA fuse mounting geometry)
- Current Rating: 325 Amps
- Voltage Rating: 80V DC (Engineered specifically to provide safe voltage headroom in nominal 48V DC systems where charging voltages sit in the mid-50V range)
- Fuse Speed: Fast-blow
- Quantity: 1 Piece (Does not include fuse holder, Lynx Shunt, mounting hardware, or wiring)
- EAN: 8719076021940
System Compatibility & Application
- Primary Application: Main fuse slot in the Victron Lynx Shunt VE.Can M8 and Lynx Shunt VE.Can M10 modules.
- Circuit Protection: Protects the specific 325A fused circuit branching through the distributor. (Note: The Lynx Shunt itself is rated for up to 1,000A, meaning the 325A rating represents the protection limit of your fused circuit, not the maximum capacity of the shunt module).
Physical & Mounting Dimensions
- Nominal Dimensions (H x W x D): 15 x 82 x 20 mm
- Mounting Type: Designed for M8 mounting bolts
- Mounting Hole Spacing: Approximately 61.7 mm to 63 mm centre-to-centre spacing
- Product Weight: Approximately 58g to 64g
Important Installation Notes
- System Sizing: Always select your fuse rating according to the maximum prospective voltage and current that can occur in the fused circuit, rather than simply choosing based on the nominal system voltage.
- Total Module Limits: The total fuse value of all connected circuits must not exceed the maximum current rating of your Lynx module (or the lowest-rated Lynx module if multiple are connected in series).
