Energy Meter ET340 - 3 phase - max 65A/phase
Energy Meter ET340 - 3 phase - max 65A/phase
SKU:REL300300000
Brand: Victron
Low stock: 4 left
Couldn't load pickup availability
Product Details
Product Details

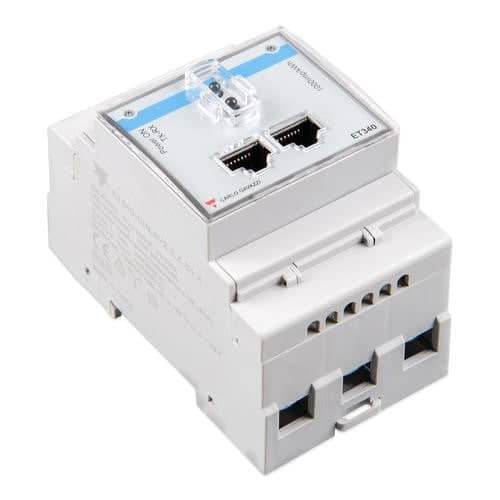

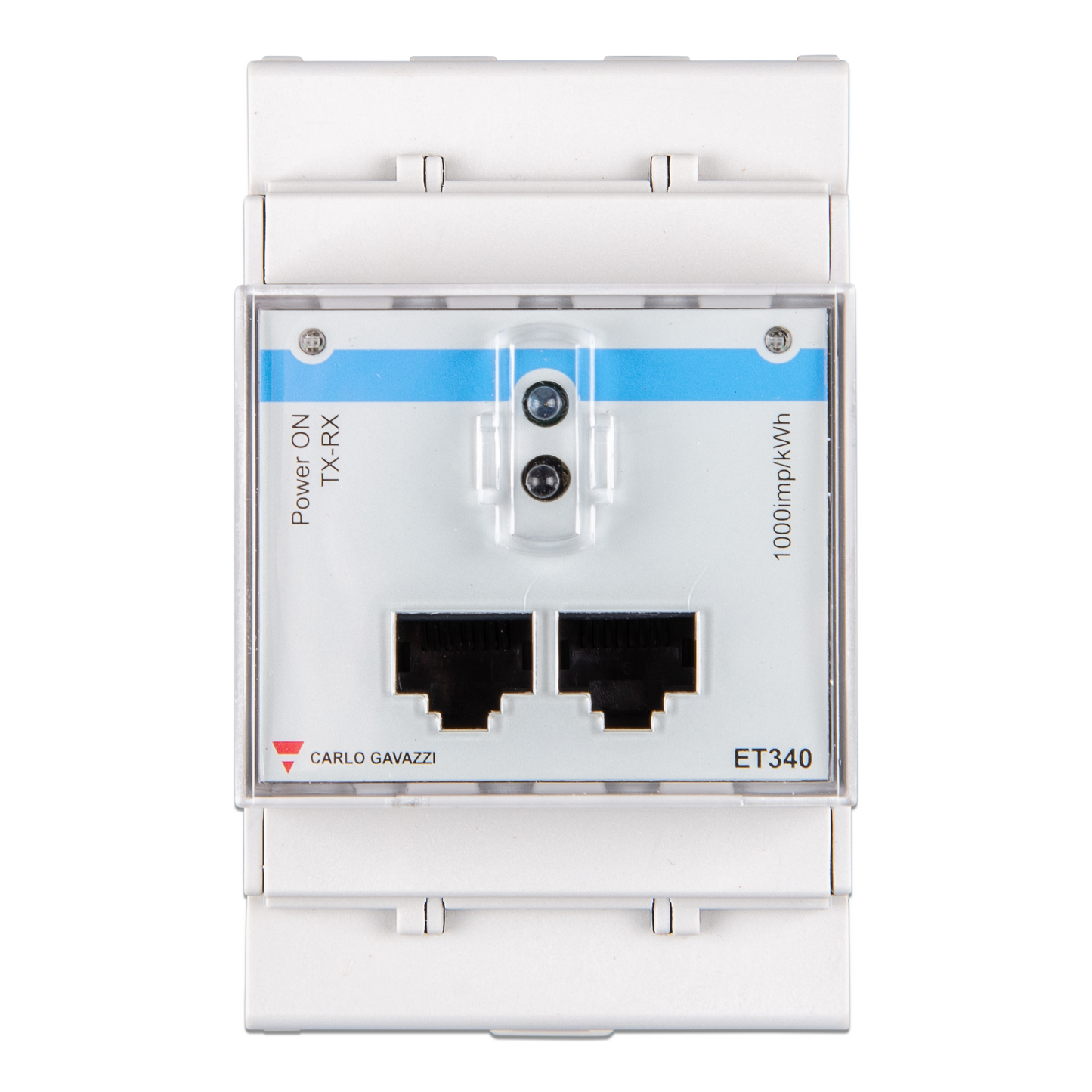

The Victron Energy Meter ET340 is a high-precision 3-phase energy meter designed to measure up to 65A per phase. It is ideal for applications requiring detailed energy consumption data, such as energy storage systems, photovoltaic installations, and grid-tied setups.
This energy meter offers seamless integration with Victron's GX systems, including the Colour Control GX and Cerbo GX, enabling real-time monitoring and control via the VRM Portal. The ET340 features an intuitive display for local readings and supports both wired and wireless communication options.
Designed for easy installation, the ET340 is DIN rail mountable, fitting standard electrical panels. Its robust construction ensures reliable performance in various environments, making it a versatile choice for both residential and commercial applications.
For detailed technical specifications and installation guidelines, refer to the official Victron Energy Meter ET340 manual.
Product Specifications
Product Specifications
Technical Specifications
- Victron Part Number: REL300300000
- Number of Phases: 3-phase
- Maximum Current Rating: 65 A per phase
- Measurement Type: Direct / Shunt
- Display: Integrated LCD
- Communication Interface: RS485
- Refresh Rate: 2000 ms
- Energy Registration Method: Arithmetic registration
- Power Factor Reporting: No
- Phase Sequence Reporting: No
System Integration & Features
- GX Firmware Support: Fully compatible with GX devices (e.g., Cerbo GX, Color Control GX) for real-time monitoring and data logging.
- Versatile Configuration: Can be used as a grid meter in an ESS (Energy Storage System), to measure the output of a PV Inverter, or to measure an AC Generator.
- Split-Phase Support: In addition to 3-phase systems, this meter is also suitable for split-phase installations.
- Registration Method: Uses arithmetic registration for energy counting, which is standard for many regional requirements outside of specific countries like Germany or Austria that prefer vector registration.
- Model Reference: ET340DINAV23XS1X
Connectivity Requirements
- RS485 Connection: Requires a connection to the GX device via an RS485 interface (such as a Victron RS485 to USB interface cable).
- Data Latency: While the meter has its own refresh rate, the latency for a GX device to read data at 9600 baud is typically between 180 and 250ms.
