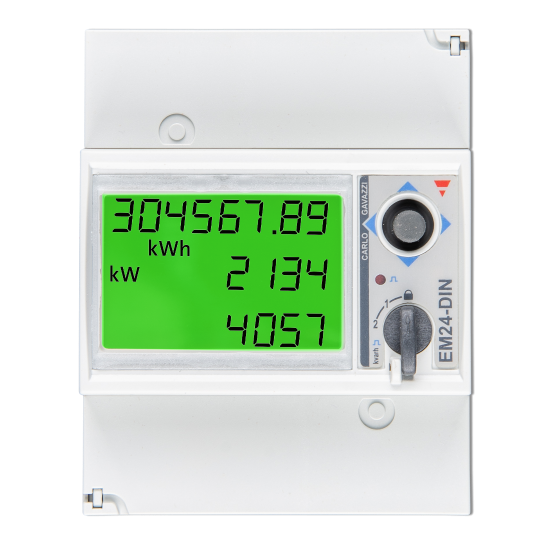

Energy Meter EM24 - 3 phase - max 65A/phase
Energy Meter EM24 - 3 phase - max 65A/phase
SKU:REL200100000
Brand: Victron
Low stock: 2 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Meter EM24 is a three-phase energy meter designed to monitor up to 65 A per phase, making it a reliable choice for distribution boards, PV inverters, and AC load systems. It provides accurate measurement of power and energy, ideal for trade installers working with energy storage systems or grid-tied applications.
This meter uses a direct/shunt connection, so there is no need for external current transformers when operating within its 65 A limit. Communication is via RS‑485, allowing it to connect with Victron GX devices such as a Cerbo GX or Color Control GX for real-time data logging, system control, and integration with the VRM Portal.
The EM24 has a robust design built for professional installations. It is DIN‑rail mountable, which simplifies integration into standard electrical panels. Its operating temperature range is broad, and with a lightweight build, it is well suited for compact or distributed setups.
For flexibility, the meter supports two wiring options: a direct wired RS‑485 interface for control systems or wireless via Zigbee, depending on system layout and installer preference. It records detailed energy usage, helping trade specifiers and system operators control import and export, optimise energy flow, and meet performance targets across multi-phase systems.
Given its precision, compact size, and integration with Victron’s GX ecosystem, the EM24 is ideal for commercial PV systems, energy storage installations, and hybrid power setups where in-depth monitoring is critical. Trade installers will appreciate its balance of simplicity, accuracy, and system compatibility, backed by Victron’s 5-year standard warranty.
Product Specifications
Product Specifications
Technical Specifications
- Victron Part Number: REL200100000
- Number of Phases: 3-phase
- Maximum Current Rating: 65 A per phase
- Measurement Type: Direct / Shunt
- Energy Registration Method: Vector registration (Preferred method for countries such as Germany and Austria)
- Communication Interface: RS485
- Refresh Rate: 600 ms
- Display: Integrated LCD
Reporting & Monitoring
- Power Factor Reporting: Yes
- Phase Sequence Reporting: Yes
- GX Firmware Support: Fully supported by Victron GX devices (e.g., Cerbo GX, Color Control GX) for real-time visualization and data logging via the VRM Portal.
Connectivity & Installation
- Connection Requirement: Requires an RS485 interface to connect to a GX device (typically via a Victron RS485 to USB interface cable).
- Data Latency: The latency for a GX device to read data at 9600 baud is typically between 180 and 250ms.
- Model Reference: EM24DINAV93X ISX
Key Features
- Vector Registration: Unlike many other meters that use arithmetic registration, the EM24 uses vector registration to comply with specific regional utility requirements.
- Direct Measurement: Capable of measuring three-phase loads up to 65A without the need for external current transformers (CTs).
- System Integration: Provides the necessary data for the GX device to perform advanced functions like grid parallel ESS control and preventing grid feed-in.
