EasySolar-II 48/5000 – 3-In-1 Charge Controller, Inverter/Charger, GX Device
EasySolar-II 48/5000 – 3-In-1 Charge Controller, Inverter/Charger, GX Device
SKU:PMP482507010
Brand: Victron
Low stock: 2 left
Couldn't load pickup availability
Product Details
Product Details
The EasySolar-II 48/5000 is a professional, all-in-one power management unit designed for demanding solar and hybrid installations. It combines three essential components into one compact enclosure: a SmartSolar MPPT charge controller, a powerful MultiPlus-II inverter and charger, and an integrated GX monitoring device. This design reduces wiring complexity, shortens installation time, and offers a more reliable, tidier setup for installers working in commercial and off-grid environments.
At the heart of the system is the SmartSolar MPPT charge controller, which maximises energy harvest from solar arrays by continually tracking the optimum voltage and current point. This intelligent charging profile helps maintain battery health over time, supporting long-term system performance. The controller is suitable for a wide range of applications, including campervans, boats, tiny homes, and remote buildings where dependable energy access is essential.
Alongside the charge controller sits the MultiPlus-II inverter and charger. This robust pure sine wave inverter converts 48V DC battery power into stable 230V AC to run domestic appliances with up to 5000VA output capability. When connected to hookup power, the built-in charger replenishes the battery bank efficiently. The unit can automatically switch between battery and external power sources, maintaining a consistent supply without the need for manual intervention, which is particularly useful during fluctuating conditions.
The integrated GX device acts as the communication hub for the system. It connects all components and provides clear visibility of performance data. Users can monitor the system locally or remotely through the Victron Remote Management platform using the app or computer software. Remote access allows firmware updates, configuration adjustments, and ongoing performance checks, which is ideal for installers supporting multiple sites.
For trade customers, the EasySolar-II 48/5000 represents a streamlined approach to energy integration. It reduces component count, removes many common wiring risks, and provides a centralised interface for diagnostics and optimisation. These benefits translate to fewer callouts, faster commissioning, and improved long-term reliability. Its versatility makes it well suited to off-grid living, marine systems, professional leisure vehicles, and backup power installations.
In summary, this all-in-one product provides a practical solution for installers and system designers seeking a compact, optimised solar power system that is easy to manage and maintain.
Product Specifications
Product Specifications
Inverter Specifications
- Input Voltage Range: 38 – 66 V
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Cont. Output Power at 25°C: 5000 VA / 4000 W
- Cont. Output Power at 40°C: 3700 W
- Cont. Output Power at 55°C: 3000 W
- Maximum Apparent Feed-in Power: 4400 W / 5000 VA
- Peak Power: 9000 W
- Maximum Efficiency: 96%
- Zero Load Power: 18 W
- Zero Load Power in AES Mode: 12 W
- Zero Load Power in Search Mode: 2 W
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 V
- Charge Voltage 'Float': 55.2 V
- Storage Mode: 52.8 V
- Maximum Battery Charge Current: 70 A
- Battery Temperature Sensor: Yes
- Programmable Relay: Yes (Can be set for general alarm, DC under voltage, or generator start/stop)
SmartSolar MPPT Charge Controller
- Model: MPPT 250/100-Tr
- Maximum Output Current: 100 A
- Maximum PV Power: 5800 W
- Maximum PV Open Circuit Voltage: 250 V
- Maximum Efficiency: 99%
- Self-consumption: 20 mA
- Charge Voltage 'Absorption' (Default): 57.6 V
- Charge Voltage 'Float' (Default): 55.2 V
GX Device & Connectivity
- Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
- Display: 2 x 16-character LCD screen
- Remote Monitoring: Compatible with the VRM Portal and VRM App for remote management and system settings adjustments.
- Remote On-Off: Yes
General Specifications
- PowerControl & PowerAssist: Yes
- Transfer Switch: 50 A
- Maximum AC Input Current: 50 A
- Auxiliary Output: 50 A
- Operating Temp. Range: -20 to +45°C (Fan-assisted cooling)
- Maximum Altitude: 2000 m
- Humidity: Max 95% (Non-condensing)
Mechanical Specifications
- Dimensions (h x w x d): 604 x 323 x 253 mm
- Weight: 38.6 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21

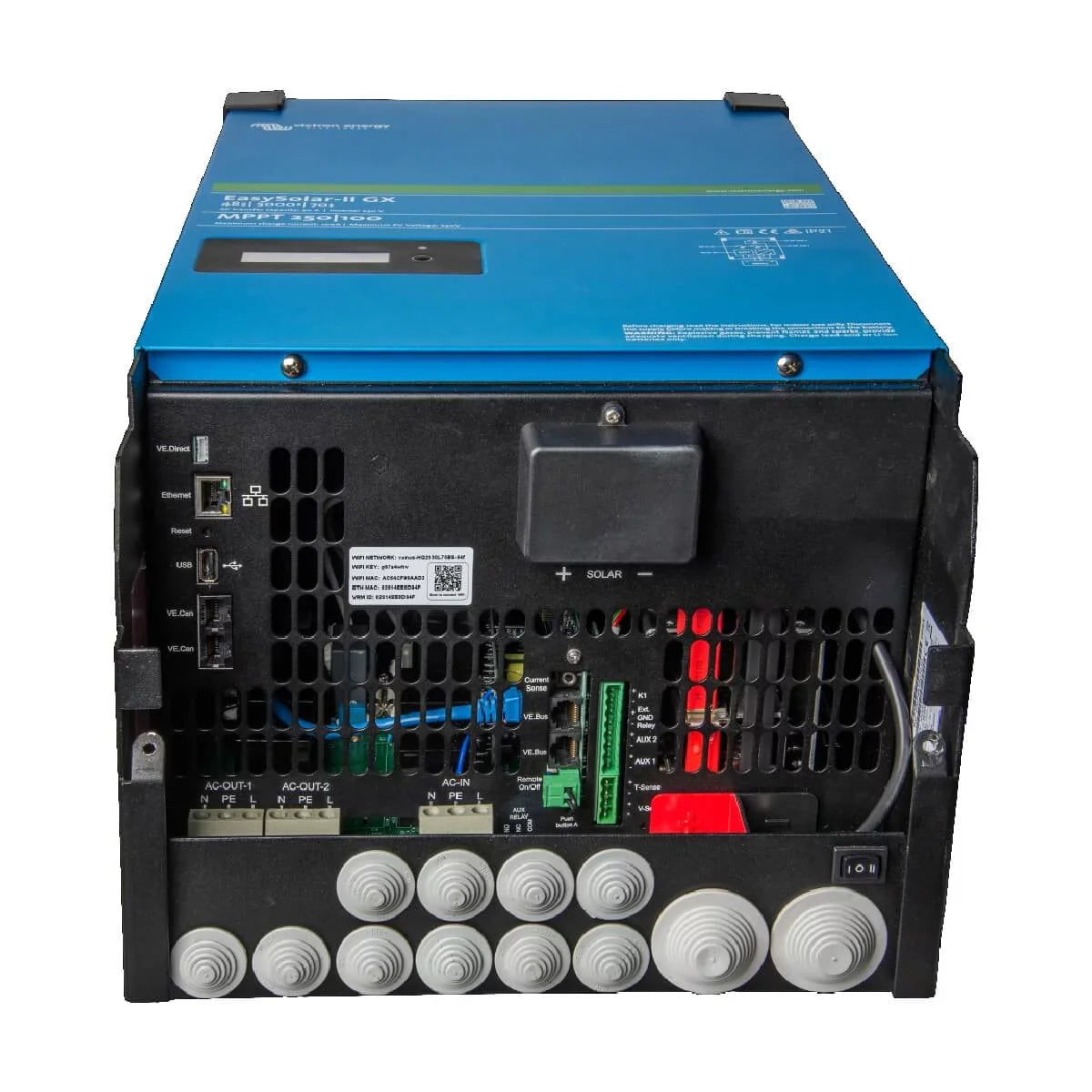

- Battery Connection: M8 Bolts
- PV Connection: M6 Bolts
- 230 VAC Connection: Screw terminals 16 mm² (6 AWG)
Standards & Protections
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Integrated Protection: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
