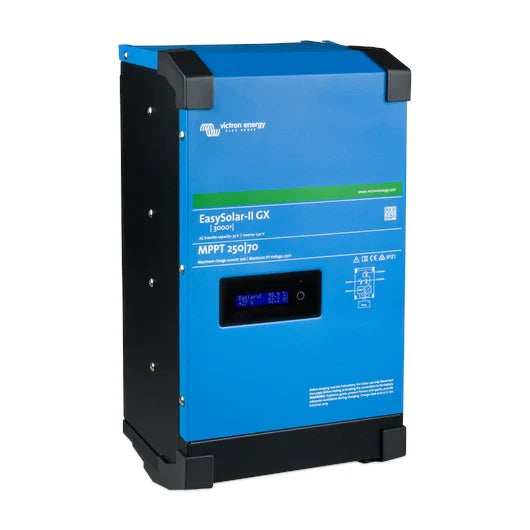

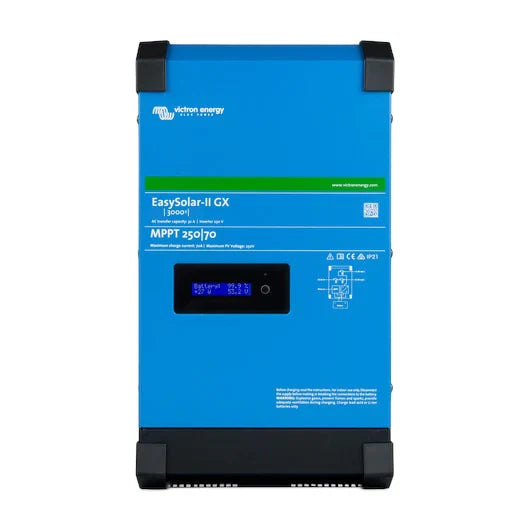

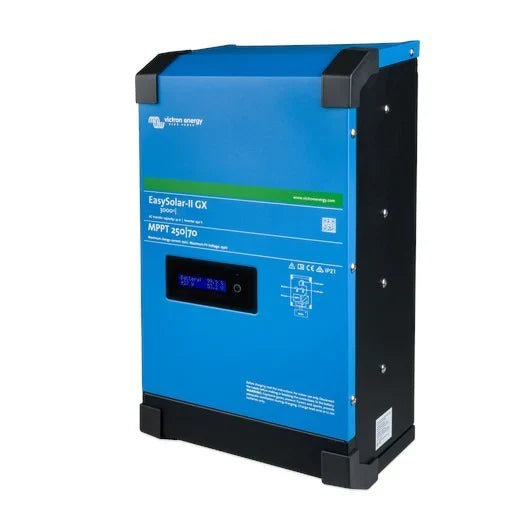

EasySolar-II 24/3000 – 3-In-1 Charge Controller, Inverter/Charger, GX Device
EasySolar-II 24/3000 – 3-In-1 Charge Controller, Inverter/Charger, GX Device
SKU:PMP242307010
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Victron EasySolar-II 24/3000/70-32 MPPT 250/70 GX – PMP242307010
Key Features:
Integrated MPPT Solar Charge Controller:
The device incorporates a SmartSolar MPPT charge controller, wired in parallel with the inverter/charger.
SmartSolar technology optimizes energy harvest from solar panels, achieving full charge efficiently.
Intelligent charging maintains battery health, extending overall battery life.
MultiPlus-II Inverter/Charger:
Features a MultiPlus-II inverter/charger, serving as a powerful pure sine wave inverter and a sophisticated battery charger.
Converts 24V DC power from leisure batteries to 230V AC power, enabling the operation of up to 3000VA domestic appliances in off-grid scenarios.
Seamlessly switches between different power sources, automatically transitioning from hookup power to battery power and vice versa.
GX Device - Monitoring and Control Hub:
The GX device acts as the central monitoring and control hub of the system.
All system components, including the solar charge controller, inverter/charger, and batteries, connect to the GX device.
Provides both local and remote monitoring capabilities through the Victron Remote Management (VRM) app and computer program.
Allows for remote firmware updates and adjustments to inverter/charger settings.
Remote Monitoring and Firmware Updates:
Enables monitoring of the system locally and remotely via the free Victron Remote Management app and computer program (VRM).
Facilitates remote firmware updates for system optimization.
Efficient Energy Harvesting:
SmartSolar MPPT technology ensures intelligent and efficient energy harvesting from solar panels, maximizing the use of available sunlight.
All-in-One Solar Power Solution:
Combines multiple components into a single, integrated device, simplifying installation and reducing wiring complexity.
Automatic Power Source Switching:
Seamless transition between different power sources, eliminating the need for manual switching.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: PMP242307010
AC Input Frequency Range: [45, 65] Hz
AC Input Voltage Range: [187, 265] VAC
AC Output Frequency: 50 Hz
AC Output Voltage: 230 VAC
Anti Islanding Standard: See our website
Aux Ac Current: 32 A
Auxiliary Output: Yes
Battery Connection Terminal Type: M8 bolts
Battery Voltage Nominal: 24 V
Charge Algorithm: Adaptive, 4-stage
Charge Algorithm1: Adaptive, 4-stage
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Absorption1: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Float1: 46.4 VDC
Charge Voltage Storage: 26.4 VDC
Colour: Blue (RAL 5012)
Communication Port: VE.Direct,VE.Bus,VE.Can,BMS-Can,WiFi,Ethernet
Computer Programming: Yes
Cont Power W55: 1,700 W
Continuous Power (VA, 25°C): 3,000 VA
Continuous Power (W, 25°C): 2,400 W
Continuous Power (W, 40°C): 2,200 W
DC Input Voltage Range: [19, 33] VDC
Depth: 237 mm
Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
External Ac Current Sensor: 50A or 100A (optional)
Fan Assist Cooling: Yes
Height: 499 mm
Material: Steel
Max Ac Input Current: 32 A
Max Apparent Feed-in Power: 3,000 VA
Max Efficiency: 94 %
Max Humidity: 95 %
Max Output Current Solar: 70 A
Max Pv Open Circuit Voltage: 250 V
Max Pv Power: 2,000 W
Maxi Efficiency Solar Charger: 99 %
Maximum Battery Charge Current: 70 A
P VConnection Terminal Type: M6 bolts
Peak Power Rating: 5,500 W
Power Assist: Yes
Power Control: Yes
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protection Category: IP21
Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Relay Terminal: Screw terminal 3-pole
Remote Terminal: On / Off
Remote Terminal Type: Screw terminal two pole
Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2
Self Consumption: 20 mA
Solar Charger Model: MPPT 250/70-Tr
Temperature Sensor: Included
Transfer Switch Current Rating: 32 A
VE.Bus Terminal Type: Two RJ45 terminals
Weight: 26 kg
Width: 268 mm
Zero Load Power: 13 W
Zero Load Power (AES): 9 W
Zero Load Power (Search): 3 W
Source: Victron
