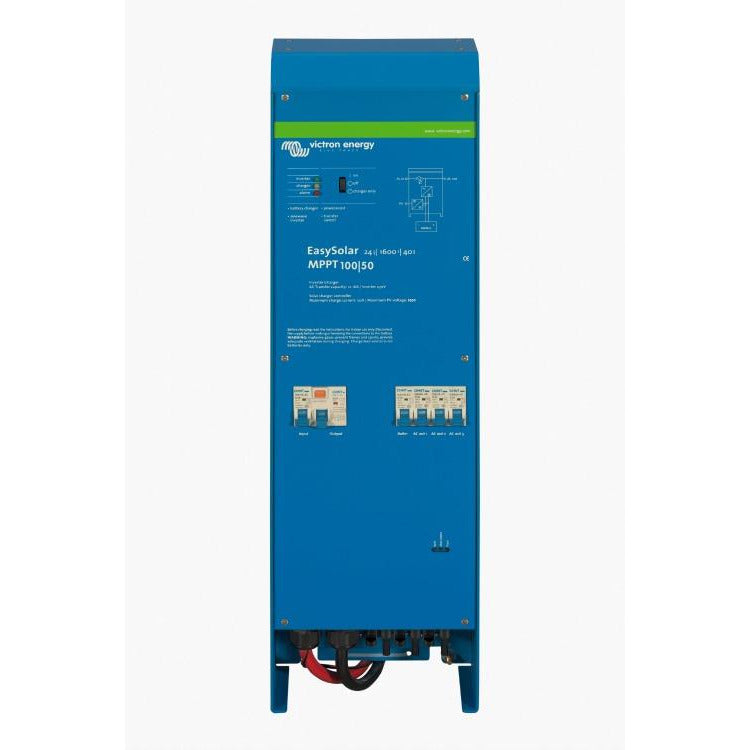

EasySolar 24/1600/40-16 230V MPPT 100/50

EasySolar 24/1600/40-16 230V MPPT 100/50

CEP242161010

Brand: Victron

All-in-One Integration: Combines MPPT Solar Charger (100/50), 1600VA Inverter/Charger, and AC distribution in a single enclosure, drastically reducing installation time and complexity. Overload Protection (PowerAssist): Unique PowerAssist technology prevents generator or shore power supply overload by automatically boosting total capacity with battery power when required. Superior Solar Harvest: Features the ultra-efficient BlueSolar MPPT 100/50 charge controller, maximising energy yield from your solar panels, even in fast-changing light conditions. Simplified Wiring: Comes with pre-wired DC battery cables and three sets of MC4 PV connectors, ensuring a professional, plug-and-play installation with minimal effort. Robust Safety Features: Includes built-in AC distribution with a Residual Current Device (RCD) and multiple protected circuit breaker outputs for complete system safety and reliability. Dimensions: 745 x 214 x 110mm Weight: 15kg

In stock

This is pre-order - Available in 7 – 10 days

£1,029.00 GBP
£1,029.00 GBP
Sale Sold out

Product Details

The EasySolar 24/1600/40-16 230V MPPT 100/50 is the definitive all-in-one energy solution, professionally engineered by Victron Energy to streamline your 24V solar installation. Designed with the trade professional and retail customer in mind, this compact unit significantly cuts installation time and complexity by integrating three critical components into a single, robust enclosure: a powerful sine wave inverter/charger, an efficient MPPT solar charge controller, and a high-speed AC distribution system.

This model centres on a powerful 1600VA continuous output inverter, paired with a sophisticated 40A multi-stage battery charger, capable of reliably handling your house battery charging needs from shore power or a generator. The integrated BlueSolar MPPT 100/50 charge controller ensures maximum solar harvest, providing up to 1400W of conversion capacity and utilising ultra-fast Maximum Power Point Tracking (MPPT) to capture up to 30% more energy in changing light conditions compared to traditional PWM controllers.

Efficiency and safety are paramount. The EasySolar features Victron’s unique PowerAssist technology, which dynamically protects against utility or generator overload. When external AC power is limited, PowerAssist instantly supplements the supply with energy drawn from the battery via the inverter, ensuring uninterrupted power for your vital loads. This intelligent management capability makes it the preferred choice for reliable off-grid, marine, or mobile applications.

Installation is made simple and robust. The unit comes complete with pre-wired DC battery cables and three sets of industry-standard MC4 (PV-ST01) PV connectors, allowing for the quick and easy connection of up to three strings of solar panels. Furthermore, the built-in AC distribution ensures safety and compliance, including a Residual Current Device (RCD) and protected AC outputs with circuit breakers (two 10A and two 16A), guaranteeing peace of mind. Housed in a durable, sleek blue aluminium enclosure, the EasySolar is the ideal cornerstone for a powerful, optimised, and reliable 24V energy system.

Product Specifications

Inverter Specifications

  • Input Voltage Range: 19 – 33 V
  • Output Voltage: 230 VAC ± 2% (Adjustable to 240 VAC)
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Cont. Output Power at 25°C: 1600 VA / 1300 W
  • Cont. Output Power at 40°C: 1200 W
  • Peak Power: 3000 W
  • Maximum Efficiency: 94%
  • Zero Load Power: 10 W
  • Zero Load Power (Search Mode): 3 W

Charger Specifications

  • AC Input Voltage Range: 187 – 265 VAC
  • Input Frequency: 45 – 65 Hz
  • Charge Voltage 'Absorption': 28.8 V
  • Charge Voltage 'Float': 27.6 V
  • Storage Mode: 26.4 V
  • Charge Current (House Battery): 40 A
  • Charge Current (Starter Battery): 4 A
  • Battery Temperature Sensor: Included
  • Programmable Relay: Yes (Configurable for general alarm, DC under-voltage, or generator start)

Solar Charge Controller (MPPT 100/50)

  • Maximum Output Current: 50 A
  • Maximum PV Power: 1400 W
  • Maximum PV Open Circuit Voltage: 100 V
  • Maximum Efficiency: 98%
  • Self-Consumption: 10 mA
  • Default Absorption Voltage: 28.8 V
  • Default Float Voltage: 27.6 V
  • Charge Algorithm: Multi-stage adaptive
  • Temperature Compensation: -32 mV/°C

AC Distribution & Features

  • Integrated RCD: 30 mA / 16 A
  • AC Outputs: Four outputs protected by two 10 A and two 16 A circuit breakers.
  • Heavy Duty Output (AC OUT 0): 16 A (Active only when AC input is available).
  • PowerAssist: Protects the utility or generator from overload by adding inverter power when needed.
  • Transfer Switch: 16 A

Mechanical & Enclosure

  • Dimensions (H x W x D): 745 x 214 x 110 mm
  • Weight: 15 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: 1.5-meter battery cables included
  • PV Connection: Three sets of MC4 (PV-ST01) connectors
  • 230V AC Connection: G-ST18i connector

Environmental & Standards

  • Operating Temperature Range: -20 to +50 °C (Fan-assisted cooling)
  • Humidity: Max 95% (Non-condensing)
  • Safety Standards: EN 60335-1, EN 60335-2-29, EN 62109
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN 61000-3-3
  • Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

EasySolar 24/1600/40-16 230V MPPT 100/50 – Manual

EasySolar 24/1600/40-16 230V MPPT 100/50 – Data Sheet

MPPT Amps 50
Inverter Rating 1600VA
