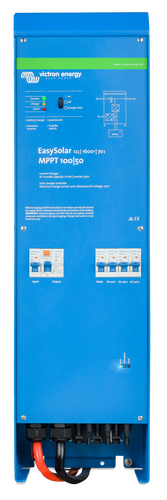

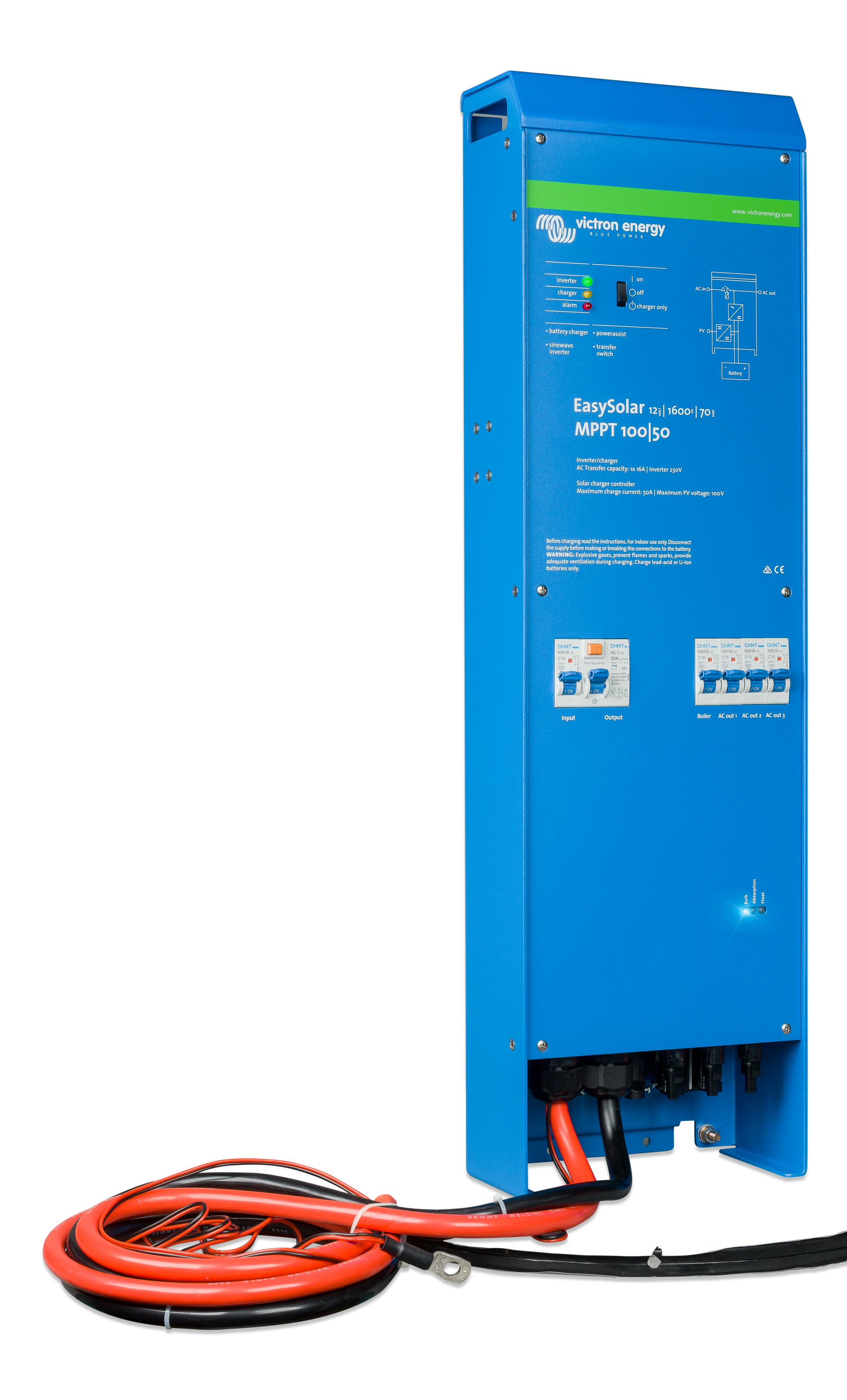

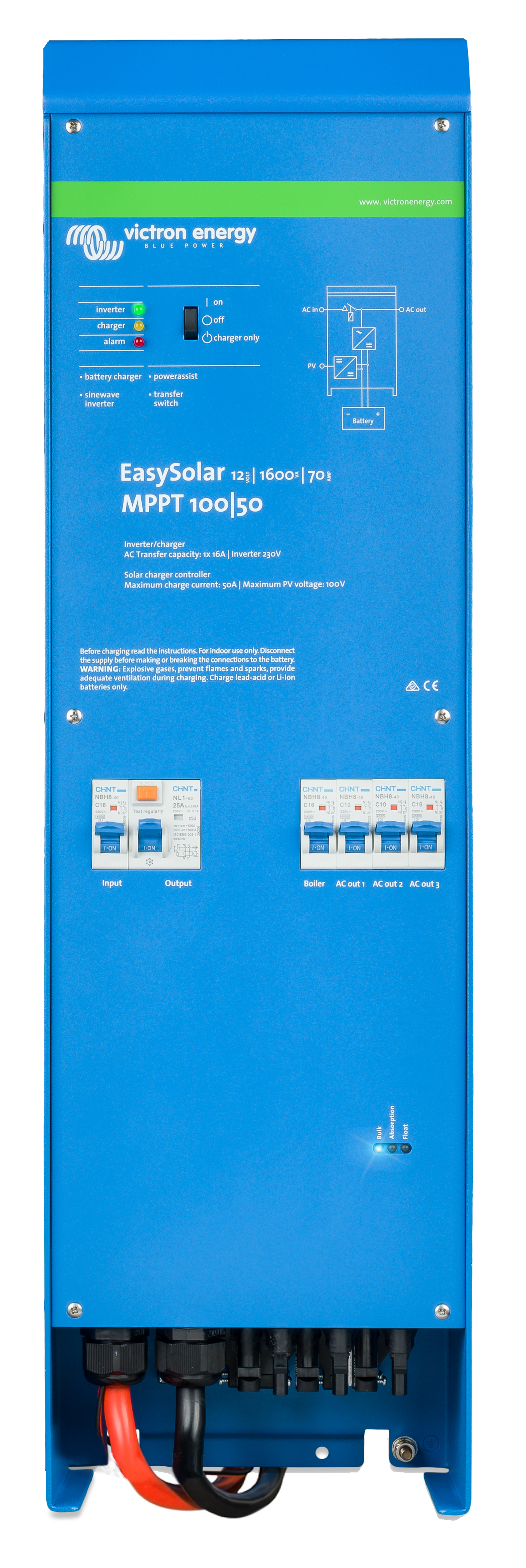

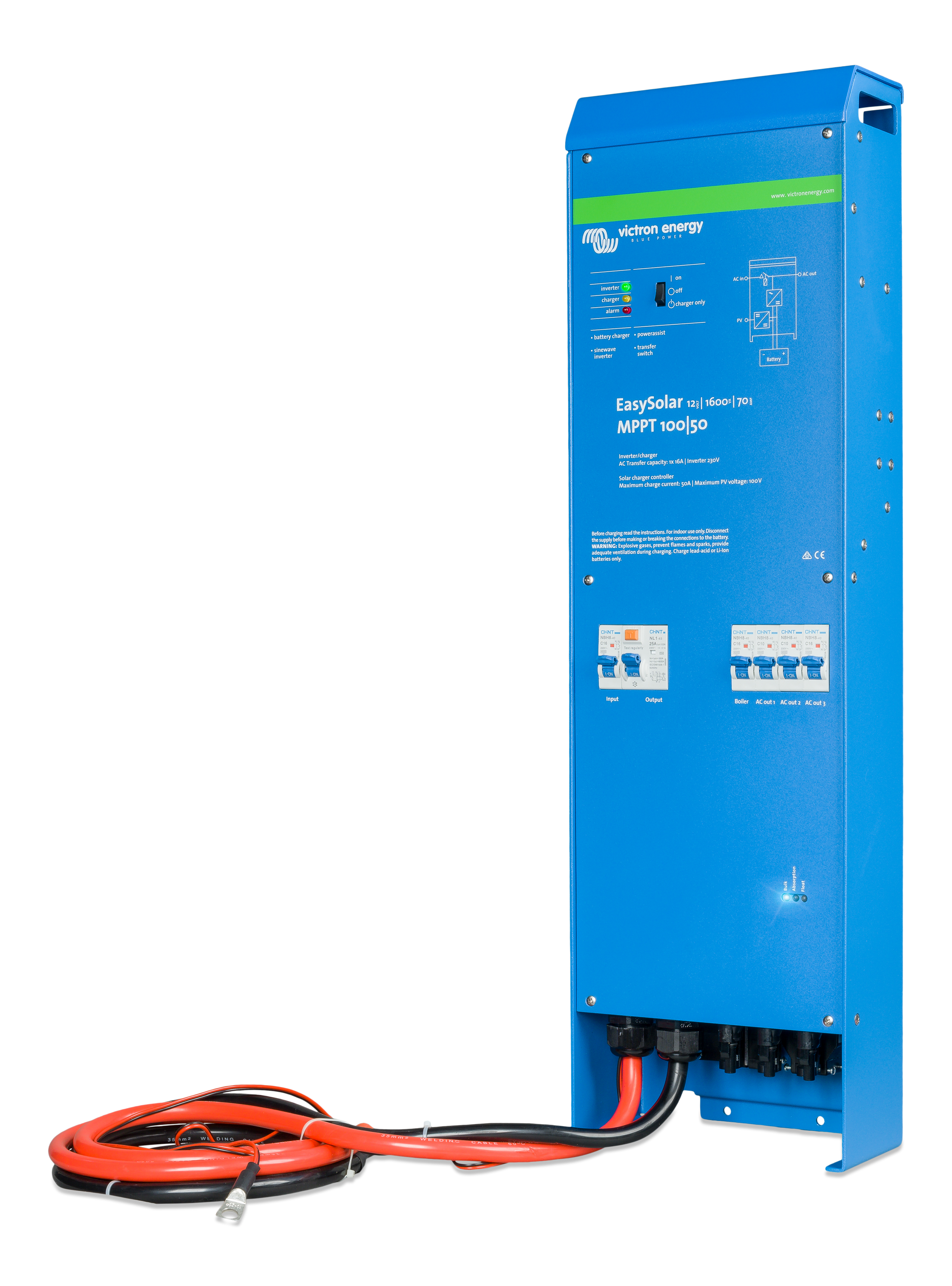

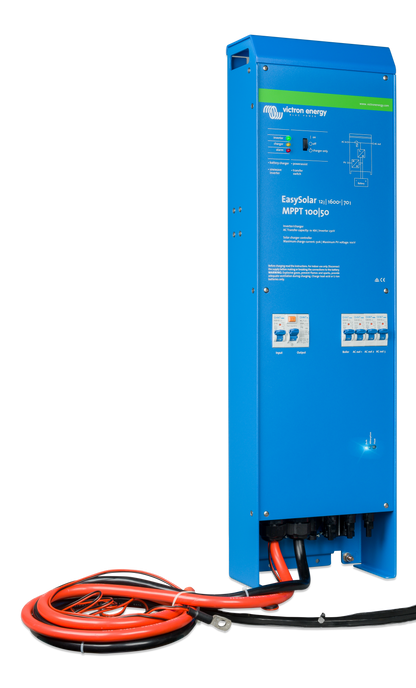

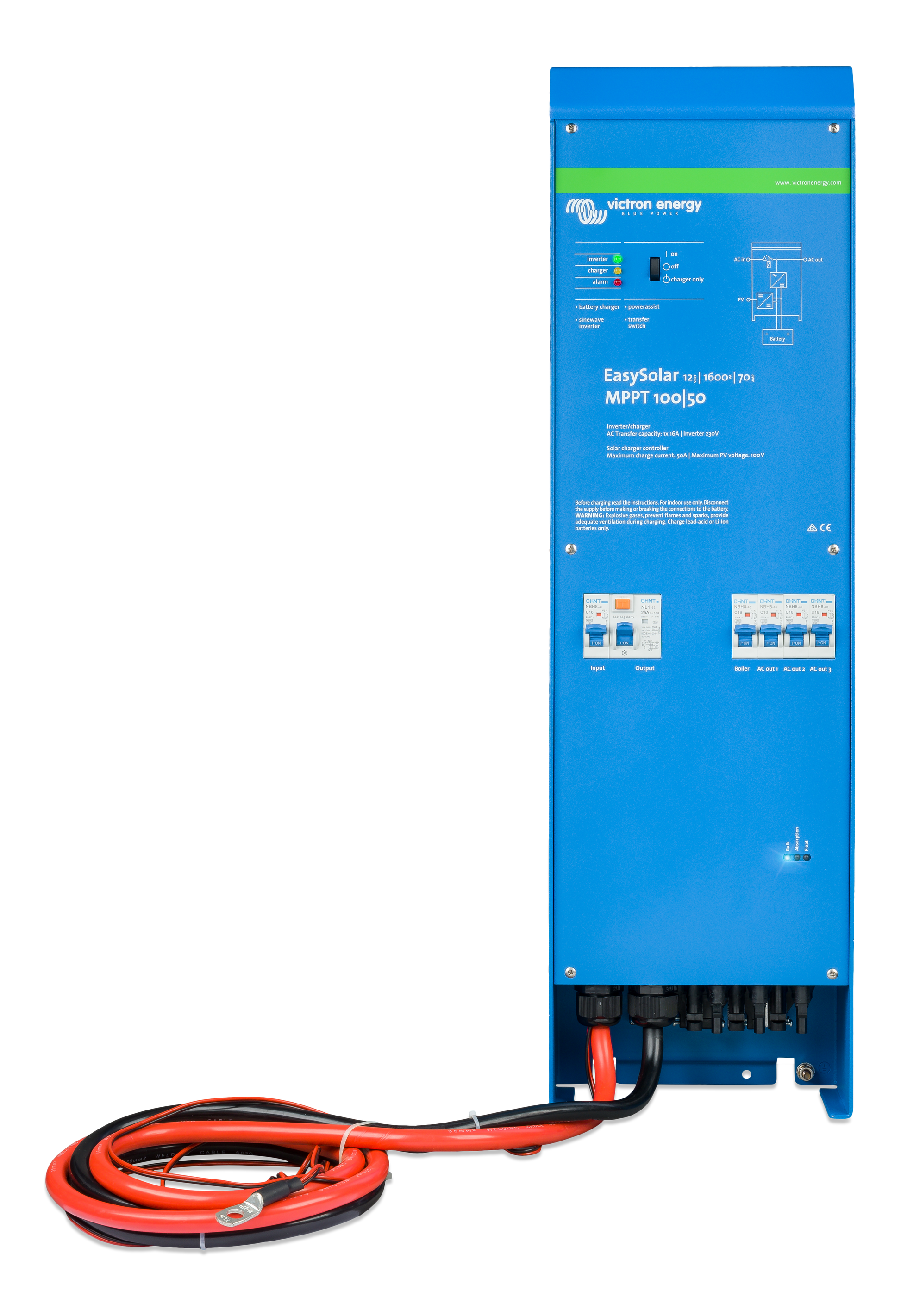

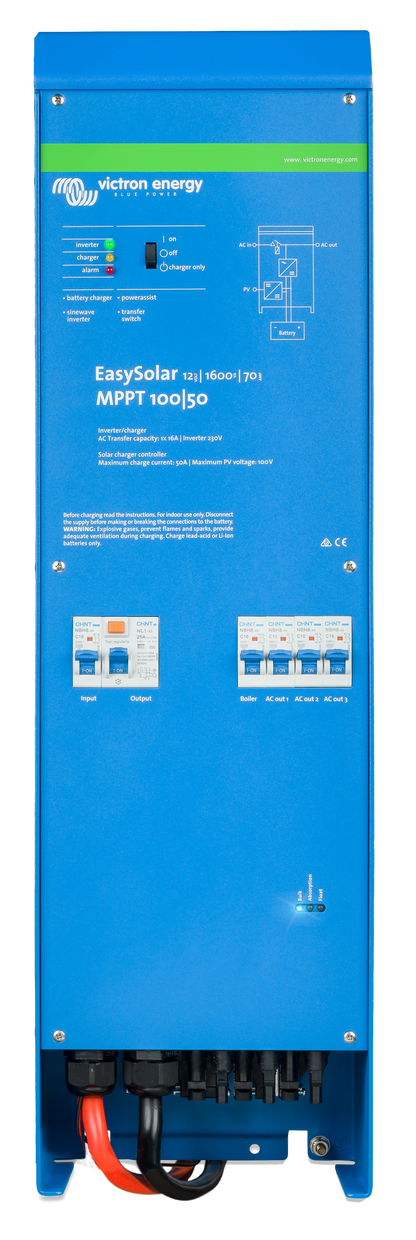

Victron EasySolar 12/1600/70-16 230V MPPT 100/50

Victron EasySolar 12/1600/70-16 230V MPPT 100/50

CEP122161000

Brand: Victron

Saves space with compact all in one design Reduces installation time and wiring complexity Maximises solar harvest with MPPT 100/50 technology Provides stable 230V AC output when off grid Reliable Victron engineering trusted by professionals Dimensions: 745 x 214 x 110mm Weight: 15kg

In stock

This is pre-order - Available in 7 – 10 days

£1,029.00 GBP
£1,029.00 GBP
Sale Sold out

Product Details

The Victron EasySolar 12/1600/70-16 230V MPPT 100/50 is an all in one power solution designed to make off grid and backup electrical systems simple, efficient, and reliable. Manufactured by Victron Energy, this compact unit combines a 1600VA inverter, a powerful 70A battery charger, and an advanced SmartSolar MPPT 100/50 solar charge controller inside one neat enclosure. By reducing the need for separate components, it saves valuable installation time, cuts cabling complexity, and improves overall system performance.

With a 12V battery system and 230V AC output, this model is ideal for small commercial installations, telecom systems, mobile workshops, and remote site cabins. The integrated MPPT charge controller maximises the energy harvested from solar panels, maintaining stable power availability in varied sunlight conditions. The inverter charger also includes PowerAssist, a feature that supports limited shore or generator power by supplementing it with battery energy when needed.

The EasySolar features a clean and logical AC distribution board, complete with residual current device and circuit breakers. It helps ensure safe operation while offering multiple protected AC outputs for connected appliances. A built in VE.Direct communication port gives access to monitoring tools, system data, and configuration options, helping users plan their energy usage more effectively.

Designed for trade and technical users who need dependable performance, the Victron EasySolar uses proven components engineered for long service life. The compact housing reduces space requirements and simplifies mounting, while the intuitive layout helps installers deliver neat, professional results.

For commercial applications where downtime is costly, this product provides reliable battery charging, dependable solar integration, and stable AC power. It supports flexible energy expansion, making it suitable for both new system builds and upgrades to existing sites. The EasySolar range is trusted globally by fleet operators, service engineers, and energy contractors who need equipment that performs consistently in demanding environments.

If you need a professional grade solution that reduces installation costs, saves space, and provides dependable power control, the Victron EasySolar 12/1600/70-16 230V MPPT 100/50 is a smart choice.

Product Specifications

Inverter Specifications

  • Input Voltage Range: 9.5 – 17 V
  • Output Voltage: 230 VAC ± 2% (Adjustable to 240 VAC)
  • Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Continuous Output Power at 25°C: 1600 VA / 1300 W
  • Continuous Output Power at 40°C: 1200 W
  • Peak Power: 3000 W
  • Maximum Efficiency: 92%
  • Zero Load Power: 8 W
  • Zero Load Power (Search Mode): 2 W

Battery Charger Specifications

  • AC Input Voltage Range: 187 – 265 VAC
  • Input Frequency: 45 – 65 Hz
  • Charge Voltage 'Absorption': 14.4 V
  • Charge Voltage 'Float': 13.8 V
  • Storage Mode: 13.2 V
  • Charge Current House Battery: 70 A (at 25°C ambient)
  • Charge Current Starter Battery: 4 A
  • Battery Temperature Sensor: Included
  • Charge Algorithm: Multi-stage adaptive

Solar Charge Controller (MPPT 100/50)

  • Maximum Output Current: 50 A
  • Maximum PV Power: 700 W
  • Maximum PV Open Circuit Voltage: 100 V
  • Maximum Efficiency: 98%
  • Self-Consumption: 10 mA
  • Charge Voltage 'Absorption' (Default): 14.4 V
  • Charge Voltage 'Float' (Default): 13.8 V

AC Distribution & Features

  • AC Distribution: Integrated RCD (30 mA / 16 A) and four AC outputs.
  • Circuit Breakers: Protected by two 10 A and two 16 A circuit breakers.
  • AC Output 0: Controlled by AC input; switches on only when AC is available (for heavy-duty loads).
  • PowerAssist: Protects the utility or generator from overload by adding extra inverter power when needed.
  • Transfer Switch: 16 A
  • Programmable Relay: Can be configured for general alarm, DC under voltage, or generator start functions.

Mechanical & Enclosure

  • Dimensions (H x W x D): 745 x 214 x 110 mm
  • Weight: 15 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP 21

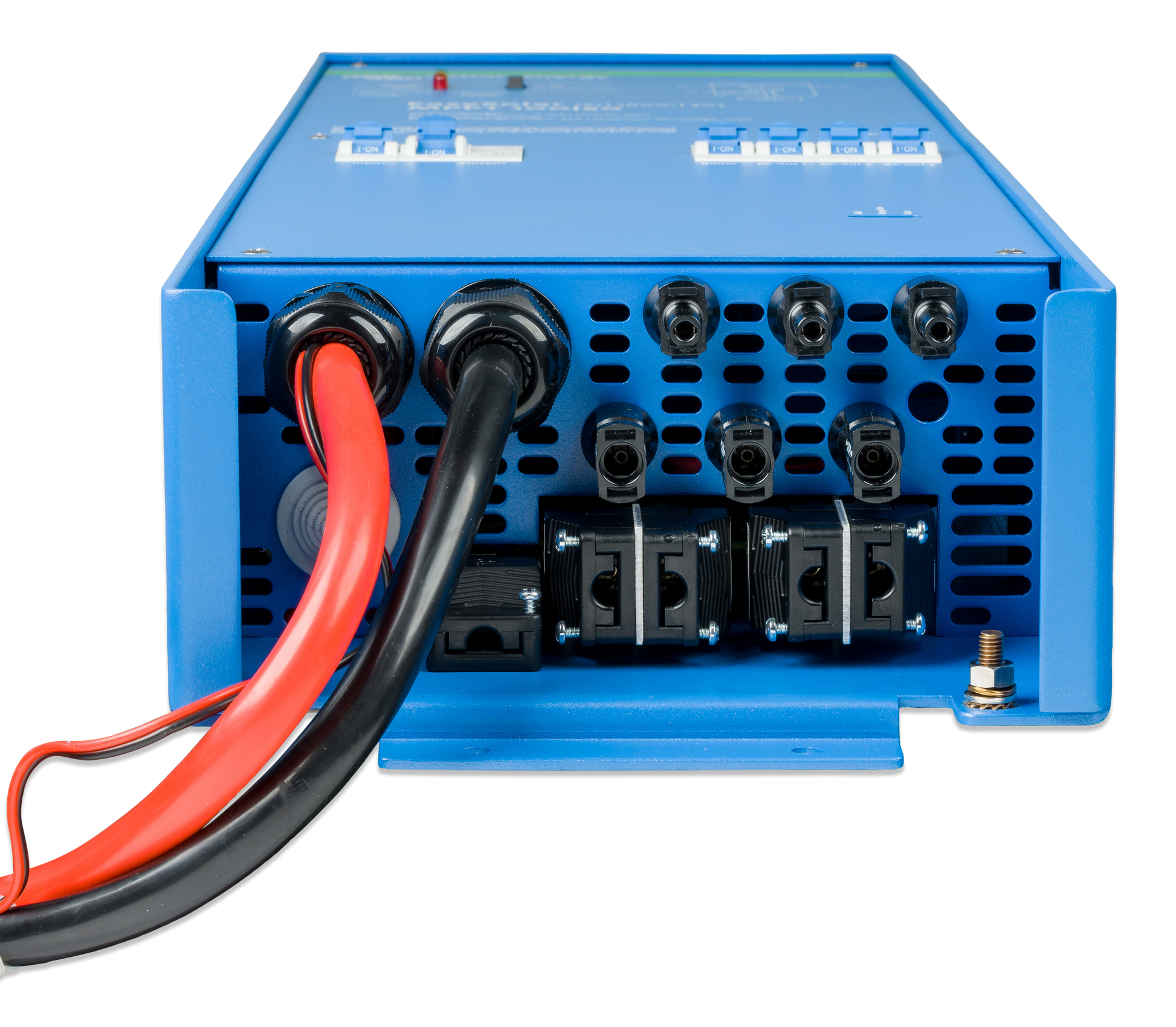

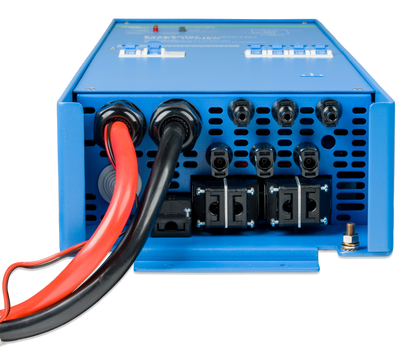

  • Battery Connection: 1.5-meter battery cables included
  • PV Connection: Three sets of MC4 (PV-ST01) PV connectors
  • AC Connection: G-ST18i connector
  • Operating Temperature Range: -20 to +50 °C (Fan assisted cooling)
  • Humidity: Max 95% (non-condensing)

Standards & Protections

  • Safety: EN 60335-1, EN 60335-2-29, EN 62109
  • Emission/Immunity: EN 55014-1, EN 55014-2, EN 61000-3-3
  • Automotive Directive: 2004/104/EC
  • Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

Victron EasySolar 12/1600/70-16 230V MPPT 100/50 – Manual

Victron EasySolar 12/1600/70-16 230V MPPT 100/50 – Data Sheet

Inverter Rating 1600VA
