Victron EasyPlus Compact 12/1600/70-16 230V VE.Bus
Victron EasyPlus Compact 12/1600/70-16 230V VE.Bus
SKU:CEP121620000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

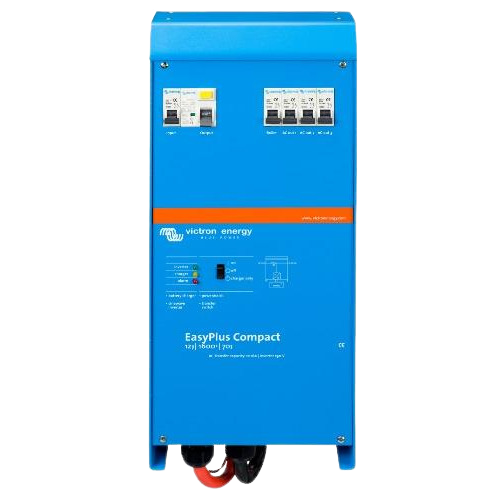

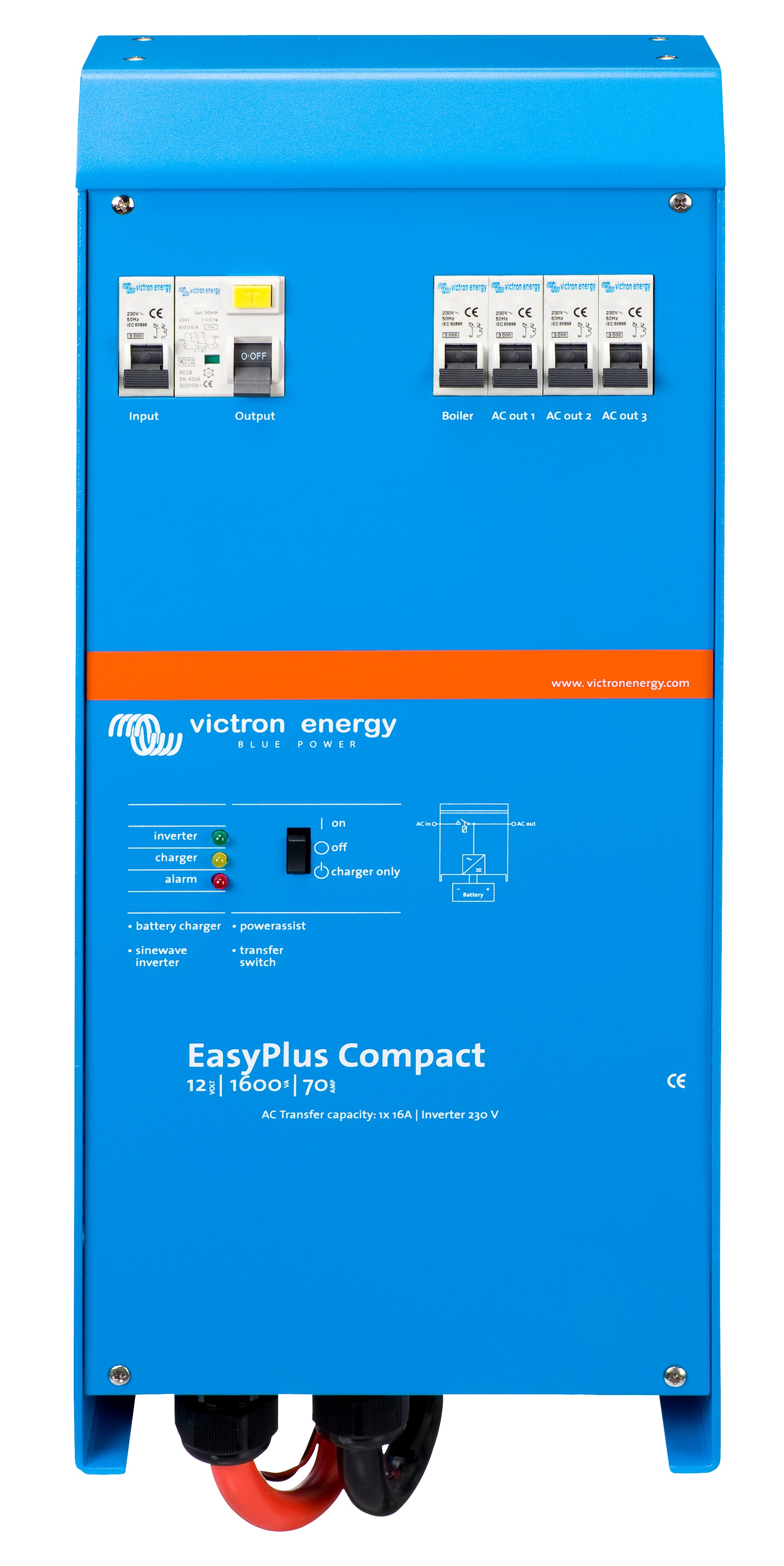

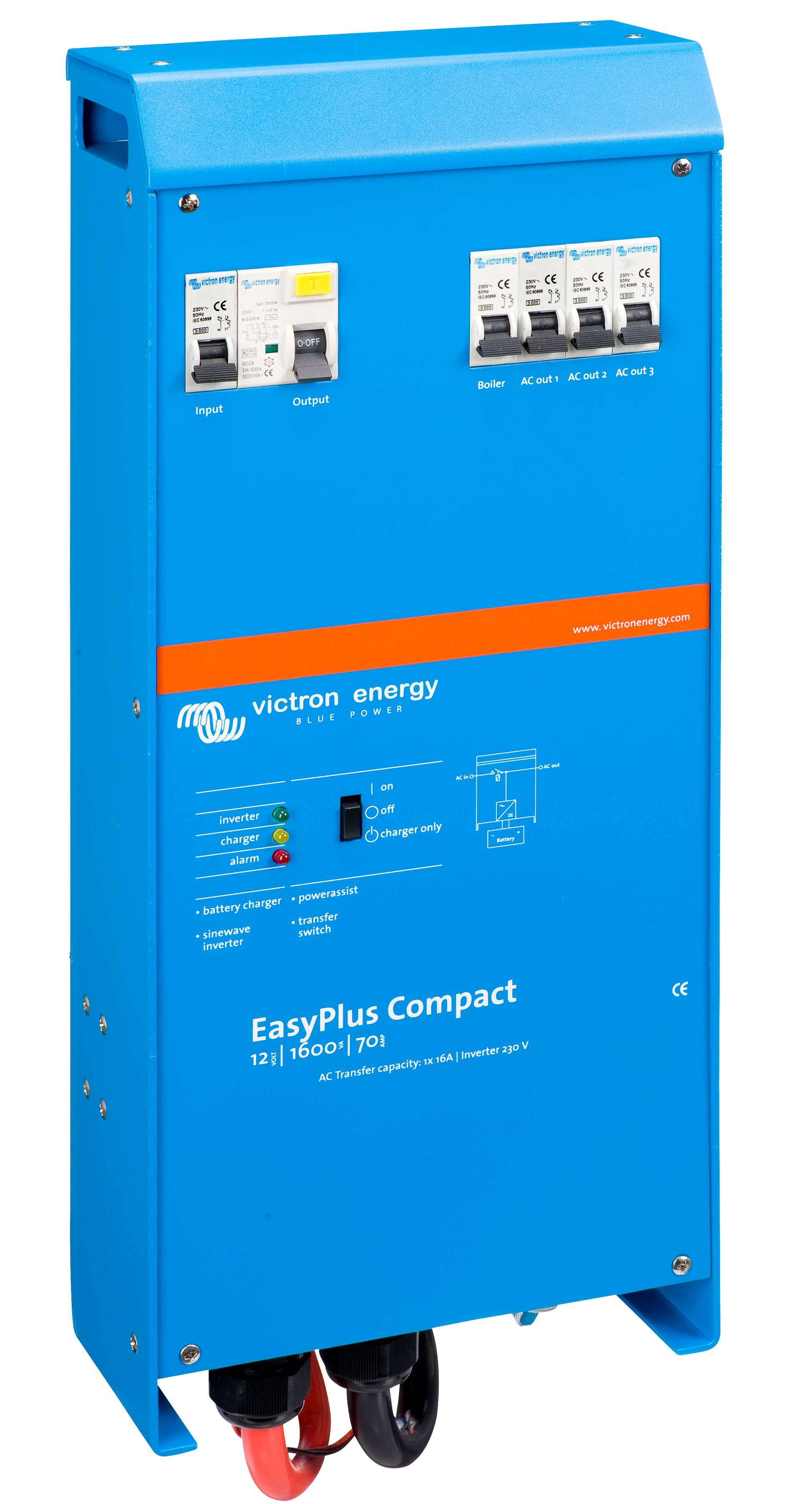

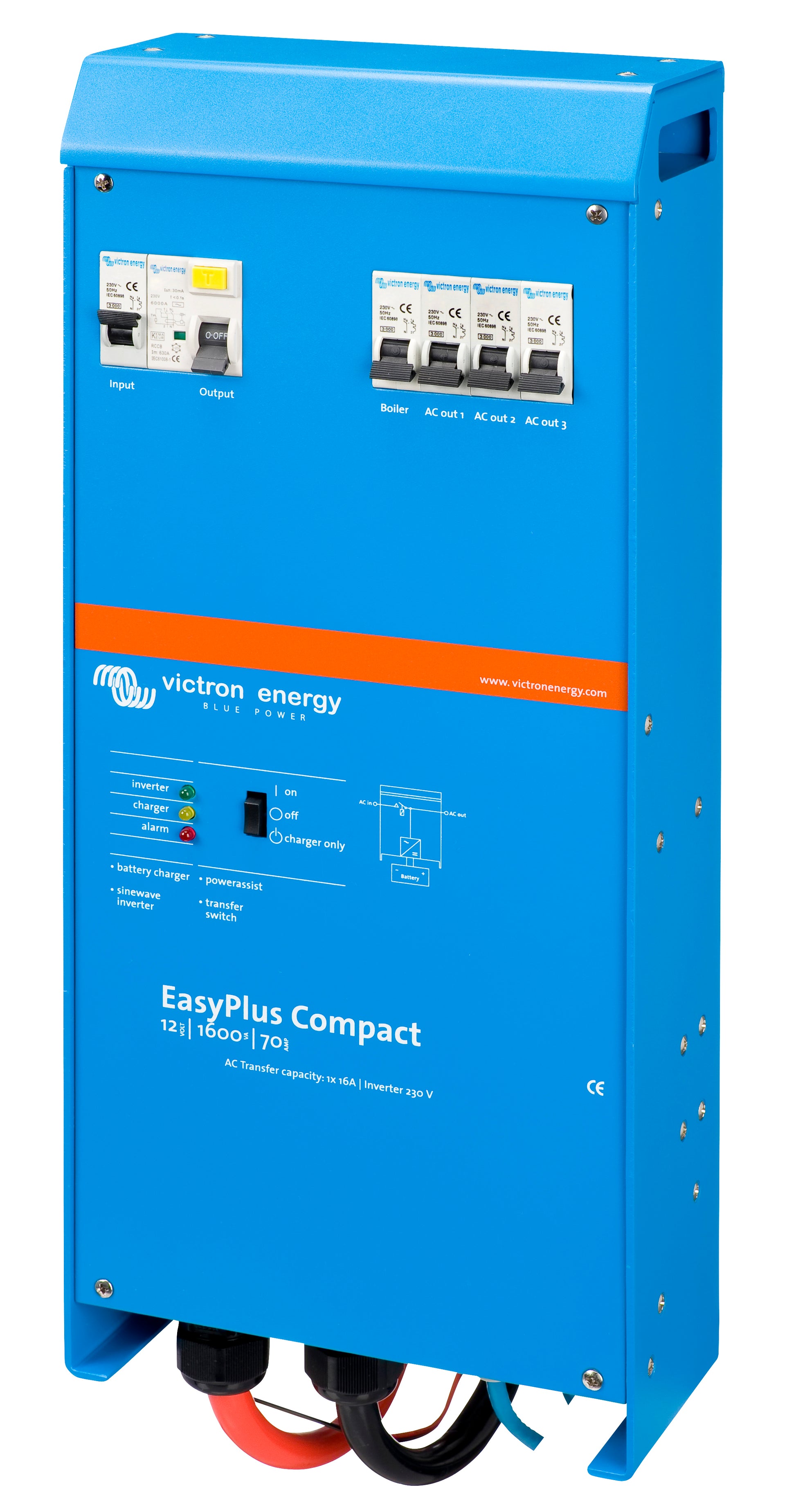

The Victron EasyPlus Compact 12/1600/70-16 230 V is a comprehensive all-in-one energy system tailored for professional installers and trade applications where reliable AC power and battery charging are required in a compact footprint. Within a single cabinet you will find a 12 V sine-wave inverter delivering 1.6 kVA continuous and up to 3 kW peak output, a 70 A battery charger (plus 4 A for start batteries), a high-speed AC transfer switch, and built-in AC distribution with residual current device (RCD) protection. The enclosure measures just 510 × 214 × 110 mm and weighs only 11.7 kg, making it simple to handle and install in confined spaces.
For installers working on leisure vehicles, marine systems, off-grid cabins or trade backup systems, this unit simplifies wiring significantly. Pre-fitted battery cables and labelled plugs & sockets mean installation time is reduced. The innovative PowerAssist technology enables shore or generator supply to be protected from overload by supplementing with battery/inverter power when needed, ensuring no breaker trips and continuous operation of essential loads.
The EasyPlus is designed for those who need 230 V AC output from a 12 V battery bank, together with efficient battery charging when shore power is available. With four protected AC outputs (two 10 A and two 16 A) and a dedicated breaker for heavy-users, you can connect sockets, kitchen equipment, lights and critical loads in a safe and streamlined installation. The system is trade-ready, reduces component count, and networks easily with VE.Bus systems if required.
In short, this is a compact, robust energy module engineered for fast installation, reliable performance and flexible use across mobile, marine and industrial 12 V environments needing 230 V AC output and integrated battery management.
Product Specifications
Product Specifications
Inverter Performance
- Nominal Battery Voltage: 12 VDC
- Continuous Output Power: 1600 VA
- Peak Power: 3000 W
- Waveform: Pure Sine Wave
- Output Voltage: 230 VAC
- No-Break System: Provides uninterrupted switching between shore/generator power and inverter power for sensitive electronic equipment.
Battery Charger Specifications
- Main Charge Current: 70 A
- Starter Battery Trickle Charge: 4 A
- Charge Technology: 4-stage adaptive charge technology for quick and accurate battery maintenance.
- Temperature Compensation: Includes a battery temperature sensor as standard.
AC Distribution & Transfer Switch
- AC Transfer Capacity: 16 A
- Integrated RCD: 30mA / 16A (Residual Current Device) for earth leakage protection.
- AC Outputs: 4 total outputs.
- Circuit Breaker Protection: Two 10 A and two 16 A circuit breakers.
- Heavy Load Management: One 16 A output is controlled by the AC input; it only activates when shore or generator power is available to prevent excessive battery discharge (ideal for water heaters or air conditioning).
Functional Features
- PowerAssist® Technology: Boosts total capacity by adding extra energy from the batteries when shore or generator power is limited, preventing source overload.
- Quick Installation: Supplied with pre-fitted battery cables to save hours of installation time.
- Integrated Design: Combines AC distribution, inverter/charger, and RCD protection in one unit.
Mechanical Specifications
- Dimensions (h x w x d): 510 mm x 214 mm x 110 mm
- Unit Weight: 11.7 kg
- Mounting: Wall mounting bracket included.
Technical Specifications
Technical Specifications
| Inverter Rating | 1600VA |
|---|
