Double Horizontal Cable Seal 10 DS-HD10-BLK
Double Horizontal Cable Seal 10 DS-HD10-BLK
SKU:DS-HD10-BLK-U
Brand: Scanstrut
19 in stock
Couldn't load pickup availability
Product Details
Product Details
Double Horizontal Cable Seal 10
DS-HD10-BLK
The innovative double horizontal cable seal ensures a sleek, easy-to-fit, and 100% watertight installation every time, making it the ideal choice for routing two cables externally to internally on van roofs.
Its low-profile design offers best-in-class water ingress protection, durability, and ease of install.
IP68 Watertight Seal
Ensures superior waterproof protection.
Compact Footprint
Measures just 66.5mm (2.61”) W / 75.1mm (2.95”) L / 28.5mm (1.12”) H.
Easy Installation
Simplifies cable routing through wood and metal, reducing installation time.
High-Quality Materials
Black high-impact plastic for strength and durability.
UV-stable and hard-wearing materials for long-lasting performance.
Product Specifications
Product Specifications
Technical Specifications
- Material: Black High-Impact, UV-Stable Marine-Grade Plastic
- Height: 28.5mm (1.12")
- Length: 75.1mm (2.95")
- Cable Diameter Range: 6mm to 10mm (0.23" to 0.39")
- Number of Cables: 2
- Waterproof Rating: IP68

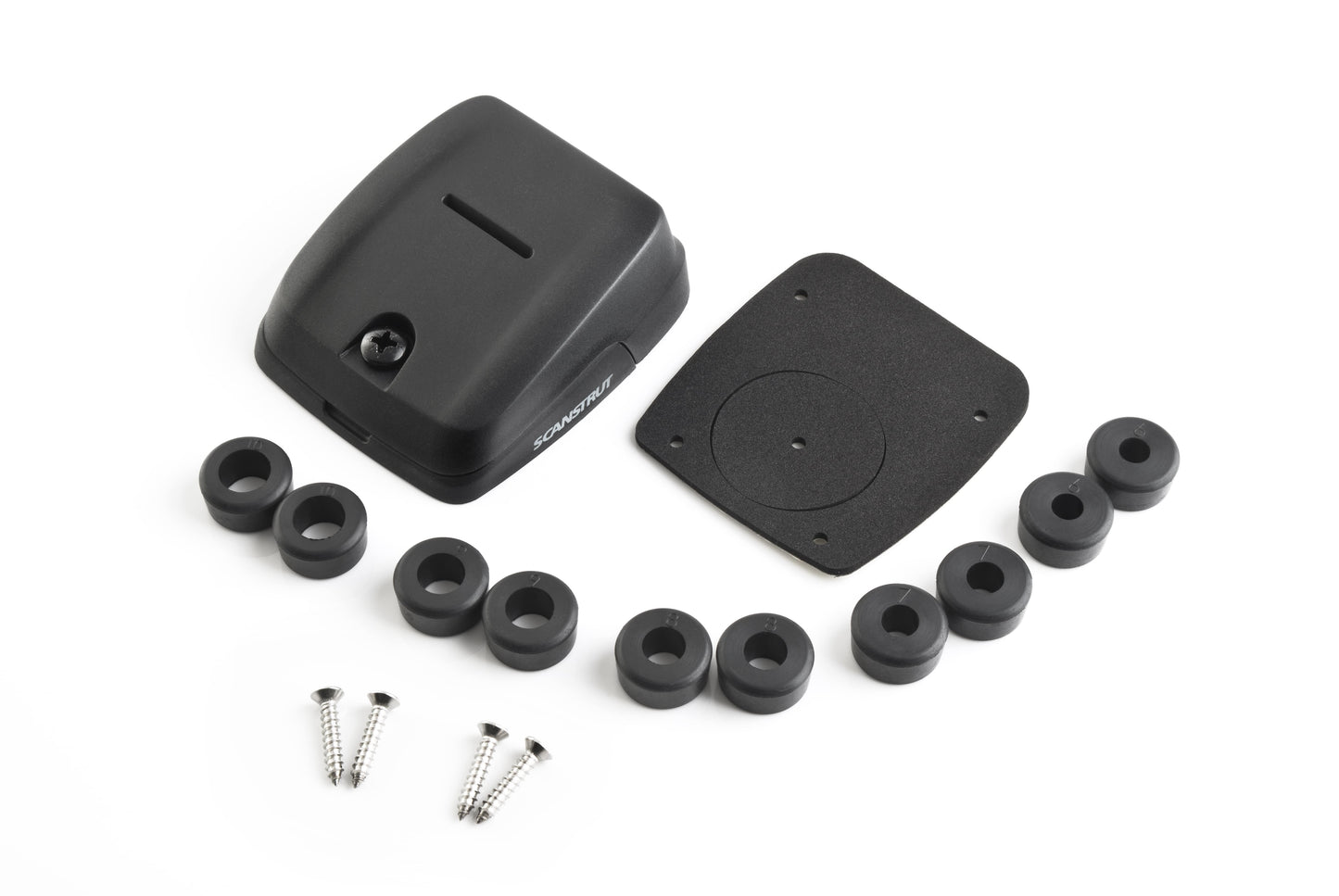

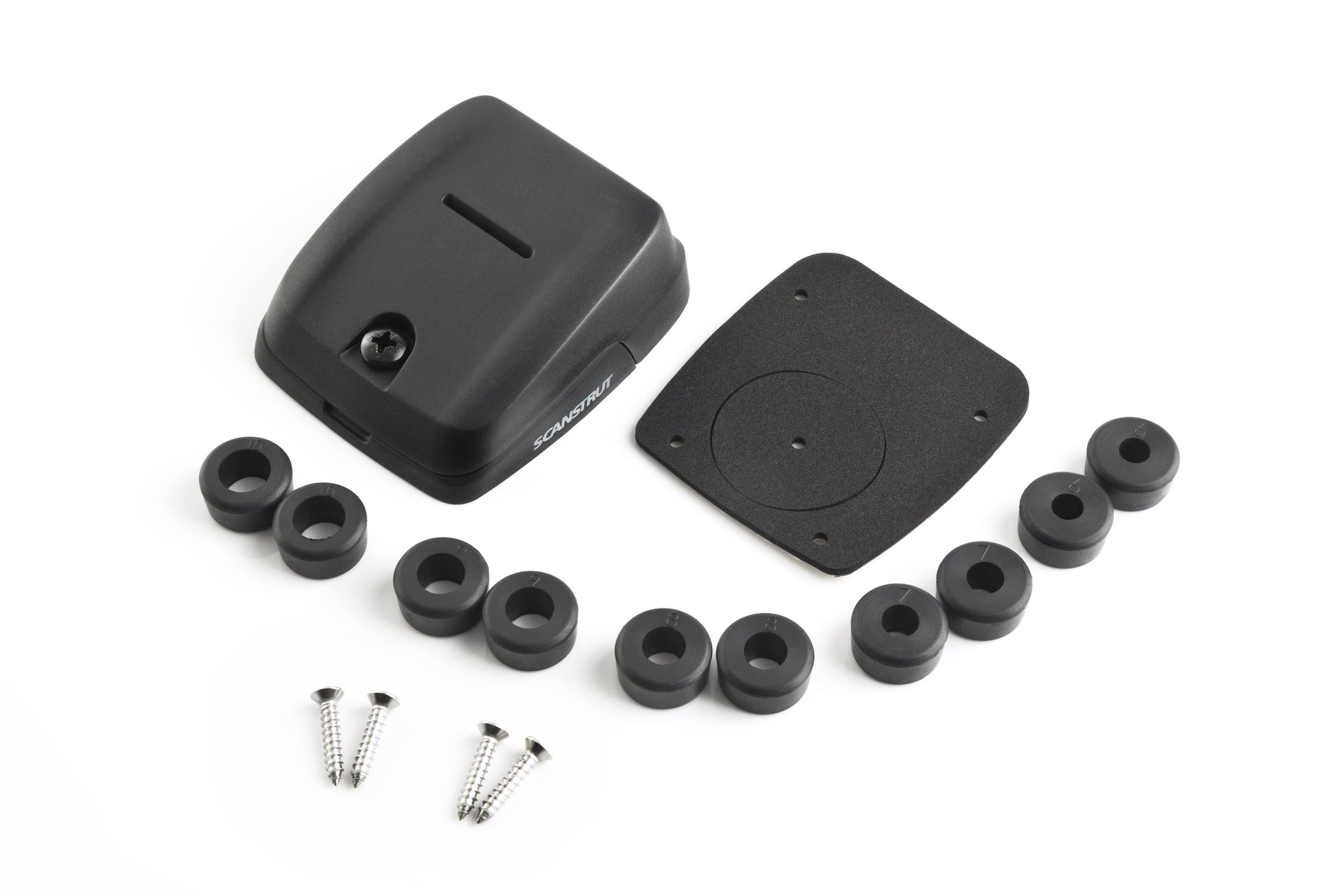

Included Components
- Fixings: Marine-grade 316 stainless steel
- Sealant: Waterproof 3M gasket
- Standard Bungs:
- 2 x 6mm (0.24")
- 2 x 7mm (0.28")
- 2 x 8mm (0.31")
- 2 x 9mm (0.35")
- 2 x 10mm (0.39") - Custom Bungs: 2 x Self-drill bungs for non-standard cable sizes
Key Features
- IP68 Watertight Seal: Provides a snug and secure seal that is 100% waterproof without requiring messy sealant on the bungs.
- Marine-Grade Construction: Built from UV-stable, hard-wearing plastic and 316 stainless steel fixings for long-lasting performance in harsh environments.
- Easy Installation: Features captive nuts to simplify and speed up the assembly process, allowing for fast installation through wood, metal, and GRP.
- Low-Profile Design: The impact-resistant construction is designed to fit in small spaces while providing extra protection from water ingress.
- Reliable Repeat Installations: The use of captive nuts ensures that the seal can be serviced or re-installed reliably over time.
