Victron Digital Multi Control 200/200A
Victron Digital Multi Control 200/200A
SKU:REC020005010
Brand: Victron
Remote Monitoring and Control: Manage your inverter/charger system from a convenient location.
Easy Installation: Simple connection via an RJ45 UTP cable.
Clear LED Indicators: Easily monitor system status with intuitive LED indicators.
Automatic LED Brightness Adjustment: LED brightness reduces automatically during night-time.
Wide Compatibility: Compatible with all MultiPlus and Quattro inverter/chargers.
Dimensions: 120 x 65 x 3mm
Weight: 0.25kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£128.00 GBP
Regular price
Sale price
£128.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
Digital Multi Control 200/200A GX

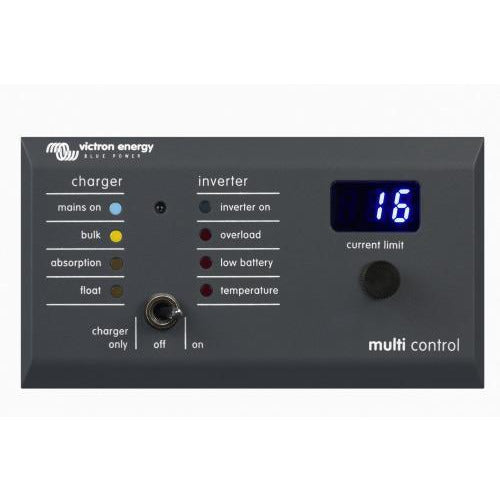

The Digital Multi Control is used to remotely view and adjust AC input currents, and turn on and off the Multi or Quattro. It is designed to integrate cleanly with your boat, vehicle or house system control panel.
The Digital Multi Control panel (DMC) is designed to work with all Multi/Quattro. This includes stand alone, parallel and 2-3 phase configurations. Connecting the DMC to your system is simple, in most cases just connecting the DMC with an RJ45 cable is sufficient and no extra set-up handling is required.
Product Specifications
Product Specifications
Technical Specifications
- SKU: REC020005010
- Current Limit Range: Up to 200 Amps
- Display Type: 7-segment LED display
- Status Indicators: 8 LED replicates (Mains on, Bulk, Absorption, Float, Inverter on, Overload, Low Battery, Temperature)
- Control Interface: Rotary current limit knob and 3-way power mode switch (On / Off / Charger Only)
- Storage Temperature: -20°C to +60°C
- Connectivity: RJ45 UTP (VE.Bus) and screw terminals for external transfer switch
Compatibility
- MultiPlus Series: MultiPlus, MultiPlus-II, MultiPlus-II GX, MultiCompact
- Quattro Series: Quattro, Quattro-II
- EasySolar Series: EasySolar, EasySolar-II GX
- Legacy Models: Pre-VE.Bus Multi, MultiCompact, MultiPlus, and Quattro
Physical & Installation Data
- Panel Dimensions: 120mm x 65mm
- Mounting: Flush mount with four included mounting screws
- Wiring Requirements: Standard RJ45 UTP cable for data; 0.25 to 1.0mm² wire for external transfer switch connection
- Certification: ECE R10-6 Automotive certified
What’s in the Box
- 1 x Digital Multi Control 200/200A Panel
- 4 x Mounting Screws
- (Note: RJ45 UTP cables are required for installation and are sold separately)
