Complete Off-Grid Pre-Built Kit Builder - Choose Inverter Size, Solar and Battery Options - DIY, Plug and Play**

Complete Off-Grid Solar and Battery Kit - Prebuilt.

Get off-grid power with ease using our pre-built off-grid solar kits, proudly designed, assembled and programmed in Devon by our in house Victron specialists. Say goodbye to the complexity of assembling and configuring components – we've done it all for you. Get ready to harness the power of the sun effortlessly*

Simple Installation: Follow these three easy steps:

1. Mount Solar Panels
2. Connect the panels to the pre-assembled board
3. Connect the batteries to the pre-assembled board

Technical Support:

Our in-house team of experts is here to assist you every step of the way.

Kit Contents:

The Boards:

• The 3KVA, 5KVA, 8KVA and 10KVA board builds are complete with Cerbo GX (BPP900450100), Touch Screen, Lynx Distributor (LYN060102000), Consumer Unit, Isolation Switches, Cabling, 3 Pin Socket, Trunking, and more.
• They are built with high end Victron components, programmed and installed on the board by our in house Victron specialists.



Inverter/Charger:

• Multiplus 48/3000/35-50 (PMP482305010) - 3KVA Build
• MultiPlus 48/5000/70-100 (PMP485021010) - 5KVA Build
• Multiplus-II 48/8000/110-100 (PMP482805000) - 8KVA Build
• Multiplus-II 48/10000/140-100 (PMP483105000) - 10KVA Build

Controller:

• Boards With 10 or Less Panels: SmartSolar MPPT 250/60-MC4 (SCC125060321)
• Boards With More Than 10 Panels: SmartSolar MPPT 250/100-MC4 VE.Can (SCC125110512)

Batteries:

• 10.24Kw: 2 x Pytes V5 5.12kWh Battery - ESS Residential Solar LifePo4 LFP

• 15.36Kw: 3 x Pytes V5 5.12kWh Battery - ESS Residential Solar LifePo4 LFP

• 20.48Kw: 4 x Pytes V5 5.12kWh Battery - ESS Residential Solar LifePo4 LFP


Solar Panels (Including Mounts & Rails):

The solar panel are JA Solar 440w N-Type Bifacial Double Glass Panel - All Black
 (L)1762 mm x (W)1134 mm x (D)30 mm - 440W

• 5 Panels (2kW): 5 x 445W
• 10 Panels (4kW): 10 x 445W
• 15 Panels (6kW): 15 x 445W
• 20 Panels (8kW): 20 x 445W

Build Time:

Typically, it takes between 1 and 2 weeks to assemble the boards. In special circumstances, this timeframe may vary, and our team will be able to provide you with an estimated build time.

*Although this system is as simple as possible to connect up, this kit should be installed by a competent person.

**DIY and Plug and Play refer to ease of installation with the components and programming already done. A competent person will still need to install the board, panels, and connect the batteries and solar to the board.

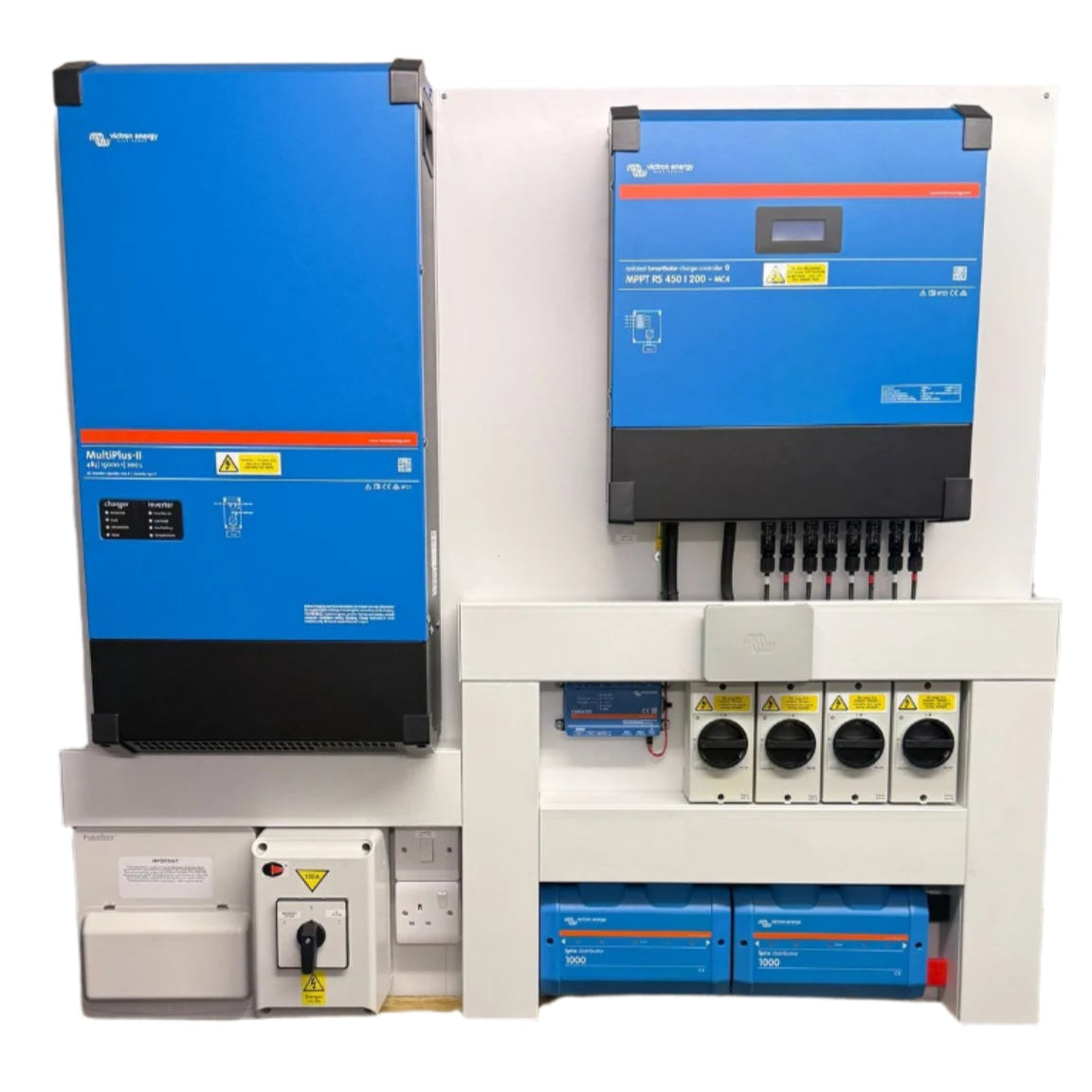

The board in the images above is an example board.
