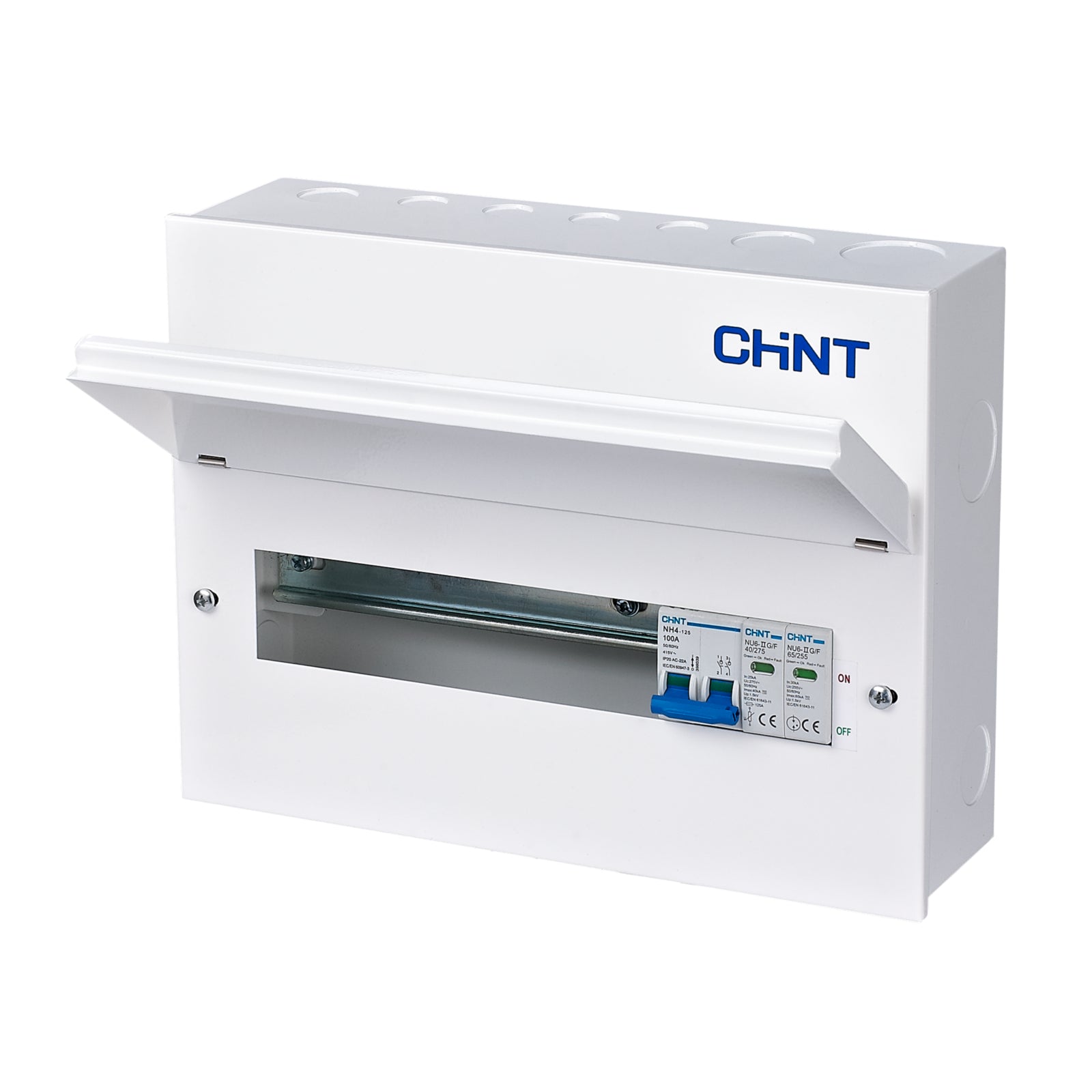

CHINT 10-Way 100A Main Switch Consumer Unit (NX3-14MS-SPD)

CHINT 10-Way 100A Main Switch Consumer Unit (NX3-14MS-SPD)

NX3-14MS-SPD

Brand: CHINT

Integrated Surge Protection: The pre-installed Type 2 SPD saves you time on-site and ensures the entire installation is protected against voltage spikes. High Power Capacity: A robust 100A main switch isolator is equipped to handle the high-demand electrical loads of contemporary households. Future-Proof Design: With 10 usable ways, there is ample room to add new circuits later, such as home extensions or EV chargers. Certified Reliability: This unit is fully tested and compliant with BS EN standards, providing the professional-grade safety your customers expect. Installation Flexibility: The board is compatible with a wide range of CHINT Shield modular components, including MCBs and RCBOs. Professional Pedigree: Part of the trade-trusted NX3 Series, this unit is built for durability and long-term performance in the field.

20 in stock

£117.50 GBP
£117.50 GBP
Sale Sold out

Product Details

The NX3-14MS-SPD is a high-specification consumer unit from the professional CHINT Shield NX3 Series, engineered specifically for the requirements of electrical trade installers. This unit is centred around a 100A main switch isolator, making it a capable choice for managing high-demand residential loads.

Safety and compliance are at the forefront of this design. It features an integrated Type 2 Surge Protection Device (SPD) to provide essential defence against transient over voltages, shielding both the installation and connected equipment from damage. The unit is fully compliant with BS EN standards, meeting the rigorous safety requirements necessary for modern professional electrical installations.

For the installer, the board offers significant flexibility. With 10 usable ways available, you have the freedom to configure circuits using various modular components from the CHINT Shield range, such as MCBs or RCBOs. This makes the NX3-14MS-SPD an ideal, "ready-to-go" solution for professionals seeking a durable, certified, and SPD-protected distribution board for their next project.

Product Specifications

Electrical Specifications

  • Main Switch Rating: 100A
  • Usable Ways: 10 Ways
  • Surge Protection: Type 2 SPD
  • Rated Voltage (Ue): 230V AC
  • Rated Current (InA): 100A
  • Insulation Voltage (Ui): 500V
  • Rated Conditional Short-circuit Current: 16kA

Mechanical & Design Data

  • Enclosure Type: Metallic Distribution Unit
  • Installation Environment: Indoor
  • Protection Degree: IP30
  • Series: NX3 Series

Standards & Compliance

  • Compliance Standards: BS EN 61439-3: 2012 / EN 61439-3: 2012
  • Directives: Low Voltage Directive 2006/95/EC
  • Certification: TÜV Rheinland Certified

Key Features

  • Complete Protection: Includes a factory-fitted Type 2 SPD to protect sensitive electronics against voltage surges.
  • Pre-Configured: Equipped with a 100A main switch isolator for immediate circuit control.
  • Durable Construction: Features a metallic enclosure for enhanced fire safety and mechanical protection.
  • Versatile Capacity: Provides 10 usable ways for a wide variety of circuit configurations (MCBs/RCBOs).
