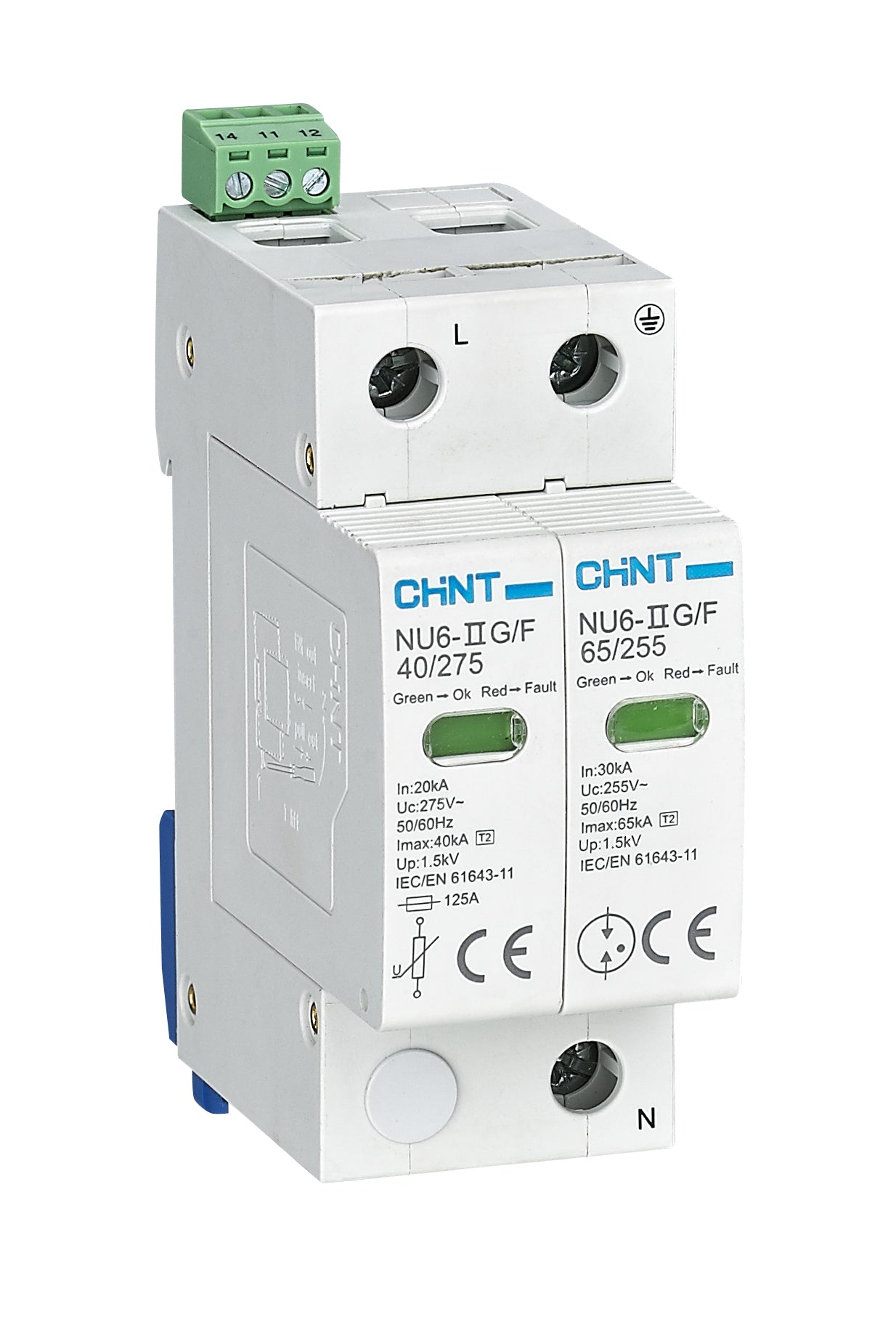

CHINT NU6-II Type 2 Surge Protection Device 1P+N - (NU6-II-G/F-1PN)
CHINT NU6-II Type 2 Surge Protection Device 1P+N - (NU6-II-G/F-1PN)
SKU:NU6-II-G/F-1PN
Brand: CHINT
Shield your electronics: This device helps prevent sudden voltage spikes from reaching and damaging your sensitive household or office gadgets.
Certified safety: The unit is fully CE approved, meaning it meets rigorous European safety and quality standards for your peace of mind.
Professional grade protection: As a Type 2 surge arrestor, it is specifically built to handle the common power surges found in domestic and commercial buildings.
Simple system integration: Designed to fit neatly into your existing circuit protection setup, it works silently in the background to keep your property safe.
Reliable UK quality: You are backed by the CHINT Shield reputation for durability, ensuring a long-lasting and dependable safety solution.
Expert technical support: If your installer has any questions, our UK-based technical team in Stockport is available to provide expert guidance.
20 in stock
Regular price
£44.30 GBP
Regular price
Sale price
£44.30 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The NU6-II-G/F-1PN is a high-performance Type 2 surge protection device (SPD) designed for single-phase plus neutral (1P+N) applications. It is a critical component for modern circuit protection, engineered to divert excess voltage away from your sensitive equipment during a surge event. This model is part of the NU6-II Series, which carries full CE Approval, ensuring it complies with the latest electrical safety regulations.
Product Specifications
Product Specifications
Electrical Specifications
- SPD Class: Type 2
- Configuration: 1P+N
- Max Continuous Operating Voltage (Uc):
- 385VAC (Line to Neutral)
- 255VAC (Neutral to PE) - Nominal Discharge Current (In): 20kA
- Max Discharge Current (Imax): 40kA
- Voltage Protection Level (Up):
- ≤ 1.8kV (Line to Neutral)
- ≤ 1.5kV (Neutral to PE) - Rated Frequency: 50/60Hz
Mechanical & Installation Data
- Mounting Method: Fixed
- Installation Location: Indoor
- Number of Ports: One
- Max Operating Temperature: 70°C
- Operating Altitude: Evaluated for use up to 3,000m above sea level
Standards & Compliance
- Testing Standard: EN 61643-11/A11:2007
- Directives: Low Voltage Directive 2006/95/EC
- Certifications: CE Approval, TÜV SÜD Product Service Certified
Key Features
- Reliable Protection: Specifically engineered as a Type 2 surge arrestor to safeguard against secondary surges and atmospheric overvoltages.
- Compact 1P+N Design: Ideal for single-phase installations requiring both phase and neutral protection in a streamlined format.
- Certified Safety: Subjected to rigorous testing for voltage protection levels and discharge capacity to ensure high performance in residential and commercial environments.
