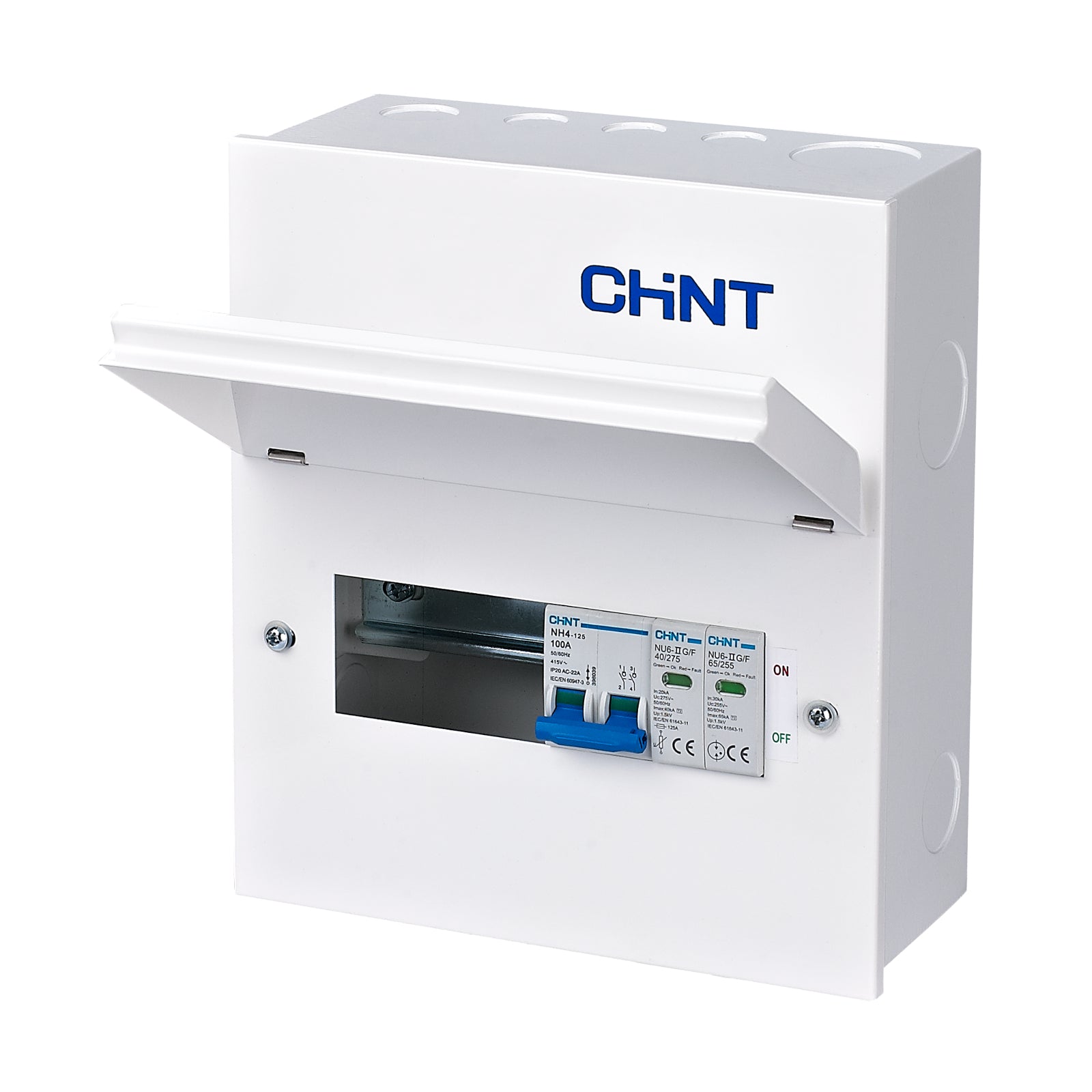

CHINT 4 Way Metal Consumer Unit (NX3-8MS-SPD)
CHINT 4 Way Metal Consumer Unit (NX3-8MS-SPD)
SKU:NX3-8MS-SPD
Brand: CHINT
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The CHINT NX3‑8MS‑SPD 4 Way Metal Consumer Unit provides reliable power distribution and surge protection. It features four usable ways for RCBOs or MCBs, with four additional spaces for future expansion or extra devices. This unit includes a 100 A main switch, offering clear isolation and control for your electrical panel.
The integrated Type 2 Surge Protective Device (SPD) helps protect connected equipment from transient voltage spikes. Suitable for common wiring systems such as TN‑S, TN‑C‑S, and TT, the SPD enhances protection against surges caused by switching events or indirect lightning.
Constructed with a durable metal enclosure, this consumer unit is designed for standard indoor installation. Its compact design fits neatly in utility rooms, garages, and commercial spaces where space is limited. With straightforward mounting and multiple cable entry points, it ensures easy installation and compliance with relevant BS EN standards.
Whether upgrading an existing board or installing a new distribution panel, the NX3‑8MS‑SPD combines safety, flexibility, and surge protection in one cost-effective package.
Product Specifications
Product Specifications
Electrical Specifications
- Main Switch Rating: 100A
- Usable Ways: 4 Ways
- Surge Protection: Type 2 SPD
- Rated Voltage (Ue): 230V AC
- Rated Current (InA): 100A
- Insulation Voltage (Ui): 500V
- Rated Conditional Short-circuit Current: 16kA
- Rated Frequency: 50/60Hz
Mechanical & Design Data
- Enclosure Type: Metallic Distribution Unit
- Installation Environment: Indoor
- Protection Degree: IP30
- Series: NX3 Series
- Total Module Capacity: 8 Modules (Main Switch + SPD + 4 Usable Ways)
Standards & Compliance
- Compliance Standards: BS EN 61439-3: 2012 / EN 61439-3: 2012
- Directives: Low Voltage Directive 2006/95/EC
- Certification: TÜV Rheinland Certified
Key Features
- Integrated Surge Protection: Comes pre-installed with a Type 2 SPD to protect sensitive household and office electronics from transient overvoltages.
- Ready to Install: Equipped with a factory-fitted 100A main switch isolator for immediate circuit control.
- Compact Metal Construction: Features a robust metallic enclosure designed to meet the latest fire safety and mechanical protection requirements for consumer units.
- Efficient Power Distribution: Offers 4 usable ways for the installation of MCBs or RCBOs, making it ideal for smaller installations, extensions, or outbuildings.
