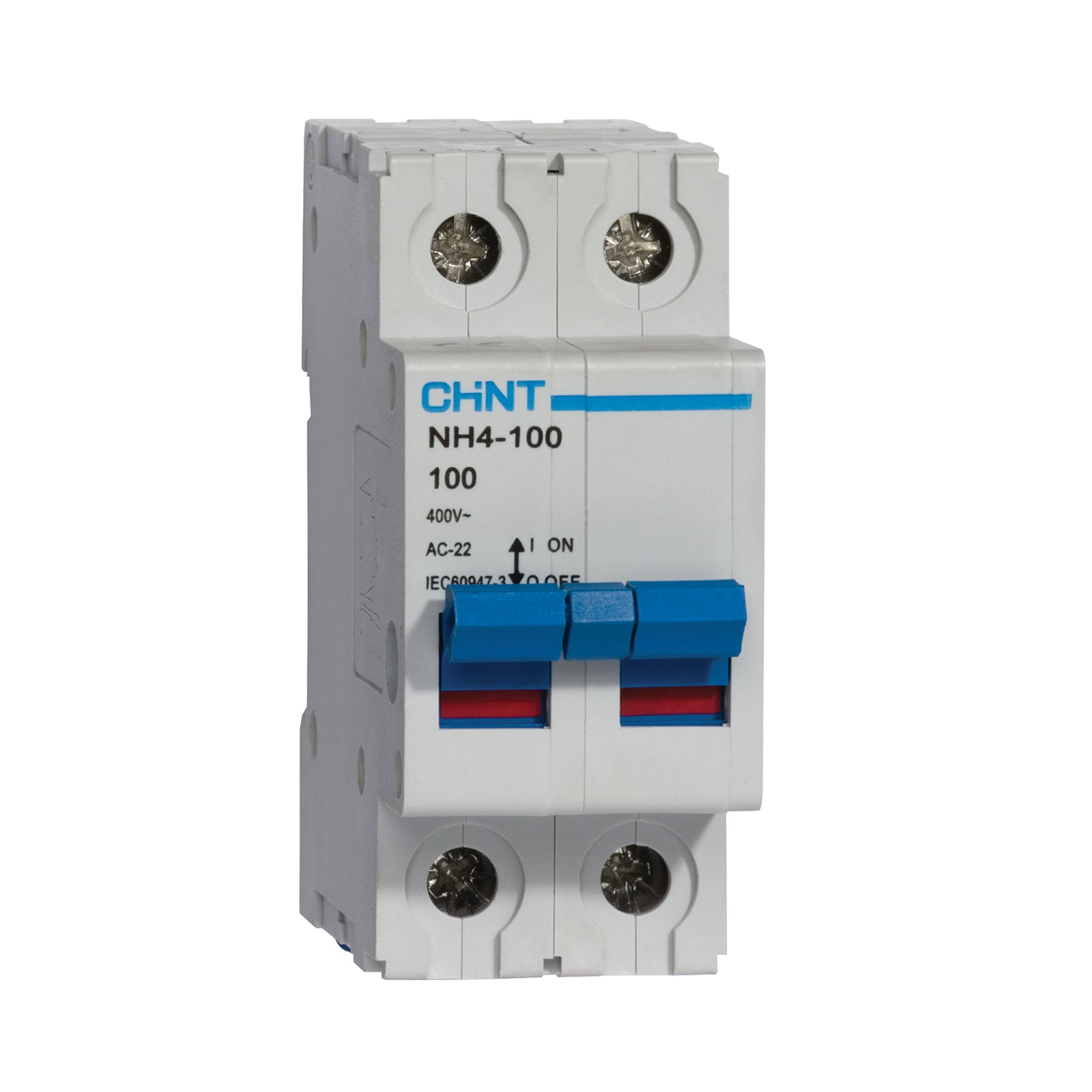

Chint NH4 Series 2 Pole 100A Isolator (NH4-80208)
Chint NH4 Series 2 Pole 100A Isolator (NH4-80208)
SKU:NH4-80208
Brand: CHINT
Low stock: 10 left
Couldn't load pickup availability
Product Details
Product Details
The Chint NH4 Series 2 Pole 100A Isolator (model NH4-80208) is a reliable electrical isolator switch designed for professional and domestic applications. It provides a clear and secure method to manually disconnect electrical circuits for safe maintenance and servicing. Ideal for use in distribution boards, control panels, and wiring systems where dependable isolation is essential.
Manufactured by Chint, a trusted global brand in electrical components, this isolator is built for durability and long term performance. It is rated at 100 amps and suitable for typical UK supply voltages up to 415V. The two pole design ensures both the live and neutral conductors are disconnected at the same time, helping to reduce the risk of electrical backfeed and improving overall site safety.
The compact construction makes this isolator easy to install in electrical panels and consumer units. It is designed for clear visual and physical isolation of circuits, making it ideal for service and maintenance work. Unlike a circuit breaker, this isolator focuses on manual disconnection rather than overload protection, making it a practical choice for dedicated isolation points.
This model is suitable for a wide range of applications including residential, commercial, and light industrial installations. Whether used in a domestic consumer unit or a commercial distribution board, the Chint NH4 isolator delivers consistent and dependable performance.
Installation should always be carried out by a qualified electrician in accordance with UK electrical regulations. With its simple, robust design and trusted brand quality, this isolator offers peace of mind where safe circuit isolation is required.
Product Specifications
Product Specifications
Electrical Specifications
- Rated Current (Ie): 100A
- Number of Poles: 2P
- Rated Voltage (Ue): 230/400V ~ 240/415V AC
- Rated Frequency: 50/60Hz
- Insulation Voltage (Ui): 500V
- Rated Impulse Withstand Voltage (Uimp): 4,000V
- Rated Short-Time Withstand Current (Icw): 12Ie, 1s
- Rated Short Circuit Making Capacity: 20Ie, t=0.1s
- Utilization Category: AC-22A
- Pollution Degree: 2
Mechanical & Installation Data
- Terminal Connection Type: Cable / Pin-type busbar / U-type busbar
- Terminal Size (Cable): 50mm² (18-1/0 AWG)
- Terminal Size (Busbar): 35mm² (18-2 AWG)
- Tightening Torque: 2.5 N·m (22 In-lbs)
- Connection Direction: From top and bottom
- Protection Degree: IP20
- Electrical Life: 1,500 operations
- Mechanical Life: 8,500 operations
- Ambient Operating Temperature: -5°C to +40°C (Daily average ≤ 35°C)
- Storage Temperature: -25°C to +70°C
Dimensions
- Width: 36mm (2 modules)
- Height: 86.1mm
- Overall Depth: 78mm
Standards & Compliance
- Primary Standard: IEC/EN 60947-3
- Certifications: CE, SAA, VDE, SEMKO, PCT Verified
Key Features
- Safety Isolation: Specifically designed for the isolating function, ensuring a clear and safe disconnection for circuit maintenance.
- High-Capacity Terminals: Features large terminal openings to accommodate cables up to 50mm², providing versatility for high-current applications.
- Modular Integration: Fully compatible with other CHINT modular DIN rail products, ensuring a professional and consistent appearance within distribution boards.
- Durable Performance: Built for long-term reliability with a high mechanical life of 8,500 operations and an IP20 protection rating.
