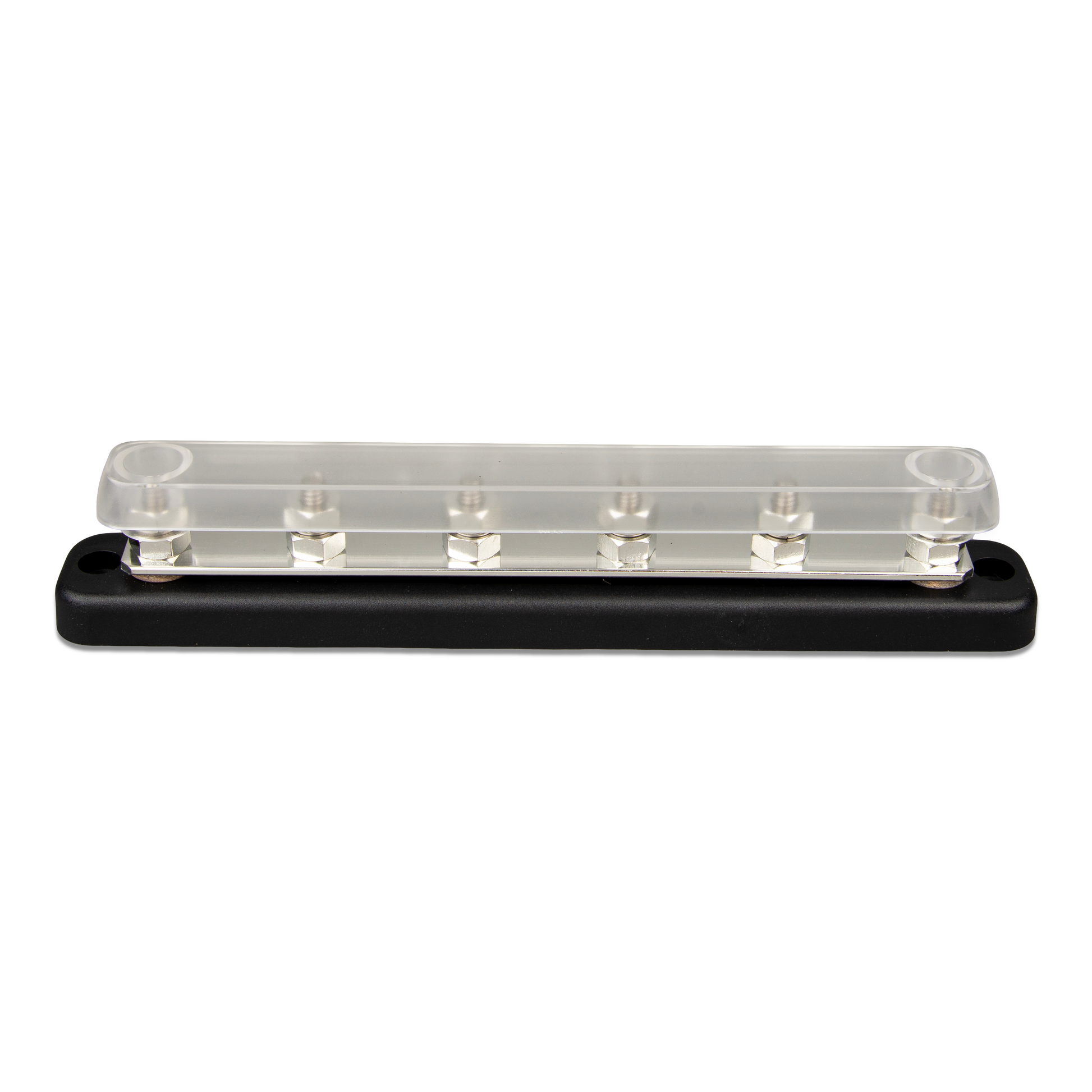

Victron Busbars 150A / 70V 6P + Cover

The Victron Busbar 150A / 70V 6P + Cover (SKU: VBB115060020) is a high-performance DC distribution solution designed for professionals seeking reliable and safe electrical connections. This busbar facilitates the efficient distribution of high currents across multiple circuits, making it ideal for use in off-grid solar systems, marine applications, and RV installations.

Key Features:

• High Current Capacity: Supports up to 150A, ensuring robust performance for demanding applications.
• Voltage Rating: Rated for 70V DC, suitable for various DC systems.
• Terminal Configuration: Equipped with 6 high-current terminals, each with a ¼ inch (6.35 mm) diameter, allowing for multiple connections.
• Material Composition:
  • Busbar Strip: Tin-plated copper (1.4 x 18 mm), offering excellent conductivity.
  • Terminals: Stainless steel, ensuring durability and corrosion resistance.
  • Hex Nuts: Tin-plated copper, providing secure and reliable connections.
  • Base: ABS, black, UL 94 V-0 rated, ensuring strength and fire resistance.
  • Cover: Clear polycarbonate, UL 94 HB rated, offering visibility and protection.
• Dimensions: With cover: 45 x 231.7 x 31.8 mm (H x W x D).
• Weight: Approximately 0.27 kg, making it lightweight yet sturdy.
• Mounting: Designed for easy installation with recommended torque specifications.

This busbar is an essential component for creating a safe and efficient DC distribution system, ensuring that your electrical setup is both reliable and compliant with industry standards.

Victron Busbars 150A / 70V 6P + Cover – Data Sheet
