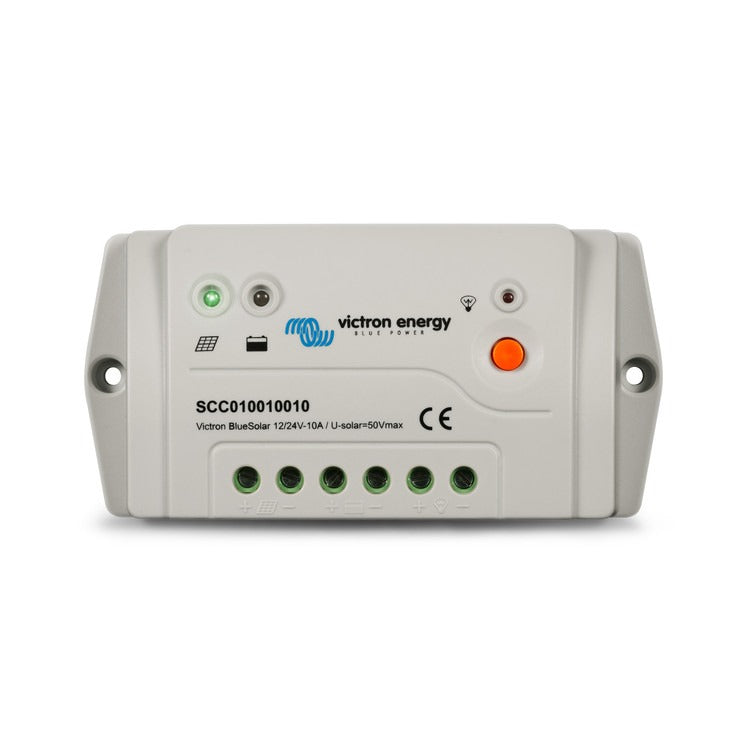

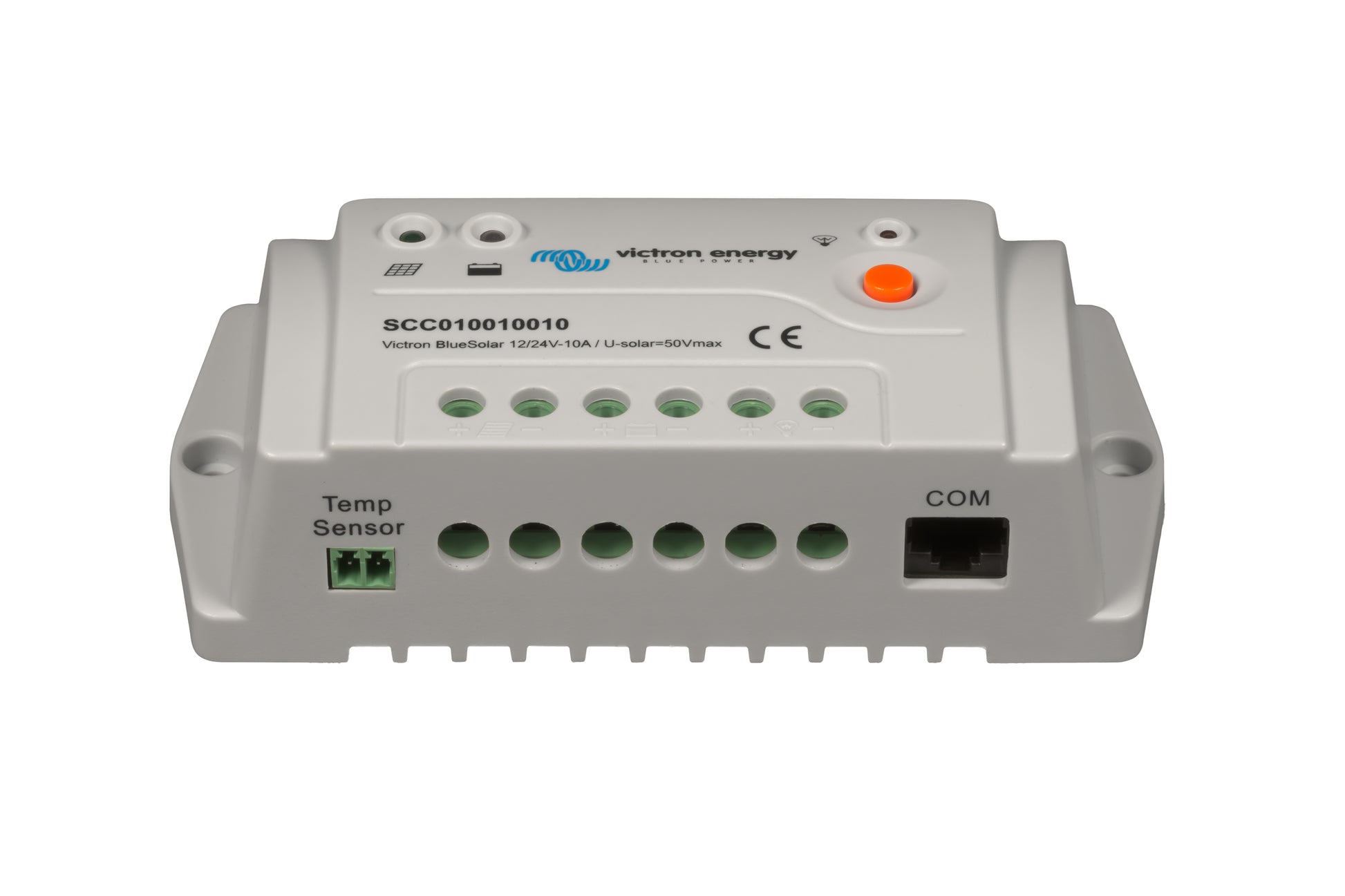

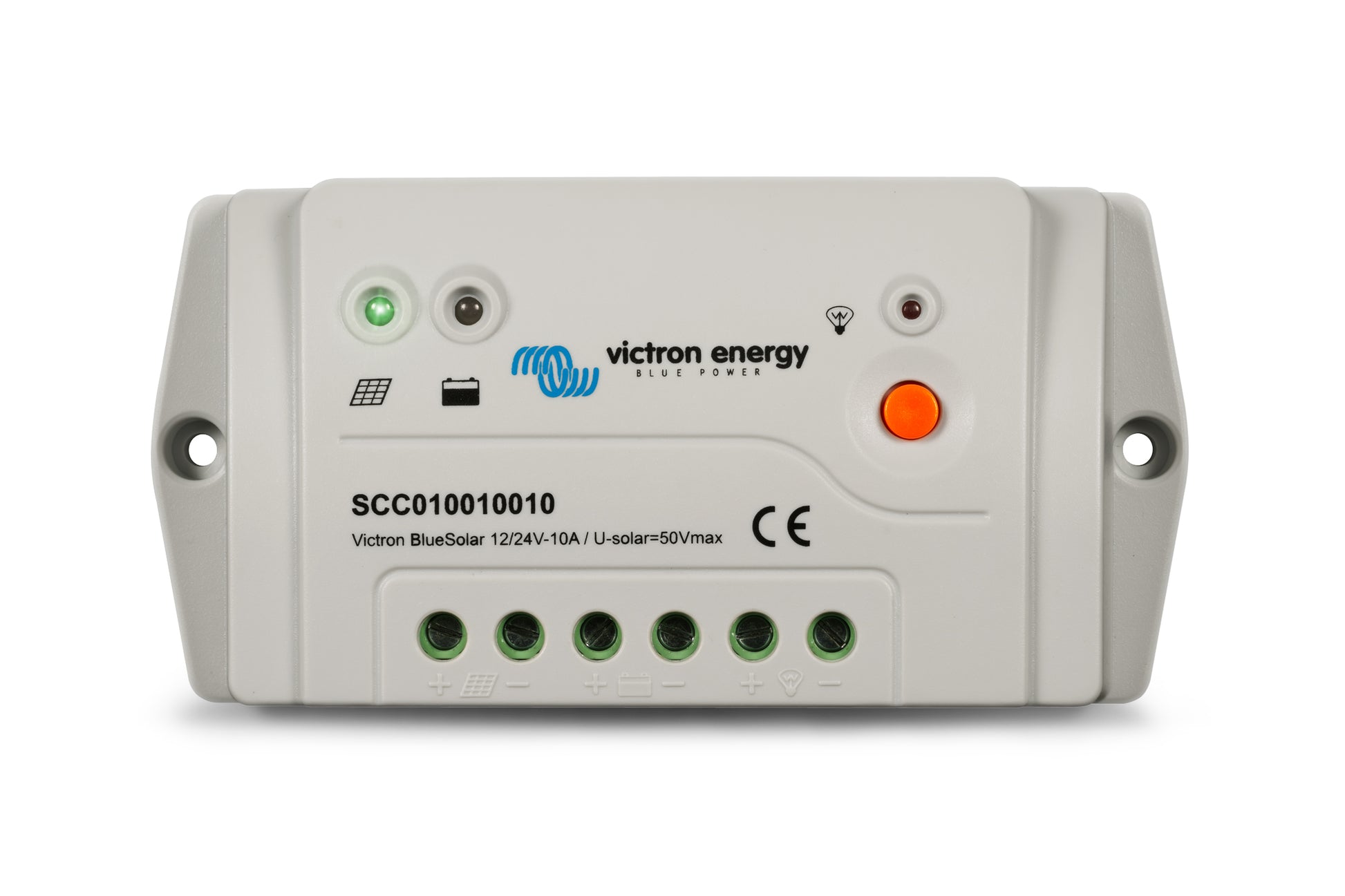

BlueSolar PWM-Pro Charge Controller 12/24V-10A
BlueSolar PWM-Pro Charge Controller 12/24V-10A
SKU:SCC010010010
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The BlueSolar PWM-Pro Charge Controller 12/24 V-10 A (SKU SCC010010010) by Victron Energy is designed for professional installers working with small to medium off-grid, marine or mobile solar systems. This compact device automatically detects whether your system is 12 V or 24 V, simplifying installation and reducing potential for error.
Built with a programmable three-stage charging system - bulk, absorption and float - the controller ensures your battery bank remains in optimal health for longer lifespan and reliable performance under load. It also features a lighting control function and load output with low-voltage disconnect and manual control settings, making it ideal for systems including dusk-to-dawn lighting, remote cabins or boat power systems.
With full protection against overload, short circuit and reverse polarity on both the solar array and battery side, this charge controller gives peace of mind to trade professionals who require dependable hardware. The device supports solar arrays up to 28 V (for a 12 V system) or 55 V (for a 24 V system), ensuring compatibility with standard 36-cell or 72-cell PV modules or small dual-panel setups.
For tradespeople installing off-grid systems, RVs, boat power banks or remote lighting arrangements, Victron’s BlueSolar PWM-Pro 10 A controller offers reliable functionality, installer-friendly features and brand assurance. It is supplied ready for use out of the box, configurable if required, and backed by a recognised manufacturer in the renewable power market.
Product Specifications
Product Specifications
Performance & Electrical
- Battery Voltage: 12/24V with automatic system voltage detection
- Rated Charge Current: 10 A
- Automatic Load Disconnect: Yes
- Maximum Solar Voltage: 28V (for 12V systems) / 55V (for 24V systems)
- Self-Consumption: < 10 mA
- Load Output: Manual control + low voltage disconnect
- Grounding: Common positive
Programmable Features & Settings
- Charging Algorithm: Three-stage battery charging (bulk, absorption, float)
- Lighting Control: Fully programmable lighting control function
- Default Absorption Charge: 14.4V / 28.8V
- Default Float Charge: 13.8V / 27.6V
- Default Equalization Charge: 14.6V / 29.2V
- Low Voltage Load Disconnect: 11.1V / 22.2V
- Low Voltage Load Reconnect: 12.6V / 25.2V
- Programming Options: Configurable via computer and free software or via the optional Remote Panel
Protection & Monitoring
- Integrated Protection: Battery reverse polarity (fuse), output short circuit, and over temperature.
- Load Protection: Load output is protected against overload and short circuits.
- Temperature Compensation: -30 mV / °C (12V) or -60 mV / °C (24V) when the optional temperature sensor is installed.
- Battery Monitor Function: Integrated function available when used with the optional Remote Panel to display state of charge.
Mechanical Specifications
- Dimensions (h x w x d): 138 x 70 x 37 mm (5.4 x 2.7 x 1.4 inches)
- Weight: 0.13 kg
- Terminal Size: 4 mm²
- Protection Category: IP30
- Operating Temperature Range: -20 to +50°C
- Humidity (Non-condensing): Max 98%
Optional Accessories
- Remote Panel: BlueSolar Pro Remote Panel (Article SCC900300000)
- Temperature Sensor: External battery temperature sensor (Article SCC940100100)
Standards & Compliance
- Safety: IEC 62109-1
- Emission: EN 61000-6-1, EN 61000-6-3, ISO 7637-2
Solar Panel Compatibility
- 12V Systems: Use 36-cell solar panels
- 24V Systems: Use 72-cell solar panels
