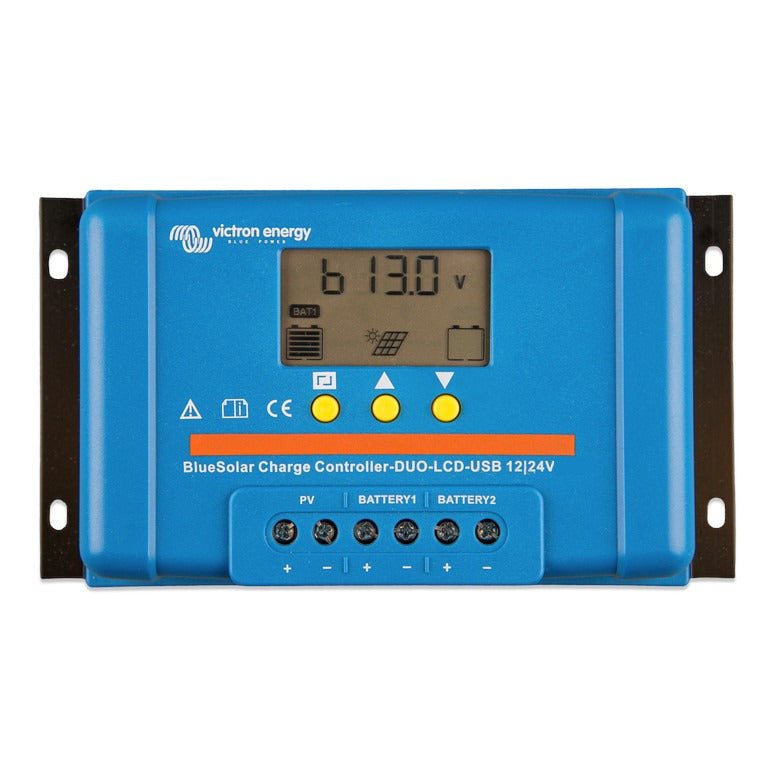

BlueSolar PWM-LCD&USB 12/24V-30A
BlueSolar PWM-LCD&USB 12/24V-30A
SKU:SCC010030050
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron BlueSolar PWM LCD and USB 12 or 24 Volt 30 Amp controller is designed to help protect and optimise your off grid power system. Suitable for cabins, workshops, mobile setups, agricultural buildings and remote monitoring installations, it provides dependable battery charging control while safeguarding connected devices. The clear LCD screen gives at a glance information, including battery status and system performance, allowing users to monitor power conditions quickly and accurately. This unit also offers two 5 Volt USB outputs, ideal for powering small electronics directly from your solar supply.
A key advantage of this controller is its three stage battery charging profile. By using bulk, absorption and float stages, it helps maintain healthy battery performance over time. These stages are fully programmable, allowing adjustments to suit different battery types and usage demands. A programmable lighting control function adds versatility, making it suitable for security lighting, remote site illumination and environmental control. Users can choose from a range of timing options to match specific schedules.
The integrated load output adds an extra layer of protection to connected equipment. It features low voltage disconnect as well as manual disconnect, giving flexibility in how attached loads are managed. This protects batteries from damage due to deep discharge. The load output also includes protection against overload and short circuit events, reducing downtime and equipment replacement costs.
Built with safety in mind, the controller includes reverse polarity protection for both solar panels and batteries. This helps prevent accidental wiring mistakes that can cause system failures or costly repairs. The compact design fits neatly into a wide variety of installations, while the front facing LCD and controls make adjustments straightforward.
Whether you are expanding an off grid setup, designing a new solar powered project or simply seeking a reliable way to protect your battery investment, the BlueSolar PWM LCD and USB controller offers strong performance and dependable safety features. The combination of programmable functions, battery protection and USB power outputs makes it a versatile choice for both commercial and workshop environments. Its thoughtful design supports long term system health by reducing stress on batteries and equipment, so you can focus on daily tasks with confidence that your solar power management is under control.
Product Specifications
Product Specifications
Technical Specifications
- Battery Voltage: 12/24 V (with automatic system voltage detection)
- Rated Charge Current: 30A
- Automatic Load Disconnect: Yes
- Maximum Solar Voltage: 28V (for 12V battery systems) / 55V (for 24V battery systems)
- Self-Consumption: < 10 mA
- Grounding: Common positive
Battery Charging Parameters
- Charge Algorithm: 3-stage (Bulk, Absorption, Float) – fully programmable
- Compatible Battery Types: AGM, GEL, Flooded, or LiFePO4 (with internal BMS only)
- Absorption Charge Voltage (Factory Setting): 14.4V / 28.8V (adjustable)
- Float Charge Voltage (Factory Setting): 13.7V / 27.4V (adjustable)
- Low Voltage Load Disconnect (Factory Setting): 11.2V / 22.4V (adjustable)
- Low Voltage Load Reconnect (Factory Setting): 12.6V / 25.2V (adjustable)
Note: The controller switches to float voltage 2 hours after absorption is reached. A new charge cycle is triggered whenever battery voltage drops below 13V (or 26V).
Load Output & Protection
- Load Control Modes: Manual control + low voltage disconnect + timer (fully programmable day/night lighting control function)
- Terminal Safeguards: Overload protection, output short circuit protection, and over-temperature protection
- Connection Safeguards: Reverse polarity protection for solar panels and/or battery
- Overload Protection Shutdown Timings:
- Shuts down after 60 seconds at 130% load
- Shuts down after 5 seconds at 160% load
- Shuts down immediately upon short circuit
USB Port Specifications
- USB Output Voltage: 5V
- Maximum USB Current: 2A (total combined output from both ports)
- Number of USB Outputs: 2
Physical & Environmental Data
- Dimensions (H x W x D): 101 x 184 x 47 mm (4.0 x 7.4 x 1.8 inches)
- Weight: 0.3 kg
- Terminal Size: 16 mm² / AWG6
- Protection Class: IP20
- Operating Temperature Range: -35°C to +60°C (full rated load)
- Humidity (Non-condensing): Maximum 95%
Standards & Compliance
- Safety Standards: EN60335-1, IEC 62109-1
- EMC Standards: EN 61000-6-1, EN 61000-6-3, ISO 7637-2
- Quality Management: Manufactured in ISO 9001 certified facilities
