BlueSolar PWM-LCD&USB 12/24V-20A
BlueSolar PWM-LCD&USB 12/24V-20A
SKU:SCC010020050
Brand: Victron
23 in stock
Couldn't load pickup availability
Product Details
Product Details

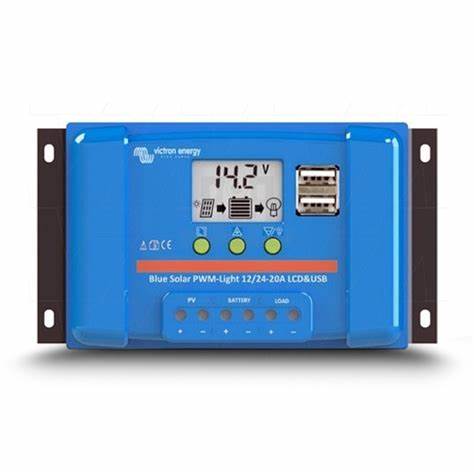

The Victron BlueSolar PWM LCD&USB 12/24V 20A charge controller is a reliable and compact choice for solar installations that need consistent battery management. Designed for both 12V and 24V systems with automatic voltage detection, it is suitable for a wide range of commercial and off grid applications including remote equipment shelters, marine environments and rural electrification.
Housed in a durable IP20 rated enclosure, this controller measures 96 x 169 x 36 mm and weighs only 0.15 kg. The compact footprint allows for easy installation in cabinets or on mounting boards. An integrated LCD provides clear status information and menu access, while two 5V USB outputs with a 2A combined rating allow small devices and monitoring accessories to be powered directly from the unit.
The controller supports a three stage charging profile covering bulk, absorption and float stages. It includes dedicated programmes for AGM, Gel, Flooded and LiFePO4 batteries with internal battery management systems. A separate load output with day and night control helps prevent excessive discharge and can be configured for timed operation. This reduces unplanned downtime and protects battery investment.
For installers, the controller offers reverse polarity, overload, short circuit and over temperature protection. Self consumption remains low under 10 mA, helping conserve energy in smaller solar systems. Maximum input voltage is 28V for 12V systems and 55V for 24V systems which covers most small to medium panel configurations.
Backed by a five year warranty, the BlueSolar PWM LCD&USB 12/24V 20A provides dependable performance from a trusted brand. For trade users it offers a straightforward solution that limits follow up support calls and keeps system performance consistent. Whether used in caravans, off grid cabins, small telecom sites or maintenance free locations, this controller delivers reliable and effective solar charging.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24 V (with automatic system voltage detection)
- Rated Charge Current: 20 A
- Automatic Load Disconnect: Yes
- Maximum Solar Voltage: 28 V (12V system) / 55 V (24V system)
- Self-Consumption: < 10 mA
- Load Output: Manual control + low voltage disconnect + timer
- Grounding: Common positive
Battery Charging & Thresholds
- Charge Voltage 'Absorption' (Factory Setting): 14.4 V / 28.8 V
- Charge Voltage 'Float' (Factory Setting): 13.7 V / 27.4 V
- Low Voltage Load Disconnect (Factory Setting): 11.2 V / 22.4 V
- Low Voltage Load Reconnect (Factory Setting): 12.6 V / 25.2 V
- Charge Cycle Trigger: Triggered whenever battery voltage becomes lower than 13V.
- Float Transition: Switches to lower float voltage 2 hours after absorption voltage is reached.
USB Output
- Voltage: 5 V
- Current: 2 A (Total combined current from 2 outputs)
Integrated Protection & Features
- Protection: Battery reverse polarity (fuse), output short circuit, and over temperature.
- Overload Protection:Shutdown after 60 seconds at 130% load.Shutdown after 5 seconds at 160% load.Immediate shutdown upon short circuit.
- Lighting Control: Day/night timing option for the load output (pre-set ON-time after dusk).
Mechanical & Environmental
- Dimensions (H x W x D): 96 x 169 x 36 mm (3.8 x 6.7 x 1.4 inches)
- Weight: 0.15 kg
- Protection Class: IP20
- Terminal Size: 6 mm² (AWG10)
- Operating Temperature Range: -35 to +60°C (full load)
- Humidity: Max 95% (non-condensing)
Standards & Compliance
- Safety: EN60335-1, IEC 62109-1
- EMC: EN 61000-6-1, EN 61000-6-3, ISO 7637-2
Solar Panel Requirements
- For 12V Systems: Use 36-cell solar panels.
- For 24V Systems: Use 72-cell solar panels or two 36-cell panels connected in series.
