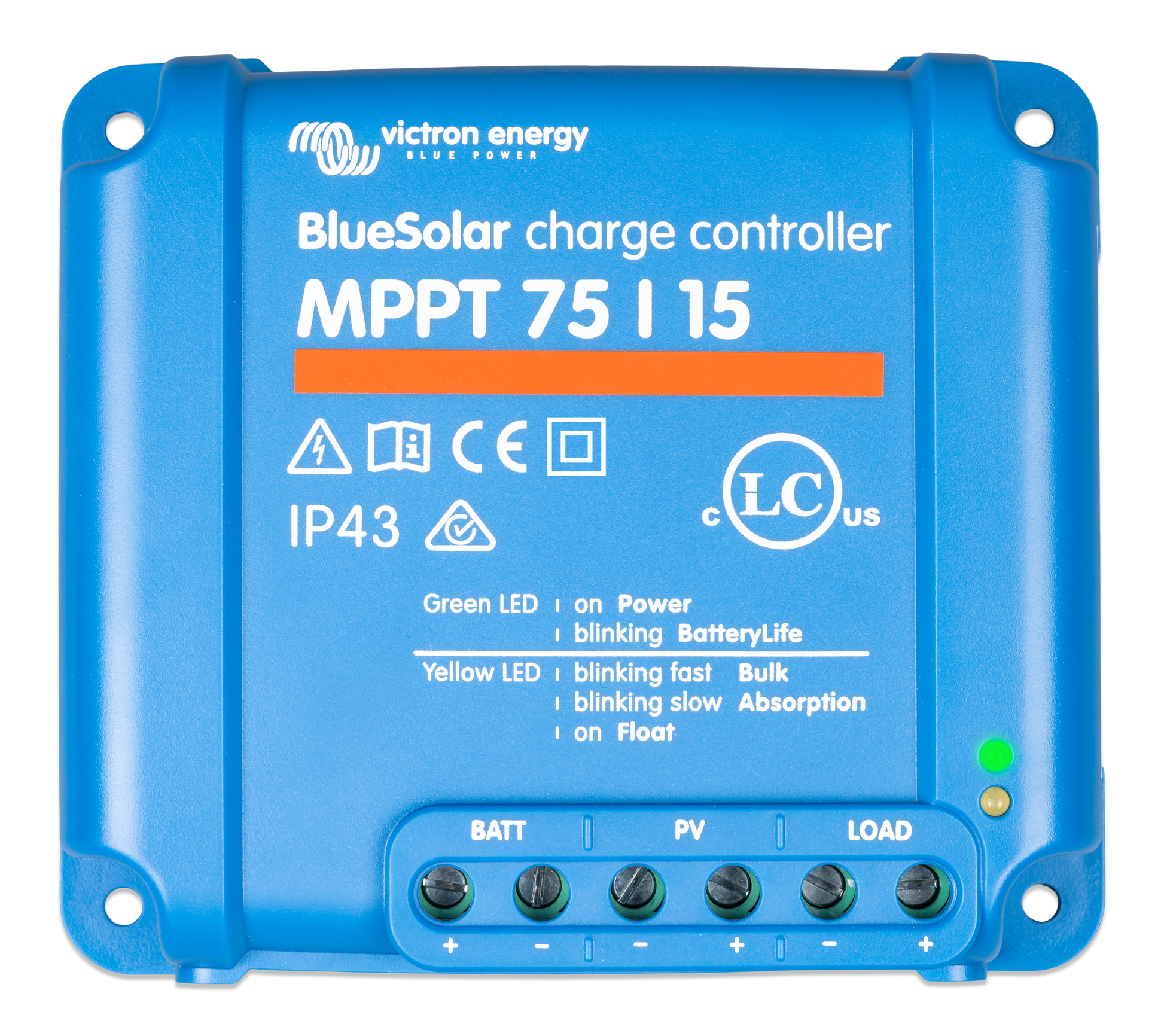

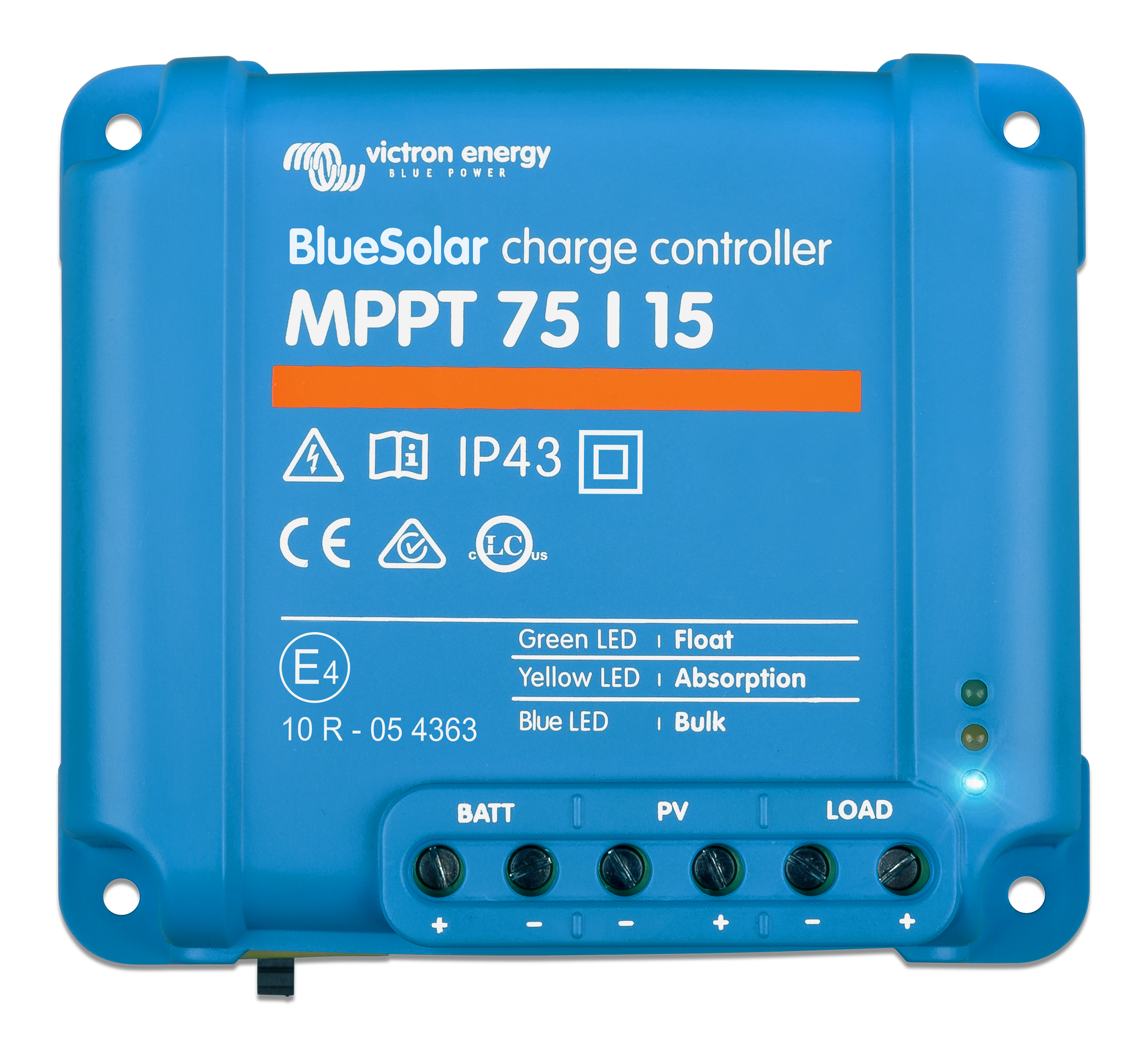

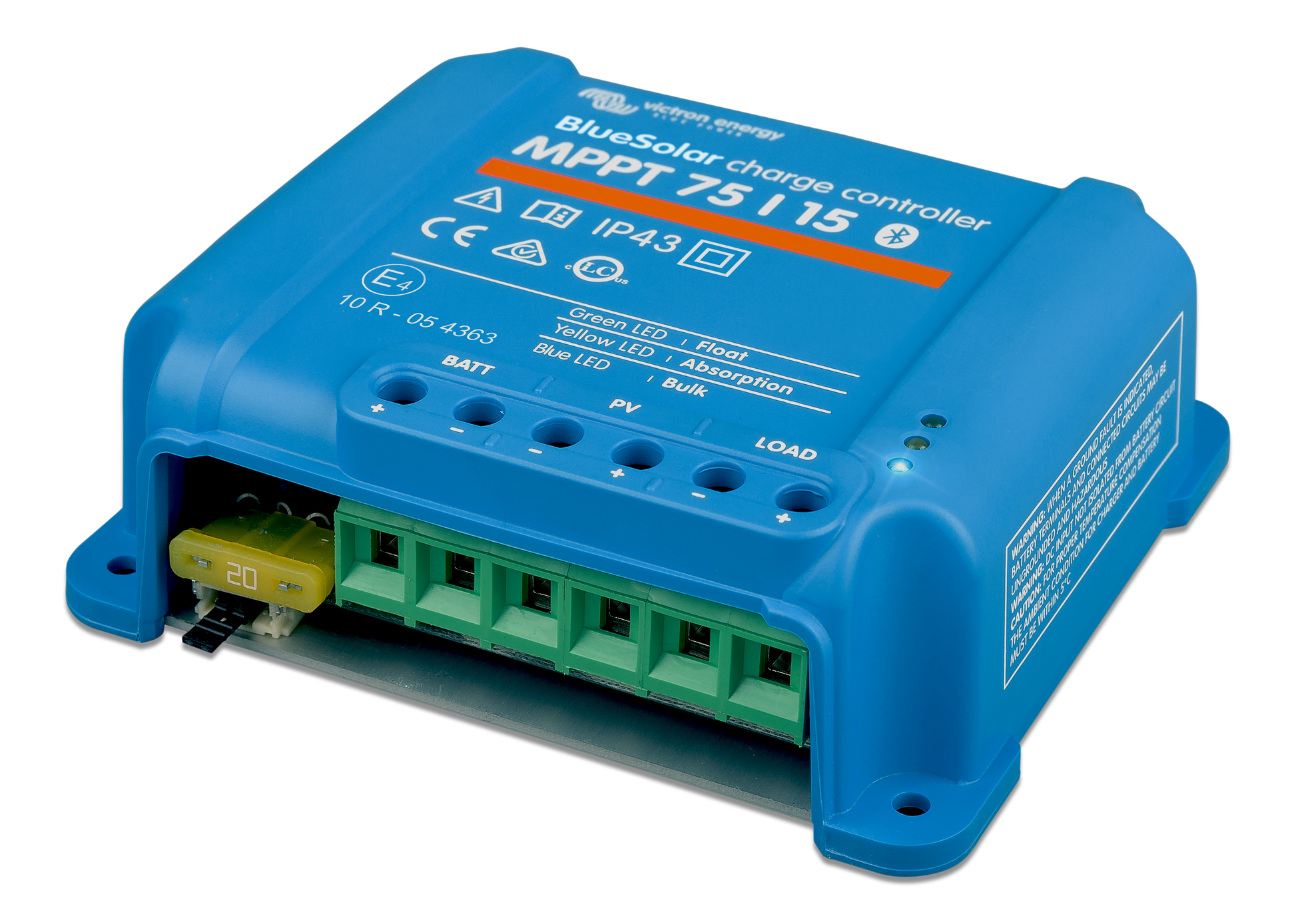

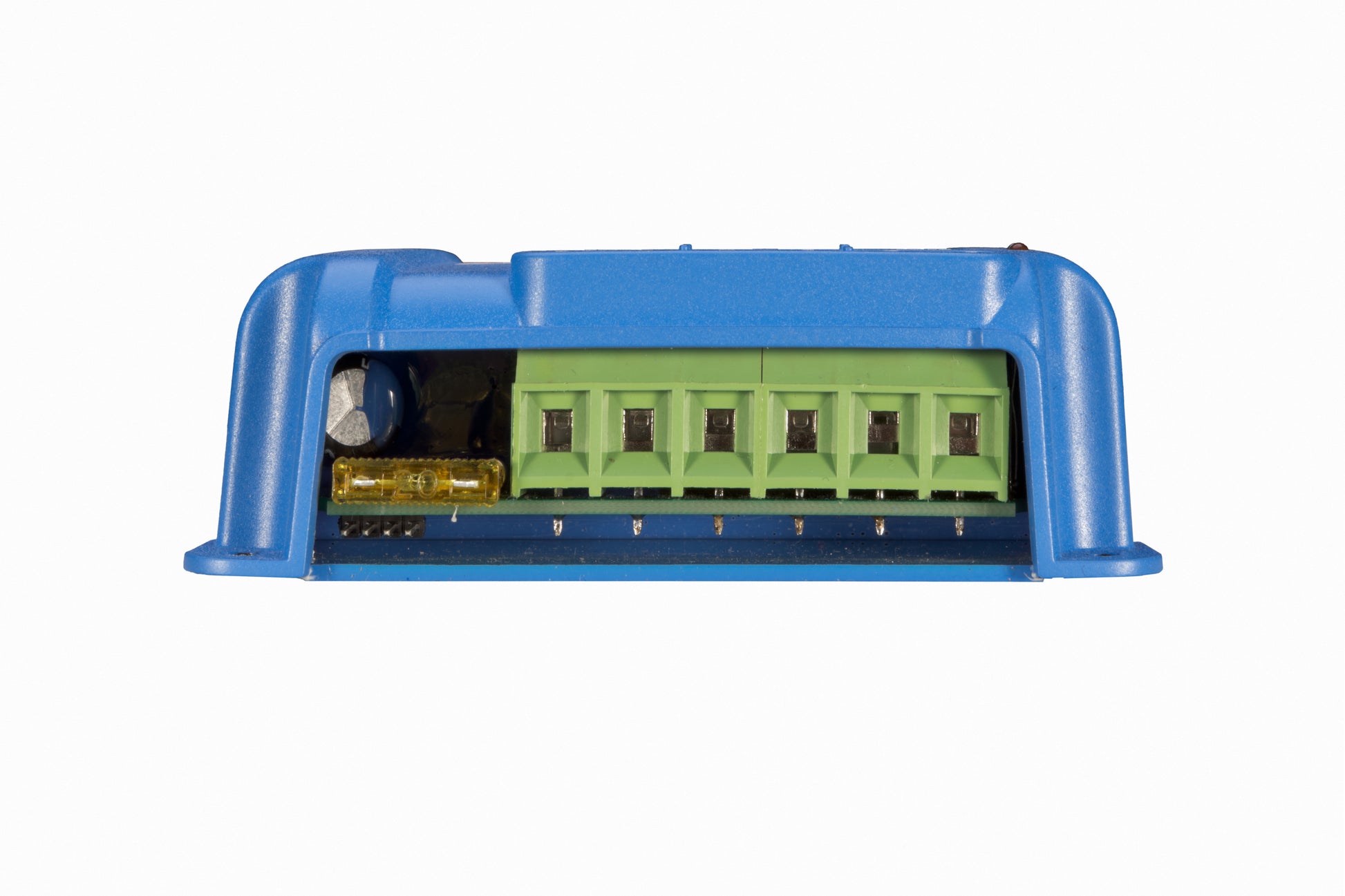

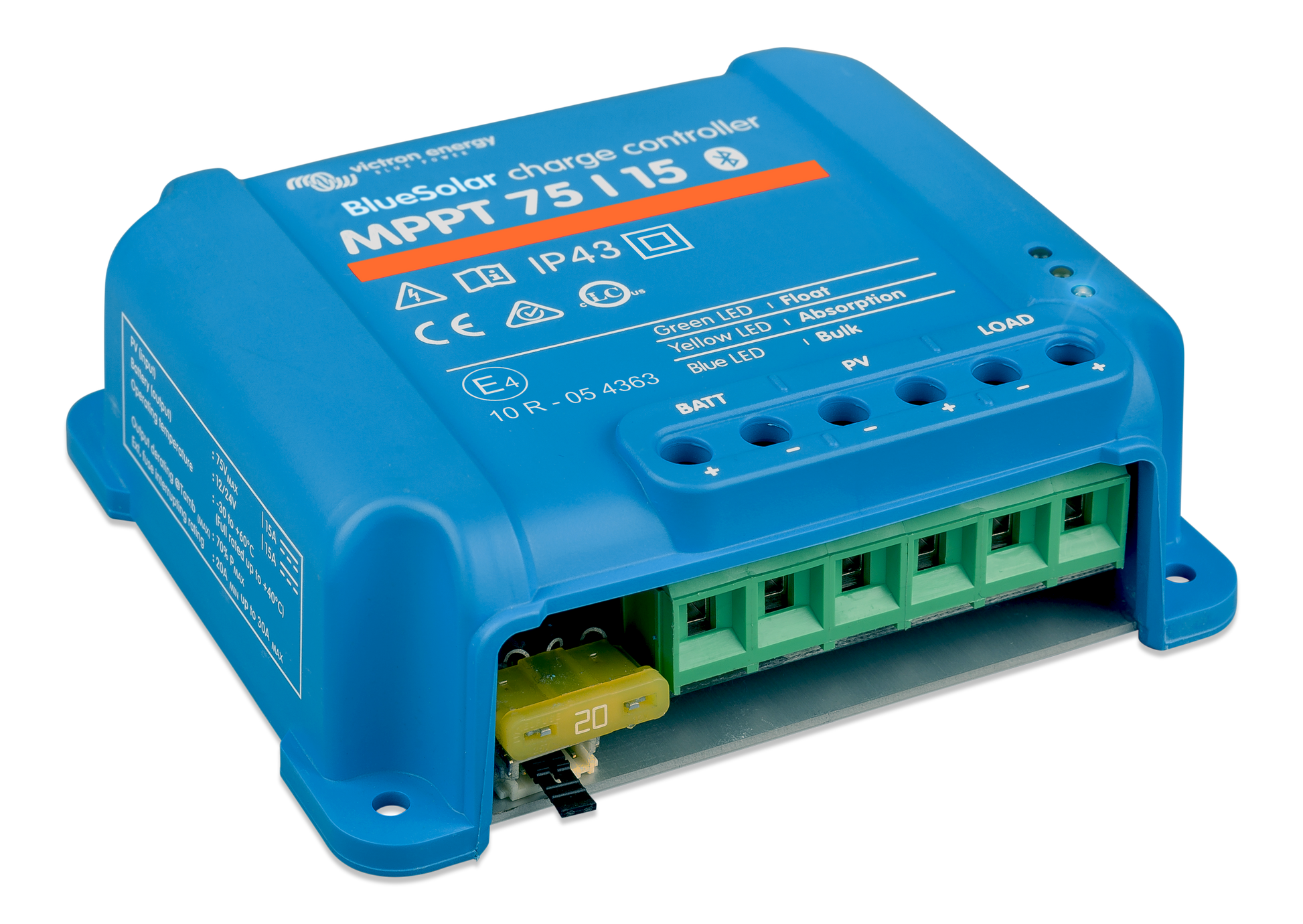

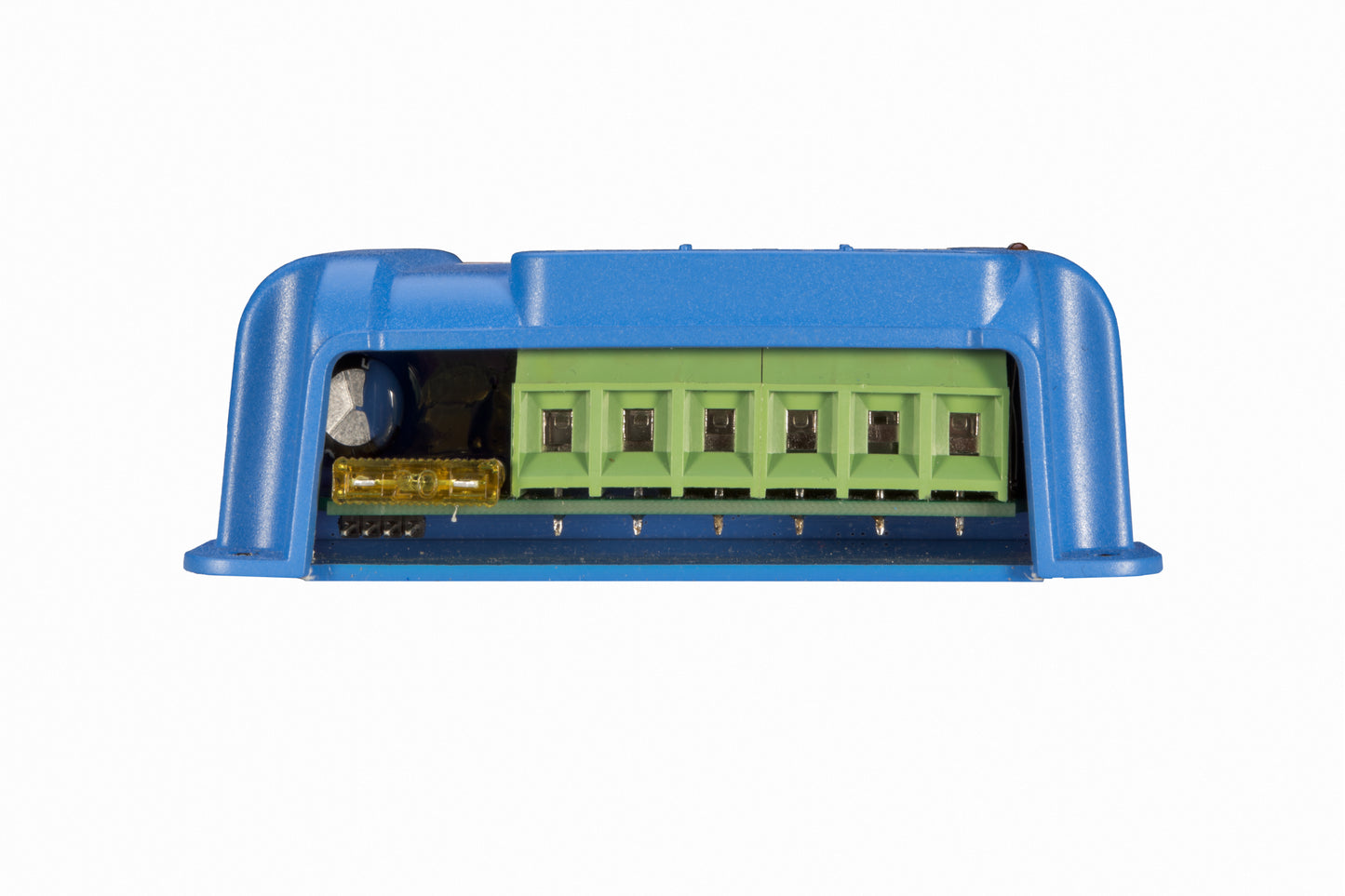

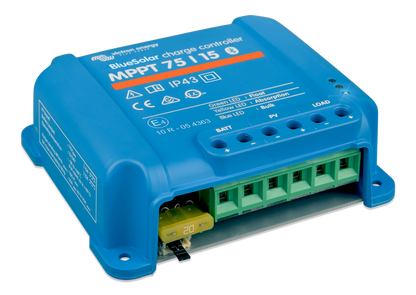

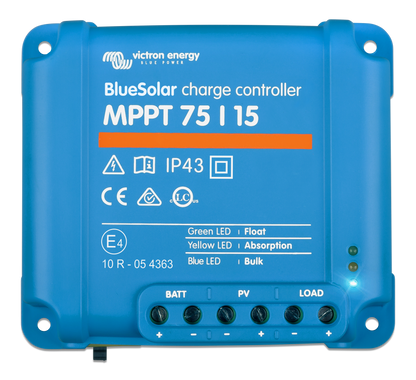

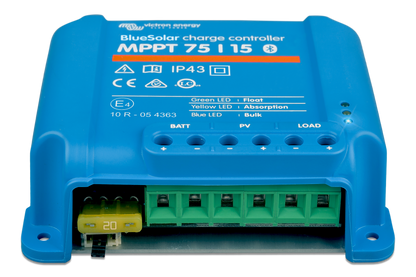

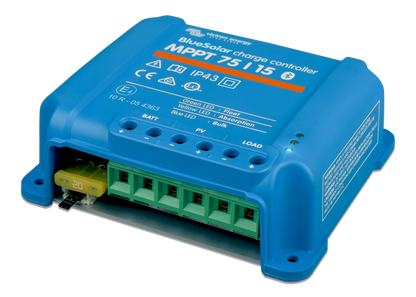

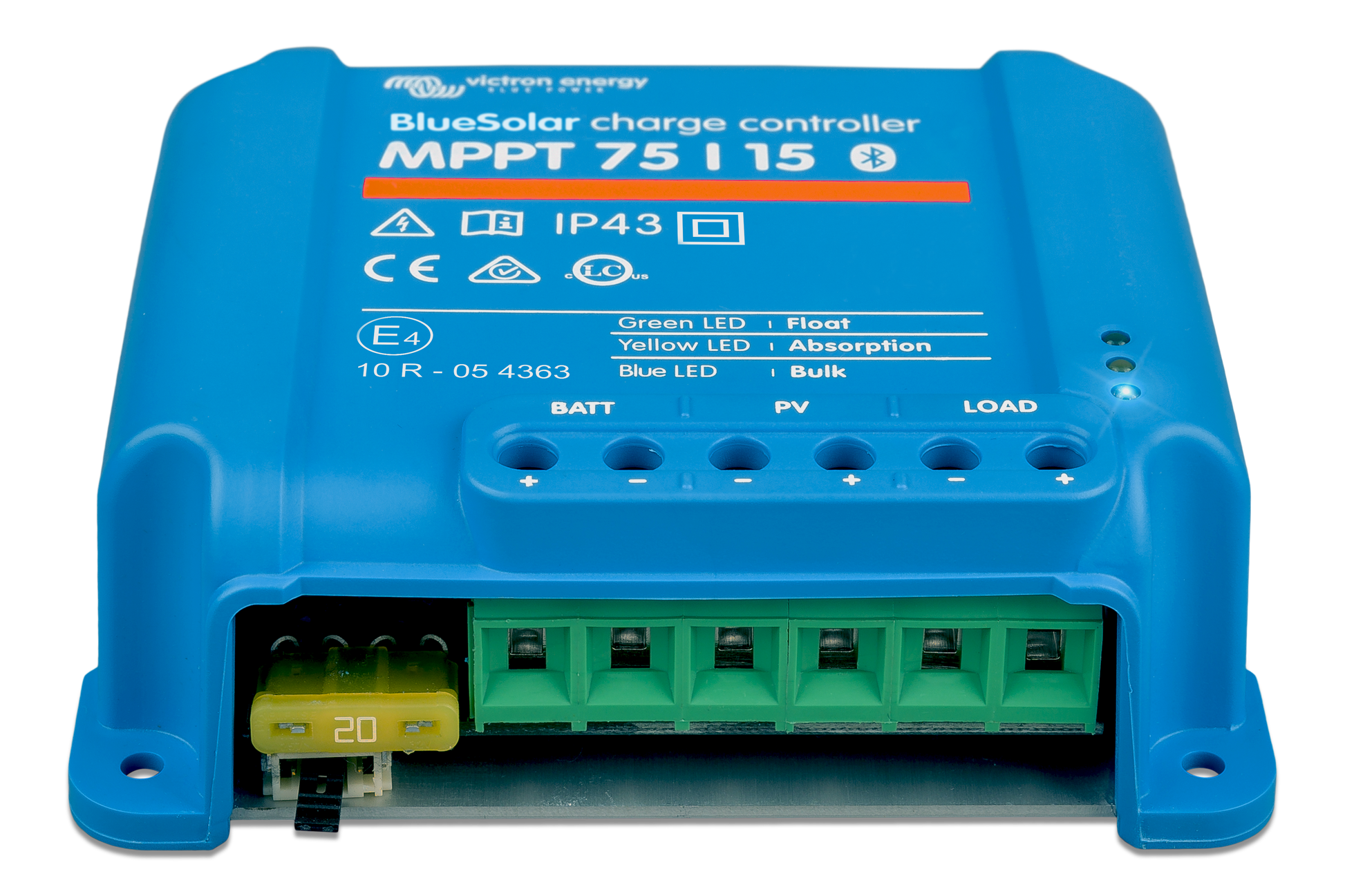

Victron BlueSolar MPPT 75/15 Retail

Technical Specifications

Combined for SKUs: SCC010015050R

Battery Voltage Auto Select: 12V / 24V (

Charge Voltage Absorption: 14.4V / 28.8V (adjustable)

Charge Voltage Float: 13.8V / 27.6V (adjustable)

Colour: Blue (RAL 5012)

Data Communication: VE.Direct

Data Retention Period: 46 d

Depth: 40 mm

Height: 100 mm

Low Voltage Load Disconnect: 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm

Low Voltage Load Reconnect: 13.1V / 26.2V or 14V / 28V or Battery Life algorithm

Max Continuous Load Current12: 15 A

Max Continuous Load Current24: 15 A

Max Efficiency: 98 %

Max Humidity: 95 %

Max PVOpen Circuit Voltage: 75 V

Max PVShort Circuit Current: 15 A

Nominal PVpower12V: 220 W

Nominal PVpower24V: 440 W

Number Of Trackers: 1

Protection Category: IP22 (connection area),IP43 (electronic components)

Protections: Automatic load disconnect,Output short-circuit,Excessive temperature,PV reverse polarity

Rated Charge Current: 15 A

Safety: EN-IEC 62109-1,UL 1741,CSA C22.2

Selfconsumption Load Off: 12V: 10 mA / 24V: 8 mA

Selfconsumption Load On: 12V: 19 mA / 24V: 16 mA

Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V

Weight: 0.5 kg

Width: 113 mm

Source: Victron
