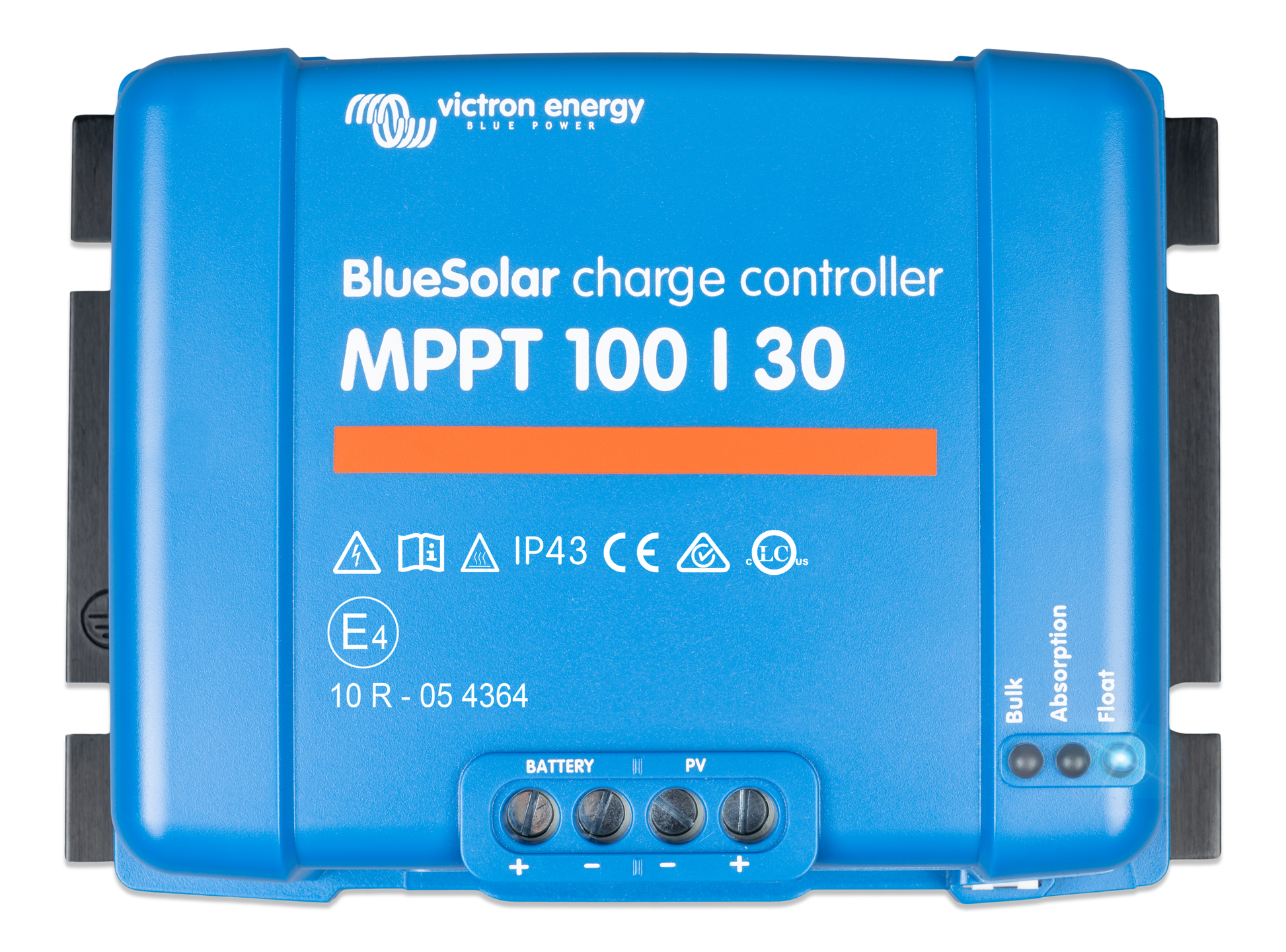

Victron BlueSolar MPPT 100/30
Victron BlueSolar MPPT 100/30
SKU:SCC020030200
Brand: Victron
Optimal Energy Harvesting: Advanced MPPT technology ensures maximum energy capture.
High Efficiency: Over 98% peak efficiency reduces energy loss.
Versatile Compatibility: Supports both 12V and 24V battery systems.
Comprehensive Protection: Built-in safeguards for enhanced system reliability.
Compact and Lightweight: Easy to install in various setups.
Dimensions: 130 x 186 x 70 mm
Weight: 1.3kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£108.00 GBP
Regular price
Sale price
£108.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron BlueSolar MPPT 100/30 is a high-performance solar charge controller designed for 12V and 24V battery systems. With a maximum output current of 30A and a peak efficiency exceeding 98%, it ensures rapid and efficient charging of your batteries, even under challenging conditions.
Key Features:
- Ultra-Fast MPPT Technology: Utilises advanced Maximum Power Point Tracking to optimise energy harvest, especially under partial shading or variable light conditions.
- High Efficiency: Achieves peak efficiency exceeding 98%, ensuring minimal energy loss and optimal performance.
- Flexible Charging: Fully programmable charge algorithm with eight pre-programmed settings, selectable via a rotary switch.
- Comprehensive Protection: Includes over-temperature protection, PV short circuit, reverse polarity protection, and reverse current protection.
- Compact Design: Measures 130 x 186 x 70 mm and weighs just 1.3 kg, making it suitable for various installation spaces.
- Automatic Battery Voltage Detection: Supports 12V and 24V battery systems with auto voltage selection.
- Real-Time Monitoring: Compatible with VictronConnect app for real-time data monitoring and configuration.
Ideal for off-grid solar systems, remote installations, and applications requiring reliable and efficient battery charging solutions.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24V Auto Select
- Rated Charge Current: 30A
- Nominal PV Power (12V): 440W
- Nominal PV Power (24V): 880W
- Maximum PV Open Circuit Voltage: 100V
- Max. PV Short Circuit Current: 35A
- Maximum Efficiency: 98%
- Self-Consumption: 12V: 30 mA / 24V: 20 mA
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive
- Charge Voltage 'Absorption': 14.4V / 28.8V (Default setting, fully programmable)
- Charge Voltage 'Float': 13.8V / 27.6V (Default setting, fully programmable)
- Pre-programmed Algorithms: Eight selectable algorithms via a rotary switch
- Temperature Compensation: -16 mV / °C (12V) or -32 mV / °C (24V)
- Internal Temperature Sensor: Included (compensates absorption and float charge voltage for temperature)
Connectivity & Monitoring
- Data Communication Port: VE.Direct
- Real-time Data Display Options:Compatible with ColorControl GX or other GX devices for comprehensive system monitoring.Smartphone or Bluetooth monitoring available via the VE.Direct Bluetooth Smart dongle (sold separately).
Mechanical & Enclosure
- Dimensions (H x W x D): 130 x 186 x 70 mm
- Weight: 1.3 kg
- Power Terminals: 16 mm² / AWG6
- Colour: Blue (RAL 5012)
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Cooling: Natural convection (no cooling fan)
Environmental & Standards
- Operating Temperature Range: -30 to +60°C (Full rated output current up to 40°C)
- Humidity: 95%, non-condensing
- Integrated Protections: Over-temperature protection and power derating, PV short circuit, PV reverse polarity, and PV reverse current protection.
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Technical Specifications
Technical Specifications
| MPPT Amps | 30 |
|---|
