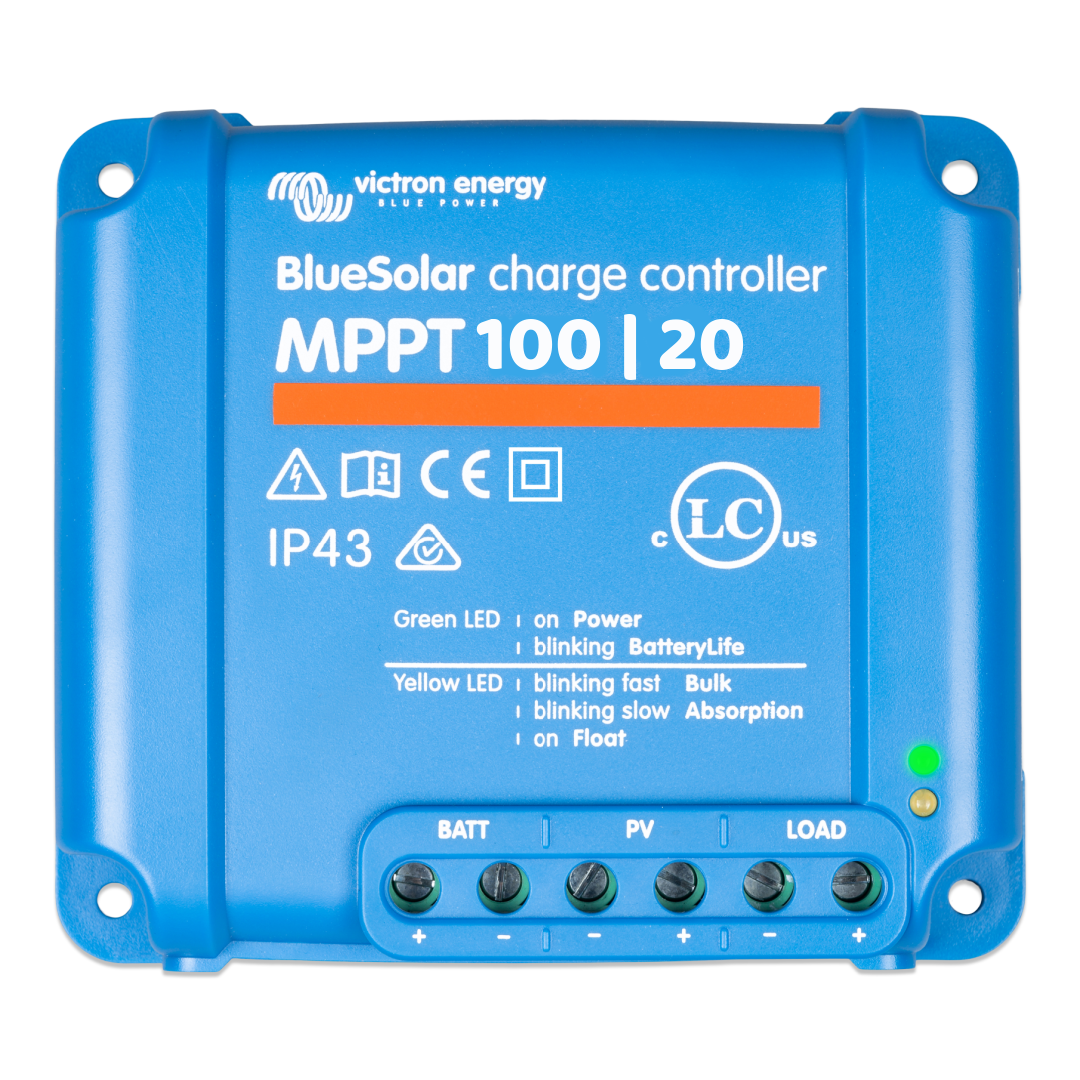

Victron BlueSolar MPPT 100/20 (up to 48V) Retail

Technical Specifications

Combined for SKUs: SCC110020170R

Battery Voltage Auto Select: 12V / 24V / 48V (Auto Select)

Charge Algorithm: Multi-stage adaptive (adjustable)

Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)

Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)

Colour: Blue (RAL 5012)

Data Communication: VE.Direct

Depth: 60 mm

Height: 100 mm

Low Voltage Load Disconnect: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm

Low Voltage Load Reconnect: 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm

Max Continuous Load Current12: 20 A

Max Continuous Load Current24: 20 A

Max Continuous Load Current48: 1 A

Max Efficiency: 98 %

Max Humidity: 95 %

Max PVOpen Circuit Voltage: 100 V

Max PVShort Circuit Current: 20 A

Nominal PVpower12V: 290 W

Nominal PVpower24V: 580 W

Nominal PVpower48V: 1,160 W

Number Of Trackers: 1

Programmable Relay: empty

Protection Category: IP22 (connection area),IP43 (electronic components)

Protections: Automatic load disconnect,Output short-circuit,Excessive temperature,PV reverse polarity

Rated Charge Current: 20 A

Safety: CSA C22.2,EN-IEC 62109-1,UL 1741

Selfconsumption Load Off: 12V: 10 mA / 24V: 8 mA / 48V: 7 mA

Selfconsumption Load On: 12V: 26 mA / 24V: 20 mA / 48V: 19 mA

Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V

Weight: 0.65 kg

Width: 131 mm

Source: Victron
