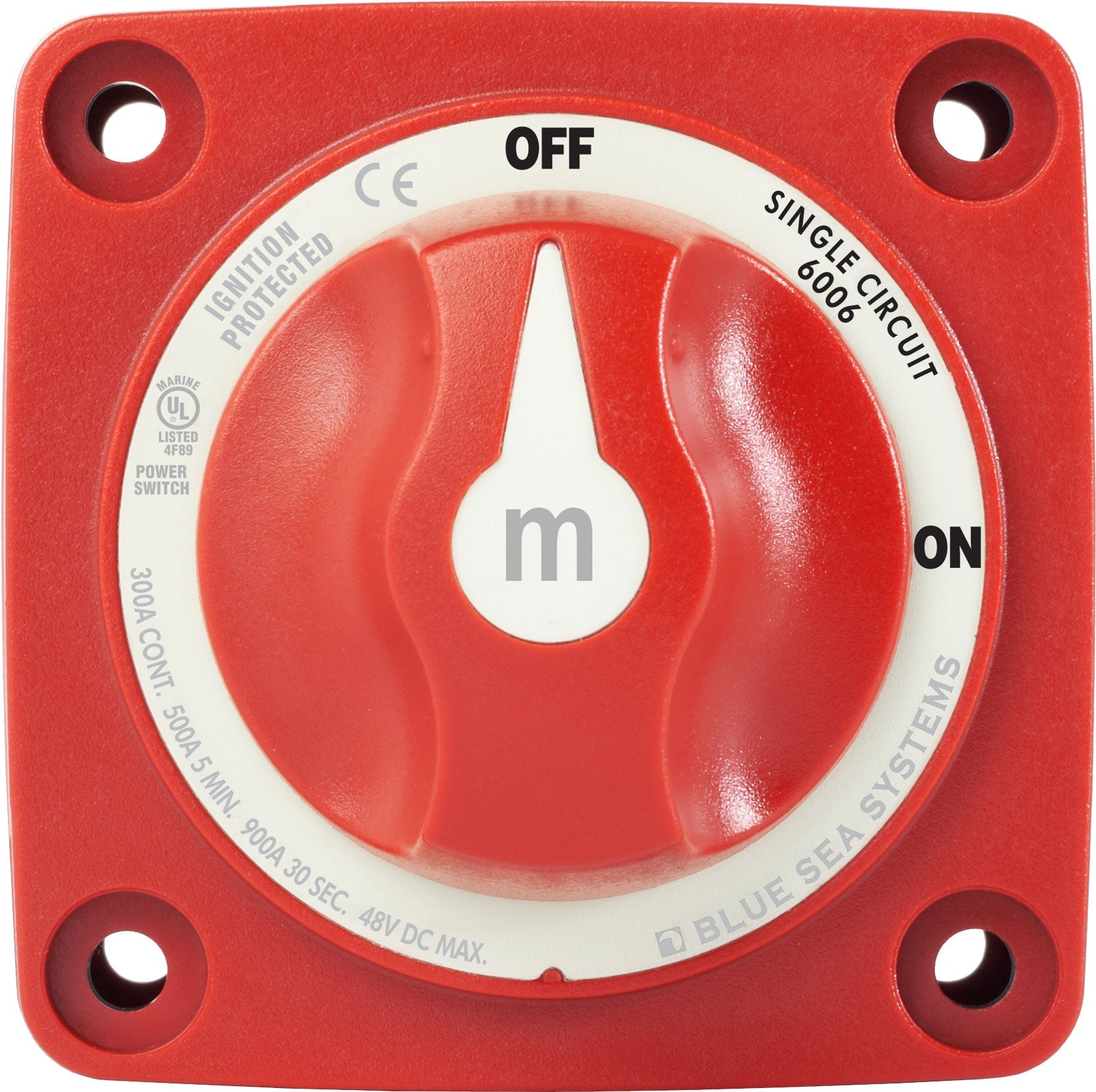

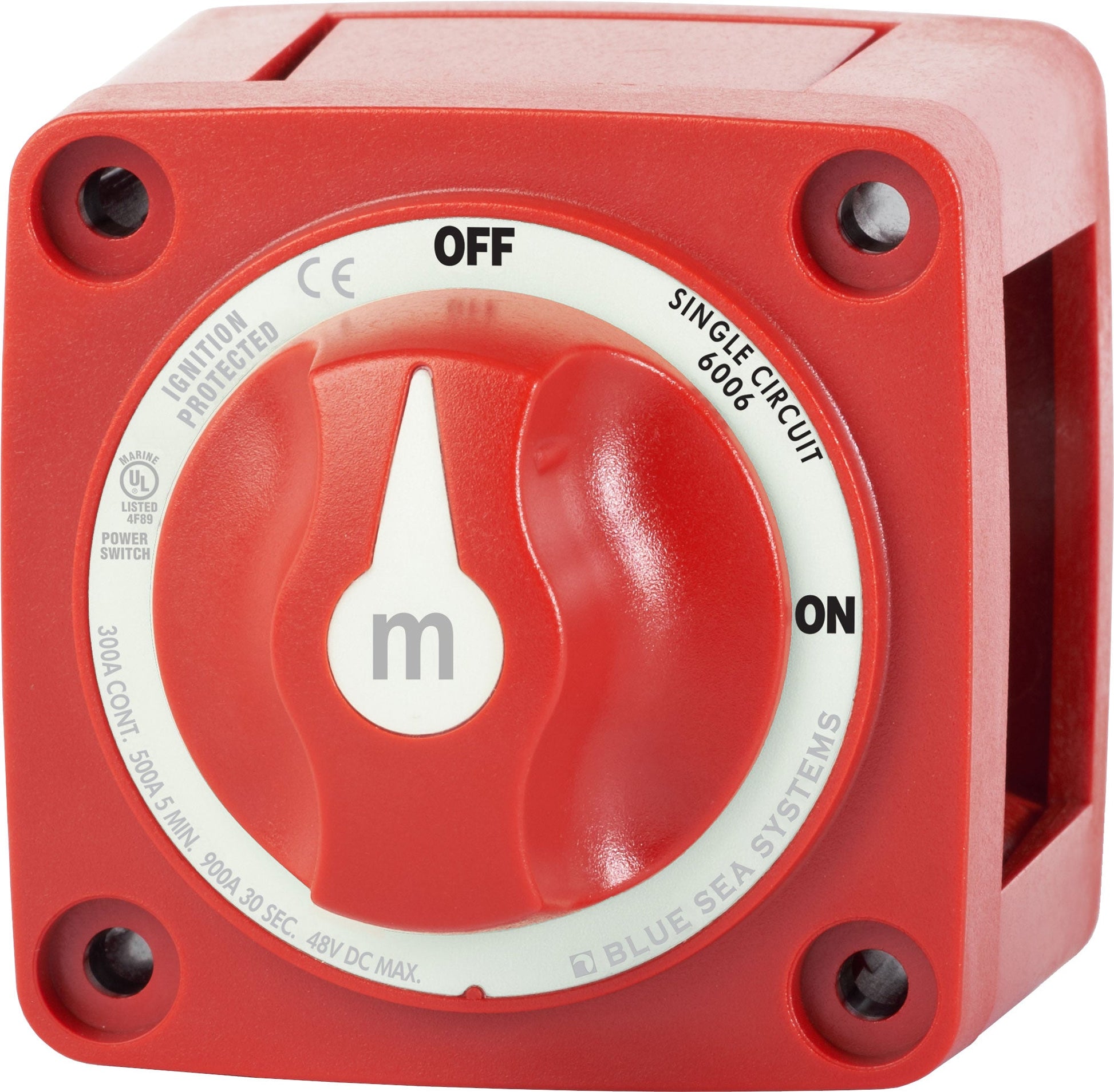

Bluesea m-Series Mini On-Off Battery Switch with Knob - Red - Isolator Switch 6006
Bluesea m-Series Mini On-Off Battery Switch with Knob - Red - Isolator Switch 6006
SKU:BS6006
Brand: Bluesea
In stock
This is pre-order - Available in 7 – 10 days
Please login to see Trade Pricing
Regular price
£36.38 GBP
Regular price
Sale price
£36.38 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details

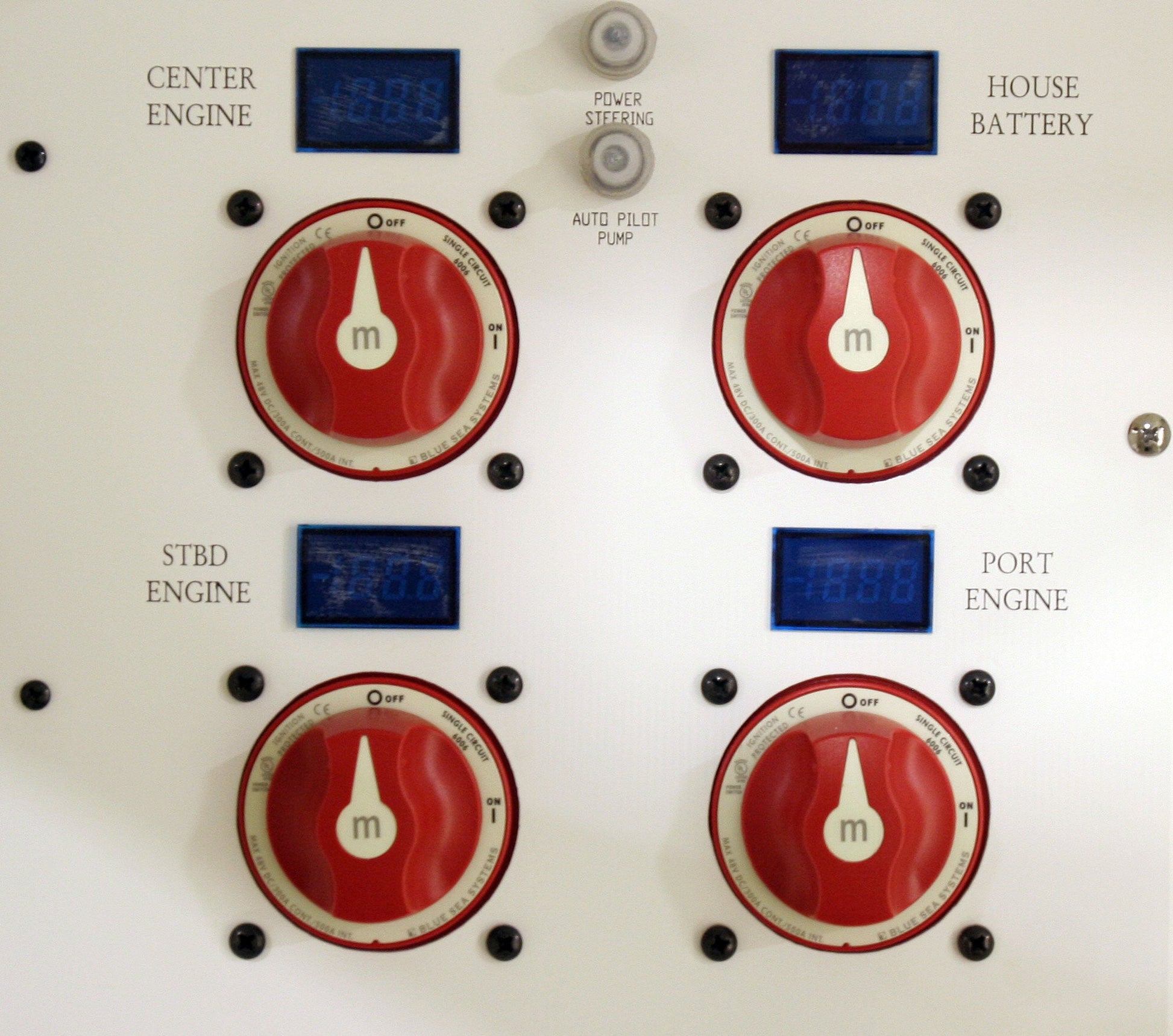

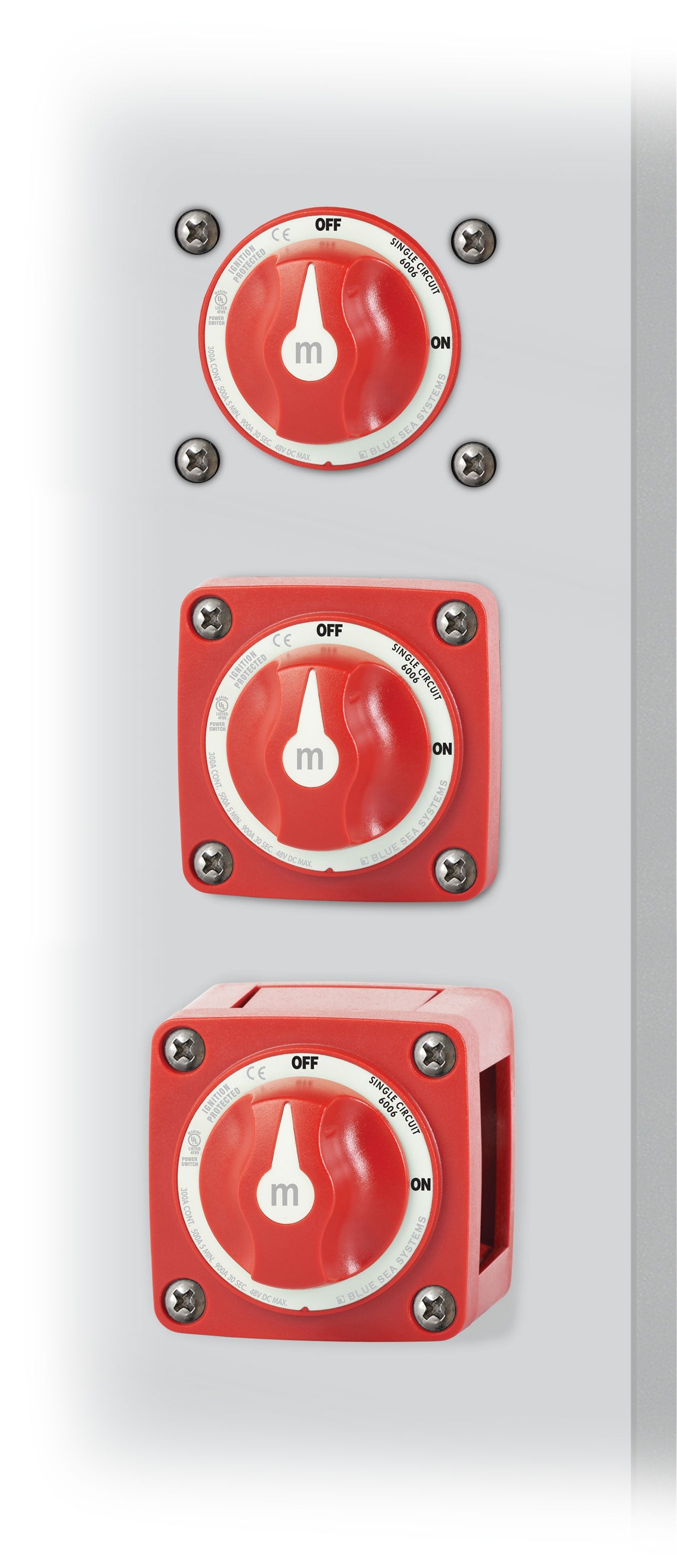

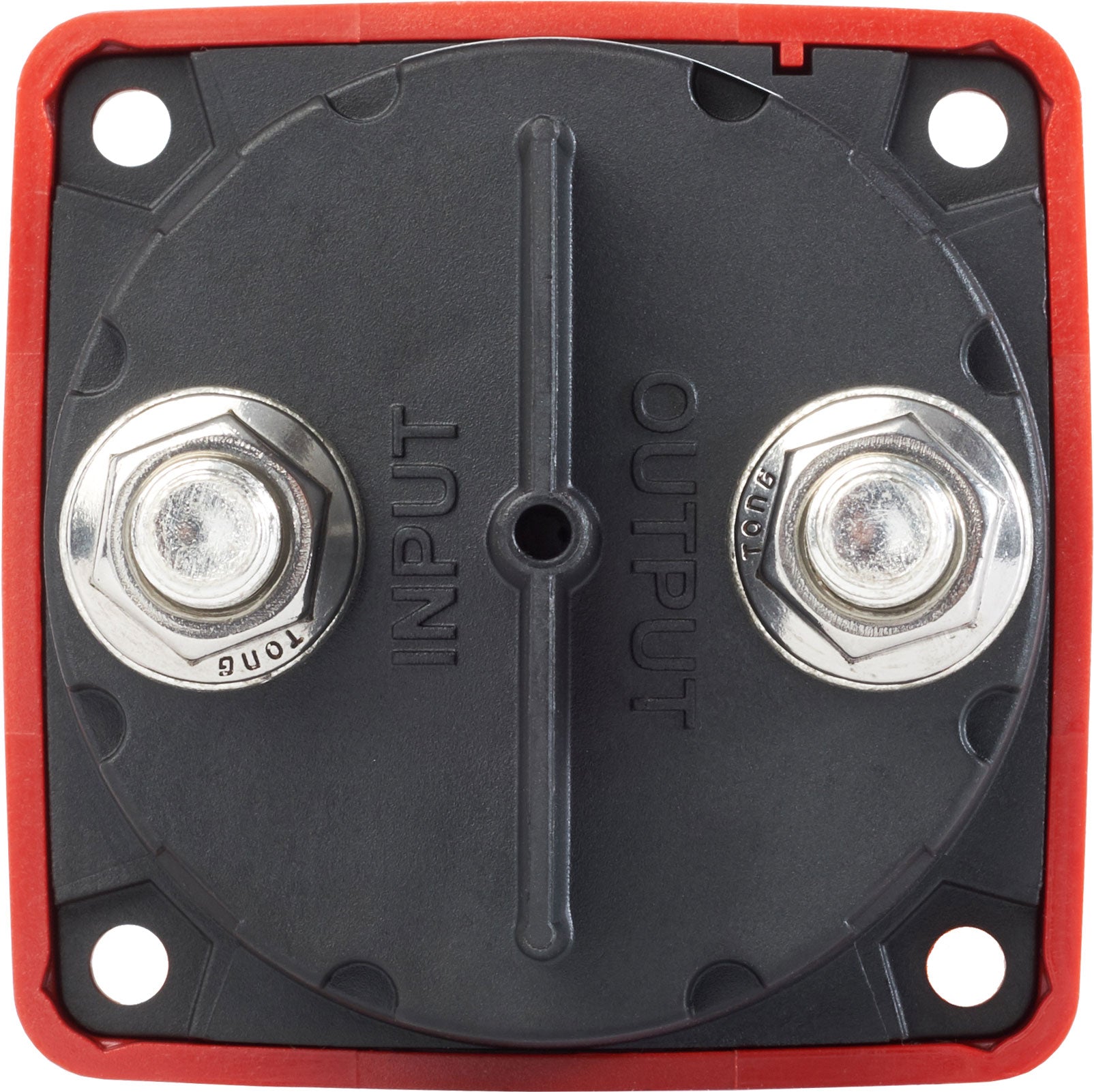

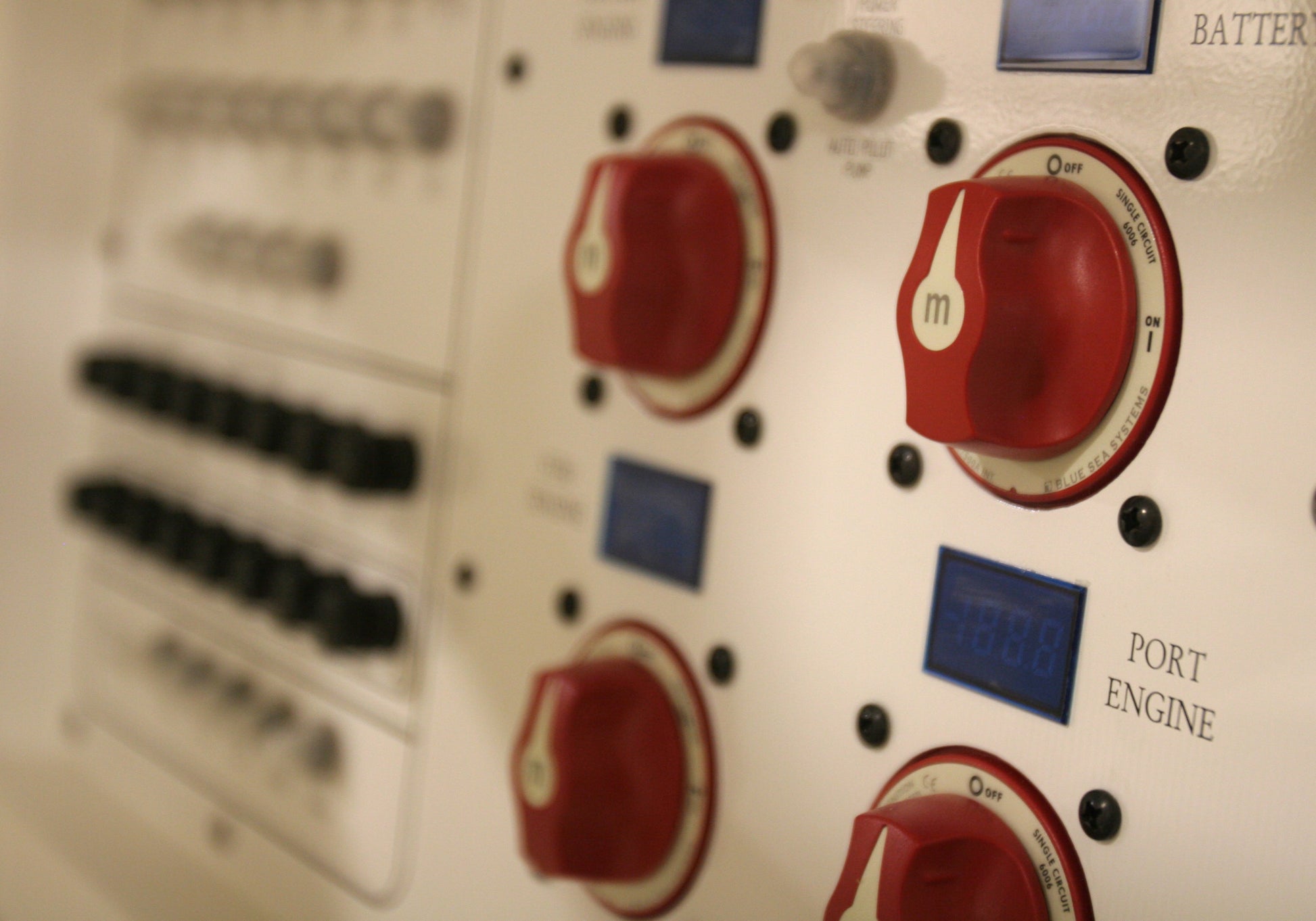

The Bluesea m-Series Mini On-Off Battery Switch with Knob is an isolator switch designed for use in single-battery and single-load applications. It is ignition protected, making it safe for installations aboard gasoline powered boats, and can be mounted either on a surface, front panel or a rear panel. The switch also includes an isolating cover with snap-on sections to protect rear contacts. Enjoy maximum safety and convenience with this reliable switch
Please Note: We purchase this product in bulk packs and delivered unboxed without fixing screws.
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.65lb (0.29 kg) |
| Weight | 0.65lb (0.29 kg) |
