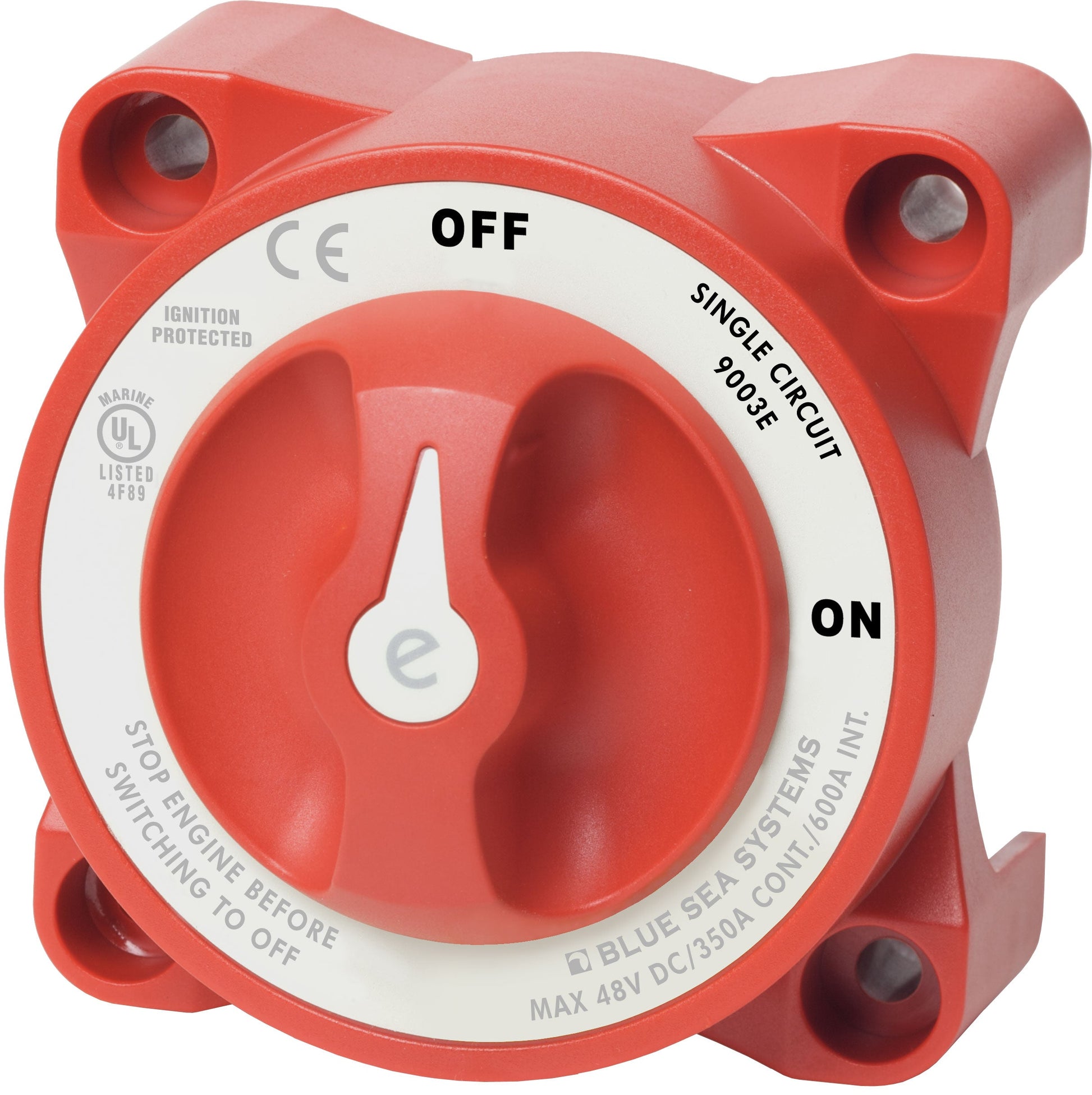

The Bluesea e-Series On/Off Battery Switch 9003e is engineered to provide reliable power control in demanding environments. With a 350A continuous rating, it ensures efficient operation of high-current systems. The switch features tinned copper studs, which offer superior conductivity and resistance to corrosion, ensuring longevity and reliability.
Designed with safety in mind, the 9003e is ignition-protected, making it suitable for installation aboard gasoline-powered boats. The compact design allows for flexible installation options, accommodating both surface and rear panel mounting. This versatility makes it an excellent choice for marine, RV, and off-grid applications.
Dimensions & Specifications
-
Continuous Rating: 350A
-
Voltage Range: 12V–48V DC
-
Terminal Stud Size: 3/8"–16 (M10)
-
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
-
Cable Clearance: 1.10" (27.94 mm)
-
Mounting Holes: Accept 1/4" (M6) screw
-

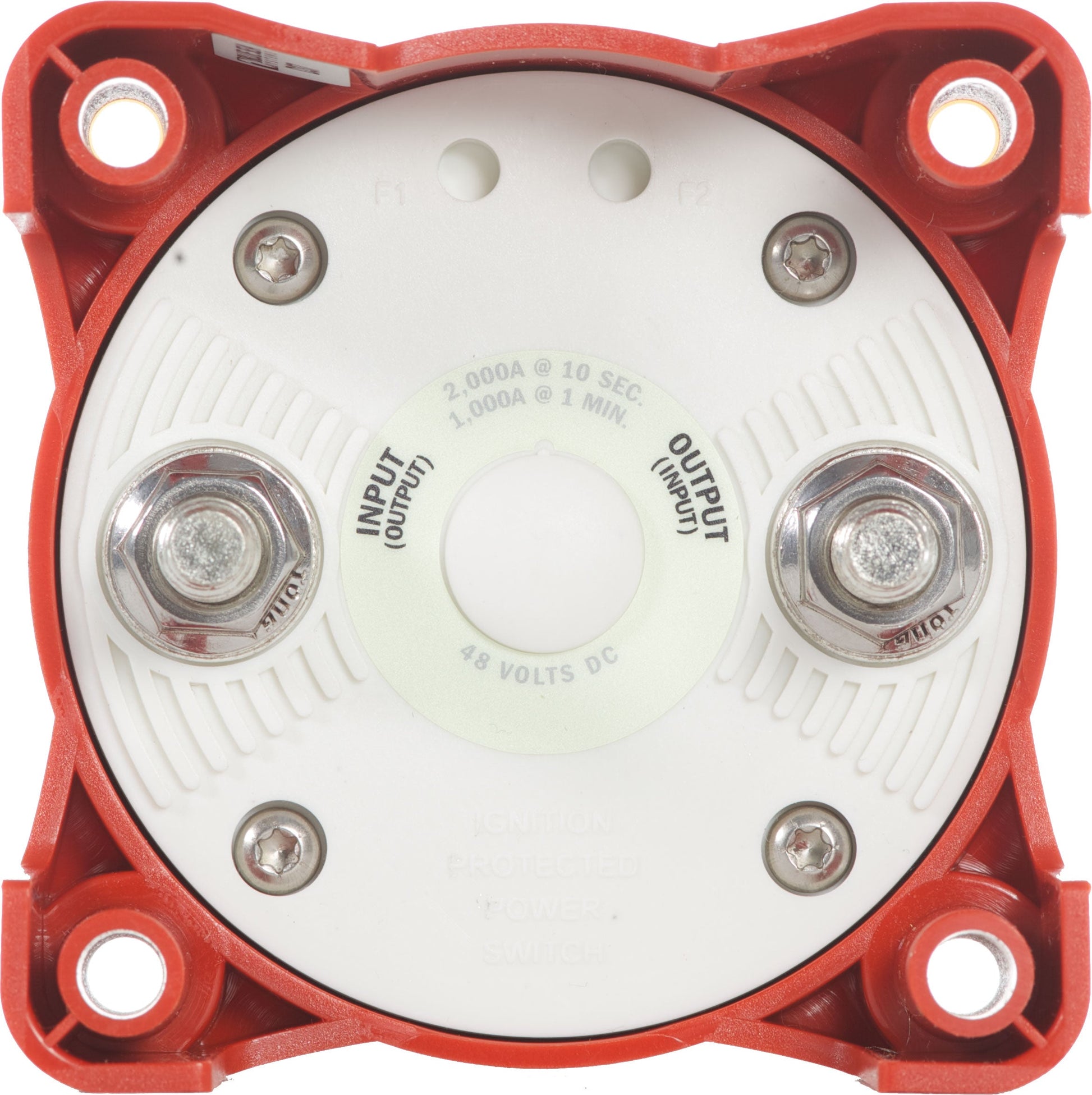

Stud Material: Tinned copper
-
Weight: 1.30 lb (0.59 kg)
