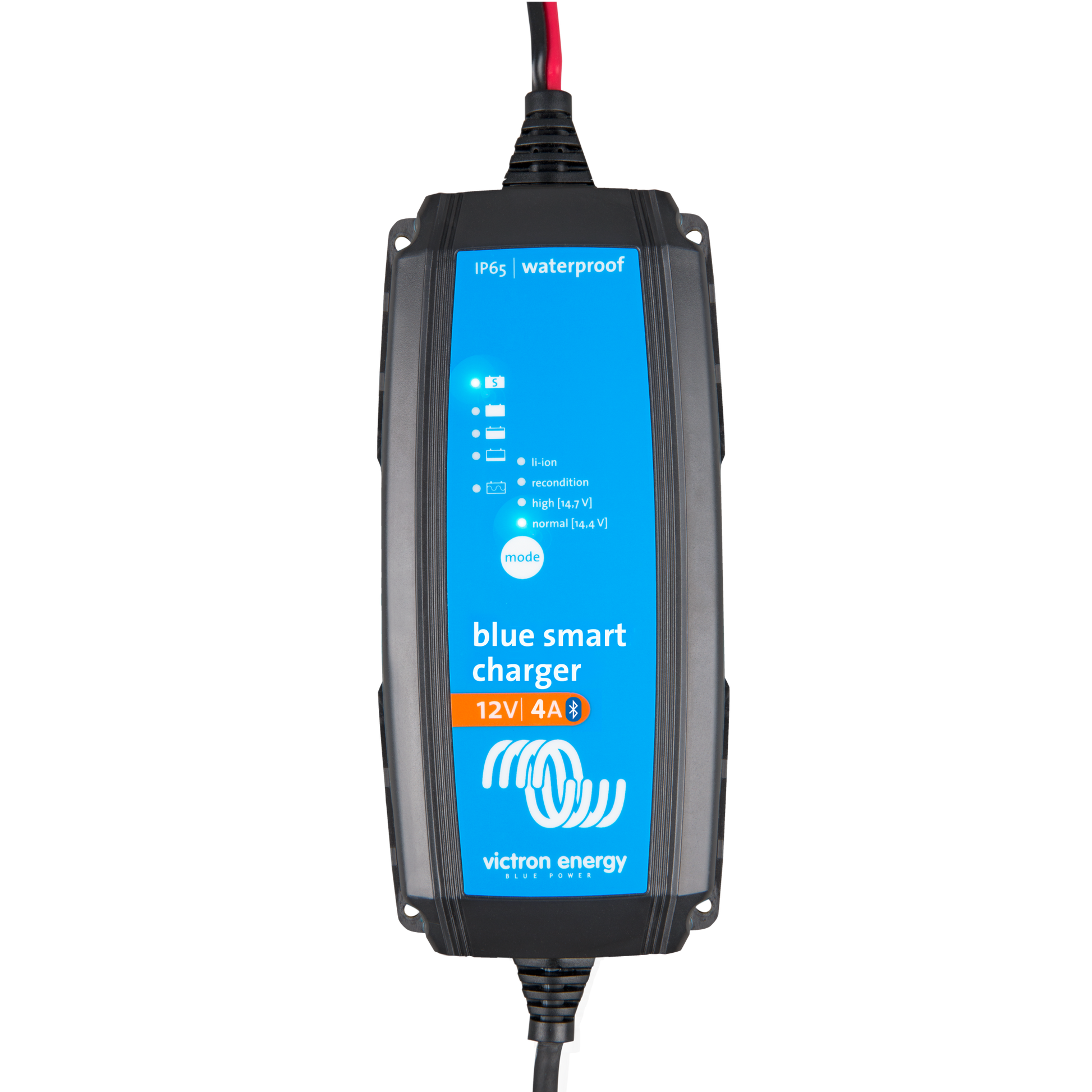

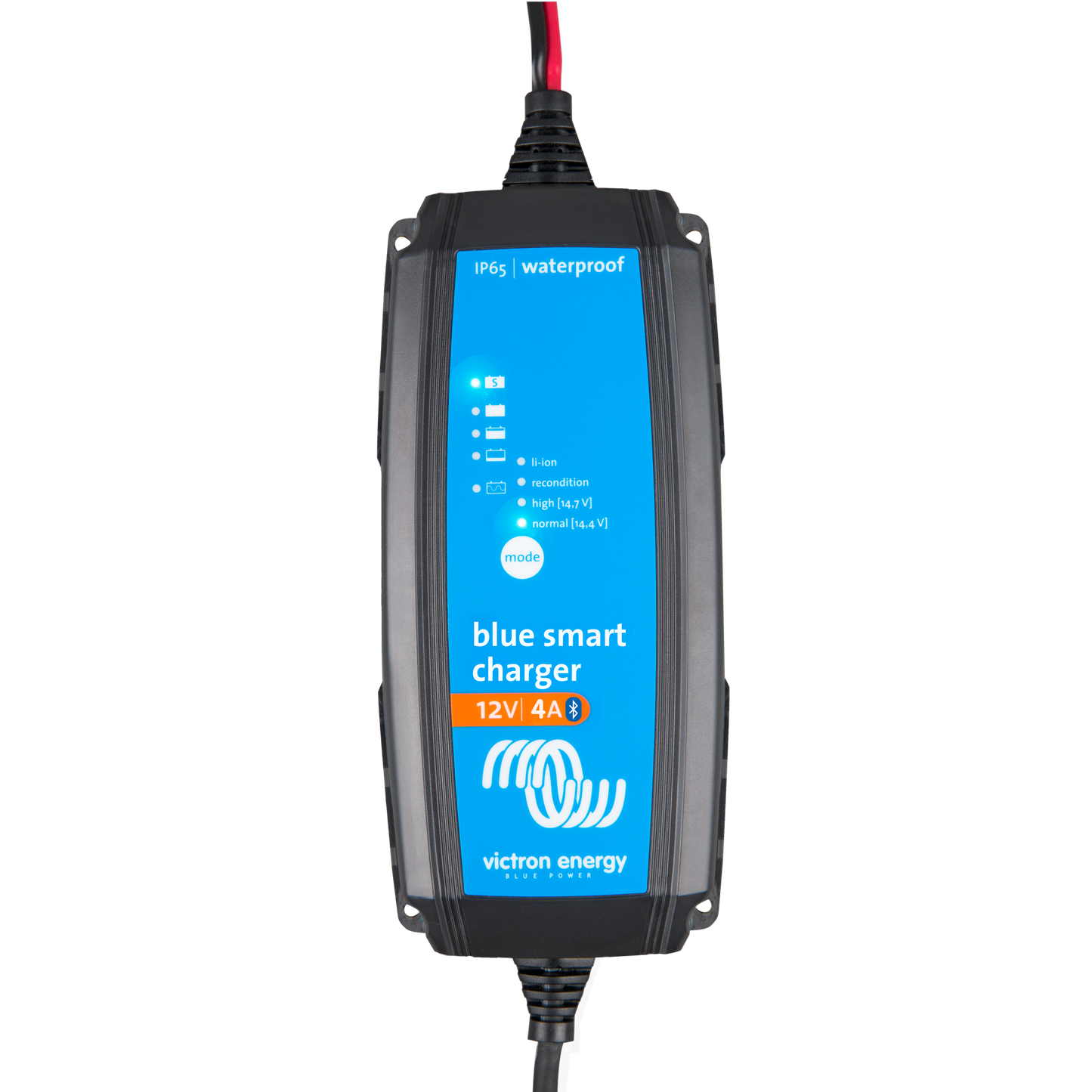

Victron Energy Blue Smart IP65s Charger 12V 4A 1 Output UK – BPC120433024R
- Charge batteries using a UK 3 pin plug.
- IP65 - Suitable for outdoor use.
- Revive dead batteries.
- 4A Charging Current.
- For 12V systems.
- Monitor the status of your battery remotely with built in Bluetooth.
- Connect your batteries with included crocodile clips or M8 eyelets
Charge your batteries with confidence using the innovative Victron Blue Smart IP65 Charger. Specifically designed for 12V battery systems, this versatile charger with a 4A charging current is your go-to solution for maintaining optimal battery health. Whether you're powering up your car, motorbike, boat, or mobility scooter, this charger ensures your batteries are ready to perform when you need them.
Smart Charging for Peak Performance: The Blue Smart IP65 Charger utilizes a sophisticated seven-step charging algorithm, providing your batteries with precisely what they need at the right times. This smart charging approach helps extend battery life, enhance performance, and ensure your batteries are always in top condition.
Revive 'Dead' Batteries: Encountered a deeply discharged battery? No worries! The Blue Smart IP65 Charger is equipped to revive 'dead' batteries with a gentle, low-power charge. Once the battery reaches an adequate charge level, it seamlessly transitions back to normal charging, saving you from the hassle of dealing with seemingly lifeless batteries.

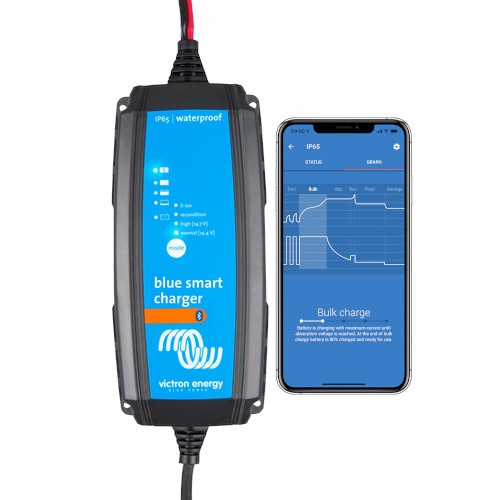

Remote Monitoring via Bluetooth: Stay in control wherever you are! The integrated Bluetooth technology allows you to monitor and manage your battery system remotely using your smartphone, tablet, or computer. The VictronConnect app provides an easy interface to check the status of your batteries and adjust settings effortlessly.
User-Friendly Settings with VictronConnect: Say goodbye to complicated setups! The VictronConnect app makes it a breeze to customize your charging preferences and monitor battery voltage and current. Enjoy the simplicity of managing your charging system with just a few taps on your device.
Durable and Reliable Design: Built to withstand environmental challenges, the Blue Smart IP65 Charger is water, dust, and chemical-resistant. Its robust construction ensures durability, and the IP65 protection rating safeguards against reverse polarity, output short circuit, and over-temperature issues. This charger is a long-term investment for your battery system.
Versatile Battery Connection Options: Choose the connection method that suits you best – whether it's the M8 eyelets or crocodile clamps, the Blue Smart IP65 Charger ensures a secure and efficient connection to your batteries.
Quality Assurance from Victron: At Victron, quality is paramount. The Blue Smart IP65 Charger is crafted with the highest-grade components and undergoes rigorous testing to guarantee consistent high quality. Trust in a charger that delivers reliability and performance.
Get the Victron Energy Blue Smart IP65 Charger 12/5 now and let your batteries experience the happiest and healthiest charging! Please note that the charger does not come with a cable to connect to the battery, which needs to be purchased separately.
Will work on: Cars, Motorbikes, Boats, Mobility Scooters etc
Product Specifications
Product Specifications
Electrical Specifications
- SKU: BPC120433024R
- Model: 12/4
- Nominal Battery Voltage: 12V DC
- Rated Charge Current: 4A
- Low Current Mode: 2A
- Number of Outputs: 1
- AC Input Voltage (Nominal | Min/Max): 220 – 240VAC | 180 – 265VAC
- AC Input Frequency (Nominal | Min/Max): 50 – 60Hz | 45 – 65Hz
- Power Factor: >0.6
- Standby Power Consumption: 0.5W
- Maximum Efficiency: 94%
Charge Voltages & Algorithms
- Charge Algorithm: 7-stage adaptive (4-stage for Li-ion)
- Normal Charge Mode: Absorption: 14.4V | Float: 13.8V | Storage: 13.2V
- High Charge Mode: Absorption: 14.7V | Float: 13.8V | Storage: 13.2V
- Li-ion Charge Mode: Absorption: 14.2V | Float: N/A | Storage: 13.5V
- Recondition Voltage: 16.2V (Normal + Recondition) | 16.5V (High + Recondition)
- Temperature Compensation (Lead-acid): -16mV/°C (-9mV/°F) (Disabled in Li-ion mode)
Battery Sizing Recommendations
- Maximum Battery Capacity: 40Ah
- Minimum Battery Capacity (Lead-acid): Max Mode: 13Ah | Low Current Mode: 7Ah
- Minimum Battery Capacity (Li-ion): Max Mode: 8Ah | Low Current Mode: 4Ah
Key Features & Functionality
- Bluetooth Smart Control: Wirelessly set up, monitor live output voltage and current, view historical usage statistics, and perform firmware updates via the VictronConnect app.
- Dead Battery Revival: Automatically detects deeply discharged batteries and applies a low current to revive them from as low as 0V before resuming normal charging.
- Lithium Battery Setting: Includes a dedicated Li-ion (LiFePO4) profile with an automatic under-voltage protection reset feature.
- DC Power Supply Mode: Configurable in the VictronConnect app to deliver constant voltage to power equipment with or without a battery connected.
- Automatic Storage Mode: Lowers the charge voltage when the battery is left unused for extended periods to minimize gassing and positive plate corrosion.
- Reconditioning Mode: Applies an optional higher-voltage charge cycle to lead-acid batteries to reverse sulfation buildup and restore capacity.
- Silent Operation: Convection-cooled with no moving parts or cooling fans.
Protection & Safety
- SafetyShield+ Protections: Comprehensive electronic safeguards against reverse polarity, output short circuits, and over-temperature conditions.
- Ingress Protection: IP65 rating (resistant to splash, dust, and chemicals). Pressure equalization vent maintains enclosure protection.
Physical & Cable Specifications
- Enclosure Material & Colour: Plastic | Black

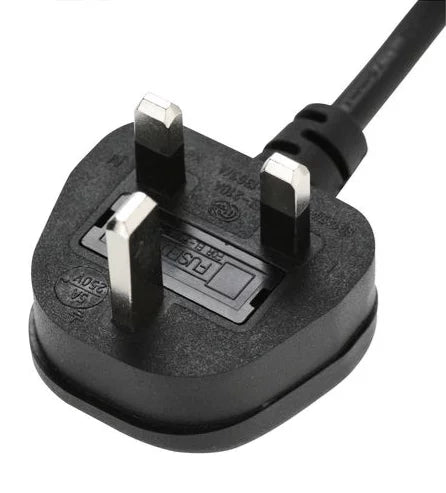

- AC Power Connection: 1.5m (5ft) mains cable with UK BS 1363 plug
- DC Power Connection: 1.5m (5ft) figure-8 red/black cable with quick-connect interchangeable connectors
- Included Connectors: M8 ring terminals and heavy-duty battery clamps
- DC Cable Size/Gauge: 1.5 mm² | 16 AWG
- Recommended Inline DC Fuse Rating: 7.5A (Minimum) to 20A (Maximum)
- Dimensions (H x W x D): 45 x 81 x 183 mm (1.8 x 3.2 x 7.2 inches)
- Weight: 0.6 kg (1.3 lbs)
- Operating Temperature Range: -40°C to +50°C (-40°F to 122°F; full rated output up to 30°C / 86°F)
- Maximum Humidity: 95% (non-condensing)
Compliance & Warranty
- Safety Standards: EN 60335-1, EN 60335-2-29
- EMC Standards: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4, ETSI EN 300 328 V2.2.2
- Automotive Standard: ECE R10
- Warranty: Backed by Victron Energy's 5-year standard limited warranty
Technical Specifications
Technical Specifications
| Battery Charger Rating | 4A |
|---|---|
| Voltage | 12V |
| Protection | IP65 - Outdoor |
