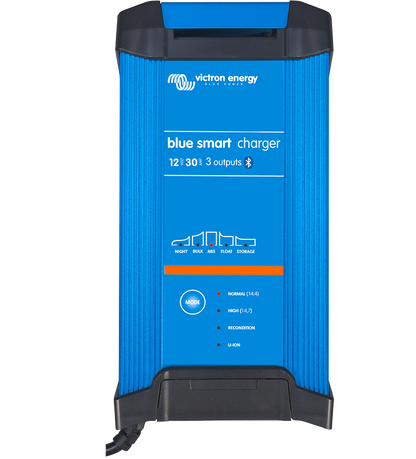

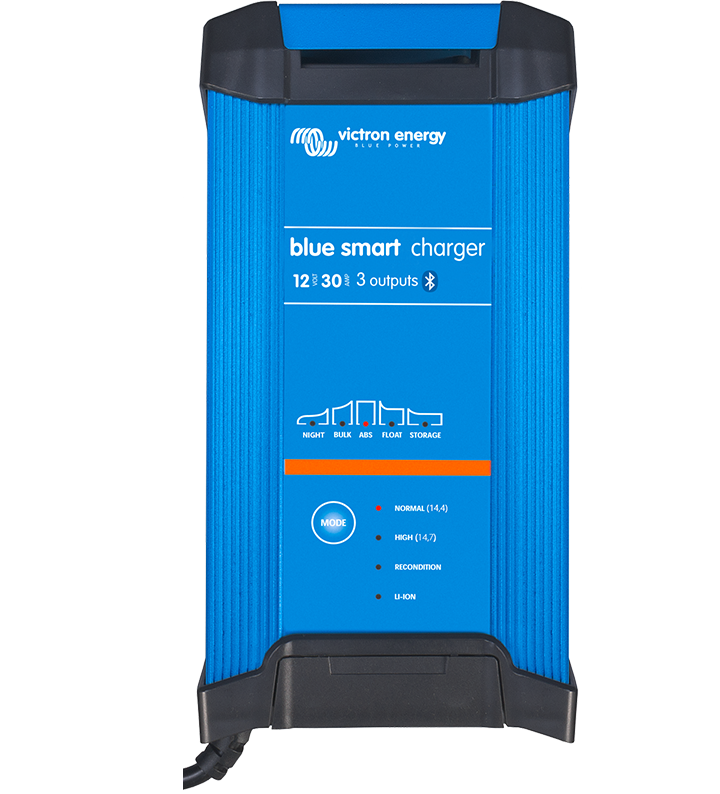

Victron Battery Charger 12/30 - Indoor (IP22) Blue Smart - 3 Output 230V UK
Victron Battery Charger 12/30 - Indoor (IP22) Blue Smart - 3 Output 230V UK
SKU:BPC123048022
Brand: Victron
Low stock: 3 left
Couldn't load pickup availability
Product Details
Product Details
Victron Energy Blue Smart IP22 Charger 12V 30A 3 Output UK – BPC123048022
Perfect Charging for All Your Toys:
Whether it's your car, motorbike, boat, or campervan, the Blue Smart IP22 Charger is here to keep their batteries super happy.
Smart Charging:
This charger uses a special seven-step algorithm to give your battery exactly what it needs. Providing the correct charge at the correct times helps maintain battery health, ensure the battery performs better and lives a longer life.
Revive the 'Dead' Batteries:
Uh-oh! If your battery has run a little too low the Blue Smart IP22 Charger will attempt to wake it up with a gentle, low-power charge. It will then switch back to normal charging when the battery is sufficiently charged.
Stay in Charge, Anywhere:

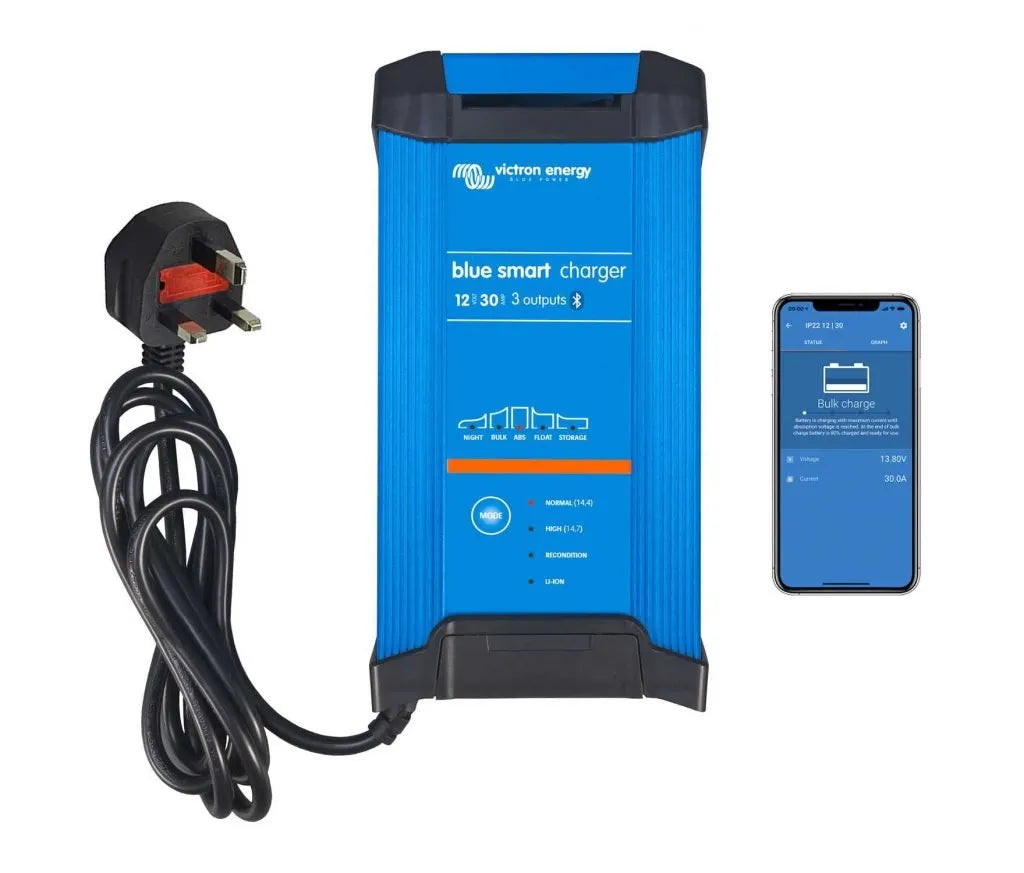

The Blue Smart IP22 Charger has its built-in Bluetooth so you can keep an eye on things from anywhere by connecting to the VictronConnect app using your phone, tablet or laptop.
Easy-peasy Settings:
Don't like complicated stuff? No problem! You can change all the charger settings using the VictronConnect app.
Get the Blue Smart IP22 Charger now and let your batteries be the happiest and healthiest they've ever been!
Please note that the Victron IP22 chargers are not supplied with cable to connect to the battery and this needs to be purchased separately.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: 180 – 265 VAC
- Frequency: 45 – 65 Hz
- Charge Current (Normal Mode): 30 A
- Charge Current (NIGHT or LOW Mode): 15 A
- Efficiency: 93%
- No Load Power Consumption: 0.5 W
- Number of Outputs: 3
- Charge Voltage 'Absorption': Normal: 14.4 V | High: 14.7 V | Li-ion: 14.2 V
- Charge Voltage 'Float': Normal: 13.8 V | High: 13.8 V | Li-ion: 13.5 V
- Charge Voltage 'Storage': Normal: 13.2 V | High: 13.2 V | Li-ion: 13.5 V
Smart Features & Management
- Bluetooth Smart Built-in: Monitor voltage and current, change settings, and update the charger wirelessly via the VictronConnect app.
- Adaptive 6-Stage Algorithm: Features a microprocessor-controlled process including Test, Bulk, Absorption, Recondition, Float, and Storage stages to optimize battery health.
- VE.Smart Networking: Wireless device-to-device communication allowing synchronized parallel charging (up to 10 chargers) and optimized charging using data from external battery sensors.
- Storage Mode: Automatically reduces float voltage to 13.2V after 24 hours of inactivity to minimize gassing and corrosion. Once a week, the voltage is raised back to the absorption level to equalize the battery.
- Lithium-ion Compatible: Includes a dedicated Li-ion charge algorithm.
- Fully Discharged Battery Recovery: Can initiate charging even for batteries discharged to zero volts and reconnect to Li-ion batteries with internal disconnect functions.
- NIGHT and LOW Mode: Reduces output current to 50% and eliminates all fan noise for a totally silent operation. NIGHT mode ends automatically after 8 hours.
Mechanical Specifications
- Enclosure Material: Aluminium (Blue RAL 5012)
- Protection Category: IP22
- Battery Connection: Screw terminals 16 mm² (AWG6)

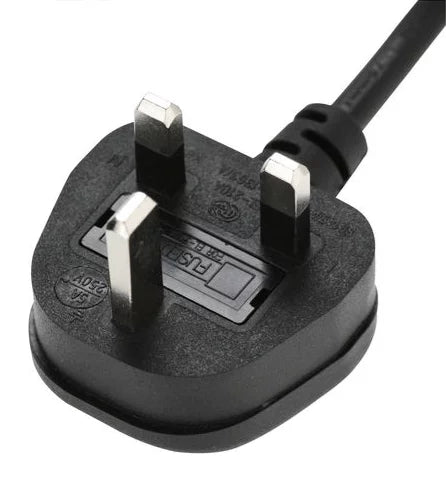

- AC Connection: 1.5-meter cable with BS 1363 (UK) plug
- Weight: 1.3 kg
- Dimensions (h x w x d): 235 x 108 x 65 mm
Environmental & Protection
- Operating Temperature Range: -40 to +60 °C (Full rated output up to 40 °C)
- Humidity: Max 98% non-condensing
- Electronic Protection: Battery reverse polarity (fuse), Output short circuit, and Over-temperature.
- History Log: Tracks historical usage data and provides detailed statistics for the last 40 charge cycles.
Standards & Compliance
- Safety: EN 60335-1, EN 60335-2-29
- Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
- Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
- Automotive: ECE R10-5
Technical Specifications
Technical Specifications
| Protection | IP22 |
|---|
