Victron Battery Charger 12/15- Indoor (IP22) Blue Smart - 3 Output 230V UK
Victron Battery Charger 12/15- Indoor (IP22) Blue Smart - 3 Output 230V UK
SKU:BPC121544022
Brand: Victron
Low stock: 6 left
Couldn't load pickup availability
Product Details
Product Details

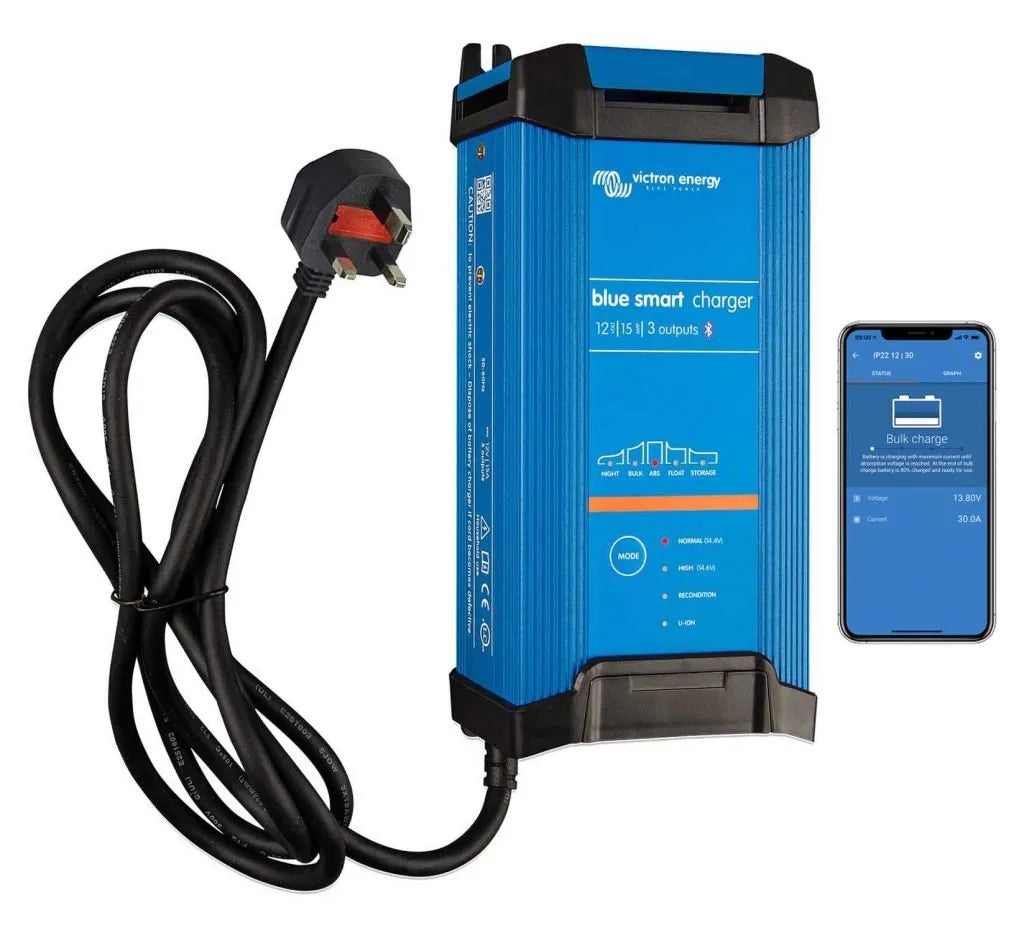

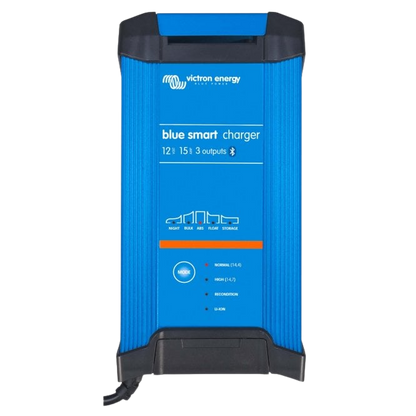

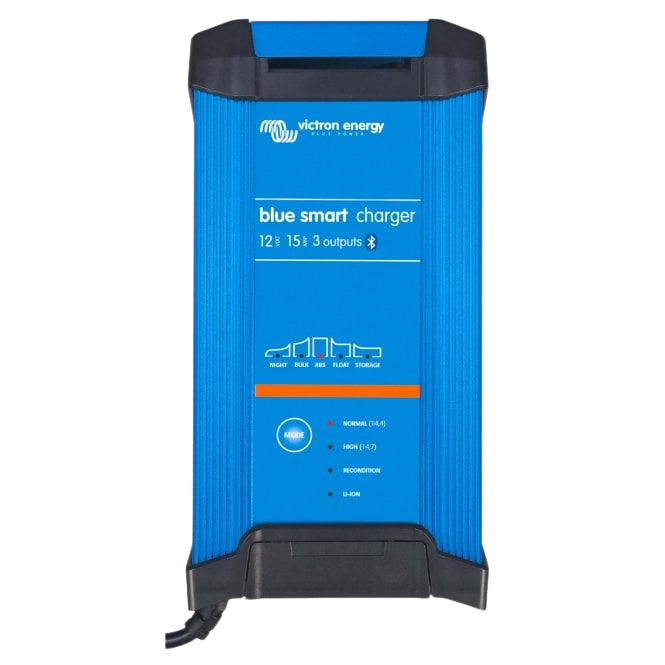

Victron Energy Blue Smart IP22 Charger 12V 15A 3 Output UK – BPC121544022
Perfect Charging for All Your Toys:
Whether it's your car, motorbike, boat, or campervan, the Blue Smart IP22 Charger is here to keep their batteries super happy.
Smart Charging:
This charger uses a special seven-step algorithm to give your battery exactly what it needs. Providing the correct charge at the correct times helps maintain battery health, ensure the battery performs better and lives a longer life.
Revive the 'Dead' Batteries:
Uh-oh! If your battery has run a little too low the Blue Smart IP22 Charger will attempt to wake it up with a gentle, low-power charge. It will then switch back to normal charging when the battery is sufficiently charged.
Stay in Charge, Anywhere:
The Blue Smart IP22 Charger has its built-in Bluetooth so you can keep an eye on things from anywhere by connecting to the VictronConnect app using your phone, tablet or laptop.
Easy-peasy Settings:
Don't like complicated stuff? No problem! You can change all the charger settings using the VictronConnect app.
Get the Blue Smart IP22 Charger now and let your batteries be the happiest and healthiest they've ever been!
Please note that the Victron IP22 chargers are not supplied with cable to connect to the battery and this needs to be purchased separately.
Product Specifications
Product Specifications
Electrical Specifications
- Input Voltage Range: 180 – 265 VAC
- Frequency: 45 – 65 Hz
- Charge Current, Normal Mode: 15 A
- Charge Current, NIGHT or LOW Mode: 7.5 A
- Efficiency: 93%
- No Load Power Consumption: 0.5 W
- Number of Outputs: 3
- Charge Voltage 'Absorption': Normal: 14.4 V | High: 14.7 V | Li-ion: 14.2 V
- Charge Voltage 'Float': Normal: 13.8 V | High: 13.8 V | Li-ion: 13.5 V
- Charge Voltage 'Storage': Normal: 13.2 V | High: 13.2 V | Li-ion: 13.5 V
Charge Algorithm & Features
- Charge Algorithm: 6-stage adaptive (Test – Bulk – Absorption – Recondition – Float – Storage)
- Fully Programmable: Use the Bluetooth app to program Absorption, Float, and Storage voltages, Recondition settings, and temperature compensation. Expert mode allows for adjustment of practically all parameters.
- Storage Mode: Reduces float voltage to 13.2 V after 24 hours of inactivity to minimize gassing and corrosion; performs a weekly absorption charge to equalize the battery.
- Li-ion Compatibility: Features a specific Bulk – Absorption – Float algorithm for Lithium-ion batteries.
- Zero Volt Recovery: Can initiate charging even if the battery has been discharged to zero volts; reconnects to Li-ion batteries with internal disconnect functions.
- NIGHT and LOW Modes: Reduces output current to 50% for totally noiseless operation. NIGHT mode ends automatically after 8 hours.
- Power Supply Function: Can be used as a dedicated power supply.
Connectivity & Monitoring
- Bluetooth Smart Built-in: Monitor voltage and current, change settings, and update firmware wirelessly via the VictronConnect app.
- VE.Smart Networking: Wireless device-to-device communication allowing for synchronized parallel charging (up to 10 chargers) and integration with Smart Battery Sense or BMV monitors for compensated charging.
- Status Indication: 11 LEDs indicate charge state (Bulk, Abs, etc.) and mode settings.
- History Log: Stores a 40-cycle history log with detailed statistics of past charge cycles.
Mechanical & Enclosure
- Dimensions (H x W x D): 235 x 108 x 65 mm
- Weight: 1.3 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Battery Connection: Screw terminals (16 mm² / AWG6)

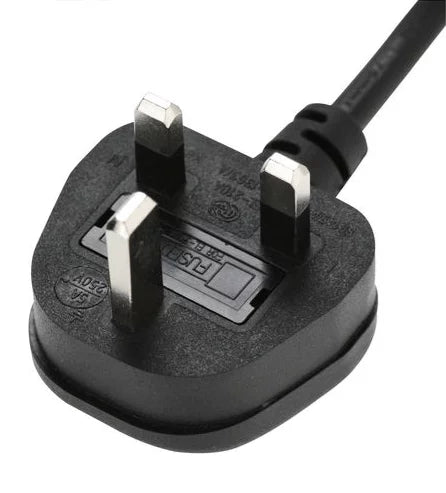

- 230 VAC Connection: 1.5-meter cable with BS 1363 (UK) plug
- Protection Category: IP22
Environmental & Standards
- Operating Temperature Range: -40 to +60 °C (Full rated output up to 40 °C)
- Humidity: Max 98% (non-condensing)
- Integrated Protection: Battery reverse polarity (fuse), Output short circuit, and Over-temperature (current reduces as temperature increases).
- Safety Standards: EN 60335-1, EN 60335-2-29
- Emission/Immunity: EN 55014-1, EN 61000-6-3, EN 61000-3-2, EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
- Automotive: ECE R10-5
