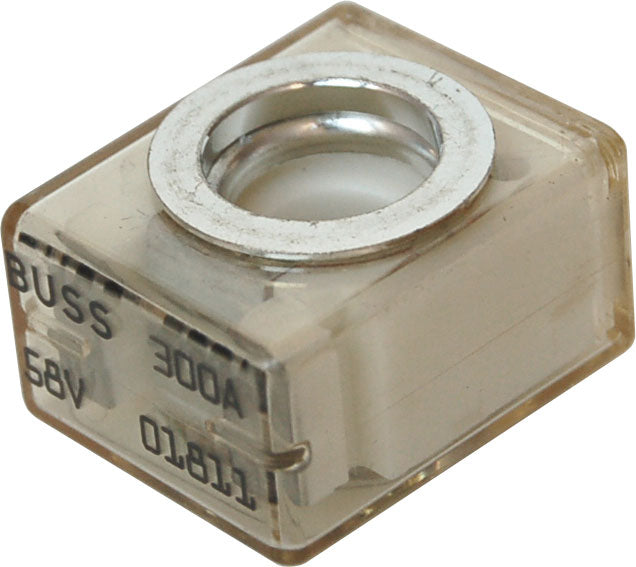

Blue Sea Systems 300A MRBF Terminal Fuse (5190B)
Blue Sea Systems 300A MRBF Terminal Fuse (5190B)
SKU:5190B
Brand: Bluesea
High-Amp Main Protection: Rated for 300A continuous current to protect heavy DC loads, large inverters, and main power feeds.
High Interrupt Capacity: Delivers up to 10,000A interrupt rating to satisfy rigorous ABYC standards for primary battery bank protection.
Ignition Protected Safety: Safe for installation in engine compartments and gas-powered marine environments without sparking hazards.
Clear Inspection Window: Built with a transparent window for instant visual indication of a blown fuse condition.
58V DC Max Rating: Compatible with 12V, 24V, and 48V battery systems, giving you maximum flexibility for marine, RV, and solar builds.
Low stock: 6 left
Regular price
£16.58 GBP
Regular price
Sale price
£16.58 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
Safeguard your vessel or overland rig against catastrophic electrical shorts with the Blue Sea Systems 300A MRBF Terminal Fuse. Engineered specifically for high-amperage main DC circuits, this Marine Rated Battery Fuse (MRBF) provides compact, ultra-reliable protection directly at your battery bank.
High-Interrupt Capacity for Large Battery Banks
Large battery banks can discharge extreme levels of current during a direct short circuit. The 5190B fuse features a high interrupt rating (up to 10,000A @ 14V DC and 2,000A @ 58V DC), meeting strict ABYC requirements for primary DC main circuit protection. Whether you are running a 12V, 24V, or 48V power setup, this 300A fuse ensures your system shuts down safely before damage occurs.
Ignition Protected & Built for Extreme Conditions
Designed for marine engine rooms and gasoline-powered boats, this fuse is fully ignition protected to prevent open sparks from igniting fuel vapors. Its rugged housing stands up to harsh marine and off-road environments, making it an essential safety component for marine vessels, commercial vehicles, and off-grid solar systems.
Instant Visual Troubleshooting
Never guess whether a fuse has blown. The 5190B features a clear window housing that allows for instant visual inspection of the internal fuse element. Combined with color-coded amperage identification, checking and maintaining your battery fuses is fast and effortless.
(Please note: MRBF fuses require the use of a compatible Terminal Fuse Block, such as Blue Sea Systems PN 5191 or PN 2151, and should not be mounted directly onto a battery stud without a fuse block.)
