BCD 402 2 batteries 40A (combiner diode)
BCD 402 2 batteries 40A (combiner diode)
SKU:BCD000402000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

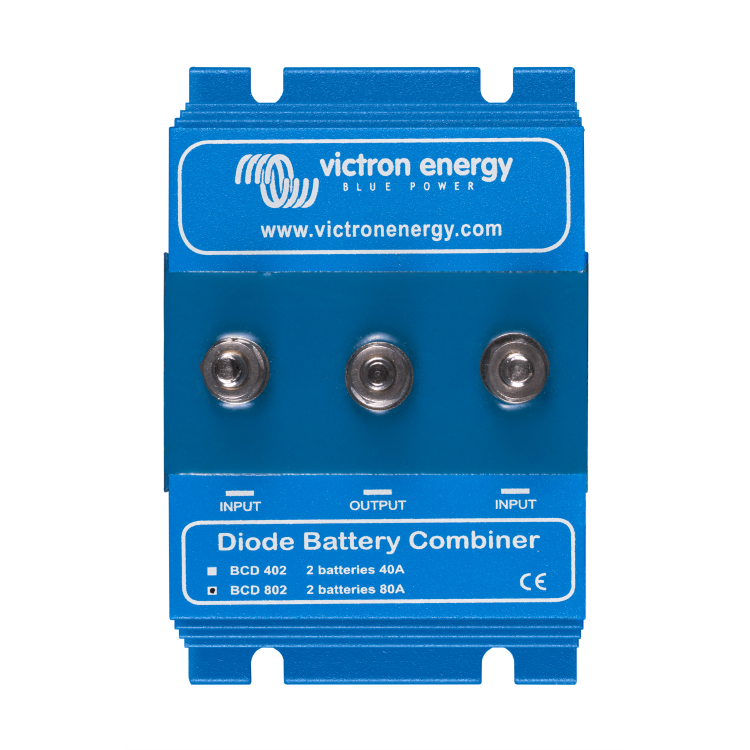

The Victron Energy BCD 402 2 Batteries 40A (Combiner Diode), is a reliable solution designed to ensure continuous DC power to mission-critical equipment by combining two DC power sources. This diode battery combiner allows two batteries to supply power in parallel, ensuring that failure of one source will not interrupt power to the critical load.
It is suitable for both 12V and 24V systems and features M6 bolt connections for secure and efficient installations. The device boasts a maximum continuous current of 40A, making it ideal for various applications.
Product Specifications
Product Specifications
Electrical Specifications
- Maximum Continuous Current: 40 A
- Number of Battery Inputs: 2
- Nominal Battery Voltage: 12 V and 24 V
- Diode Type: Schottky diodes
- Voltage Drop (Low Current): Approximately 0.3 V
- Voltage Drop (Rated Output): Approximately 0.45 V
Mechanical Specifications
- Connection Type: M6 bolts
- Weight: 0.8 kg (1.8 lbs)
- Dimensions (h x w x d): 60 x 120 x 75 mm
- Dimensions (inches): 2.4 x 4.7 x 3.0 inches
Safety & Installation
- Mounting Requirement: The unit may become a hot surface during operation. It must be mounted on a non-flammable surface only.
- Functionality: Enables parallel DC power source configuration to guarantee power to critical loads.
