BatteryProtect 12/24V-220A
BatteryProtect 12/24V-220A
SKU:BPR000220400
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

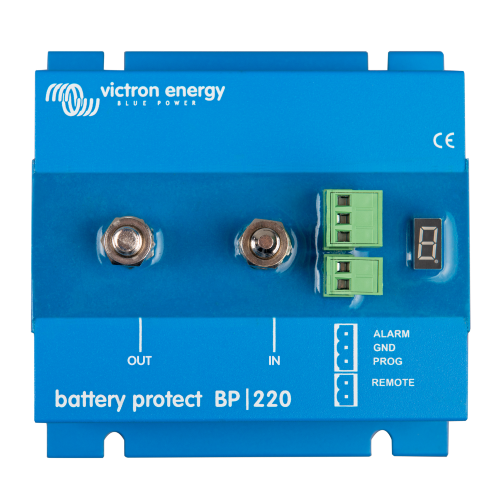

The Victron BatteryProtect 12/24V-220A is designed to prevent excessive battery discharge by automatically disconnecting non-essential loads. This ensures your battery maintains enough power for critical functions, such as engine starting.
This model features a 12/24V auto-ranging capability, allowing it to automatically detect system voltage. It offers a wide voltage range of 6.5 to 35 VDC, making it suitable for various applications, including off-grid systems, marine, and RV setups.
The BatteryProtect can be used as a system on/off switch and includes an on/off input for this purpose. It also features a remote input for additional control options. The device is compact and easy to install, ensuring reliable performance in demanding environments.
Dimensions: 62 x 123 x 120 mm
Weight: 0.8 kg
Product Specifications
Product Specifications
Electrical Specifications
- Maximum Continuous Load Current: 220 A
- Peak Current (during 30 seconds): 600 A
- Operating Voltage Range: 6 – 35 V
- Current Consumption (On): 1.5 mA
- Current Consumption (Off or Low Voltage Shutdown): 0.6 mA
- System Voltage Detection: 12/24 V Auto Ranging
Load & Alarm Management
- Alarm Output Delay: 12 seconds
- Maximum Load on Alarm Output: 50 mA (Short circuit proof)
- Load Disconnect Delay: 90 seconds (Immediate if triggered by the VE.Bus BMS)
- Load Reconnect Delay: 30 seconds
- Default Disengage Threshold: 10.5 V or 21 V
- Default Engage Threshold: 12 V or 24 V
Features & Programming
- Easy Setup: Features a seven-segment display to indicate chosen settings for engaging and disengaging at several different voltages.
- Li-ion Battery Mode: Includes a special setting for control via a VE.Bus BMS. It can also be used as a charge interrupter between a battery charger and a Li-ion battery.
- Ultra-Low Consumption: Critical for Li-ion batteries, especially after a low voltage shutdown.
- Over-Voltage Protection: Disconnects the load whenever DC voltage exceeds 16 V (for 12 V systems) or 32 V (for 24 V systems) to protect sensitive electronics.
- Ignition Proof: MOSFET-based design ensures no sparks, making it safe for specialized environments.
- Delayed Alarm Output: Activated if battery voltage drops below the preset disconnect level for more than 12 seconds; starting the engine will not trigger the alarm.
Mechanical Specifications
- Dimensions (H x W x D): 62 x 123 x 120 mm (2.5 x 4.9 x 4.8 inches)
- Weight: 0.8 kg (1.8 lbs)
- Connection Type: M8
- Mounting Torque: 9 Nm
- IP Rating: Electronics: IP67 (Potted); Connections: IP00
- Operating Temperature Range: -40°C to +40°C at full load (Up to 60% of nominal load at 50°C)
Installation Notes
- Alarm Output: Typically used to activate a buzzer, LED, or relay via an open collector output to the negative (minus) rail.
- Reverse Currents: The BatteryProtect is not designed for reverse currents from charging sources.
- Standard Inclusion: Includes a connector with a preassembled DC minus cable.
