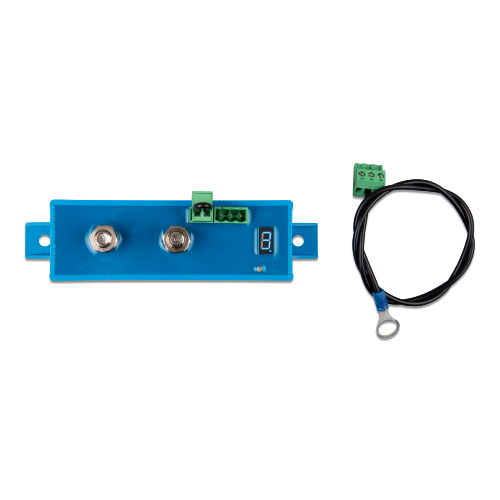

BatteryProtect 12/24V-100A
BatteryProtect 12/24V-100A
SKU:BPR000100400
Brand: Victron
Low stock: 10 left
Couldn't load pickup availability
Product Details
Product Details
The Victron BatteryProtect 12/24V-100A is designed to protect your battery from excessive discharge by disconnecting non-essential loads before the battery voltage drops to a level that could cause damage. This ensures that there is always enough power to start the engine or maintain critical systems.
This model features 12/24V auto-ranging capability, allowing it to automatically detect system voltage. It offers a wide voltage range of 6.5 to 35 VDC, making it suitable for various applications, including off-grid systems, marine, and RV setups.
The BatteryProtect can be used as a system on/off switch and includes an on/off input for this purpose. It also features a remote input for additional control options. The device is compact and easy to install, ensuring reliable performance in demanding environments.
Dimensions: 59 x 42 x 115mm
Weight: 0.6 kg
Product Specifications
Product Specifications
Electrical Specifications
- Maximum Continuous Load Current: 100A
- Peak Current (during 30 seconds): 600A
- Operating Voltage Range: 6 – 35V
- Current Consumption (When on): 1.5 mA
- Current Consumption (When off or low voltage shutdown): 0.6 mA
- Over Voltage Protection: Load is disconnected whenever DC voltage exceeds 16V (for 12V systems) or 32V (for 24V systems)
- Default Disengage Threshold: 10.5V (12V) or 21V (24V)
- Default Engage Threshold: 12V (12V) or 24V (24V)
Thresholds & Timing
- Alarm Output Delay: 12 seconds
- Load Disconnect Delay: 90 seconds (Immediate if triggered by the VE.Bus BMS)
- Load Reconnect Delay: 30 seconds
- Maximum Load on Alarm Output: 50 mA (Short circuit proof)
- Programming: Easy setup via a seven-segment LED display indicating the chosen engage/disengage voltage settings.
Mechanical Specifications
- Dimensions (h x w x d): 59 x 42 x 115 mm (2.4 x 1.7 x 4.6 inches)
- Weight: 0.5 kg (0.6 lbs)
- Connection Type: M8 Stud
- Mounting Torque: 9 Nm
- IP Rating: Electronics: IP67 (potted); Connections: IP00
Environmental Standards
- Operating Temperature Range: Full load: -40°C to +40°C (Up to 60% of nominal load at 50°C)
- Ignition Protection: MOSFET switches ensure no sparks, making it safe for specific environments.
- Ultra-Low Consumption: Critical for Li-ion battery health, especially after a low-voltage shutdown.
