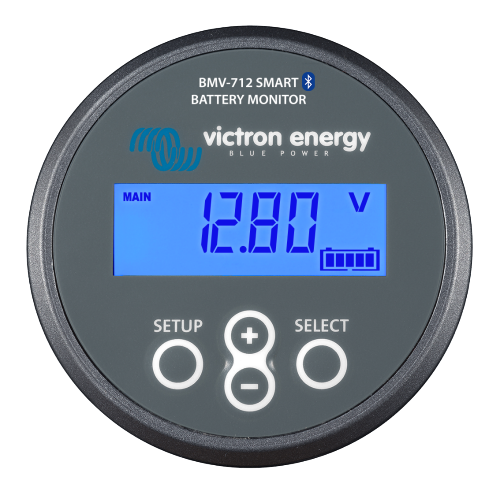

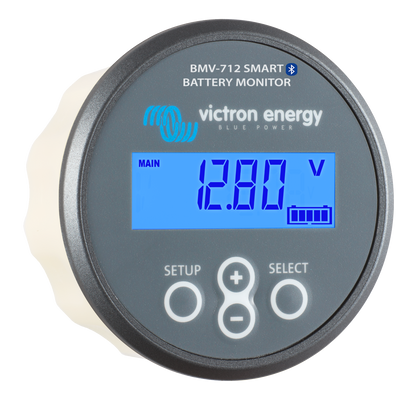

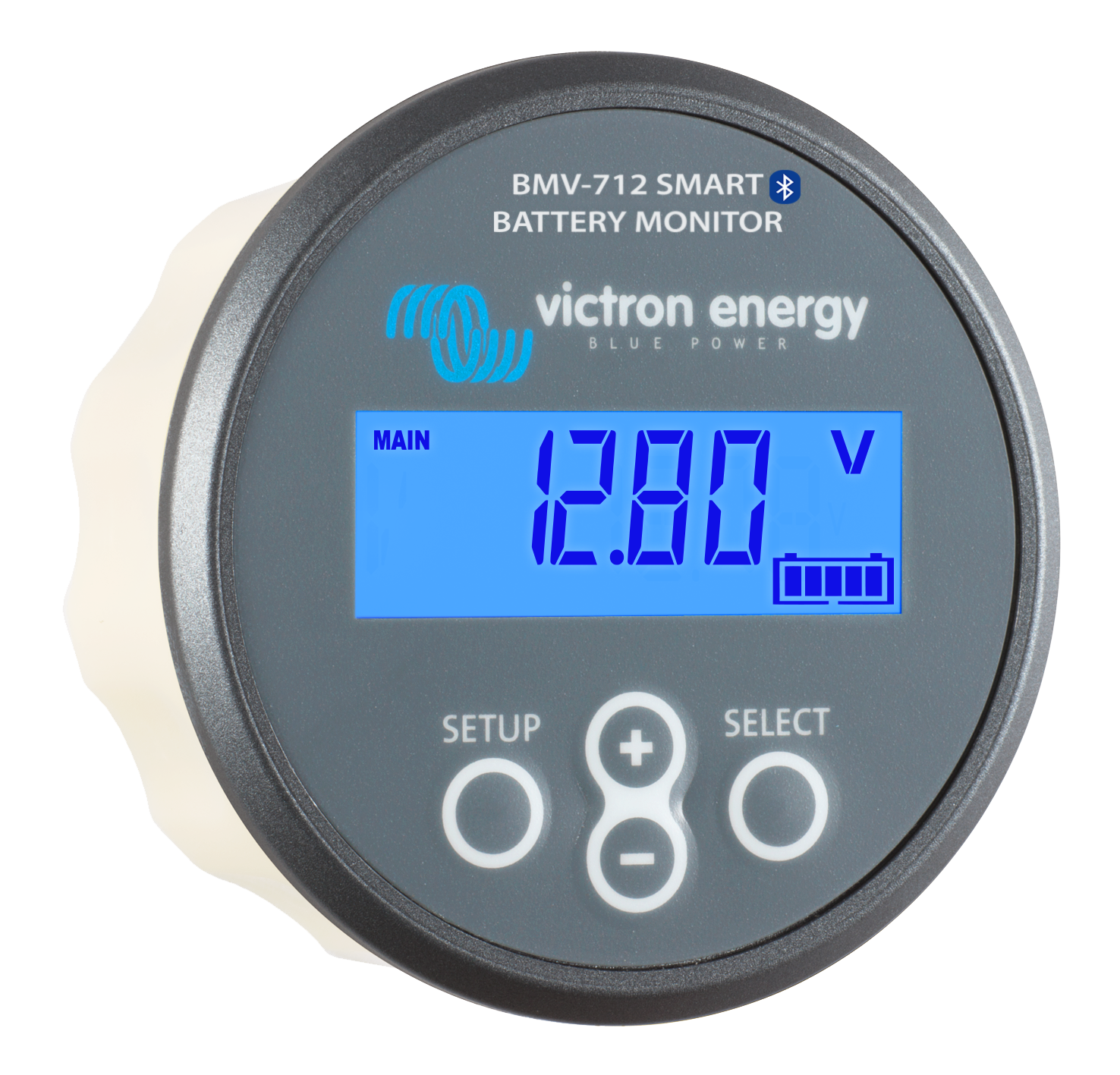

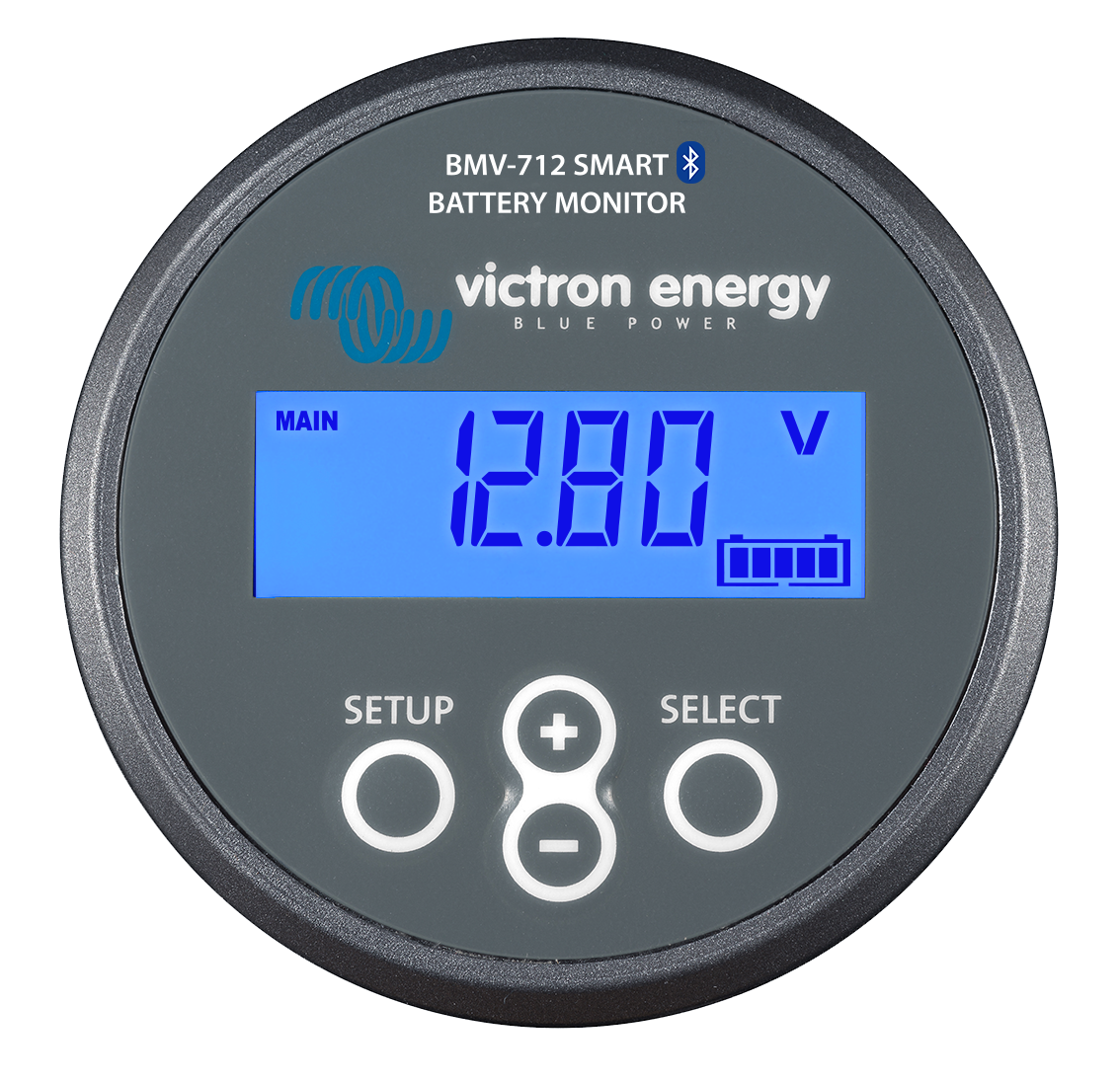

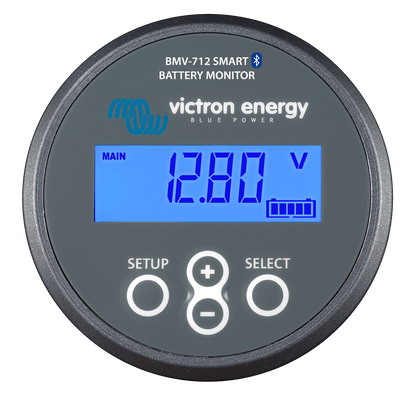

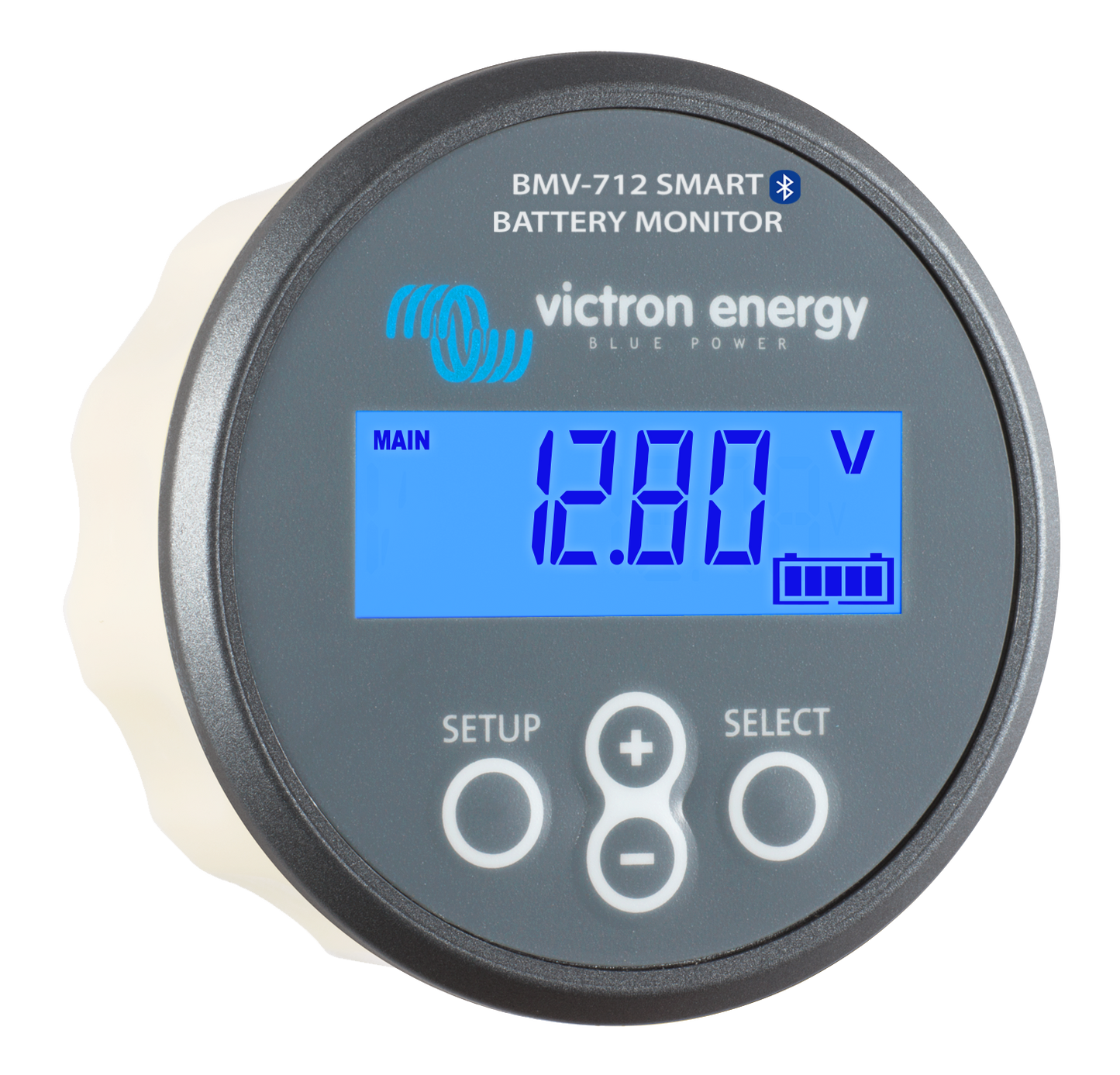

The Victron BMV-712 Smart Battery Monitor provides precise and accessible monitoring of your battery bank, making it ideal for trade and business customers who demand reliable performance. With a wide supply voltage range of 6.5 to 70 V DC, it’s designed to work with a variety of battery systems from DC buses to larger installations. The device draws less than 1 mA when the back-light is off, ensuring minimal impact on your system’s standby power usage.

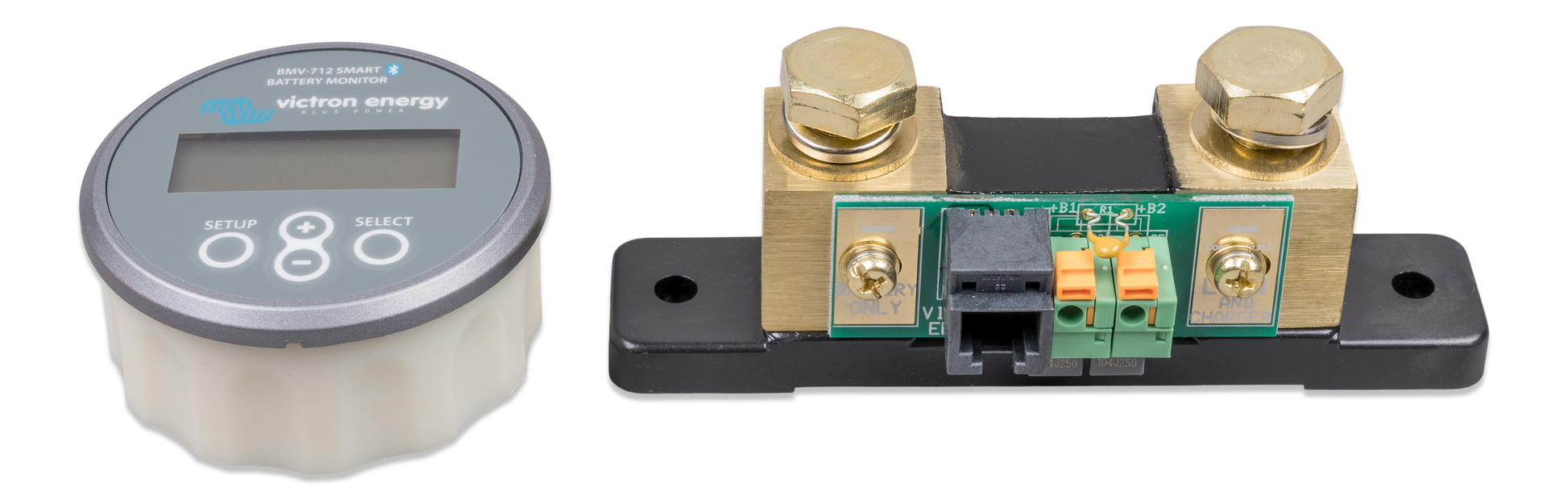

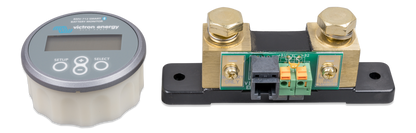

User-friendly installation is built in: it includes a 500 A/50 mV quick-connect shunt and all the necessary cables. The monitor flush mounts easily with a 63 mm front diameter and a compact body depth of just 31 mm, making it suitable for panel dashboards or cabinets. The built-in Bluetooth enables direct connection to mobile devices, allowing you to view battery voltage, current, power, amp-hours consumed and state of charge - plus historical trends, alarms and settings - all through the Victron app.
Advanced features such as the auxiliary input for a second battery, temperature or midpoint voltage measurement broaden the application scope, while the bi-stable relay supports automated actions like load shut-off or generator start-up. The VE.Direct port allows integration into larger system communications, connecting to monitoring or control equipment. With high resolution (10 mA current increments, 0.1 Ah amp-hour accuracy) and compatibility with shunt sizes up to 10,000 A, this monitor delivers professional-grade data for battery system management. Whether you’re retrofitting vehicles, boats, off-grid systems or commercial battery banks, the BMV-712 Smart offers clear insights, robust installation flexibility and connectivity for the modern IoT-enabled energy system.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Supply Voltage Range: 6.5 – 70 VDC
- Current Draw (Backlight Off): < 1 mA (@12V: 0.7 Ah per month; @24V: 0.6 Ah per month)
- Input Voltage Range (Auxiliary Battery): 6.5 – 70 VDC
- Battery Capacity Range: 1 – 9999 Ah
- Operating Temperature Range: -40 to +50 °C (-40 to 120 °F)
- Auxiliary Input: Measures voltage of a second battery, temperature, or midpoint voltage.
- Temperature Measurement Range: -20 to +50 °C

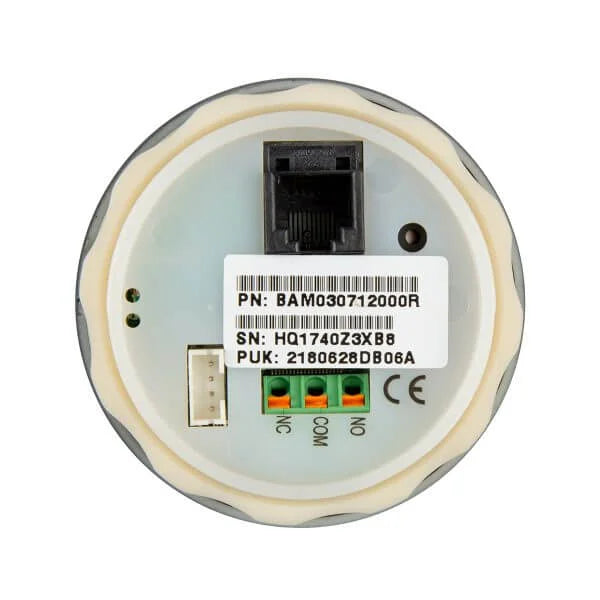

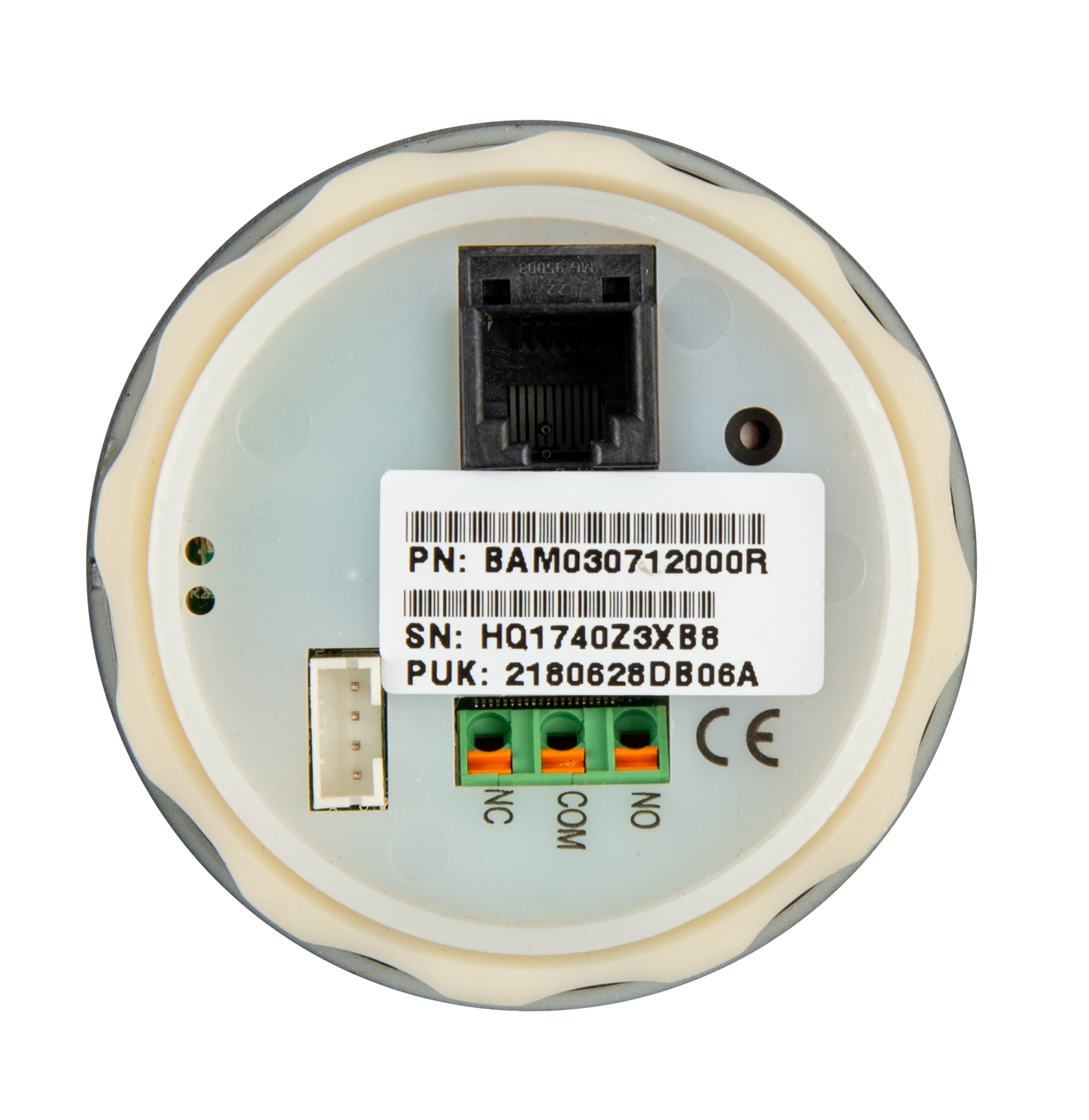

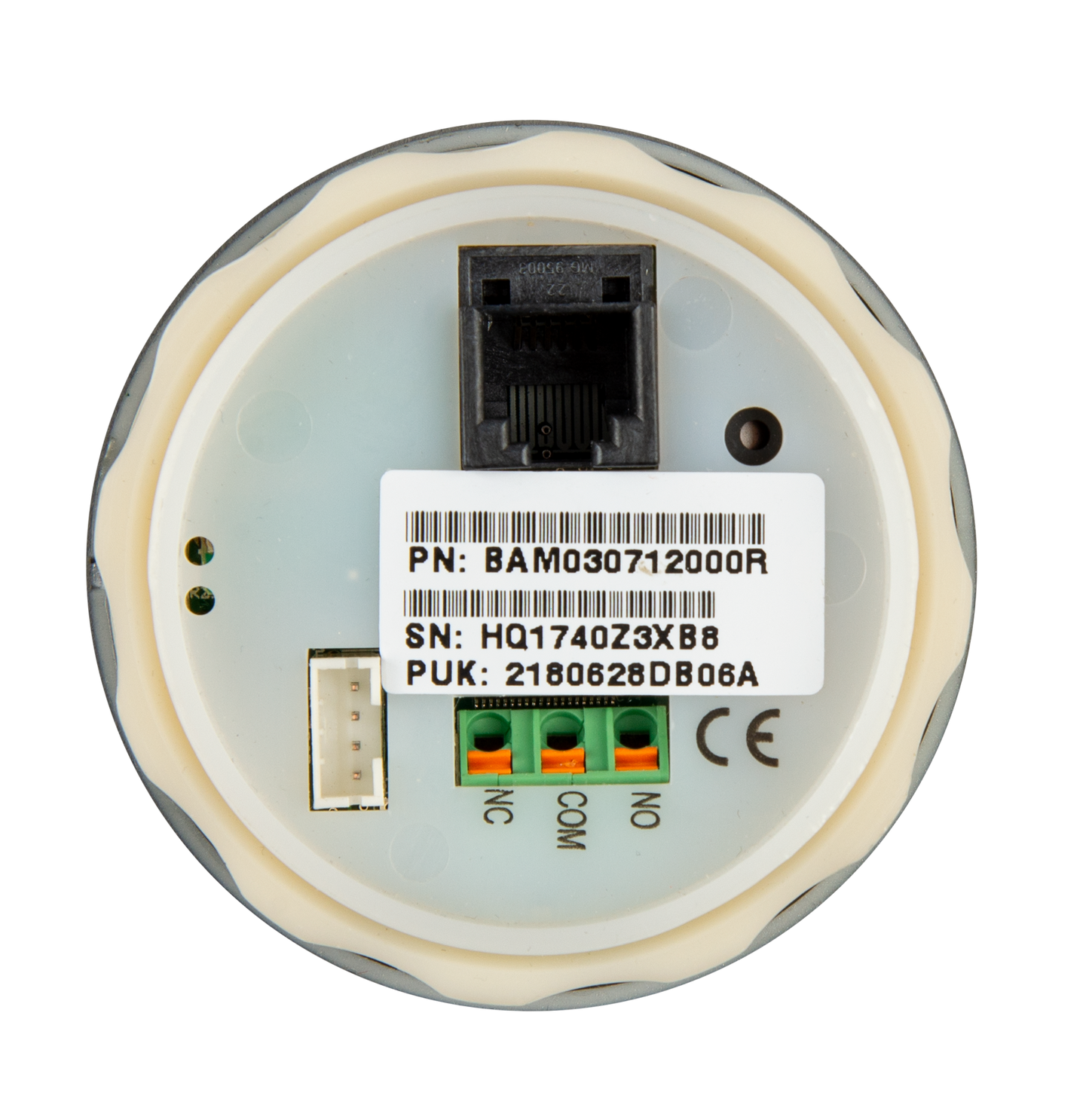

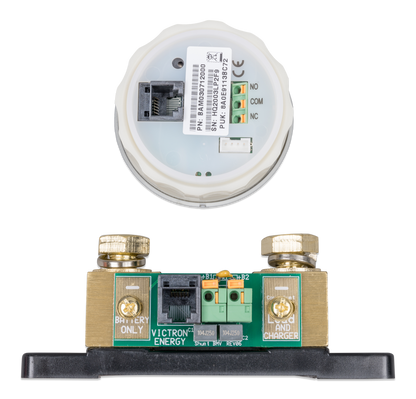

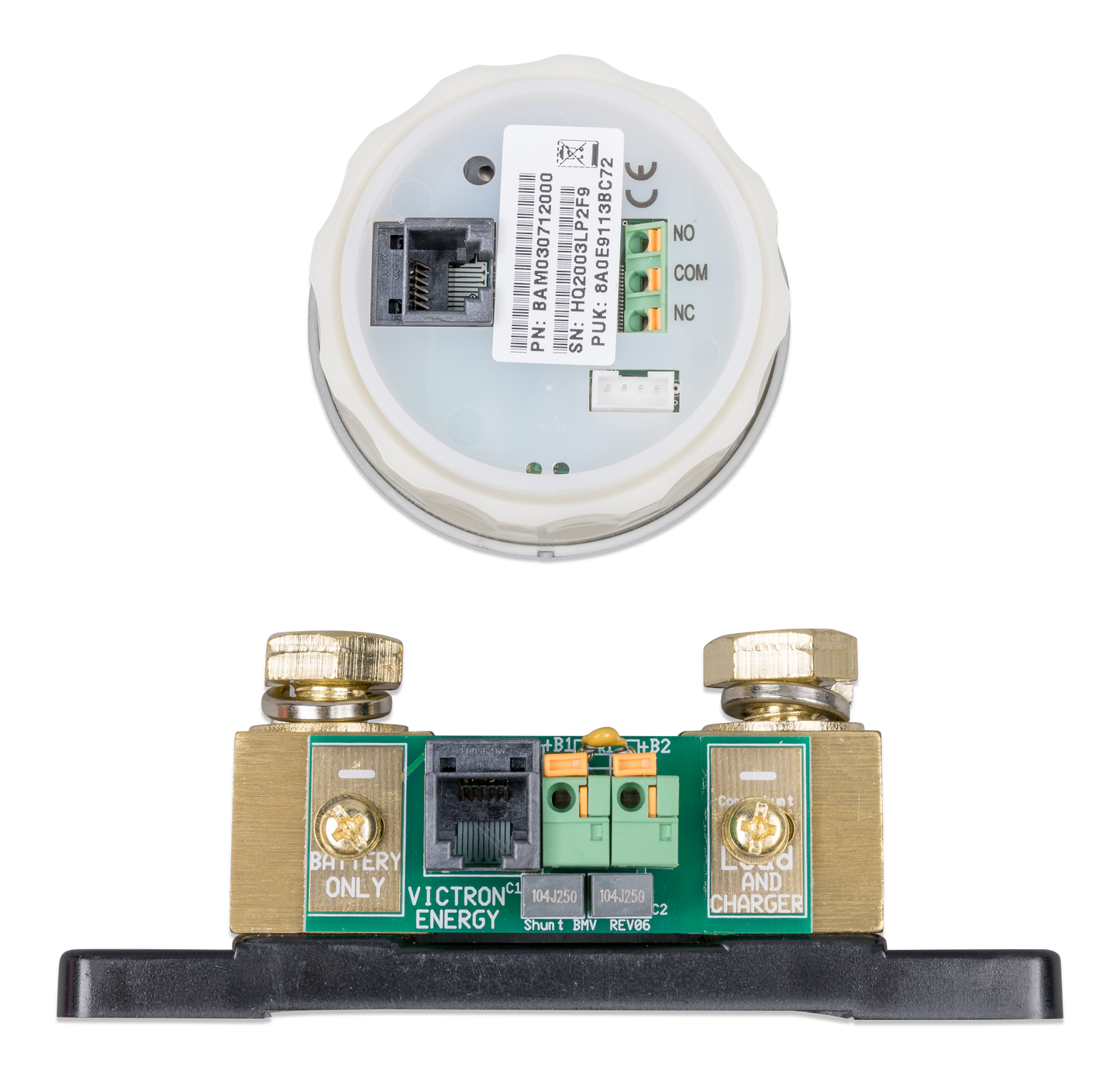

- Bi-stable Alarm Relay: 60V / 1A normally open (function can be inverted); prevents increased current draw during an alarm.
Resolution & Accuracy (with included 500A shunt)
- Current Resolution: ± 0.01 A
- Voltage Resolution: ± 0.01 V
- Amp Hours Resolution: ± 0.1 Ah
- State of Charge (0 – 100%): ± 0.1 %
- Time to Go Resolution: ± 1 min
- Temperature Resolution: ± 1 °C/°F
- Current Measurement Accuracy: ± 0.4 %
- Voltage Measurement Accuracy: ± 0.3 %
Key Features & Connectivity
- Comprehensive Monitoring: Tracks battery voltage, current, power, ampere-hours consumed, and state of charge.
- Time Remaining: Calculated at the current rate of discharge.
- Programmable Alarms: Visual and audible alarms for various battery parameters.
- Programmable Relay: Can be set to turn off non-critical loads or trigger a generator when needed.
- VE.Direct Communication Port: For integration with GX devices (Color Control GX, Venus GX) and computers.
- Stored Trends: Stores up to 46 days of historical data, including battery voltage, current, state of charge, and auxiliary input data.
- Midpoint Voltage Monitoring: Provides warnings for battery bank unbalance to protect expensive series-connected batteries.
Installation & Mechanical Specifications
- Installation Type: Flush mount
- Front Diameter: 63 mm
- Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)
- Body Diameter: 52 mm (2.0 inch)
- Body Depth: 31 mm (1.2 inch)
- Shunt Connection Bolts: M10 (0.3937 inch)
- Protection Category: IP55 (front display; not intended for outdoor use)

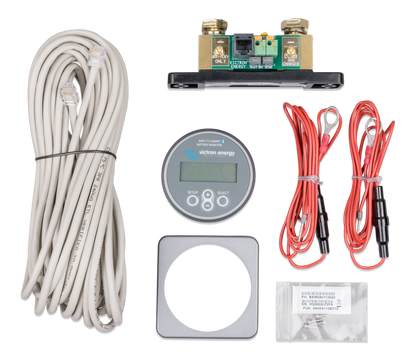

Included Accessories

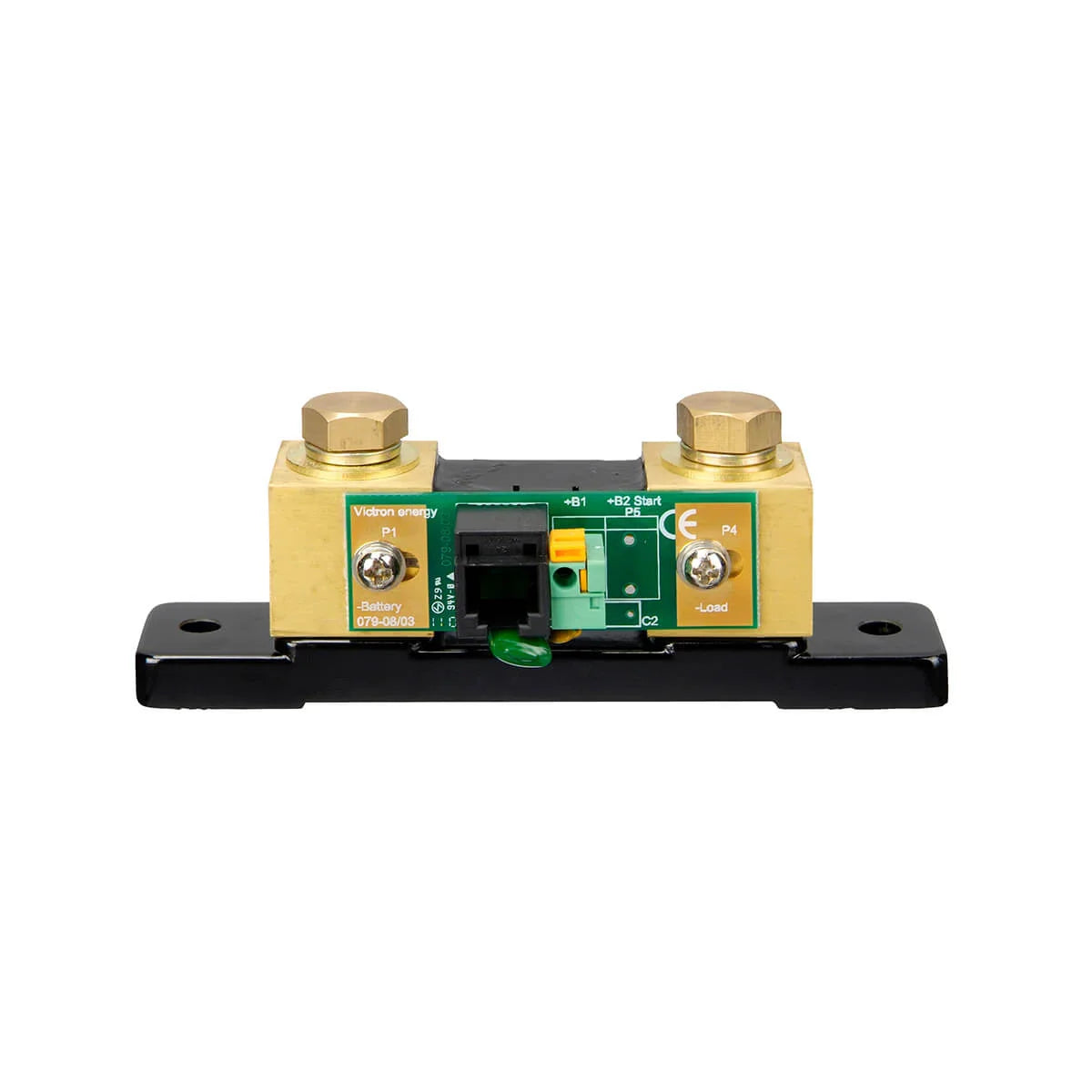

- Shunt: 500 A / 50 mV quick-connect shunt
- UTP Cable: 10-meter 6-core RJ12 cable
- Battery Cable: 2-meter cable with 1A slow-blow fuse for ‘+’ connection
- Mounting Kits: Separate front bezel (square or round appearance), securing ring for rear mounting, and screws for front mounting.
Standards & Compliance
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
- Automotive: ECE R10-4 / EN 50498
